Toro Workman GTX Electric Utility Truck

Model: 07410
Toro

Toro Workman GTX Electric Utility Truck

Model: 07410
Toro

The Workman GTX is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition.

It’s increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class. Available in petrol or electric, the Workman GTX features hundreds of configuration options including front and rear attachments, a flat bed, and a four-seat option. So whether you are setting cups, checking on irrigation, working around campus, or moving people or materials, the Workman GTX has the power and versatility to get the job done right.

The Workman® GTX Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class.

Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

Lifted Models

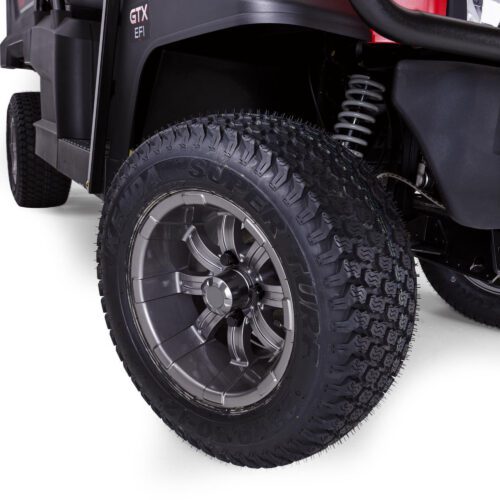

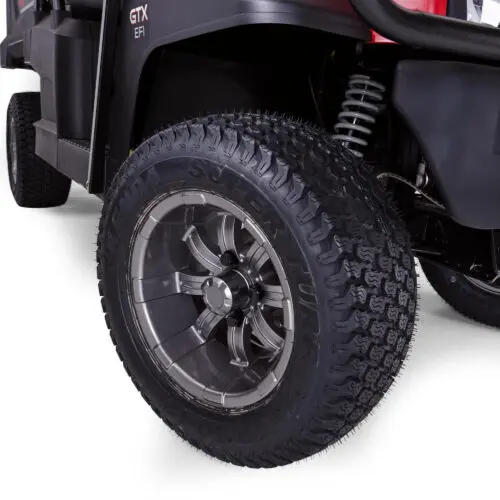

Workman GTX Lifted models boast and additional 3" (7.6 cm) of increased ground clearance, and stylish turf friendly 22" (55.8 cm) turf tires with modern 12" (30.5 cm) aluminum wheels. Available in both EFI Gas and Lithium-Ion powertrain options.

Braking

The Workman GTX features class-exclusive hydraulic disc brakes. Minimal maintenance, no cable adjustment and less pedal force than mechanical cable brakes affords the Workman GTX reliable and consistent stopping power.

Detailing

We didn't think of everything. You did. We just listened. Full access for service. Storage is abundant and a standard USB port makes a dead battery on the job a thing of the past.

Durability

Virtually unbreakable exterior components and a powder coated frame and underbody give the Workman GTX superior durability. How do we know? We pushed it to the limits with the most punishing lab tests and gave it no mercy in real-world challenges with customers. The Workman GTX has been through it all so you can run it hard, day after day with confidence.

Control

An automotive-grade rack and pinion steering system provides more control and lowers steering effort, while operating loaded or empty. This allows operators to focus on the task at hand and nothing else.

Versatility

The Workman GTX is adaptable for any task. Two or four-seat configurations come with bench or bucket seats. Front and rear attachment points for garbage cans, hose reels or walk spreaders free up the bed for more hauling capacity. Steel 4 and 6-foot flat beds are also available.

Suspension

Coil-over shocks on all four tires delivers greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue. We also made it the only vehicle in its class to feature a split frame to further increase ride comfort.

Comfort

The deluxe bench seat features Elastomeric Vibration Control (ELC) for additional comfort in rough terrain. The GTX also features an ergonomically designed steering wheel and intuitive controls that make operation simple and easy.

Power

Whether you choose the EFI gasoline, Lithium-Ion Battery, or Lead-Acid Battery electric Workman GTX, power and performance come standard. An improved power to weight ratio boosts payload capacity and productivity. The Workman GTX is the smarter, more efficient way to get the job done!

Specifications

Battery Eight Trojan® T-125 Advanced Deep Cycle 6V batteries featuring a single port fill system and water level indicators.
Brakes - Front Hydraulic Disc
Brakes - Rear Hydraulic disc
Cargo Capacity 800 lbs. (363 kg)
Charger On-board high efficiency 1kW smart charger with 85-265VAC global input, temperature controlled, sealed & waterproof, remote indicator viewable at charge port
Controller 540 amps max with regenerative motor braking, roll-away protection, thermal cutback, sealed/waterproof, status light, and three power modes
Crated Model No
Drivetrain Battery
Electric Motor Brushless high-torque AC induction motor with 5.0kW continuous power
Fuel / Power Source Battery
Gauges/Instrumentation Hour meter, battery level indicator, USB port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder, and three in-dash storage compartments.
Ground Clearance Front: 9" (22.8 cm) Rear: 6" (15.2 cm)
Height 2-Seat with Bed: 50.2" (127 cm) 4-Seat with Bed: 50.2" (127 cm) 2-Seat with 6' Flat Bed: 50.2" (127 cm)
Horn Standard
Inside Turning Radius 60.25" (153 cm)
Lights Standard LED Headlights
Optional Accessories Canopy, windshield, flat-bed, cargo box, storage box, trash can mount, bed racking, brush guard, brake/tail/signal lights, ROPS, cab, range cage
Outside Turning Radius 20.7' (6.3 m)
Power Train (Engine Description) 48V brushless AC induction drive
Product Length 2-Seat with Bed: 119" (302 cm) 4-Seat with Bed: 144" (366 cm) 2-Seat with 6' Flat Bed: 156" (396 cm)
Rear Draw Bar Standard
Roll-Over Protection (ROPS) Optional
Starting Pedal Start
Steering System Description Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75" (35 cm) diameter.
Suspension - Front Modified MacPherson Strut, adjustable coil over shocks
Suspension - Rear Articulating swing arm, adjustable coil over shocks
Tires - Front 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Tires - Rear 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity 1,200 lbs. (544 kg)
Towing Capacity 1,500 lbs. (680 kg)
Traction Drive (System) 2WD
Vehicle Configuration Standard
Vehicle Type Light Duty
Weight 2-Seat with Bed: 1,395 lbs. (633 kg) 4-Seat with Bed: 1,670 lbs. (757 kg) 2-Seat with 6' Flat Bed: 1,784 lbs. (809 kg)
Wheelbase 2-Seat with Bed: 77.8" (197 cm) 4-Seat with Bed: 114" (290 cm) 2-Seat with 6' Flat Bed: 114" (290 cm)
