Toro Workman HDX-D 4-Wheel Drive Utility Vehicle

Name: Parkland Products
Price range: $$

Model: 07387

Toro Workman HDX-D 4-Wheel Drive Utility Vehicle

Model: 07387

You can’t get more hauling capacity, versatility, or bang for your utility vehicle buck than you can with a Toro Heavy-Duty Workman. With an I-beam axle that’s seven times stronger than a tubular design, a bed that hauls up to 3,352 pounds (1,520 kg), and an electronic fuel-injected engine that makes every gallon go farther, it’s the highest performing utility vehicle on the market today.

Comfortable ride and easy to reach controls.
Robust suspension provides ride quality that reduces fatigue and increases operator comfort.
Extremely versatile with many accessories to enhance the Workman HD’s capabilities.
4 wheel hydraulic disc brakes provide greater stopping power and easier servicing than traditional drum brakes.
A specially designed composite bumper with seven (7) energy absorbing crush zone cones protects the Workman to withstand impacts up to 4.8 km/h under full load with no permanent deformation.

Fleet Finance & Leasing Options Talk to us today 0800 807 333

Enquire Call 0800 807 333

Talk to a rep Find a Store

Videos

Features

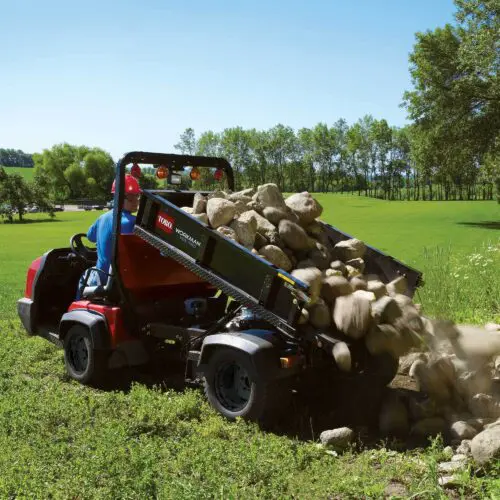

Payload Capacity

The Workman HDX line of vehicles provides total payload capacity up to 3352 lbs.

Ride Quality

Independent front suspension consisting of two double A-frames with opposing dual coil springs and dual shock absorbers provides 5.75 in. (14.6 cm) of front suspension travel. Rear suspension design consists of a DeDion rear axle and dual independent leaf springs and shock absorbers to provide 3 in. (7.6 cm) of rear travel. Benefits include operator comfort, safety, reduced operator fatigue, productivity and efficiency gains.

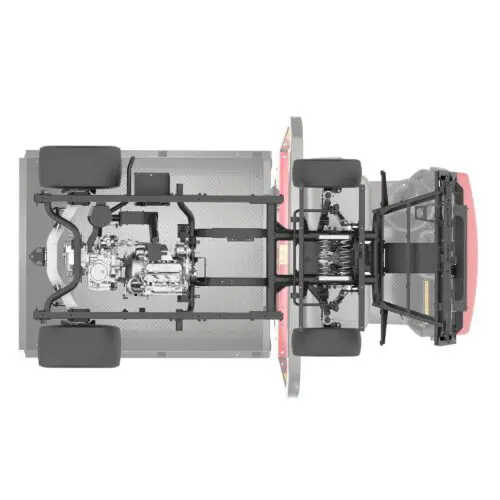

Tough Frames

The Workman® front space frame design is multi-dimensional or truss like, providing superior strength and torsional rigidity in rough terrain. The rear frame uses a C-channel design to provide superior strength in hauling heavy loads.

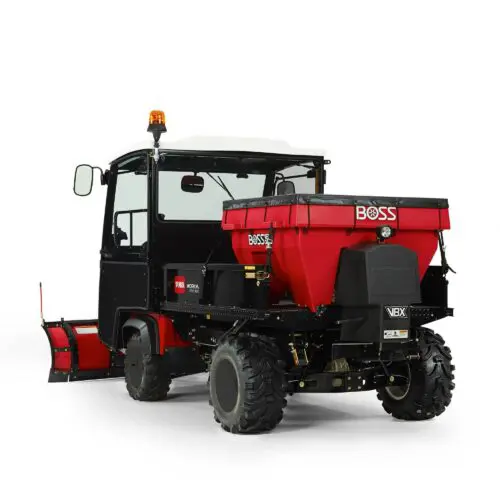

Versatility

The Workman® can perform a variety of work tasks beyond hauling and towing with attachments such as a 200 Gallon (757 Litre) Sprayer, Vicon® Spreader, 1/3 Vertical Platform Lift, Patriot® Aerial Lift and Topdressers. Numerous accessories enhance versatility including Canopy, Folding Windshield, Various Light Kits, Deluxe Hard Cab, Various Flatbeds, 4-Post ROPS, Automatic Tailgate Release, Rear PTO and others.

DeDion Rear Axle

The DeDion rear axle design is an automotive technology which isolates the engine, transmission and main frame from all load forces, eliminating stress to these main components. The I-beam design provides superior ability to handle vertical loading, exactly the reason I-beams are used extensively in the construction industry.

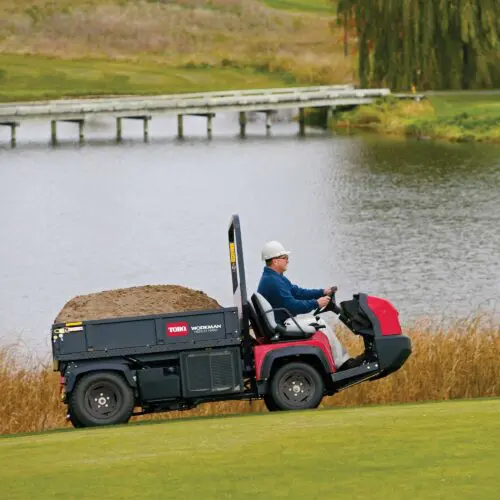

Four Wheel Drive Traction

Automatic, on demand, bi-directional four wheel drive traction system provides additional traction when needed without operator action.

High Performance Engine

Liquid cooled diesel engine provides excellent low end torque and is EPA Tier 4 emission compliant and B20 biodiesel ready.

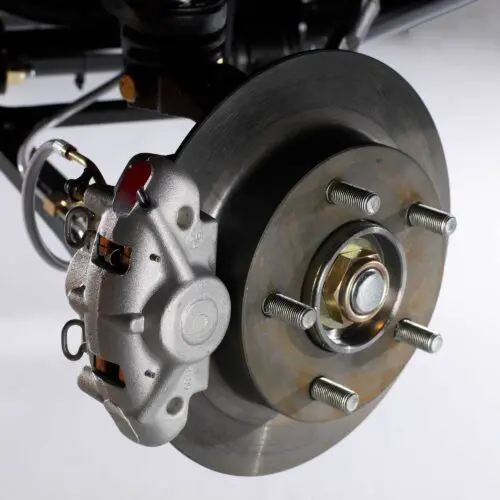

Disc Brakes

4 wheel hydraulic disc brakes provide greater stopping power and easier servicing than traditional drum brakes.

Front Impact Bumper

A specially designed composite bumper with seven (7) energy absorbing crush zone cones protects the Workman to withstand impacts up to 3 mph (4.8 km/h) under full load with no permanent deformation.

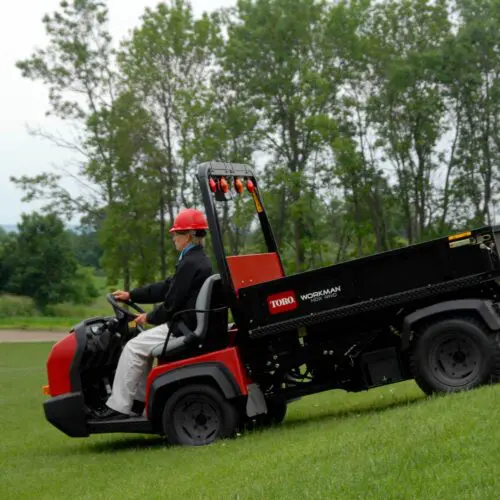

Operator Comfort

In addition to excellent ride quality, the HD Series offers an easy to read instrumentation package, enhanced leg room, a radio / beverage holder, easy to reach controls and a deep storage box.

Specifications

Air Filter	Remote mounted, heavy-duty 2-stage air cleaner with evacuator valve
Alternator	60 amps with electronic regulator
Battery	12V
Brakes - Front	Hydraulic Disc
Brakes - Rear	Hydraulic disc
Cargo Bed	Yes
Cargo Capacity	2,785 lbs. (1266 kg)
Clutch	7.5" (19 cm) clutch and pressure plate
Cooling System	Liquid Cooled
Crated Model	No
Differential Lock	Manual engage rear differential lock
Displacement	950cc (58 ci)
Drivetrain	Diesel
Frame	Steel space frame front frame and C-channel rear frame.
Fuel / Power Source	Diesel
Fuel Capacity	6 gallons (22.7 liters)
Fuel Filter	Combination fuel filter/water separator with a 30 micron filtration and 50 mesh suction screen in tank.
Fuel Pump	Electronic pump
Gauges/Instrumentation	Fuel and coolant temperature gauges. Hour meter. Oil pressure, check engine and battery charge indicator lights. Tachometer and speedometer.
Ground Clearance	7" (18 cm)
Height	Overall Top of ROPS: 75.8" (192.5 cm)
High Speed Lockout	Interlock key switch that prevents engine from running in 3rd gear. Limits engine RPM to 2,200 in 3rd gear high range (HDX gas).
Horn	Standard
Hydraulics	4 gpm (15 lpm) gear pump provides hydraulic flow for power steering and lift in series. Lift control valve with quick disconnects for dual lift cylinders or for attachments when quick disconnects are switched. 8 quart total capacity.
Inside Turning Radius	100" (254 cm)

Interlock	To start engine, clutch pedal must be depressed and remote hydraulic lever must be in neutral position. If installed, high flow hydraulics and rear PTO must be disengaged/switched off
Outside Turning Radius	300" (762 cm)
Overall Width	64.7" (164.3 cm)
Power Rating	23.3 hp (17.4 kW)
Power Steering	Yes
Power Train (Engine Description)	Kubota® 902D, 3-cylinder, inline vertical, 4-cycle, liquid cooled, counterbalanced diesel engine. Full pressure lubrication with spin-on oil filter. Meets EPA Tier IV compliance. Biodiesel ready for use up to B-20.
Product Length	Overall w/o Bed: 127.6" (324 cm) Overall w/ Full Bed: 130" (330 cm)
Steering System Description	Hydraulic power steering with steering valve coupled to hydraulic cylinder with thru shaft. Maximum steering angle is 70 degrees on 2WD and 50 degrees on 4WD.
Rear Draw Bar	Standard
Rear Draw Bar Description	Steel hitch bracket bolted to rear DeDion axle. Mounting plate provides mounting hole for pin or ball hitch and incorporates two safety chain mounting holes. Maximum tongue weight of 600 lbs (272 kg). Trailers over 1500 lbs require trailer brakes.
Steering System Description	Hydraulic power steering with steering valve coupled to hydraulic cylinder with thru shaft. Maximum steering angle is 70 degrees on 2WD and 50 degrees on 4WD.
Suspension - Front	Independent system with dual "A" frame control arms, dual coil springs and dual shock absorbers with anti-sway bar.
Suspension - Rear	DeDion rear axle (weight carrying axle) suspension independent of transaxle with dual leaf springs and dual shock absorbers.
Suspension Travel - Front	5.75" (14.6 cm)
Suspension Travel - Rear	3" (7.6 cm)
Tires - Front	20" x 9" - 12", 6-ply, Turf Tread
Tires - Rear	24" x 12" - 12", 6-ply, Turf Tire
Total Vehicle Capacity	3,185 lbs. (1448 kg)
Towing Capacity	3,500 lbs. (1587 kg)
Traction Drive	Fully automatic on-demand, bi-directional system. Uses dual bi-directional clutches. In event of rear tire slippage, clutches transmit power proportionally to front wheel with highest traction.
Traction Drive (System)	4WD
Transmission	Rear transaxle directly connected to engine, twin axle drive. 3-speed synchromesh (forward speeds only), h-shift pattern with high-low range providing 6 forward speeds and 2 in reverse. Transmission housing doubles as hydraulic reservoir with outlet screen and external filter.
Vehicle Configuration	Standard
Vehicle Type	Heavy Duty
Weight	w/o Fuel: 2,015 lbs. (916 kg)
