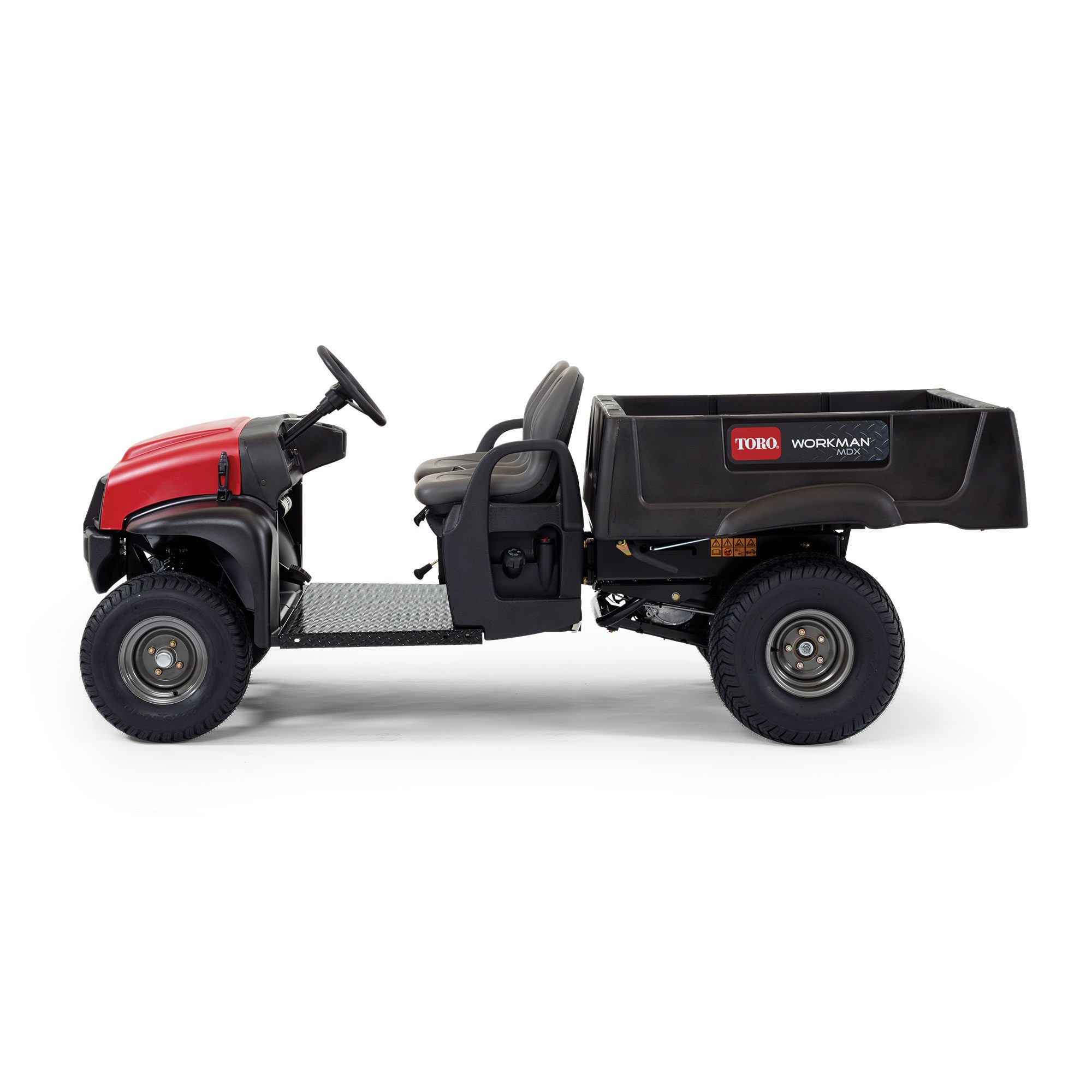

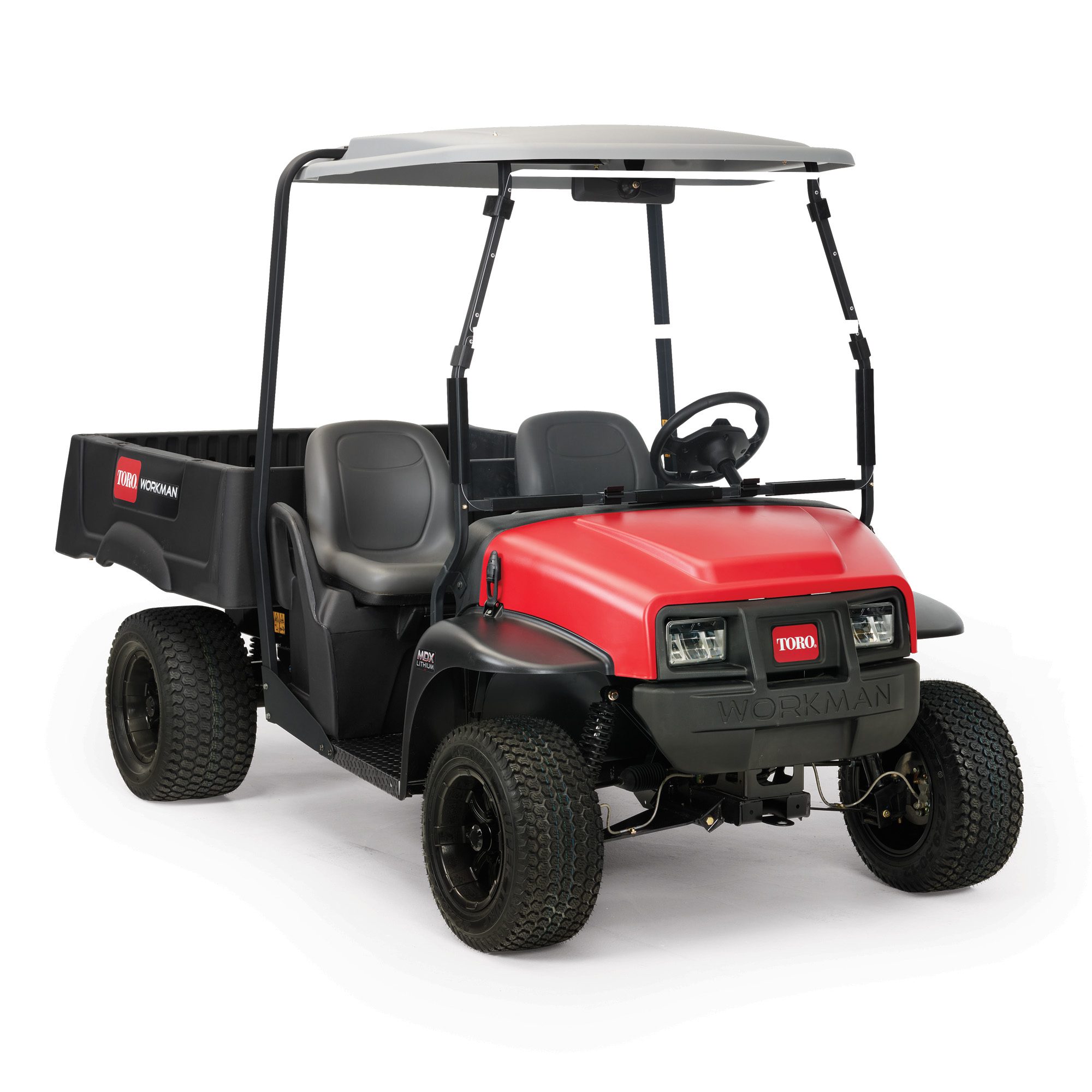

Toro Workman MDX-D Diesel Utility Vehicle

Model: 07236TC
Toro

Toro Workman MDX-D Diesel Utility Vehicle

Model: 07236TC
Toro

The Workman® MDX with SRQTM combines a coil-over shock absorber suspension design with an Active In-FrameTM twister joint. These features deliver superior ride quality for optimum operator comfort and control. The hefty payload capacity and four-wheel hydraulic brakes enhanced productivity to tackle the toughest jobs. The Workman MDX has the power and versatility to help you do more, with more!

The Workman MDX Series features a durable plastic cargo bed with a load capacity of 1650 lbs (750 kg).

The Workman MDX Series is also commonly known as: WMMDX, WM MDX, WorkmanMDX series, Toro work man, Work man MDX series

Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

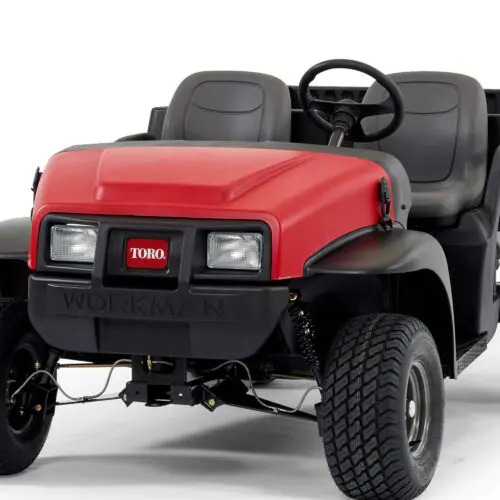

Rugged Body Styling

Rugged injection-molded body styling. Latch opened hood design for ease of access for technicians.

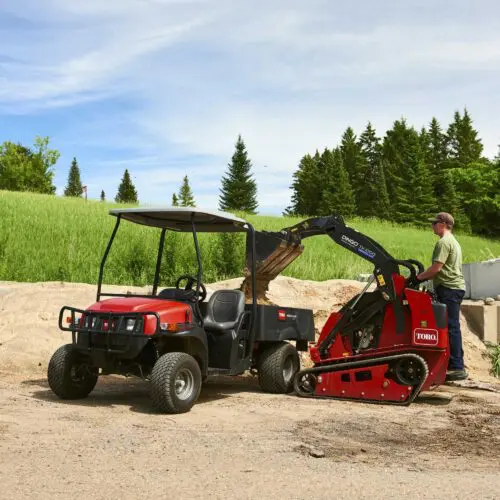

Payload Capacity

The Workman® MDX Series utility vehicles have the highest total payload capacities in their class for maximum productivity. Get more jobs done in less time. MDX: 1,650 lbs. (748 kg)

Active In-Frame™ Twister Joint

The innovative Active In-Frame™ Twister Joint allows each axle to react independently to the terrain. The result is the smoothest ride over the most undulating surfaces. All four wheels maintain constant contact with the ground for better traction, stability and less potential turf damage.

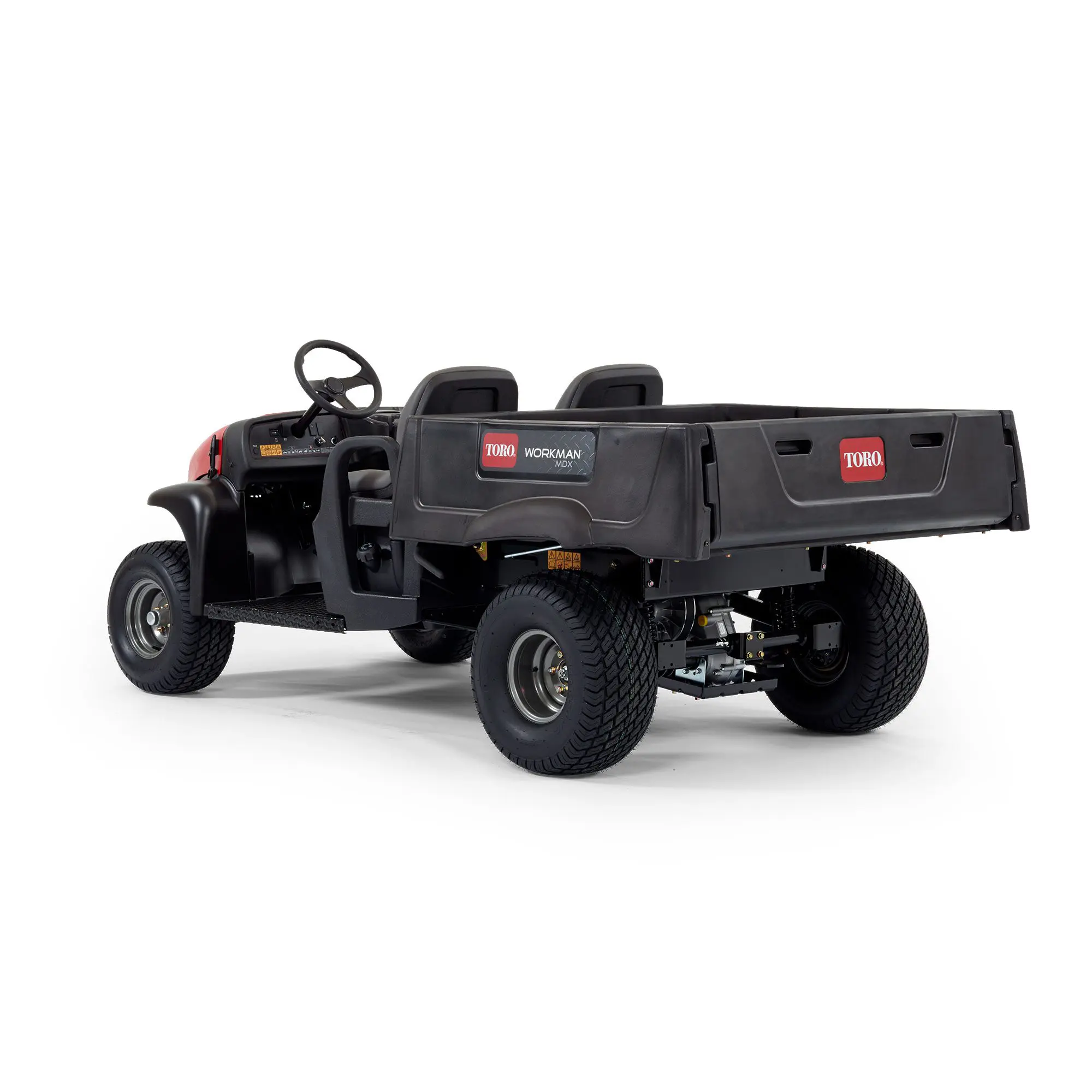

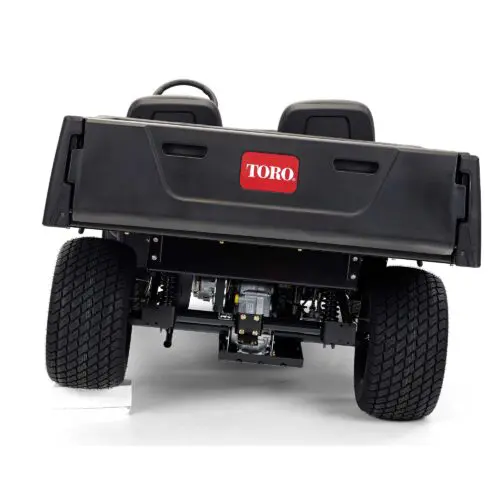

Durable Plastic Cargo Bed

Double-walled composite bed can withstand the elements and heavy loads, and won't rust or dent.

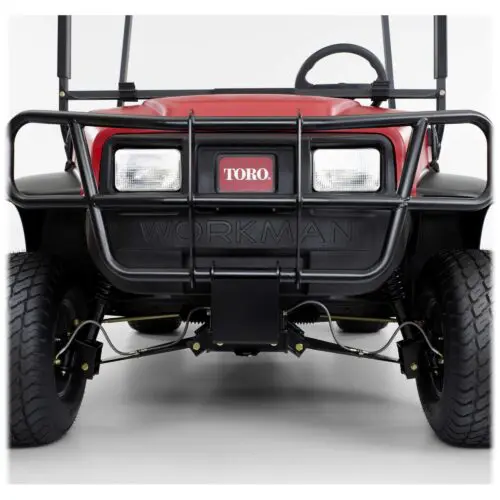

SRQ™ - Superior Ride Quality

SRQ™ combines a coil-over shock absorber suspension design with the Active In-Frame™ twister joint. Front suspension is Independent A-Frame design with coil-over shock absorbers. Rear suspension is Swing Arm design with coil-over shock absorbers. Benefits include operator comfort, safety, reduced operator fatigue, and productivity and efficiency gains.

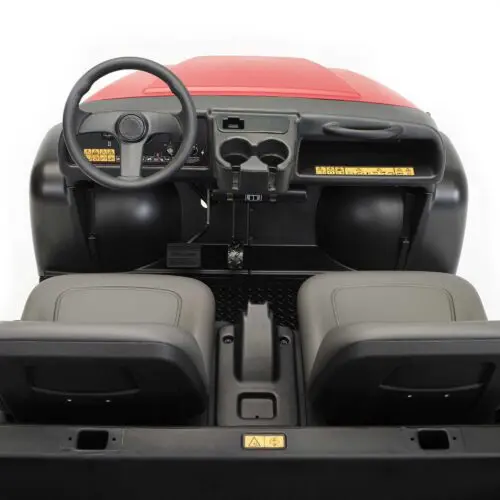

Operator/Passenger Platform

Extended front frame for additional leg room to enhance SRQ™ benefits of operator and passenger comfort.

Optional Accessories and Attachments

Canopy, Solid and Folding Windshield, Electric Bed Lift, Brush Guard, Heavy Duty Bumper, ROPS, Brake/Tail/Signal Light Kit, Deluxe Hard Cab, Heavy Duty Tow Hitch, Rear Lift Kit, Snow Plow

Specifications

Brakes - Front Hydraulic Disc
Brakes - Rear Hydraulic drum
Cargo Capacity 1,250 lbs. (567 kg)
Cooling System Liquid Cooled
Displacement 600cc (36.6 ci)
Drivetrain / Fuel / Power Source Diesel
Frame Welded steel channel and tube in body construction. Frame surfaces are dipped e-coat. Body constructed of dent and corrosion resistant polypropylene.
Fuel Capacity 6.5 gallons (24.6 liters)
Gauges/Instrumentation Hour meter, oil pressure, glow plug, coolant temperature, battery charge indicator lights and accessory power port. Dash has 2 cup holders, radio holder and glove box storage.
Ground Clearance Front: 10" (25.4 cm) Rear: 7" (18 cm)
Height Cab Installed: 79.2" (201.1 cm) Canopy Installed: 79.5" (201.9 cm)
Horn Standard
Lights Standard LED Headlights
Loader Arms Yes
Optional Accessories Canopy, fold-down windshield, electric bed lift, brush guard, ROPS, brake/tail/signal light kit, receiver hitch, BOSS plow
Power Steering No
Power Train (Engine Description) 600 cc, liquid-cooled, 2-cylinder, Kubota® diesel. Biodiesel ready for use up to B-20 (20% biodiesel and 80% petroleum blend).
Product Length 121.1" (307.5 cm)
Rear Draw Bar Optional
Roll-Over Protection (ROPS) Optional
Seat Bucket Seat
Bucket Seat Pedal or Key Start
Steering System Description Rack and pinion system with ergonomically positioned non-adjustable column. Steering wheel has 3 turns lock-to-lock and 17.2 to 1 ratio with a 13.75" (34.93 cm) diameter wheel.
Suspension - Front Modified MacPherson Strut design with coil over shocks.
Suspension - Rear Trailing arm with coil over shock absorbers.
Tires - Front 22" x 9.5" - 10", 4-ply
Tires - Rear 24" x 12" - 10", 4-ply. Optional All-Terrain Tire
Total Vehicle Capacity 1,650 lbs. (750 kg)
Towing Capacity 1,200 lbs. (544 kg)
Traction Drive (System) 2WD
Wheelbase 80.4" (204.2 cm)
