Toro TRX 300 Walk Behind Trencher
The TRX 300 walk-behind trencher is now more efficient and powerful than ever. TORO improved its lineup with two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.
- 26.5 hp (19.8 kW) @ 3,600 rpm Kohler® ECV749, EFI
- New Intelli-Trench™ technology
- Groundbreaking maneuverability
- Easy-to-use, streamlined controls
Intelli-Trench
Intelli-Trench™ provides optimized hydraulic performance and automatically diverts the hydraulic flow from the traction motors to the trencher motor when needed, delivering higher torque while reducing trenching times. Track speed is also adjusted faster and more accurately, eliminating the need for constant manual adjustment of the traction controls.

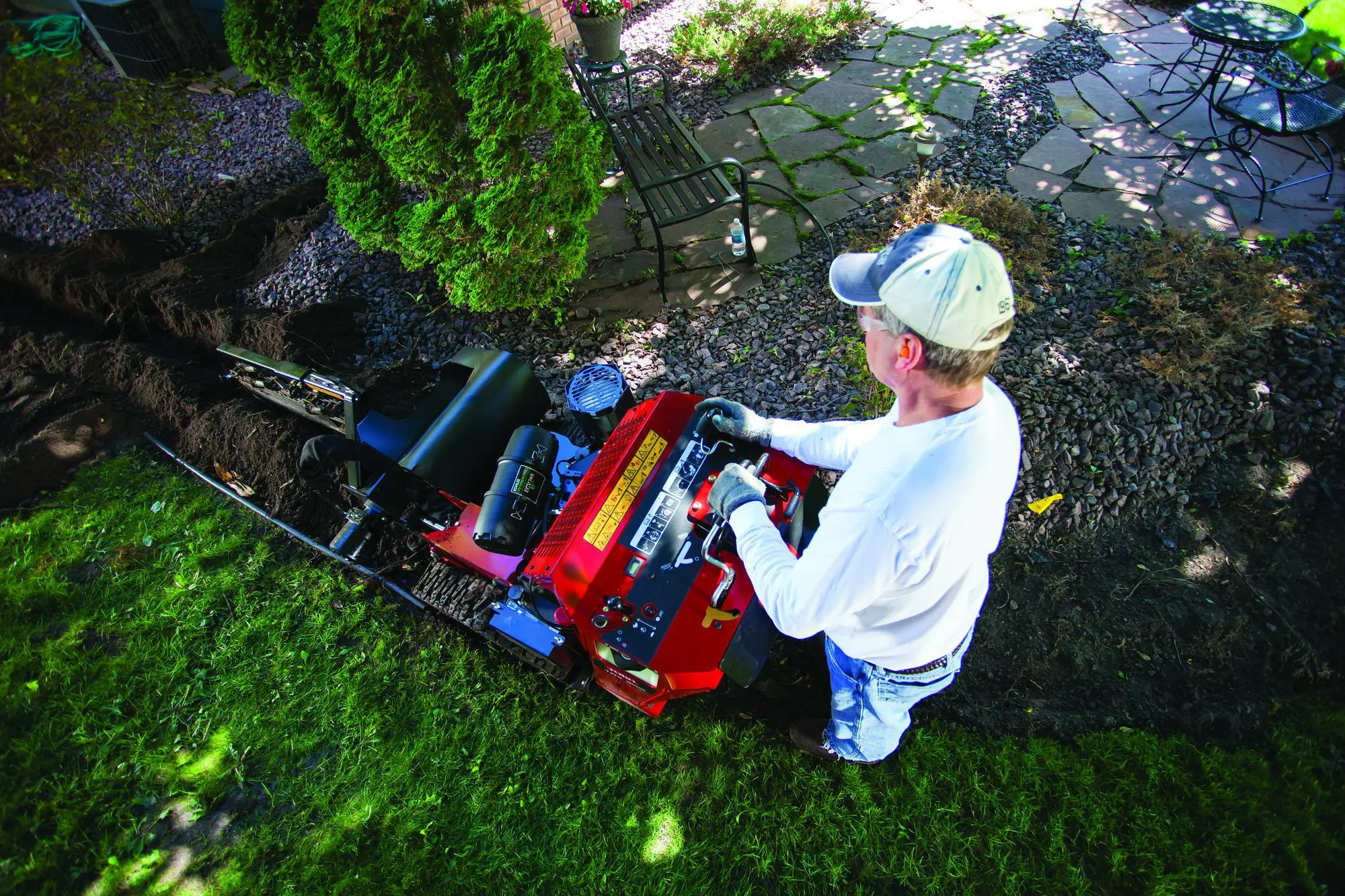

Streamlined Controls
The TRX’s streamlined controls are easy to learn and operate. The new design includes the familiar TRX trencher valve handle and boom lift lever, as well as independent traction control for the left track and the right track.
Simplified Service
The new TRX design has significantly fewer parts than previous models, simplifying maintenance and potentially reducing service needs.

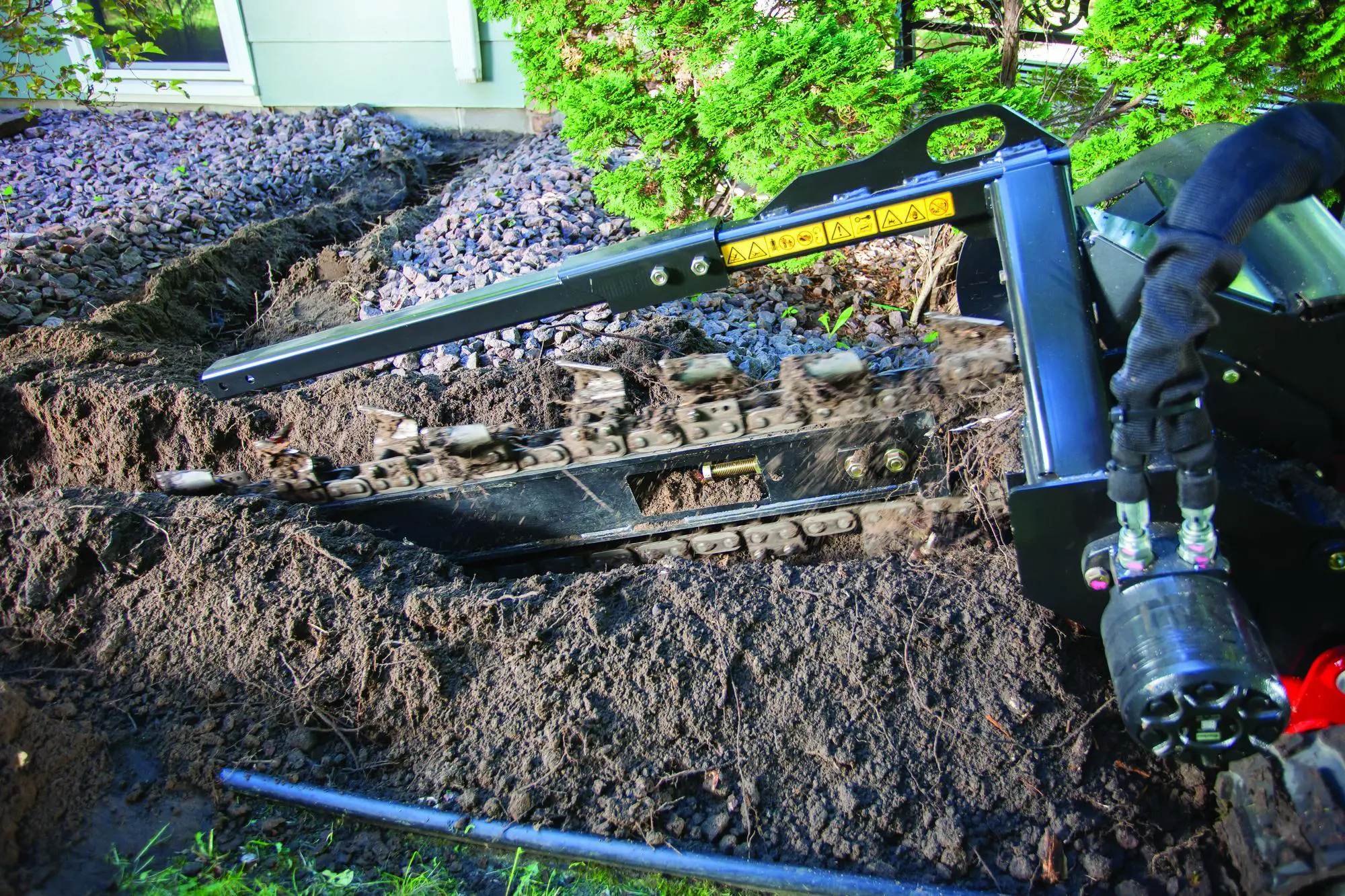

Boom Motion
The boom lift and lower function has been enhanced hydraulically, allowing the boom to move up and down smoothly.
Maneuverability
The track drive design provides a low center of gravity and large footprint, offering stability and increased maneuverability while minimizing damage to existing turf.
Description
The TRX 300 walk-behind trencher is now more efficient and powerful than ever.
TORO has improved its TRX lineup, with two new models that combine the groundbreaking maneuverability that the TRX trencher is known for, with even better performance and serviceability. The new TRX-300 trenchers incorporate new design enhancements for better ease of operation, improved hydraulics and streamlined controls. These new TRX trenchers also include the new Intelli-Trench™ technology to automatically adjust the hydraulic flow allowing power where needed to maximize productivity. Plus, these new TRX trenchers offer significantly less parts resulting in less maintenance over time.
- Engine: 26.5 hp (19.8 kW) @ 3,600 rpm Kohler® ECV749, EFI
- Cooling System: Air Cooled
- Fuel Capacity: 15.1 litres
- Engine Oil Capacity: 1.9 litres
- Start Method: Electric
- Hour Meter: Standard
- Transport Speed: 3.7 km/h (2.3 mph) / 2.4 km/h (1.5 mph) 61.6 m/min (202 ft/min) /40.2 m/min (132 ft/min)
- Hydraulic System Pressure: 2,610 psi
- Hydraulic Flow: 50.0 lpm (Traction); 61.3 lpm (Transport); 11.4 lpm (Trenching)
- Hydraulic Oil Capacity: 23.8 litres
- Headshaft Speed: 210 rpm with 334.64 m/kg (498 ft/lbs) of torque
- Track: (Width) 15 cm wide – endless nylon reinforced rubber track; (Drive) Sprocket-drive, three road wheels per side; (Traction) Two-section hydraulic pump with two hydraulic motors (one for each track)
- Ground Pressure: 61 cm (24”) boom = 0.28 bar (4.1 psi) 91 cm (36”) boom = 0.30 bar (4.4 psi) 122 cm (48”) boom = 0.31 bar (4.5 psi)
- Dimensions: Overall dimensions: with 24-inch Boom Up and Chain (WxLxH) : 86 cm x 210 cm x 117 cm (33.8” x 82.5” x 46”); Wheelbase: 58 Cm (23-inches); Weight: 501 kg (1,114 lbs)
- Boom Options: Depths: 61 cm, 91 cm and 122 cm (24-inch, 36-inch and 48-inch); Widths: 10 cm 15 cm and 20 cm (4-inch, 6-inch and 8-inch)
Additional information
| Brands | TORO |
|---|
