Ventrac Boom Mower Attachment

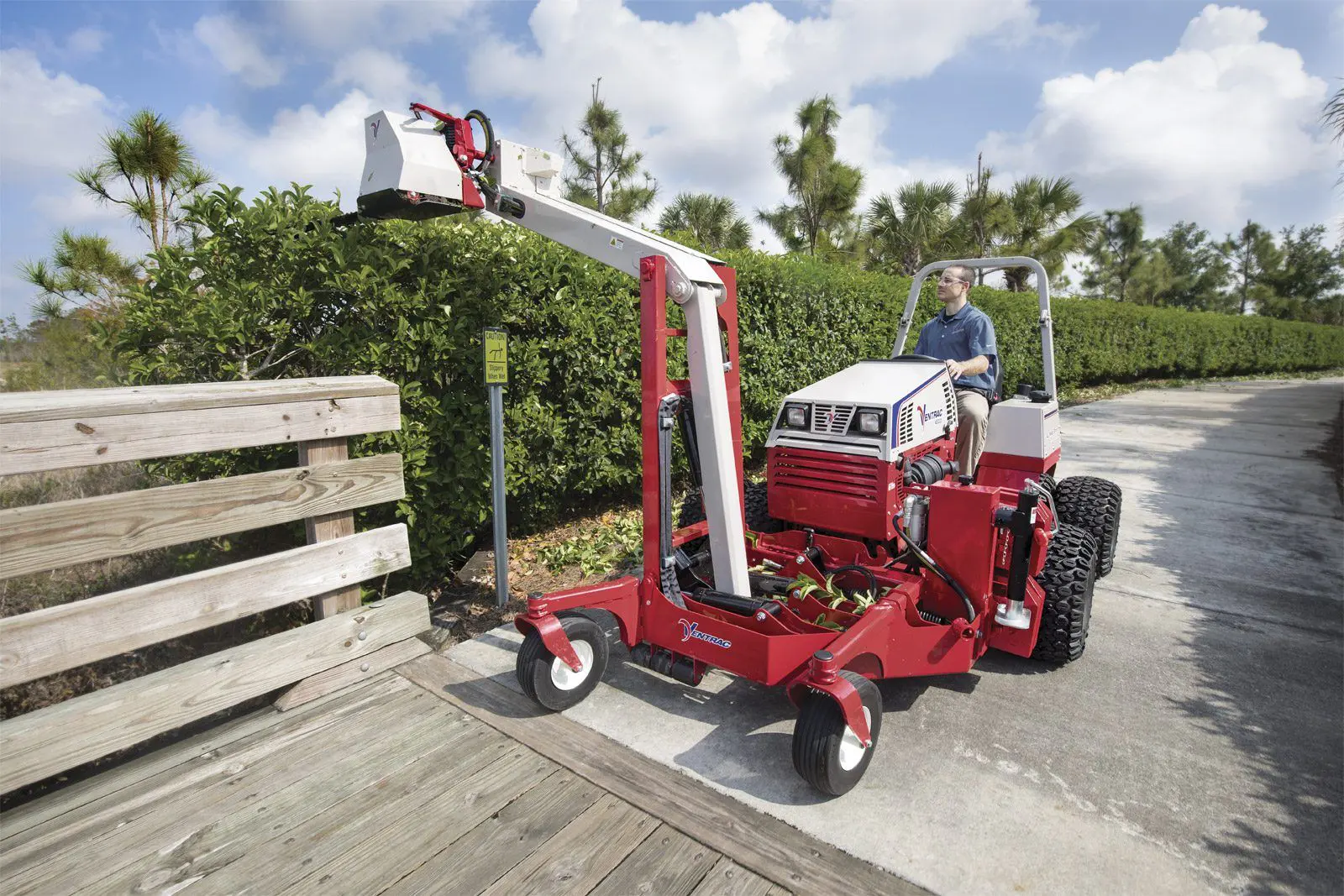

The new Ventrac Boom Mower is unquestionably the easiest and most productive boom mower in its class. Designed to deliver unprecedented levels of efficiency for property managers who want to maintain difficult areas with minimal labor, the Boom Mower has the stability and reach to manage vegetation further away from the machine than other equipment. With this new attachment, mowing around water features, trimming hedges, and clearing trails has never been so easy. Schedule your demo to see how the Ventrac Boom Mower will save you time and money.

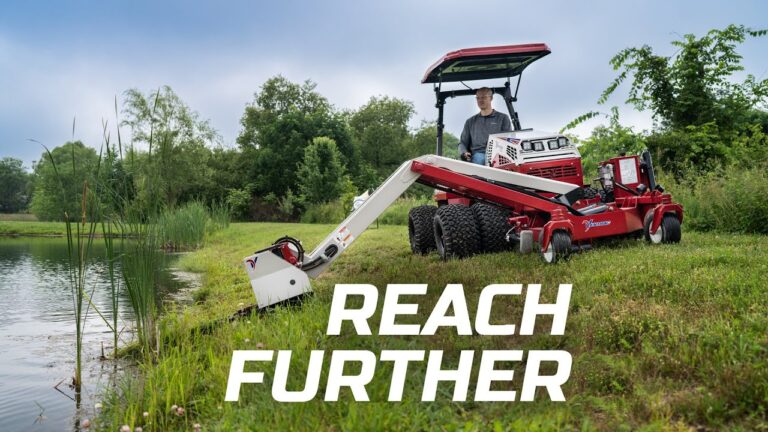

Most boom mowers connect to the middle or back of the machine, making them hard for the operator to see during use. The Ventrac boom mower attaches to the front of the tractor, providing the best possible visibility and control.
Ventrac tractors are already capable of driving in places where most machines cannot. Combine that with the boom mower which reaches over 9 feet away from the tractor and you have one of the best combinations of equipment in existence for managing tough vegetation on difficult terrain.

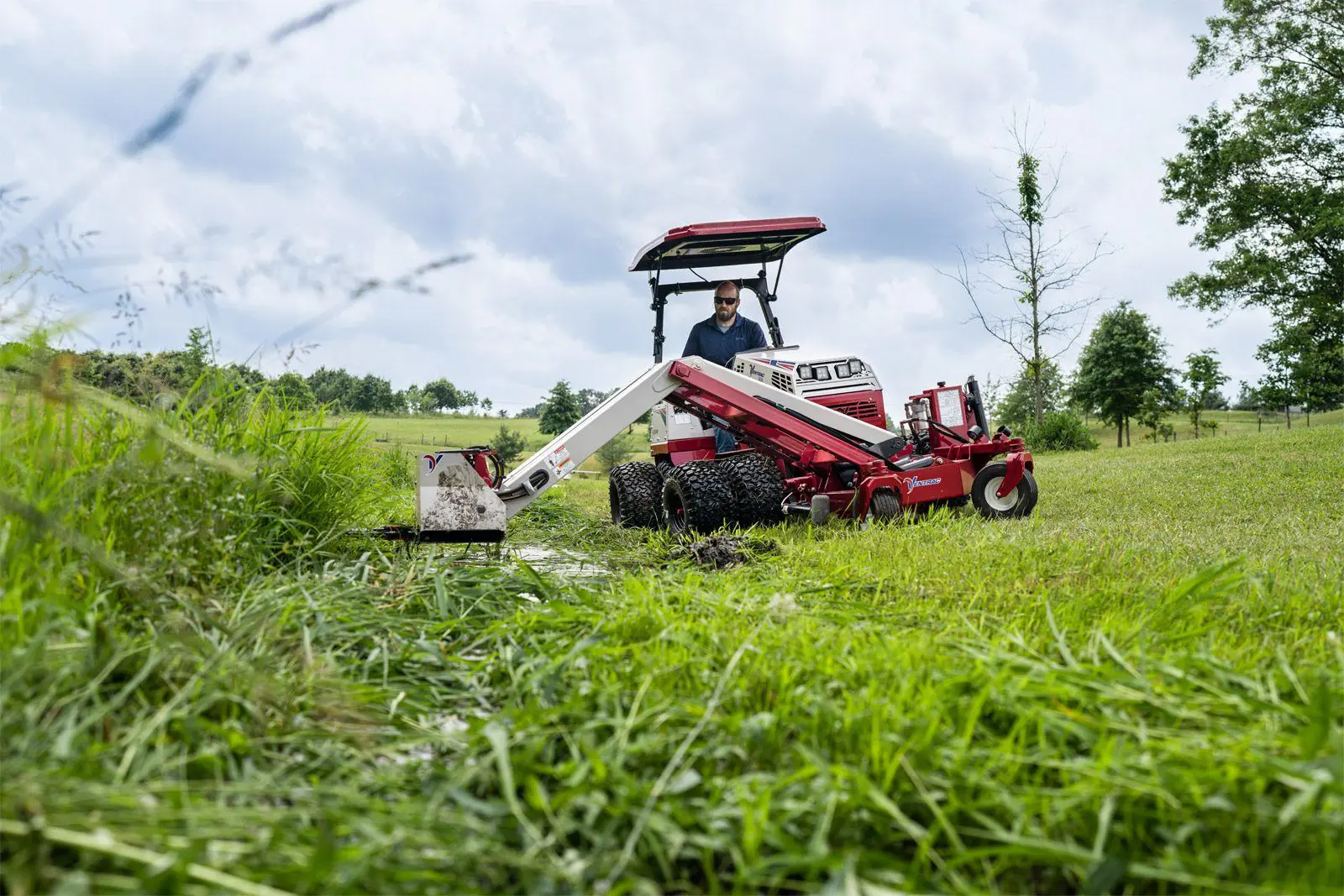

The cutting head of the boom mower is a double action sickle bar which is excellent at cutting a wide variety of material and in different positions. Thin native grasses, cat-tails, shrubs and hedges, or even tree branches are all easily cut with the sickle head. Since the cutting head is a sickle bar, cut material doesn’t go flying in all directions. Instead, it simply falls over. The boom mower also keeps the operator on the tractor, away from the work being done.

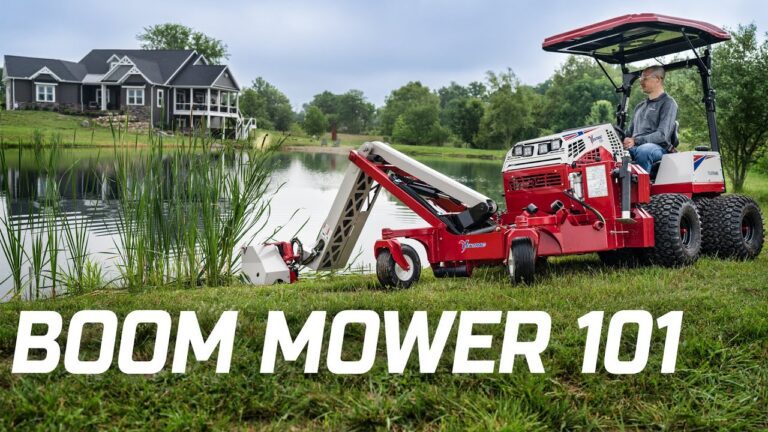

All of the adjustments of this boom mower are controlled by one lever, in combination with selectable hydraulic circuits. This makes controlling the boom arms a single-handed operation which allows the operator to make less mistakes and be as productive as possible. This boom mower folds into itself when not in use for easy, compact storage in the barn or on a trailer, providing extra space for additional equipment.
- 1 – VERTICAL REACH
- 142″ from ground
- 2 – MAX FLAT TOP CUT
- 82″ from ground
- 3 – VERTICAL HEAD ANGLE
- 90° vertical / 135° total range
- 4 – HORIZONTAL REACH
- 115″ from outside of single wheels / 103″ from outside of dual wheels
- 5 – CUT WIDTH
- 39″ double action sickle bar
- 6 – HORIZONTAL HEAD ANGLE
- 45° below level / 135° total range
- 7 – SINGLE WHEEL SLOPE RATING
- 10° with single wheels / 18° with dual wheels
AREAS TO USE THE MA900

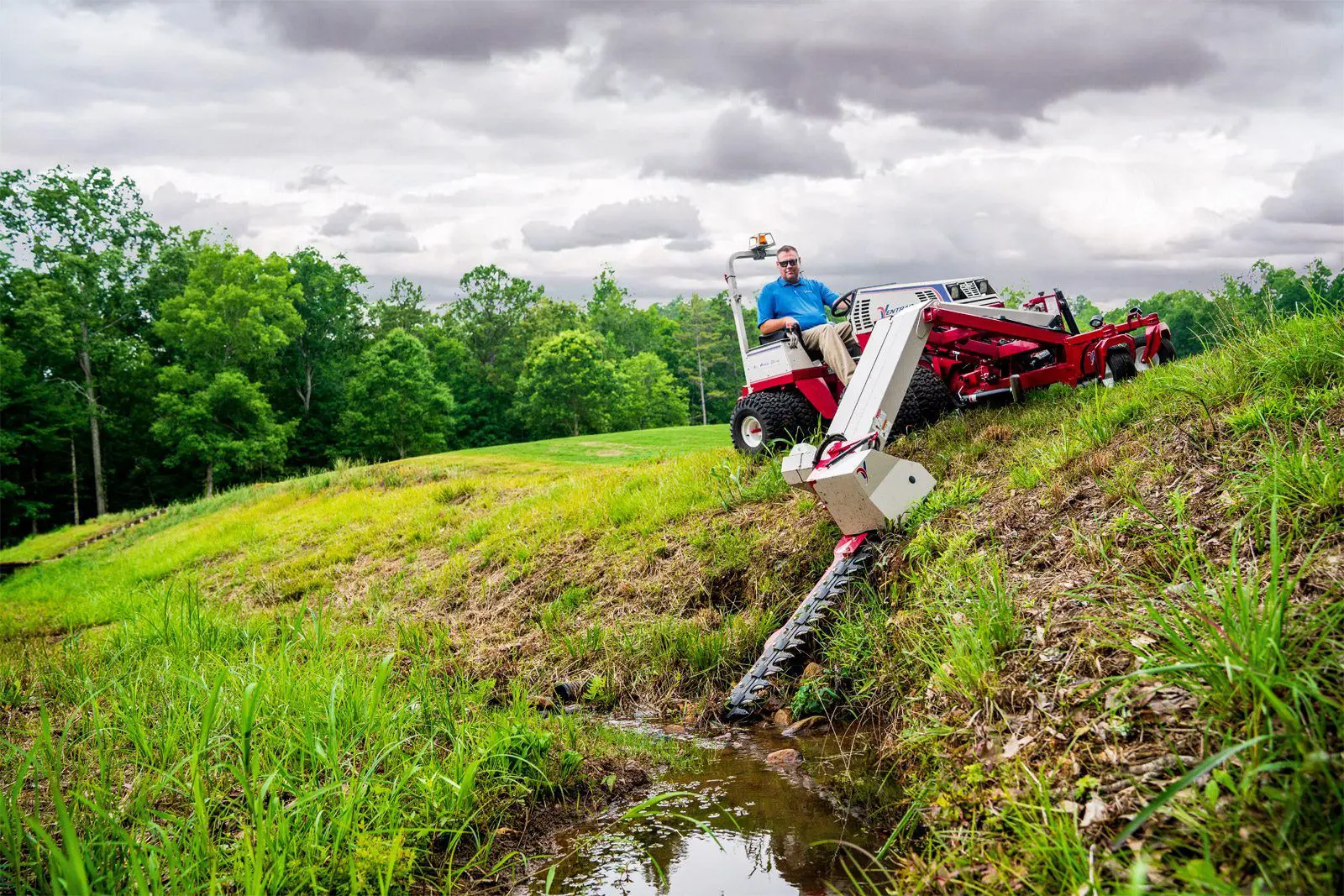

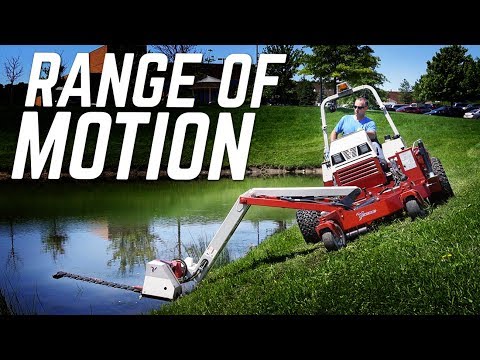

- Mow steep ditches
- Reach under fences and guardrails

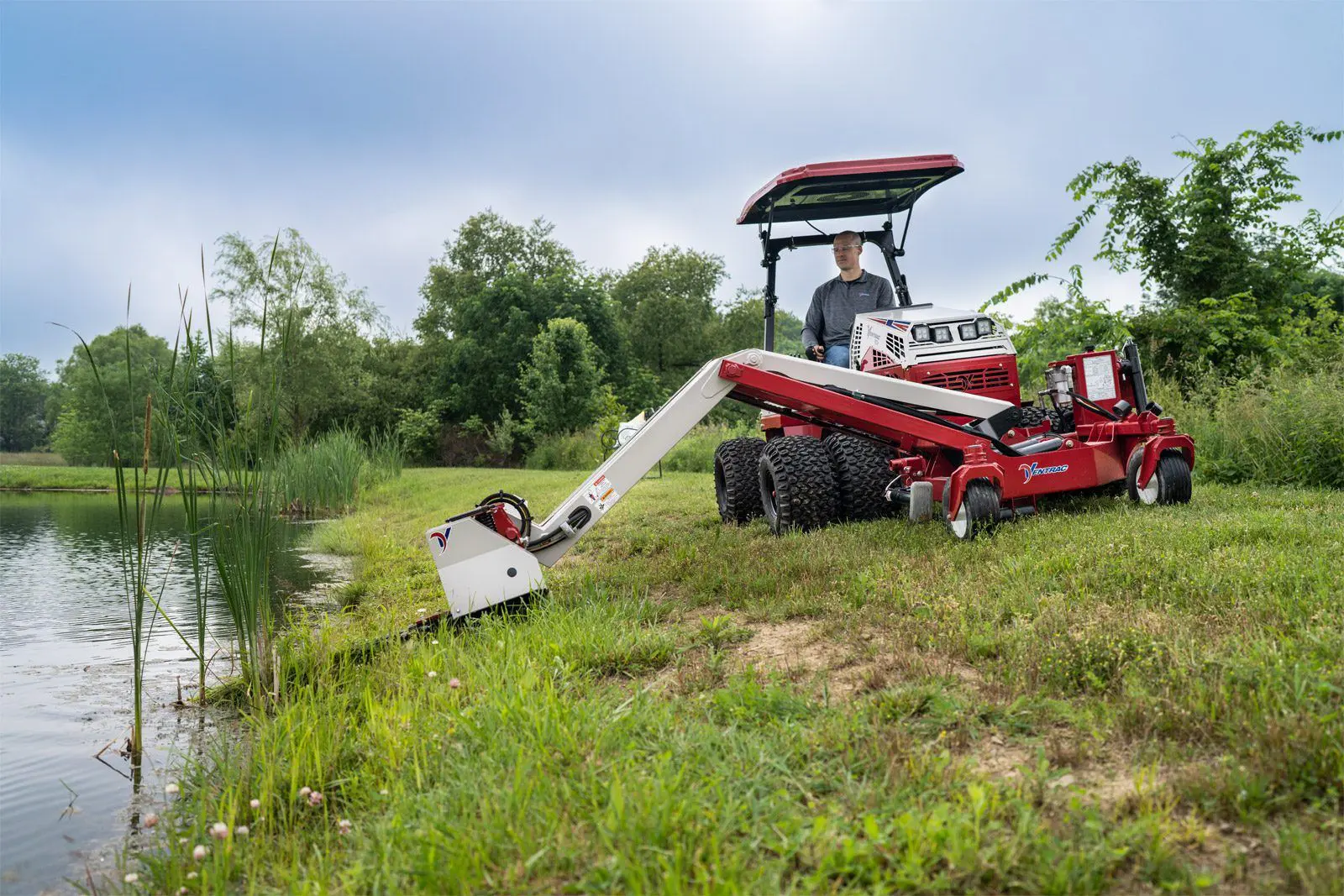

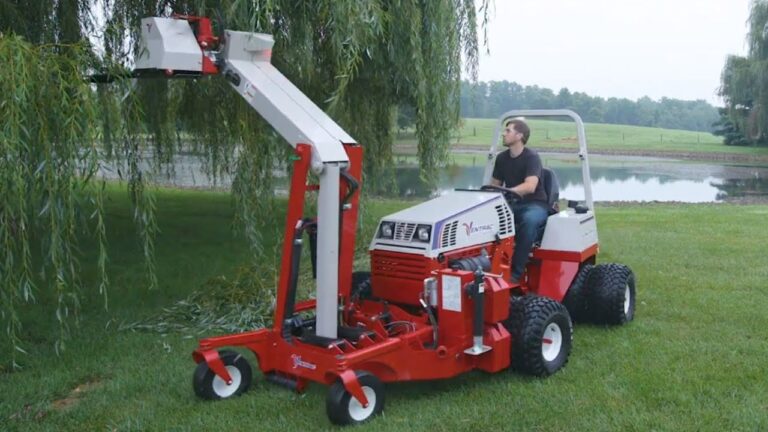

- Cut vegetation around ponds, lakes & streams

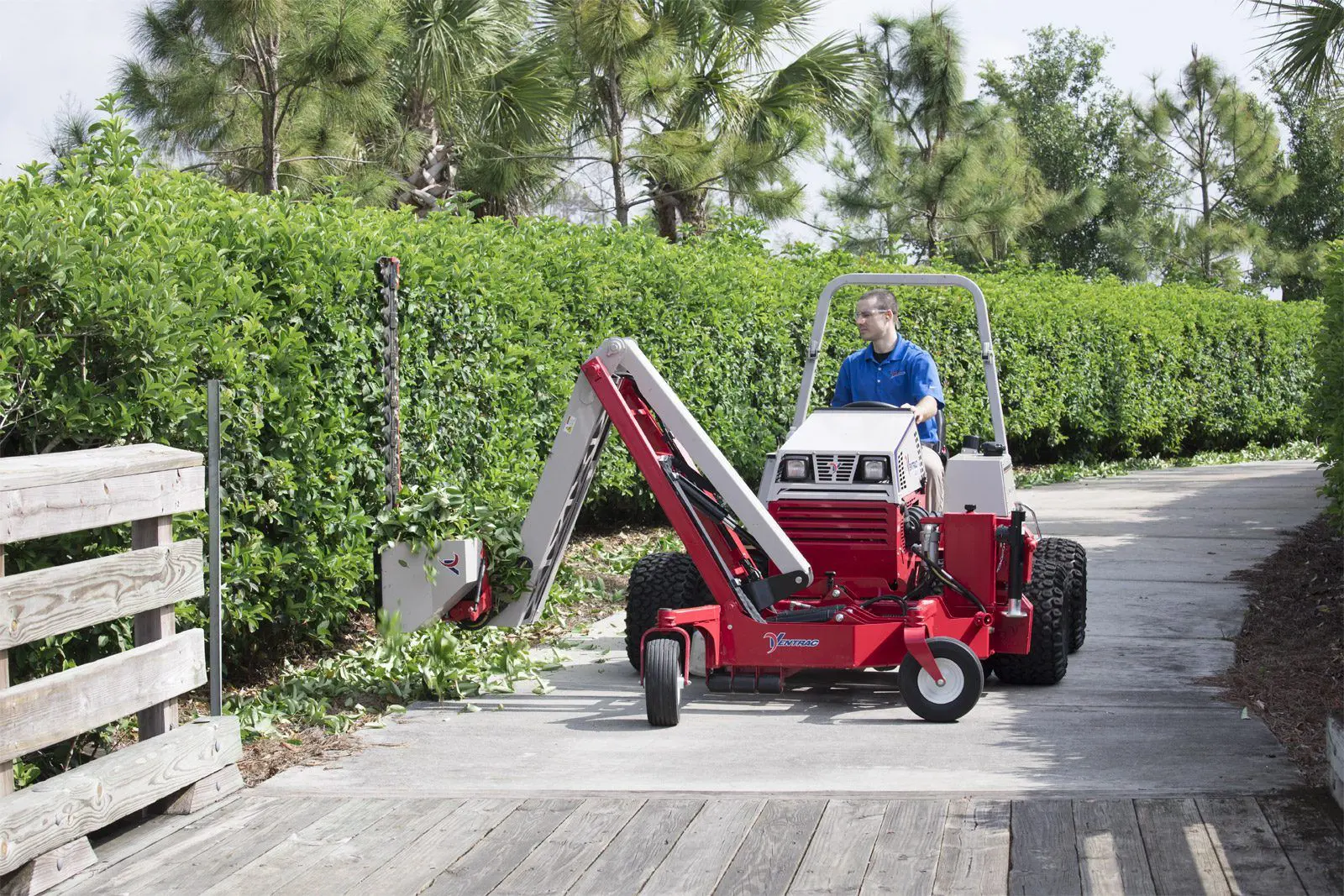

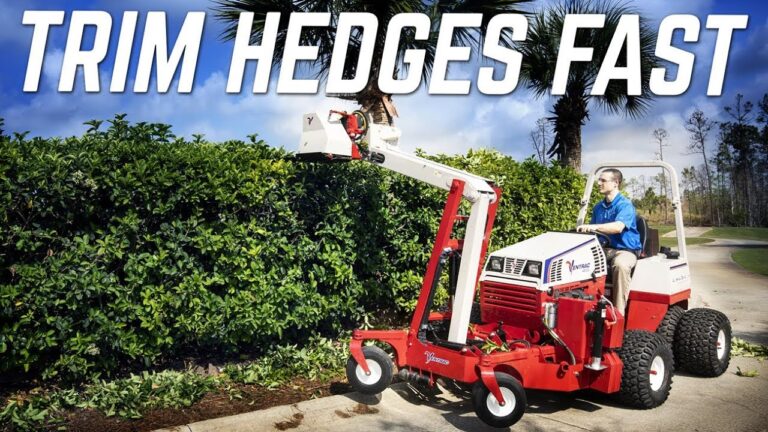

- Trim hedges and other shrubs

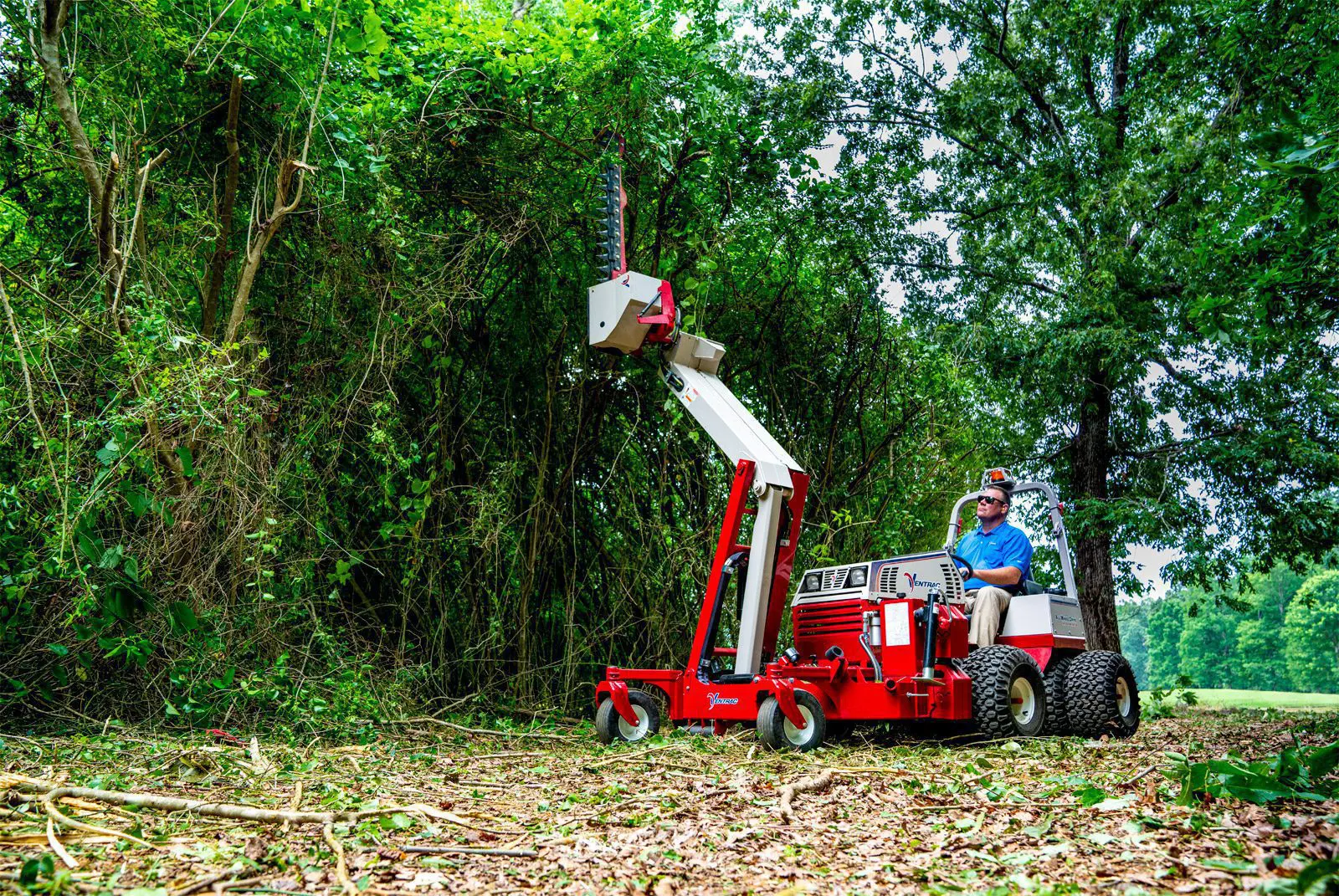

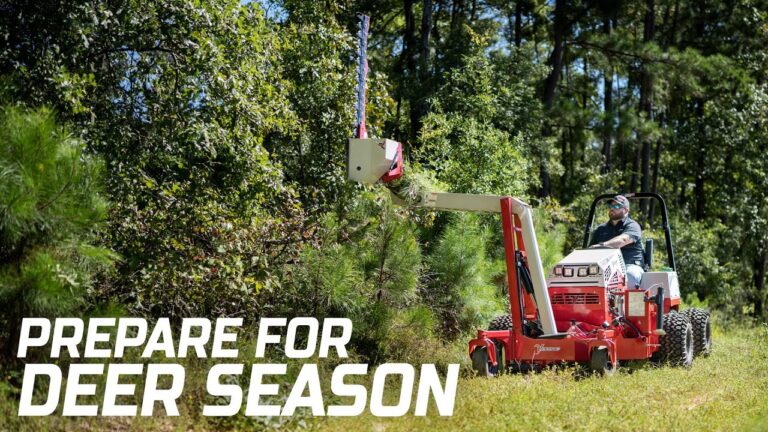

- Trim tree branches along trails, pathways or roads
Description
| Sales Model | MA900 |
| Full Description | MA, MA900 Boom Mower |
| Product Type | Attachment |
| CUT WIDTH | |
| Cut Width | 99.1 cm Double Action Sickle Bar |
| MAX. FLAT TOP CUT | |
| Max. Flat Top Cut | 208Â cm |
| VERTICAL REACH | |
| Vertical Reach | 361 cm From Ground |
| HORIZONTAL REACH | |
| Horizontal Reach | 292 cm From Outside of Single Wheels |
| 262 cm From Outside of Dual wheels | |
| HEAD ANGLE RANGE | |
| Head Angle Range | 90 ° Vertical |
| 45 ° Below Level | |
| 135 ° Total Range | |
| MATERIAL CUT DIAMETER | |
| Material Cut Diameter | .5Â cm |
| SLOPE RATINGS | |
| Slope Ratings | 10 ° with Single Wheels |
| 18 ° with Dual Wheels | |
Additional information
| Brands | VENTRAC |
|---|
