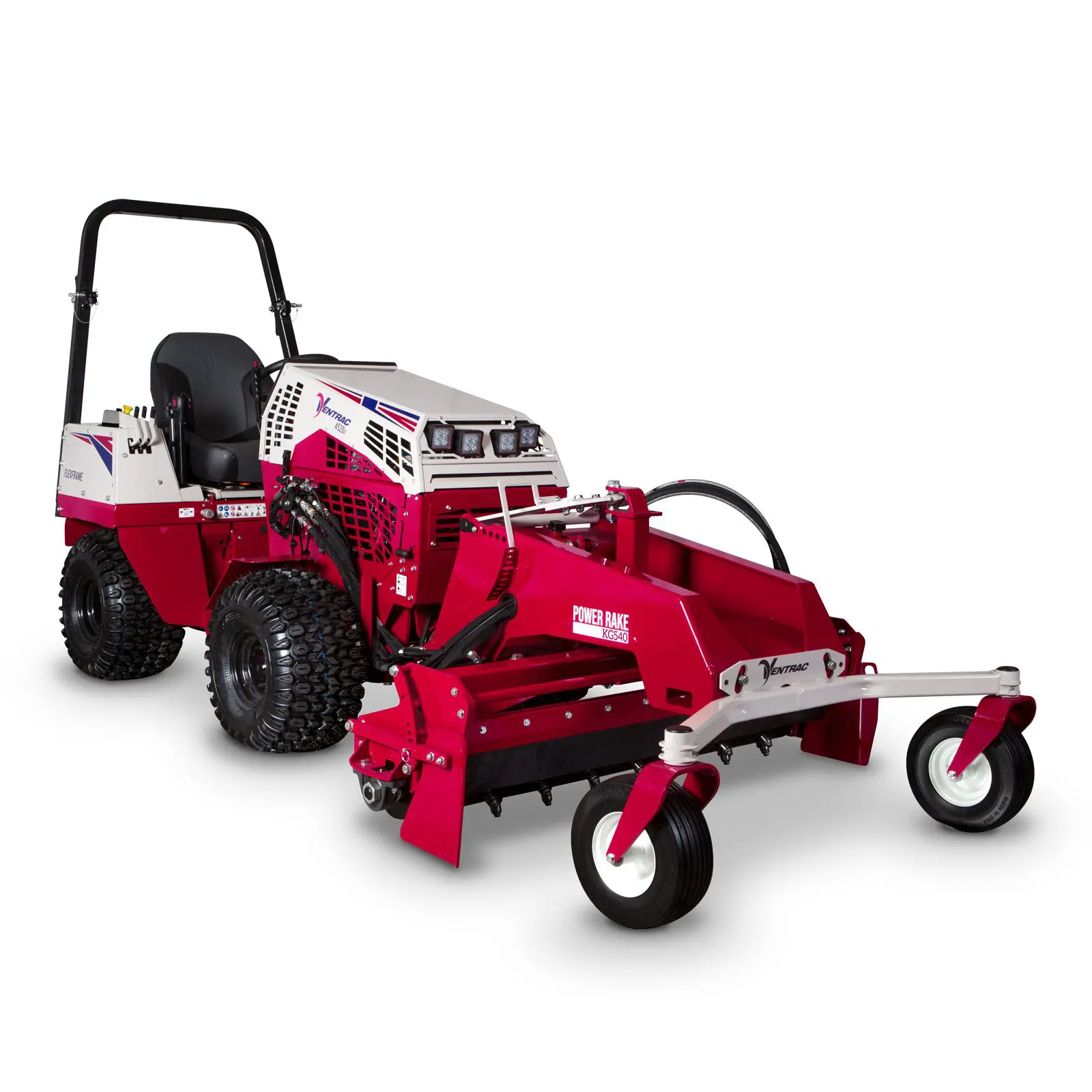

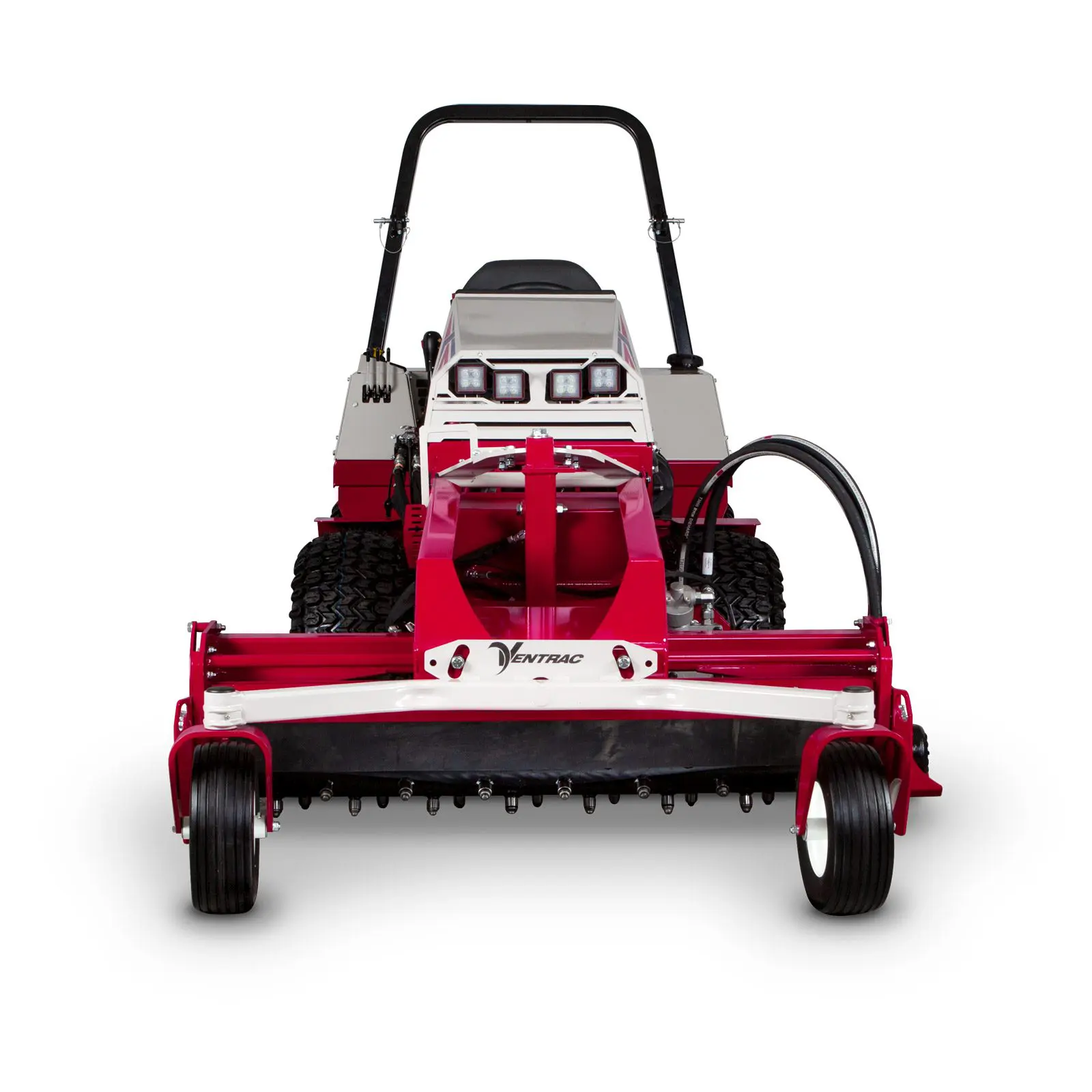

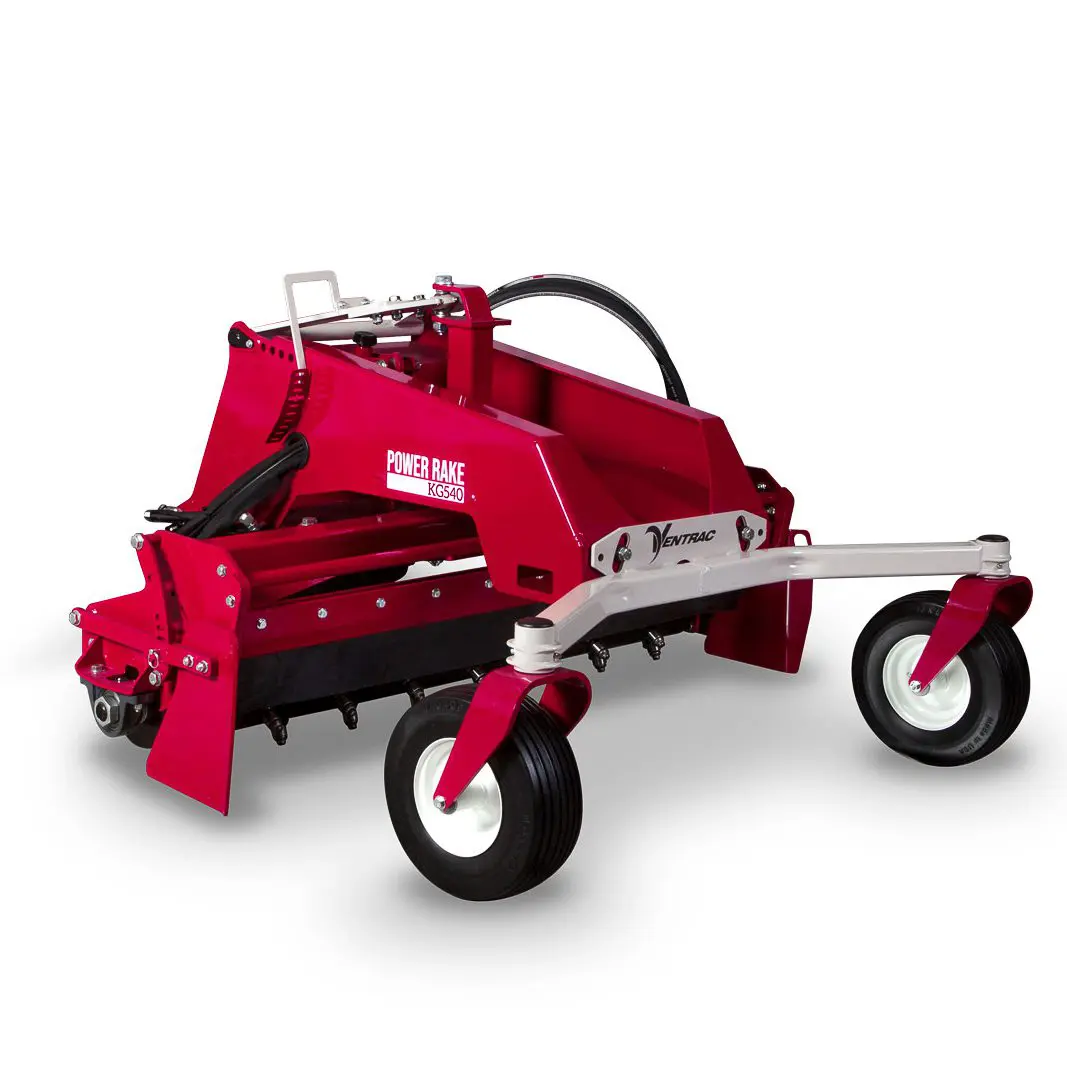

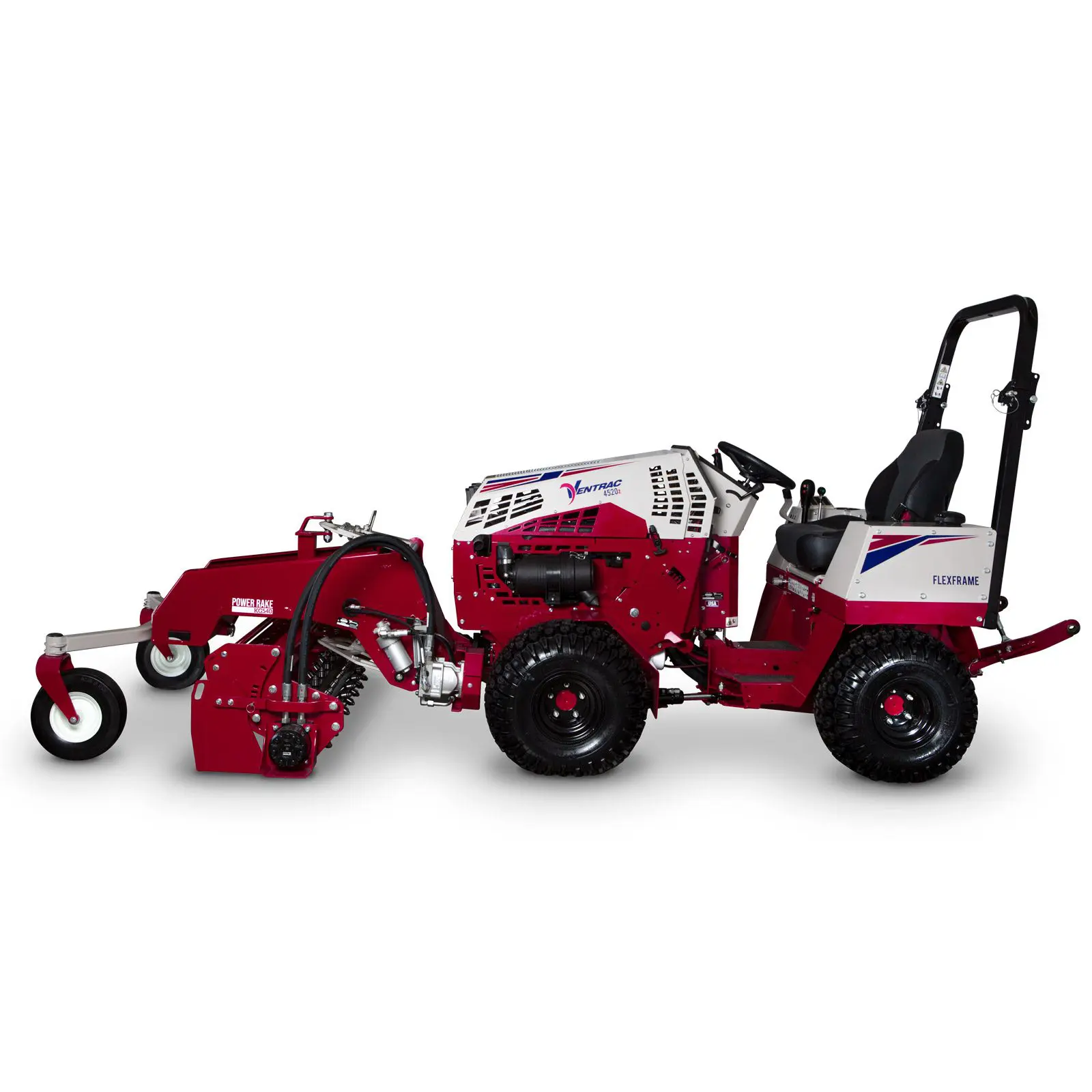

Ventrac Power Rake Tractor Attachment

Model: KG540
Ventrac

Ventrac Power Rake Tractor Attachment

Model: KG540
Ventrac

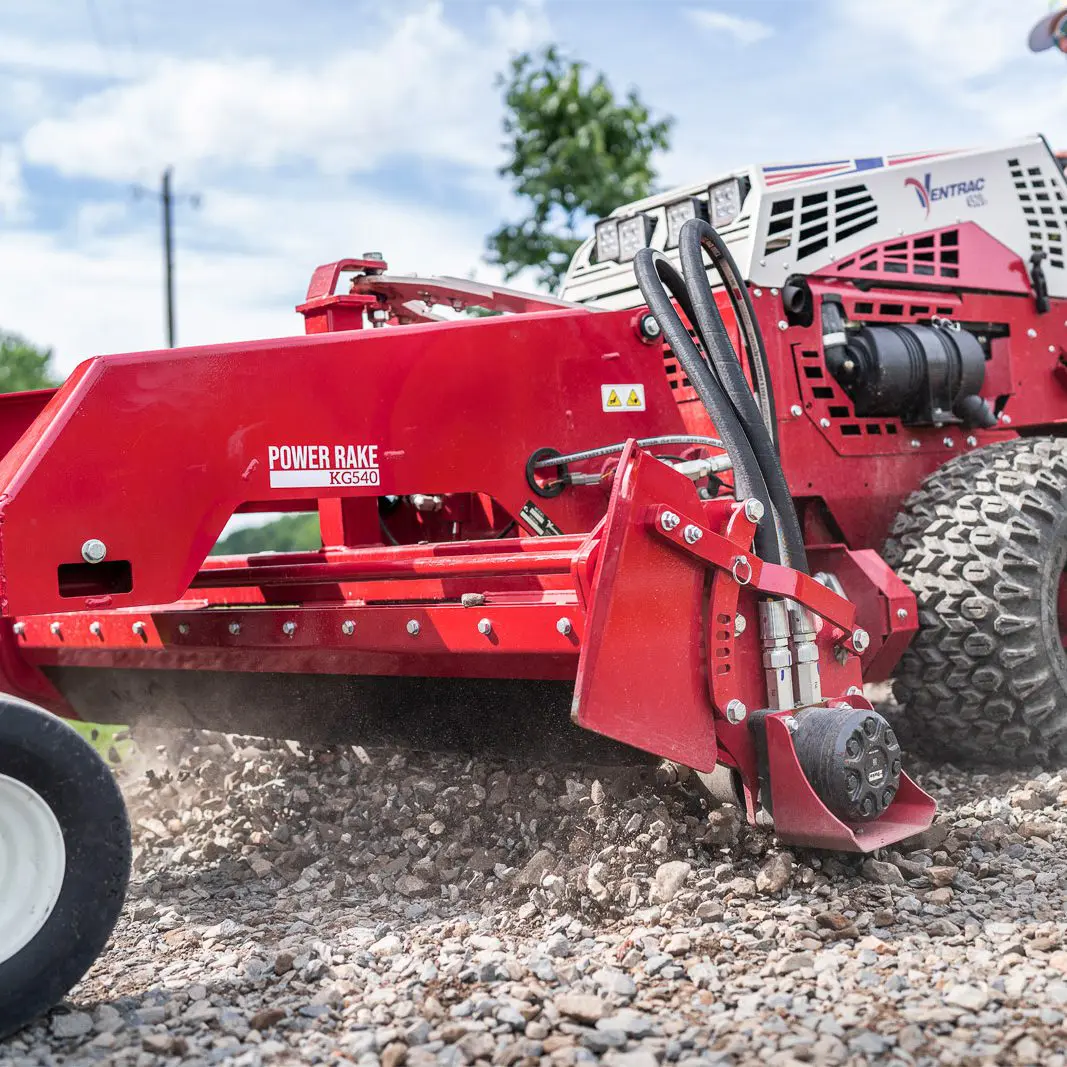

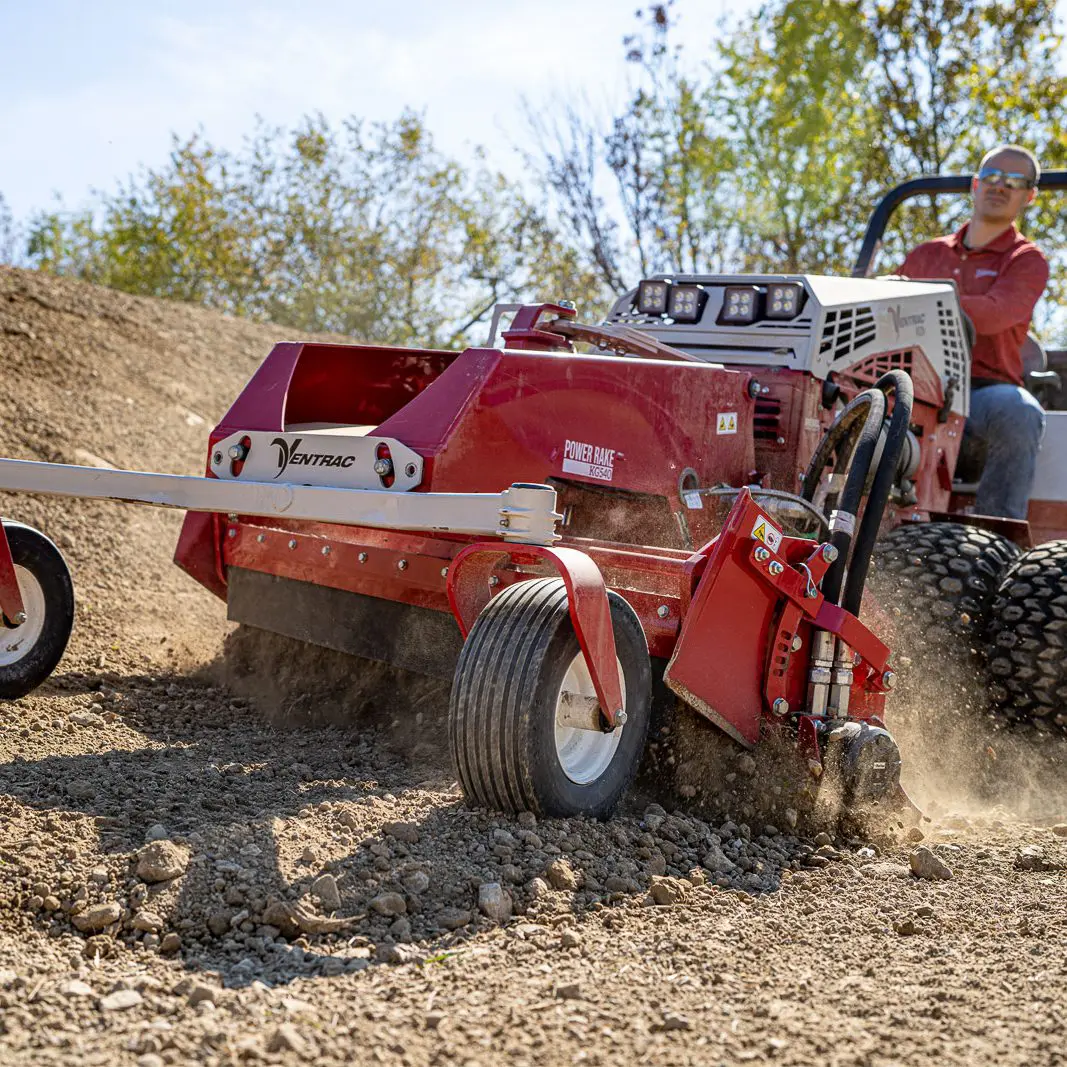

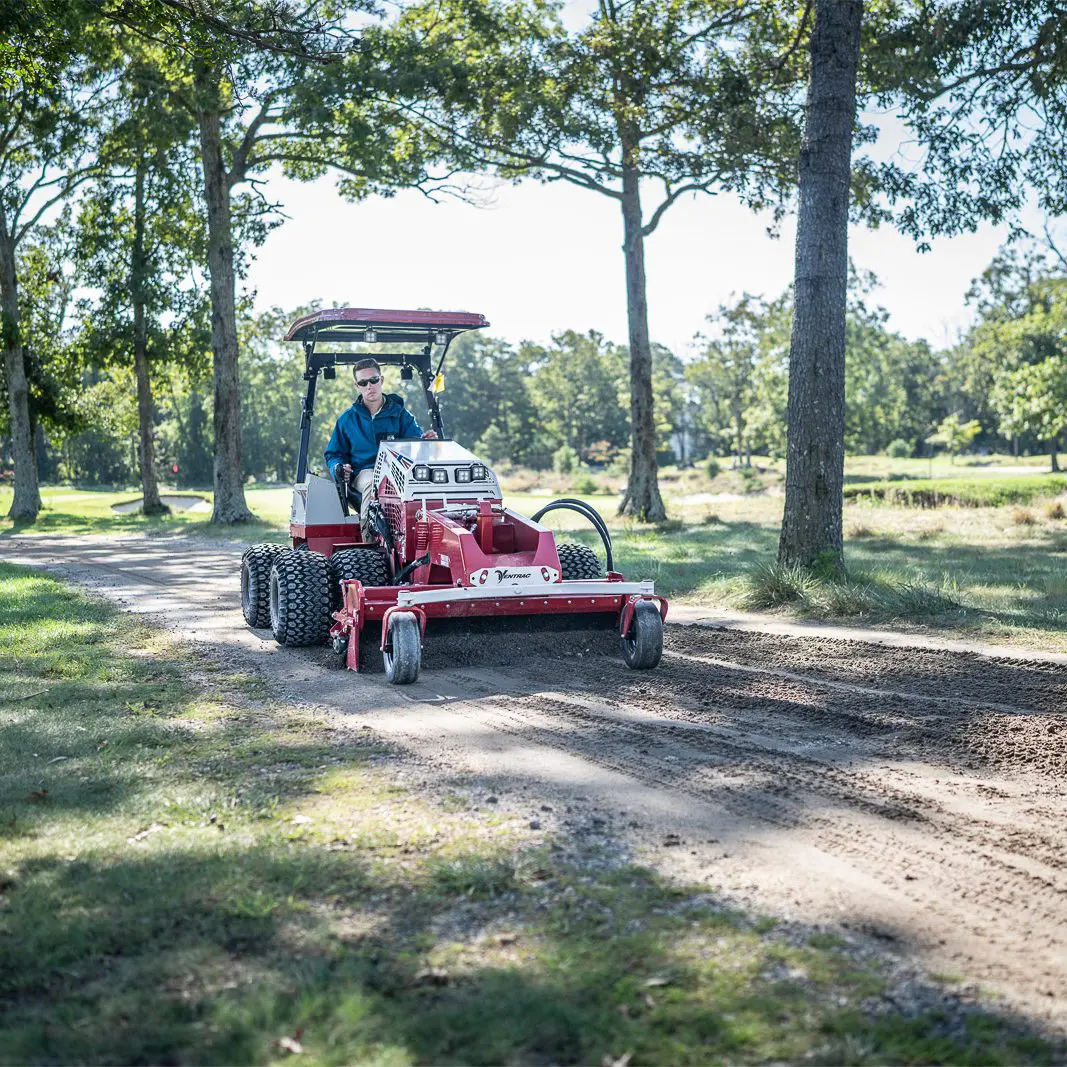

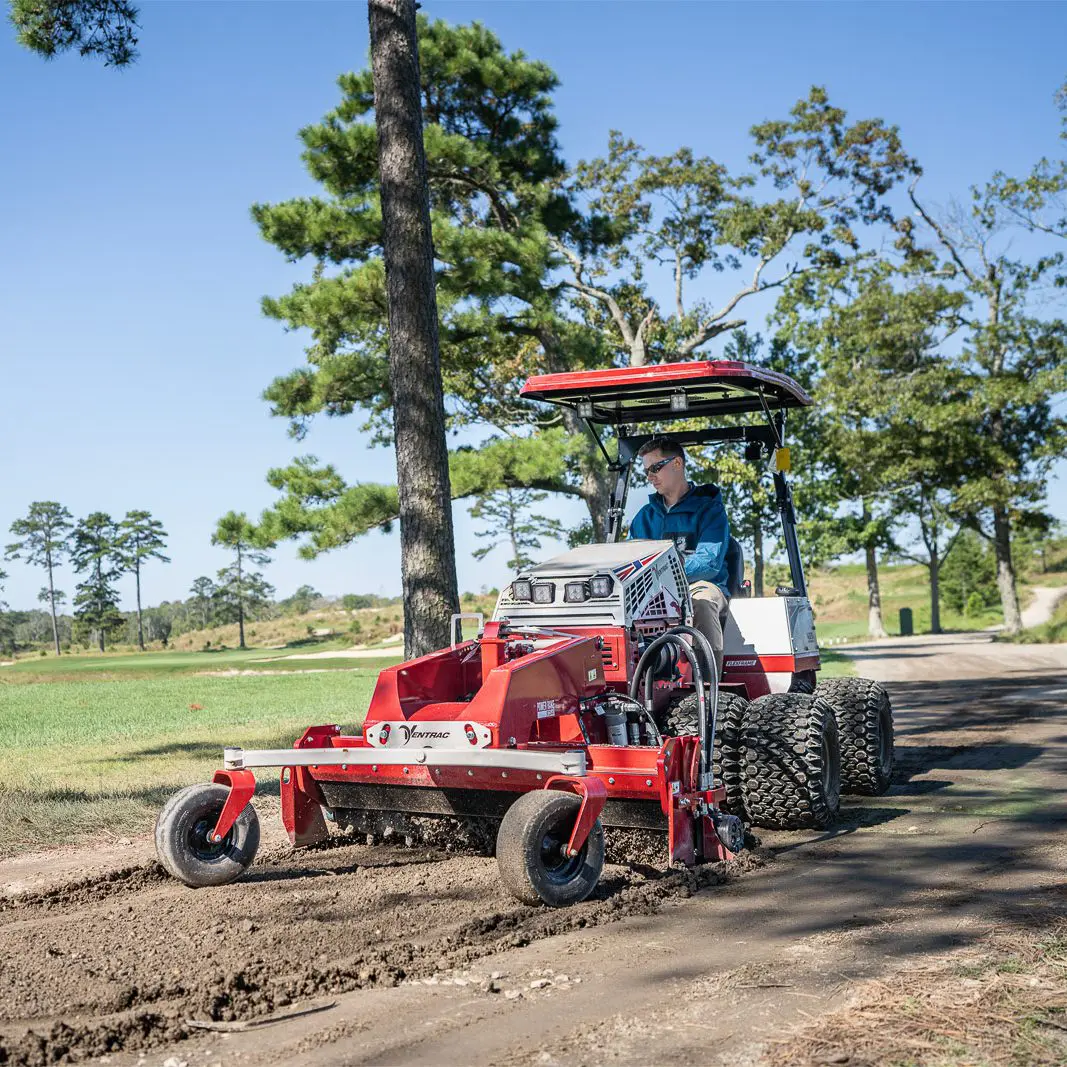

The KG540 Power Rake is the ultimate tool for reshaping uneven ground and preparing dirt for new lawn installations. For easy ground prep on yard installations, this robust machine is best at removing surface rocks and debris, creating a level, prepped finish for seeding.

The compact design of the tractor and attachment allows the operator to work in tight quarters where it is difficult for other machines to navigate.

  • Replaceable Carbide Tips (without removing the rotor)
  • Variable Speed Forward & Reverse Rotation from the operator seat
  • Hydraulic Driven Rotor
  • Hydraulic Power Angle Control

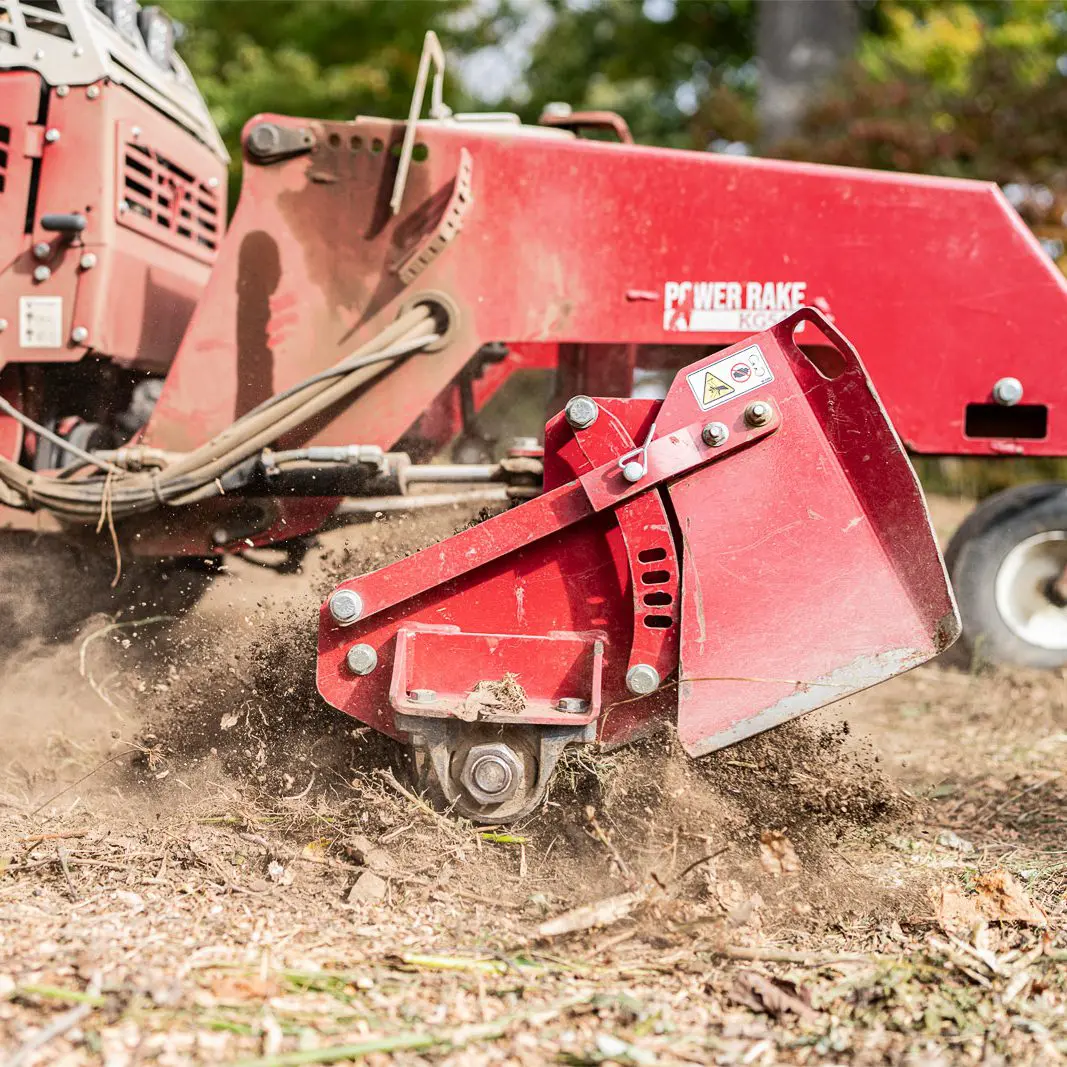

  • Adjustable End Plates for Material Routing
  • Ventrac Mount System
  • Flat-Free Front Caster Wheels
  • Removable, Pivoting Front Axle
$26,013 incl. gst
or $ per week*
*Based on $5,203 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.

4 in stock

Enquire

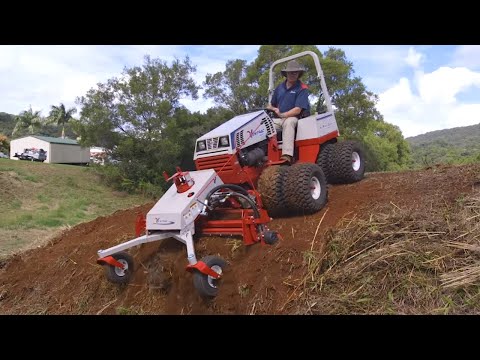

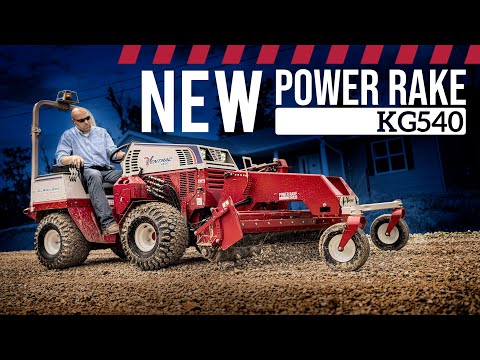

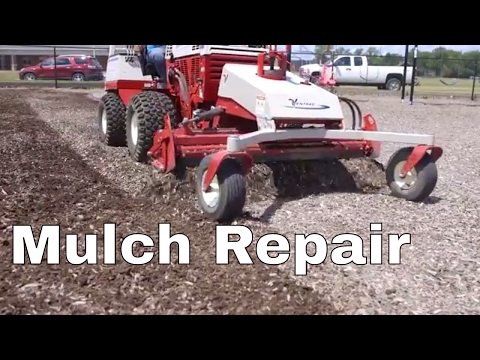

Videos

Ventrac Warranty
V-Plus Warranty

2-Year Commercial Limited Warranty*

All new Ventrac tractors and attachments purchased in the New Zealand are covered by Ventrac’s V-Plus Warranty, so you can purchase with confidence!

Features

Hydraulic Height Adjust for Drum

The KG540 Power Rake utilizes the front dual auxiliary hydraulic kit to allow for Quick Hydraulic Height Adjust for the drum.

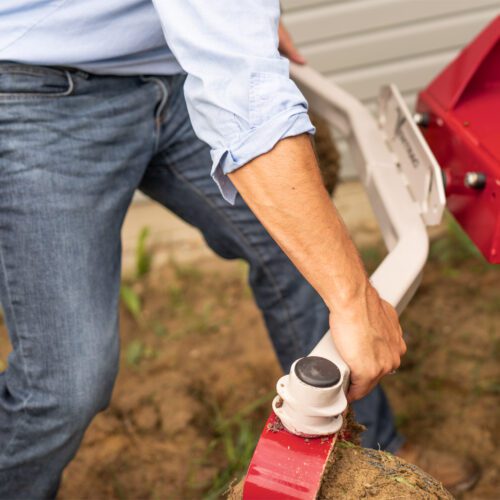

Removable Pivoting Front Axle

Optional removal of the axle provides the ability to work up closer to structures.

Front Mounted

The Ventrac utilizes out-front design with attachments for better visibility.

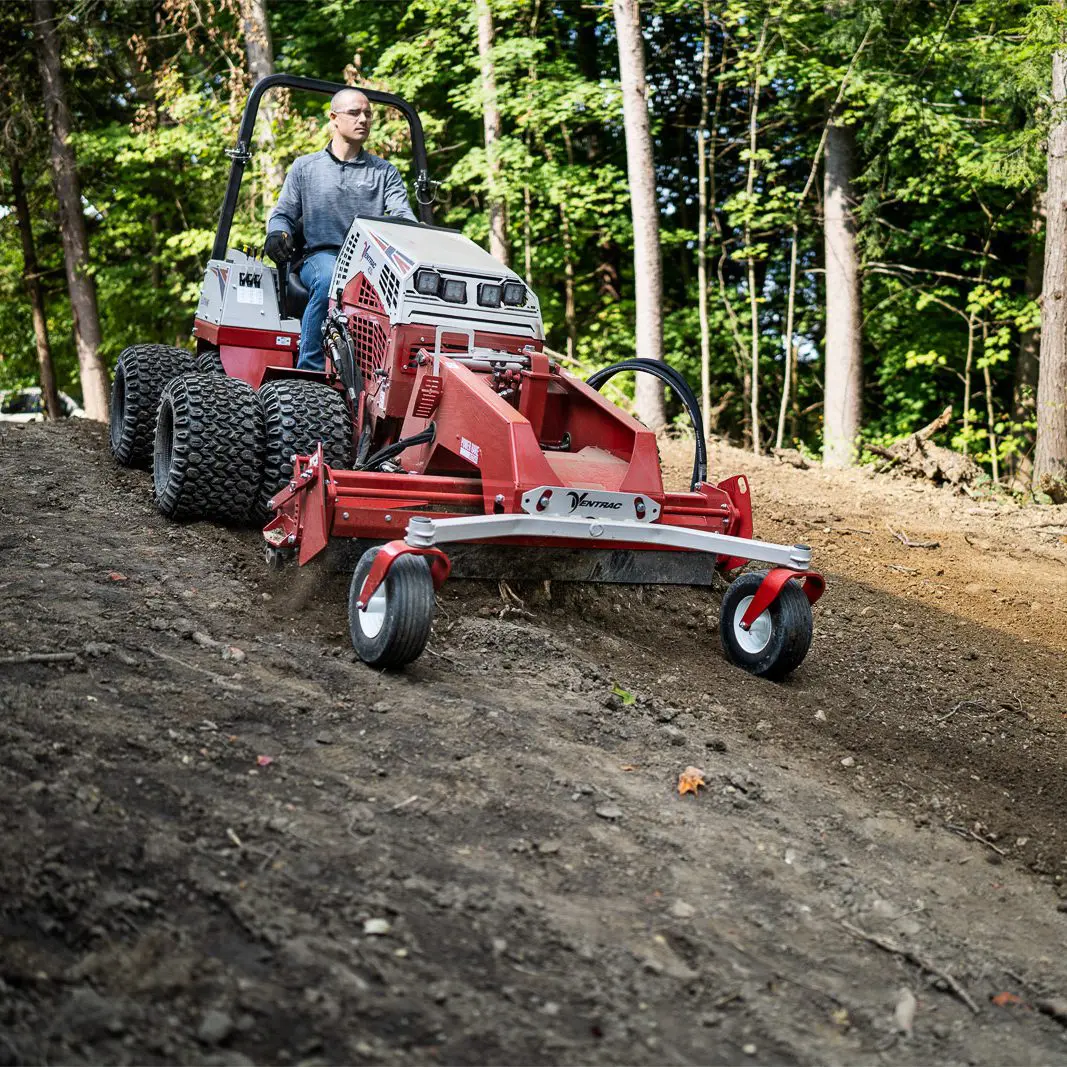

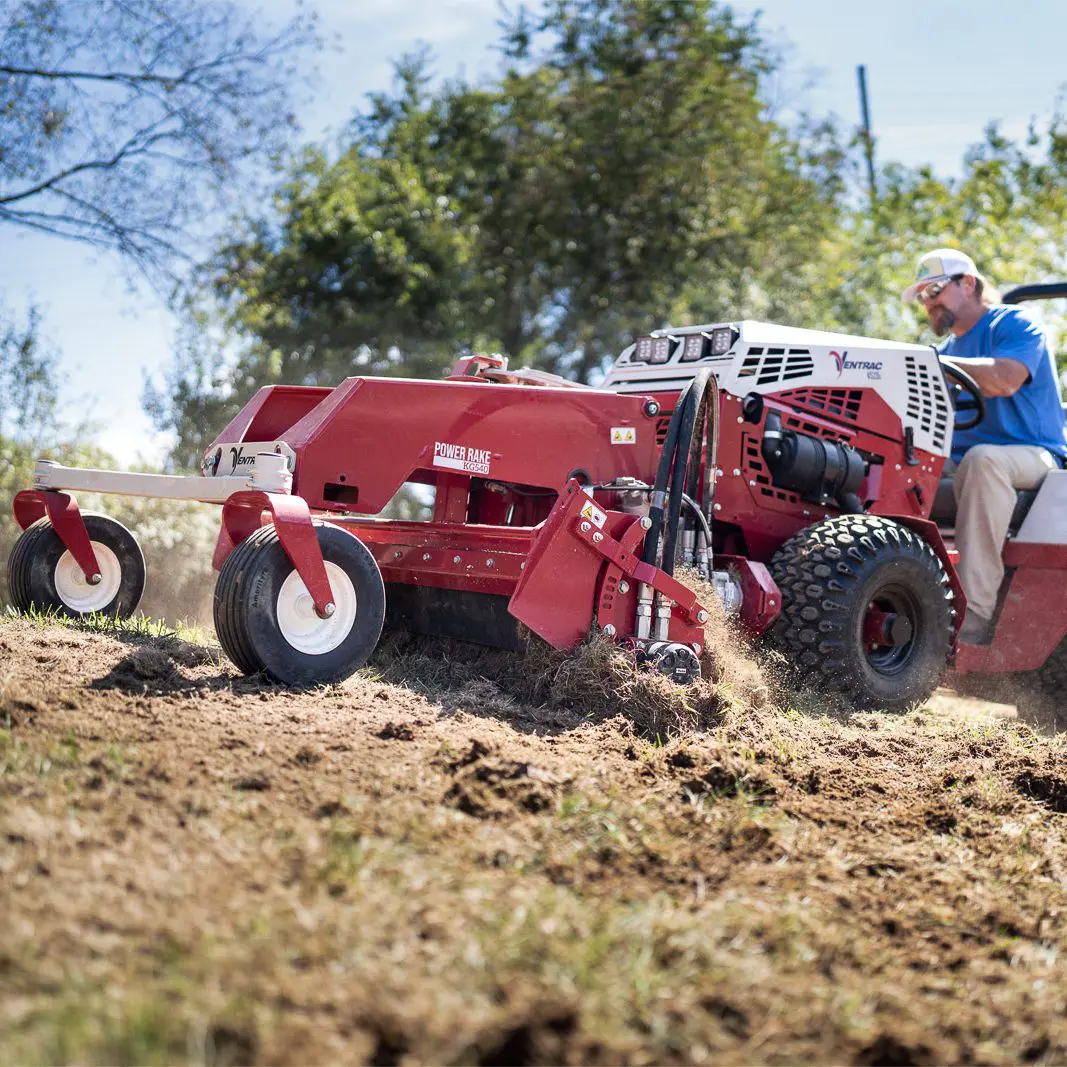

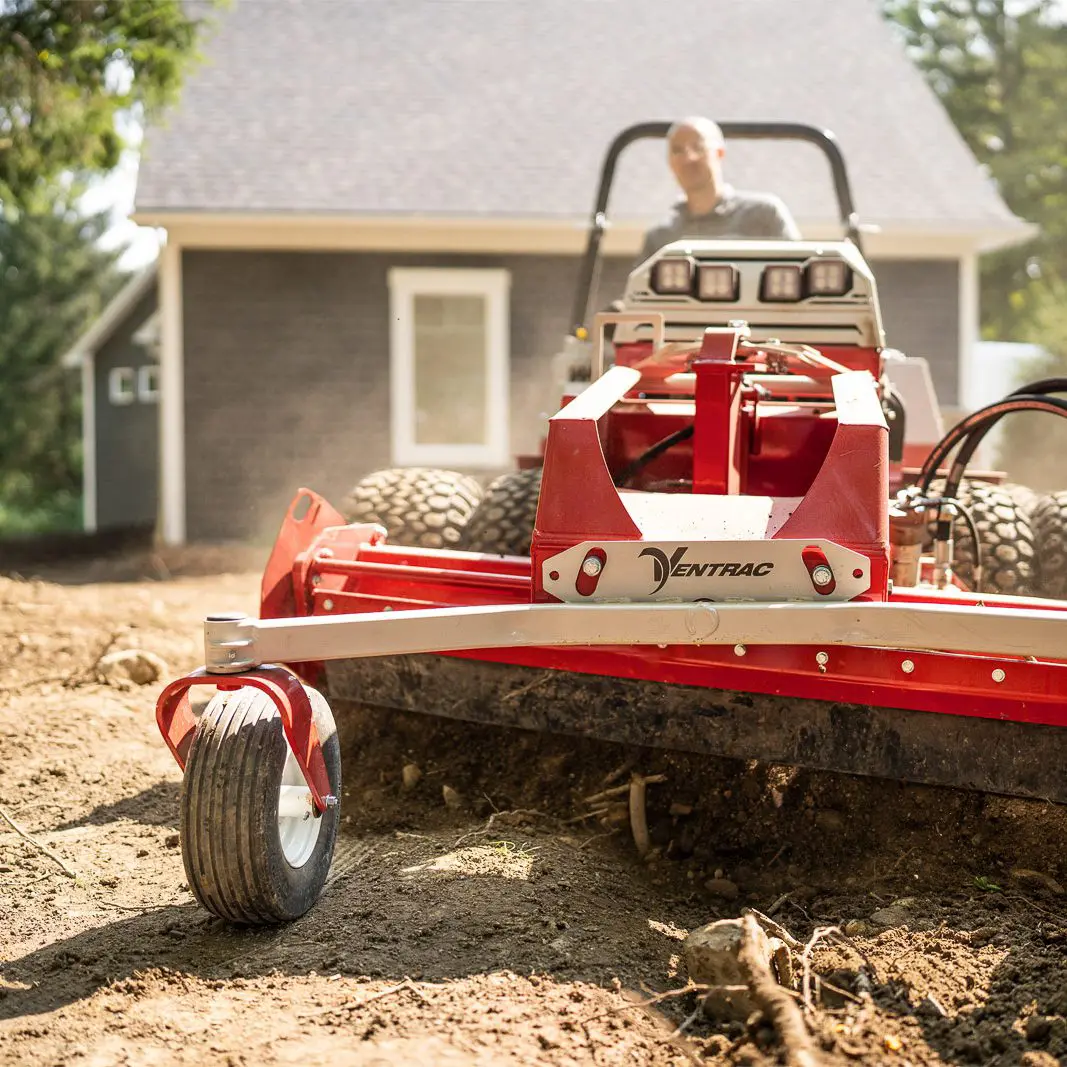

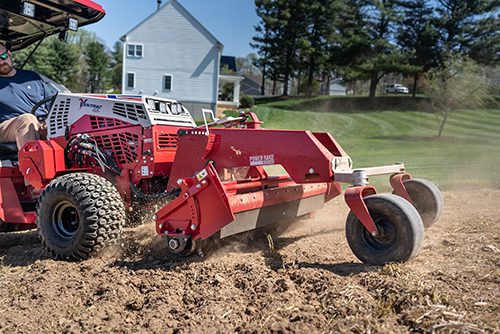

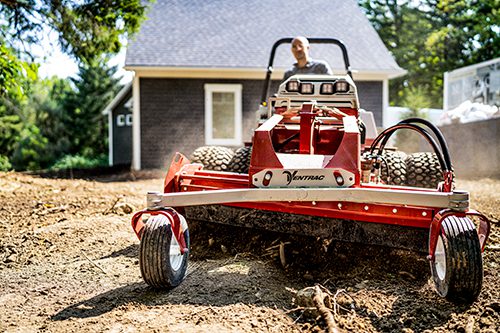

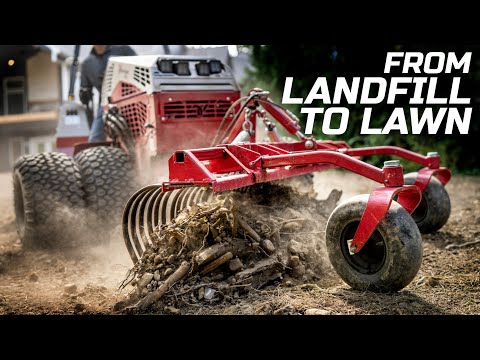

Prepare New Lawn Installation

Remove surface rocks and debris, creating a level, prepped finish for seeding.

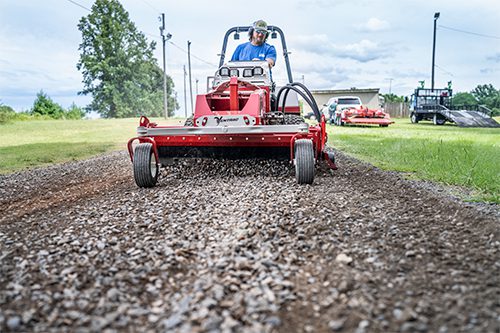

Renovate Driveways

Refresh a gravel driveway by bringing old gravel back to the surface for a fresh gravel finish.

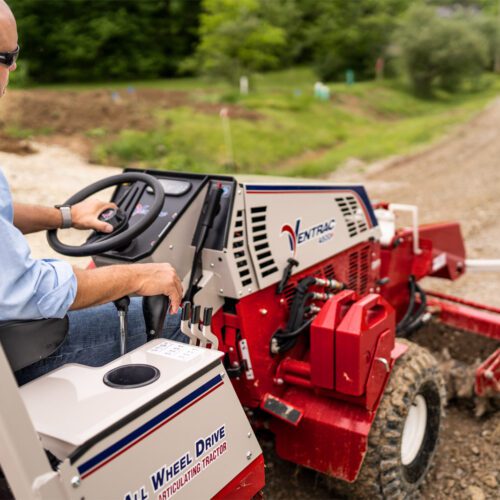

Finger Tip Rotor Control

The rotor speed, angle, depth and direction can all be adjusted on the fly with the hand control levers.

Full Description

The KG540 Power Rake is the ultimate tool for reshaping uneven ground and preparing dirt for new lawn installations. For easy ground prep on yard installations, this robust machine is best at removing surface rocks and debris, creating a level, prepped finish for seeding.

The compact design of the tractor and attachment allows the operator to work in tight quarters where it is difficult for other machines to navigate.

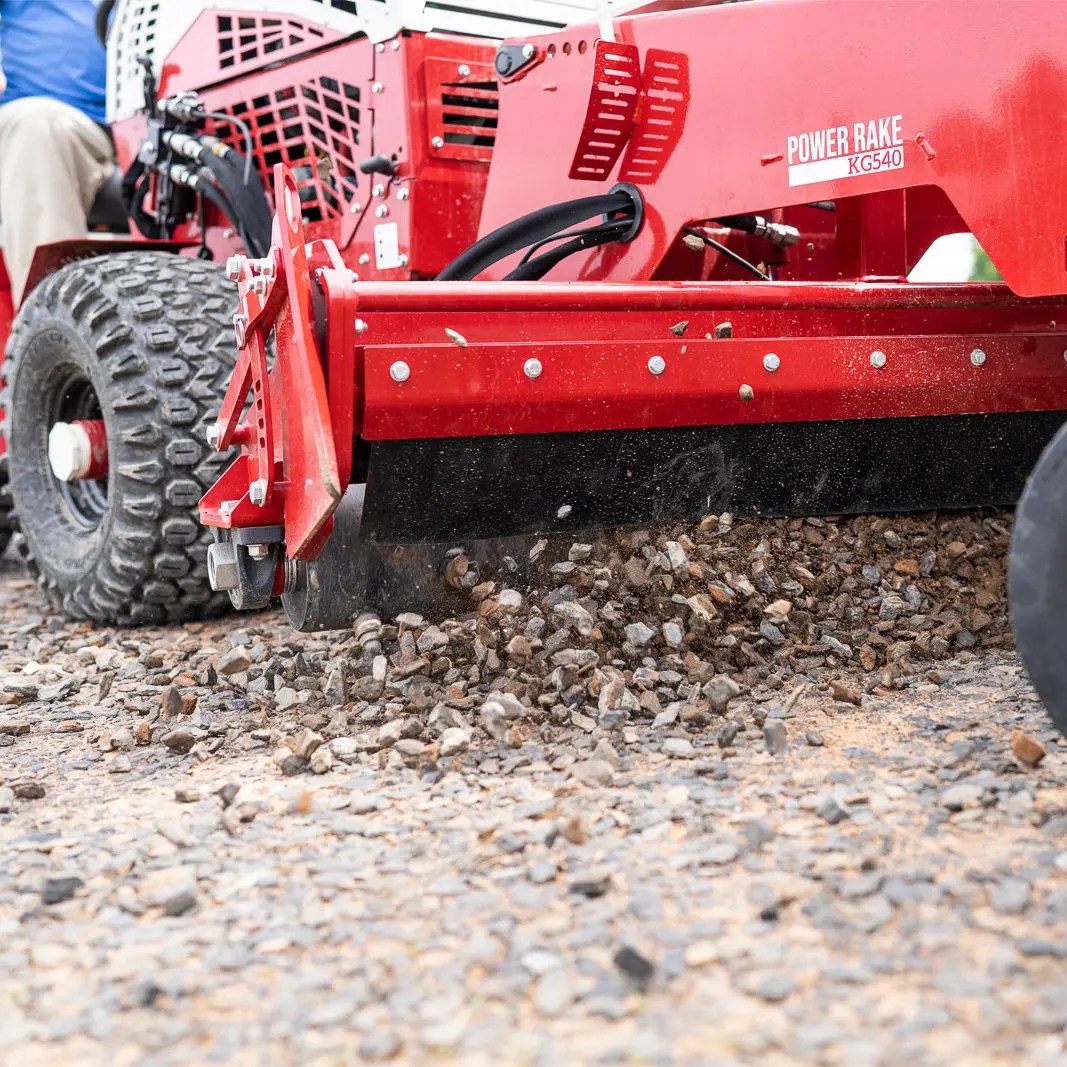

Refreshing a gravel driveway is one task where the Power Rake excels by bringing old gravel back to the surface for a fresh gravel finish.

Several features enhance the KG540 Power Rake including a hydraulic height adjustment that allows precise control from the driver’s seat. Additional features include a pivoting front axle to assist in self-leveling. The option to remove the axle provides the ability to work up closer to structures.

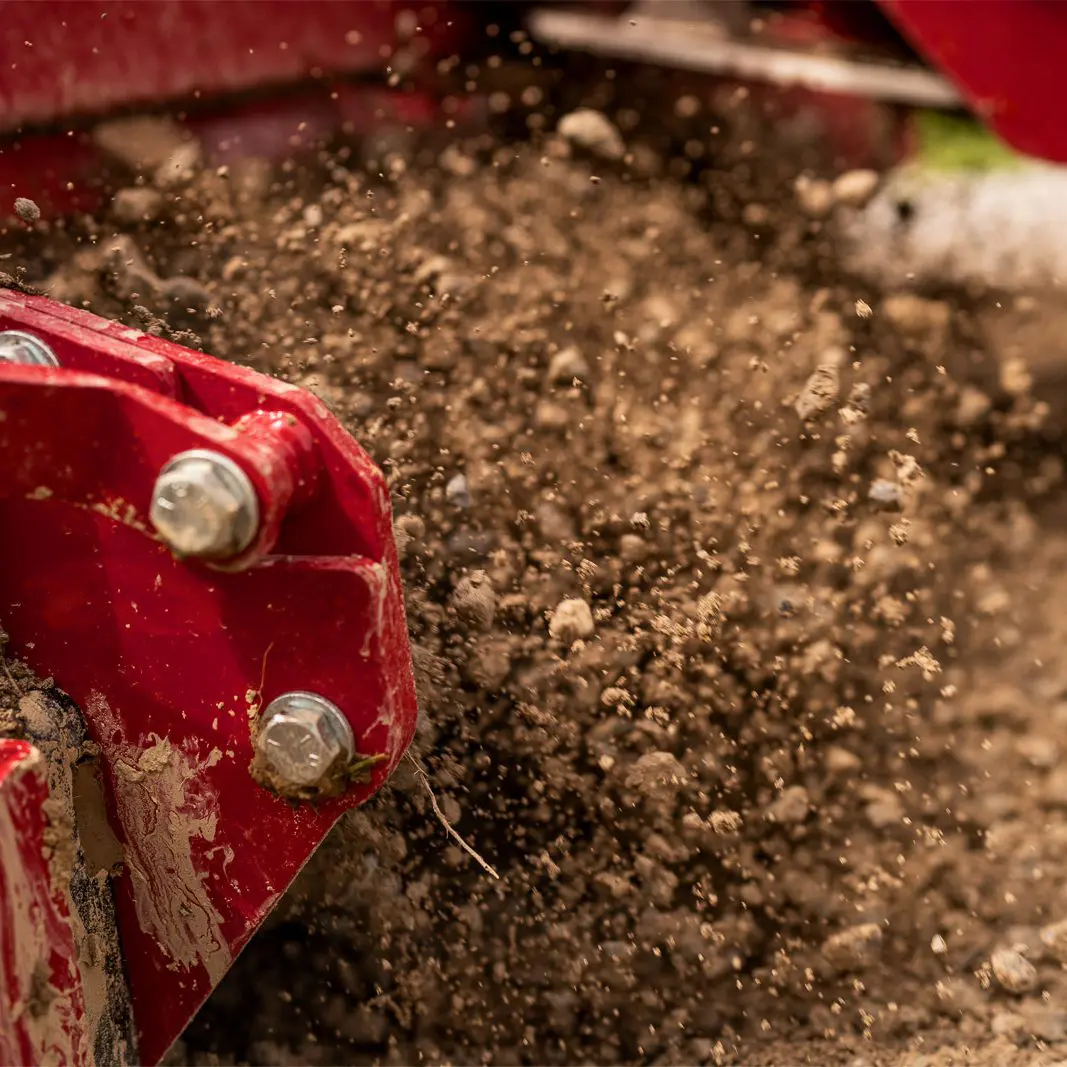

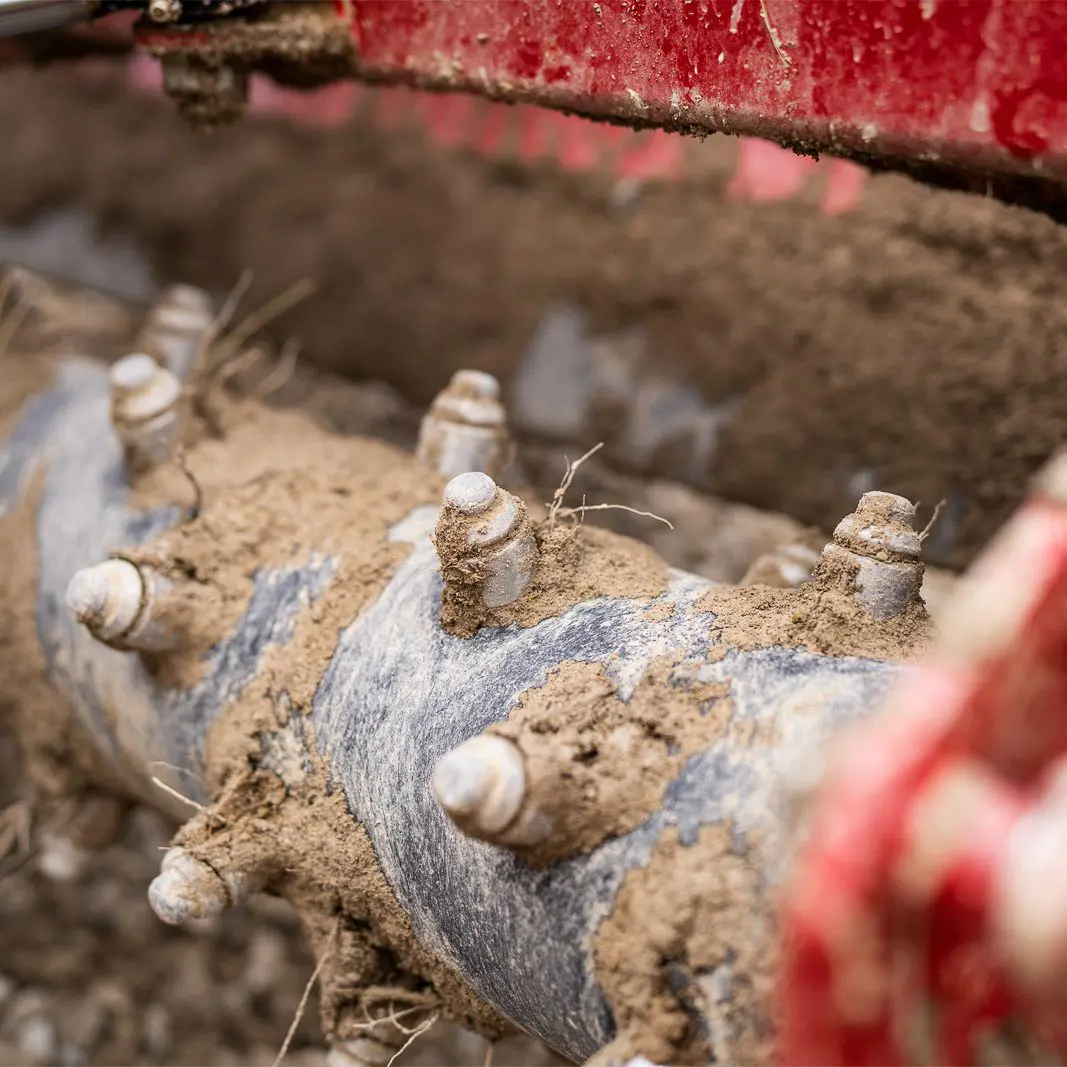

Powering the action of the KG540 Power Rake are seventy-two replaceable carbide tips that pulverize and refine the soil. The reversible drum can carry soil or stone forward or backwards to allow for forward motion or back-dragging of materials while adjustable wings help control the routing of materials or debris.

Specifications

Carbide Tips 72 (Replaceable)
Hydraulic Angle 18 ° Left/Right
Overall Length 165 cm
Overall Height 86.4 cm
Overall Width 161 cm
Weight 297 kg
Rotor Depth Adjustment (below level, +5.08"/-15.2" cm
