Toro Versa Vac - Turf Sweeper

Fleet Finance & Leasing Options
Talk to us today 0800 807 333

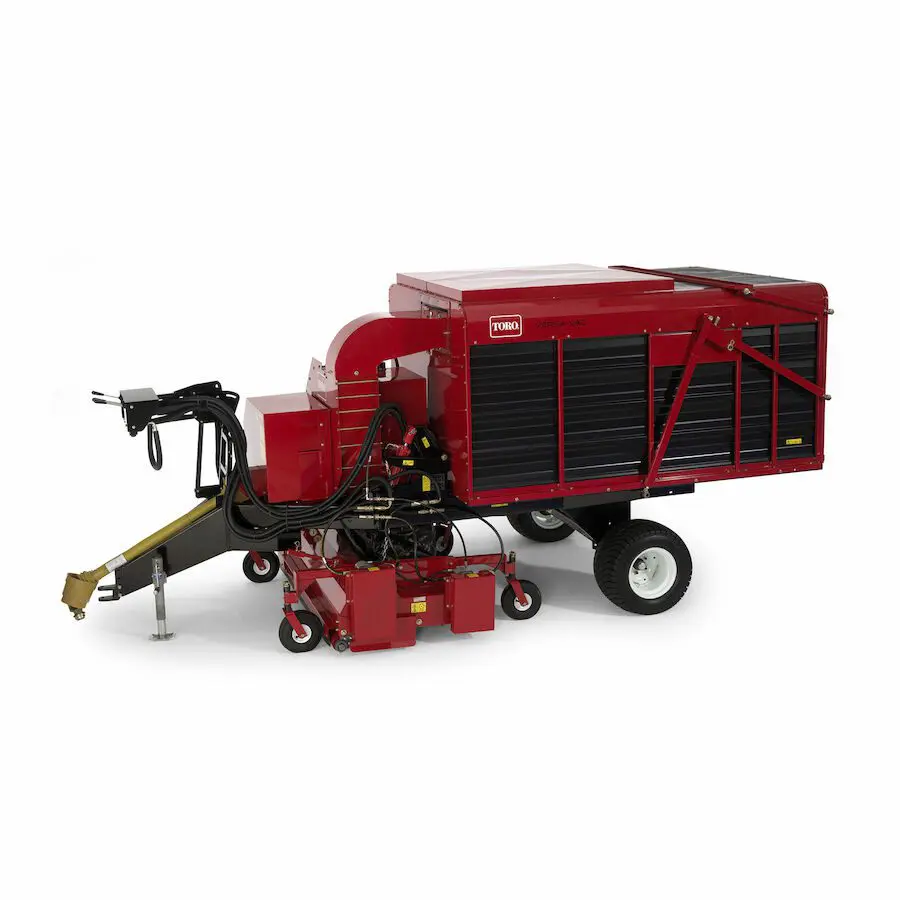

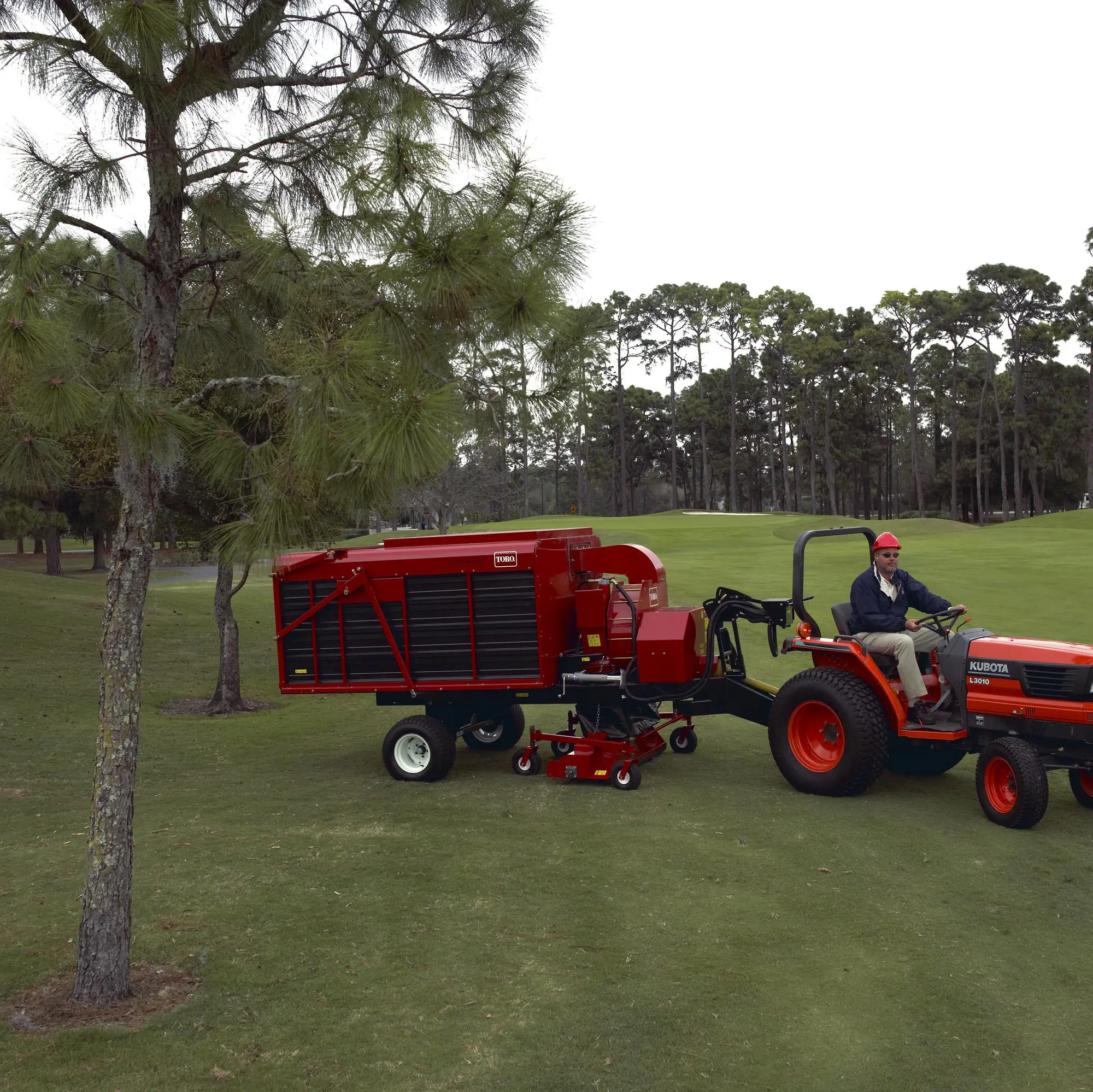

The Versa-Vac, the largest Toro turf sweeper, has an impressive 6.5 cu. yd. (5 cu. m) capacity. Factor in the leaf-shredding action of the impeller fan and you’ll hardly ever have to stop to unload. The cargo door and dump operate hydraulically with controls that sit directly behind the tractor seat for easy access. The hydraulics, sweeping decks and impeller fan are all powered by a 540 PTO drive with enough muscle to sweep up any debris.

The Toro Versa-Vac™ tackles debris management challenges and meets your collection needs. The large capacity hopper makes even the biggest clean-up job simple. For operator ease, the deck and trailer operate hydraulically from convenient seat controls. Use the proven rubber finger deck for effective sweeping, then switch to the combination deck and start verticutting for overseeding, core pulverization, or de-thatching.

The Versa Vac is also commonly known as: Toro sweeper, Toro vacuum, versavac

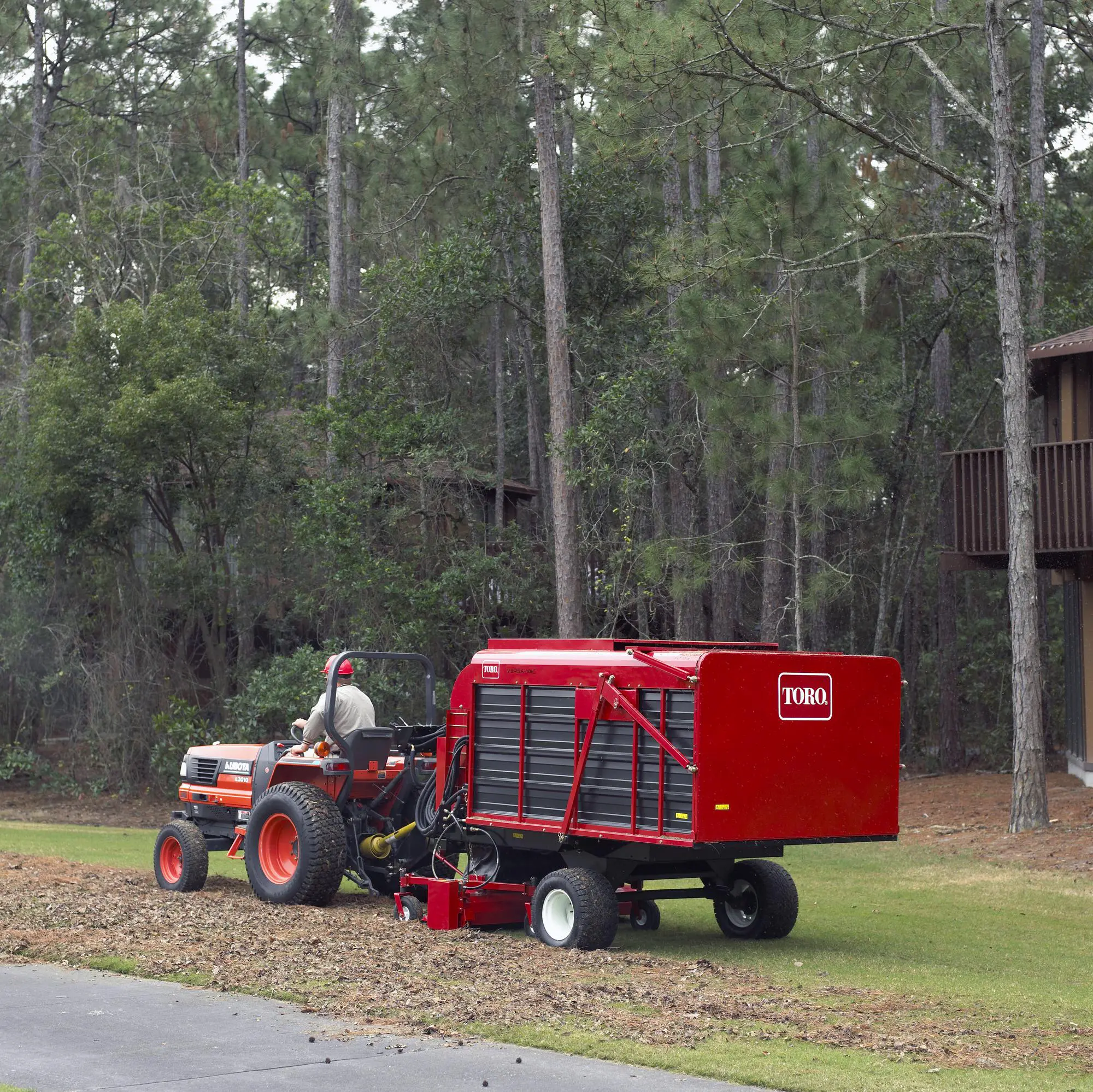

  • The rubber finger deck quickly and easily removes leaves, twigs, pine needles, clippings and other debris from turf surface.
  • The innovative design allows for quick deck changes and removal for servicing. In addition, the optional hand held hose provides even more versatility to use the machine for debris clean-up in tight areas.

Product Features

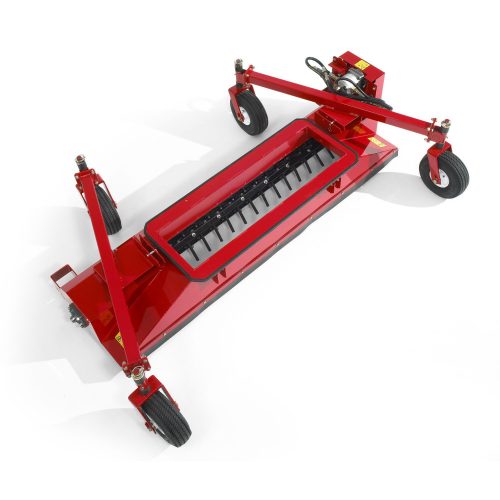

Rubber Finger Deck

The rubber finger deck quickly and easily removes leaves, twigs, pine needles, clippings and other debris from turf surface.

Versatility

The innovative design allows for quick deck changes and removal for servicing. In addition, the optional hand held hose provides even more versatility to use the machine for debris clean-up in tight areas.

Specifications

POWER SUPPLYPower source: 35 PTO hp (26 kW) and larger turf tractor with 540 PTO output shaft, double CV drive line, drive ratio to Impeller: .486 : 1, drive ratio to pump input shaft from impeller shaft: .389 : 1.
FAN IMPELLER32" (81.3 cm) diameter impeller, 8 blades reinforced .25" (6.4 mm) steel, 9.375" (23.8 cm) wide (radial design) welded to a 27" (68.3 cm) diameter base plate.
DRIVEBelt drive from input shaft to impeller shaft (4-5VX), belt drive from impeller shaft to pump input shaft (2-5VX).
MAIN FRAMEOne-piece welded frame of .25" (6.4 cm), 7 and 10-gauge formed steel.
WHEELS AND TIRESTurf tire, size 24 x 13.00-nhs 4-ply. Stamped and welded steel wheels rated up to 1,800 lbs. (817 kg).

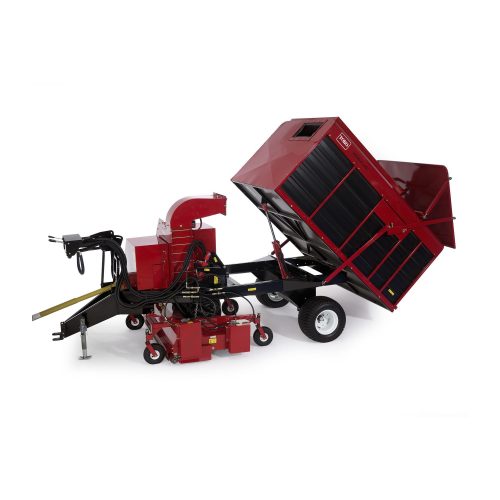

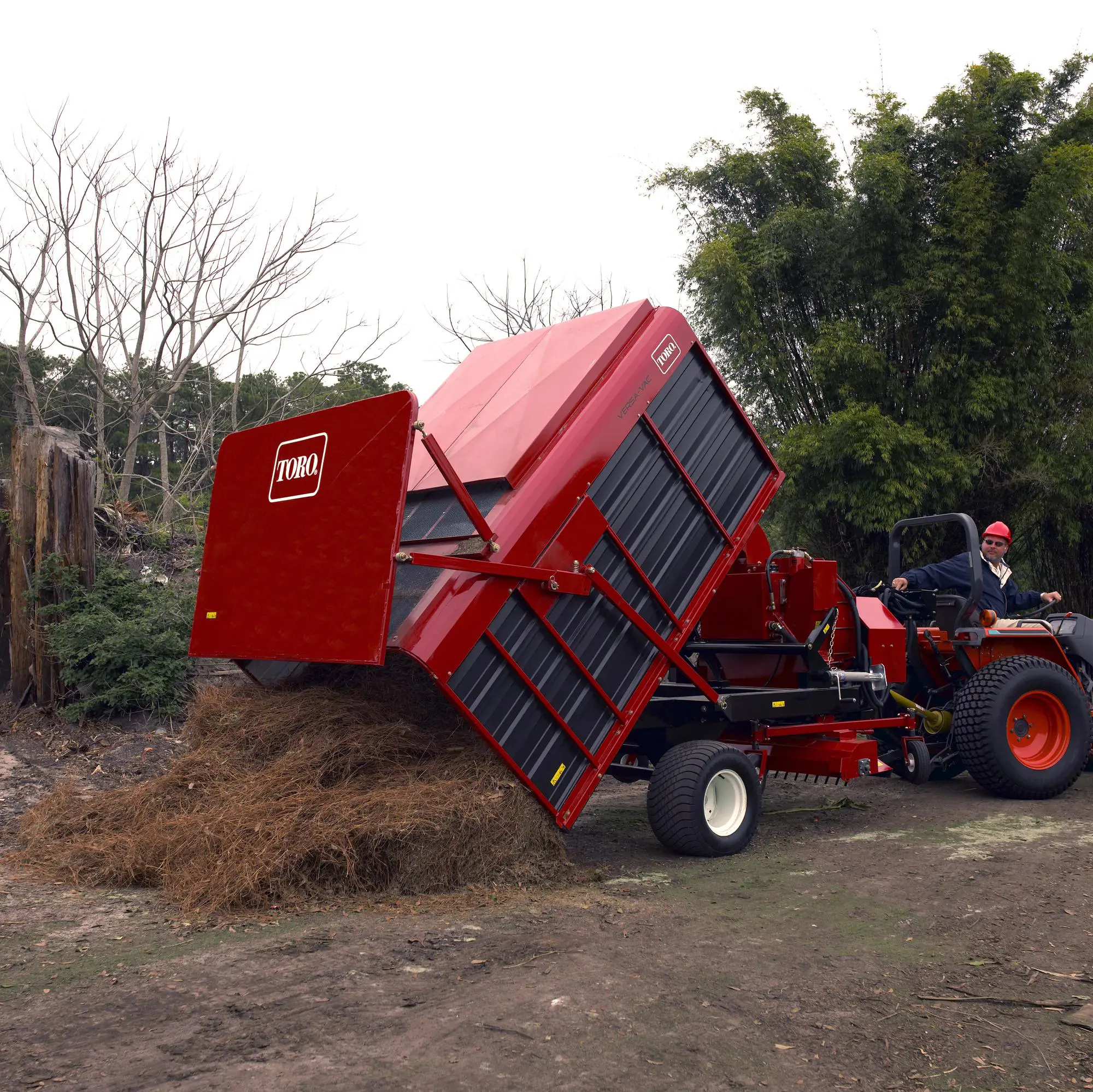

HOPPERVolume 6.5 cubic yard (5 cu. m), self-cleaning tapered box, dump hopper is operated hydraulically by one control, with self opening and closing door, dump hopper hydraulically lifted with a 3 x 18 hydraulic cylinder, vented roof sections with dust hoods to direct dust away from operator
DIMENSIONSWidth: 78" (198 cm), Height: 83" (211 cm), Length: 15'5" (4.7 m), Weight: 2,300 lbs. (1,044 kg)
OPTION20' (6.1 m) handheld hose.
WARRANTYTwo-year limited.

Product Reviews

Brochures, Parts & Manuals

View and download documentation for this item.

Toro Rake-o-Vac & Versa-Vac Picture Brochure & Spec Sheet

Toro Rake-o-Vac & Versa-Vac Picture Brochure & Spec Sheet

Download | View
