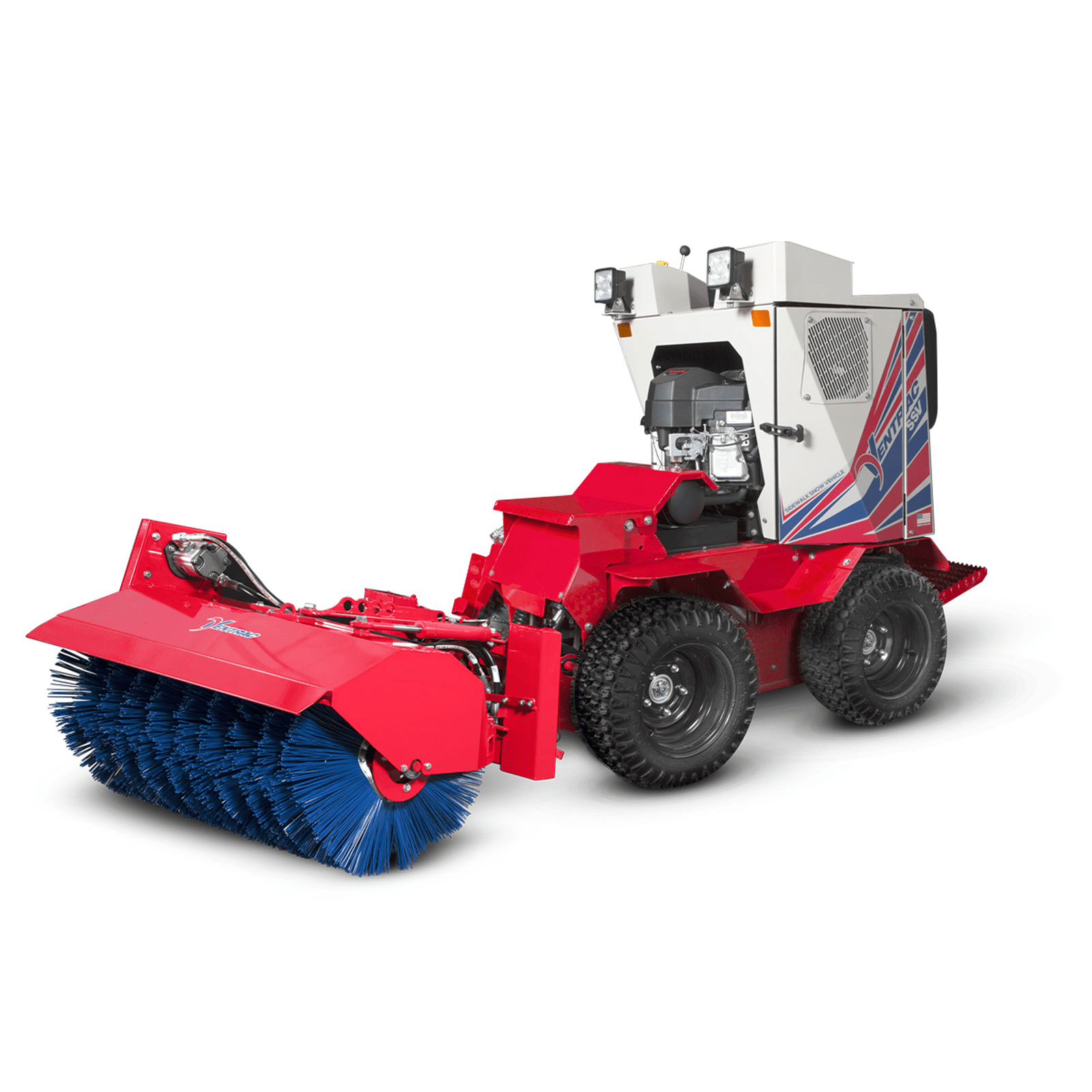

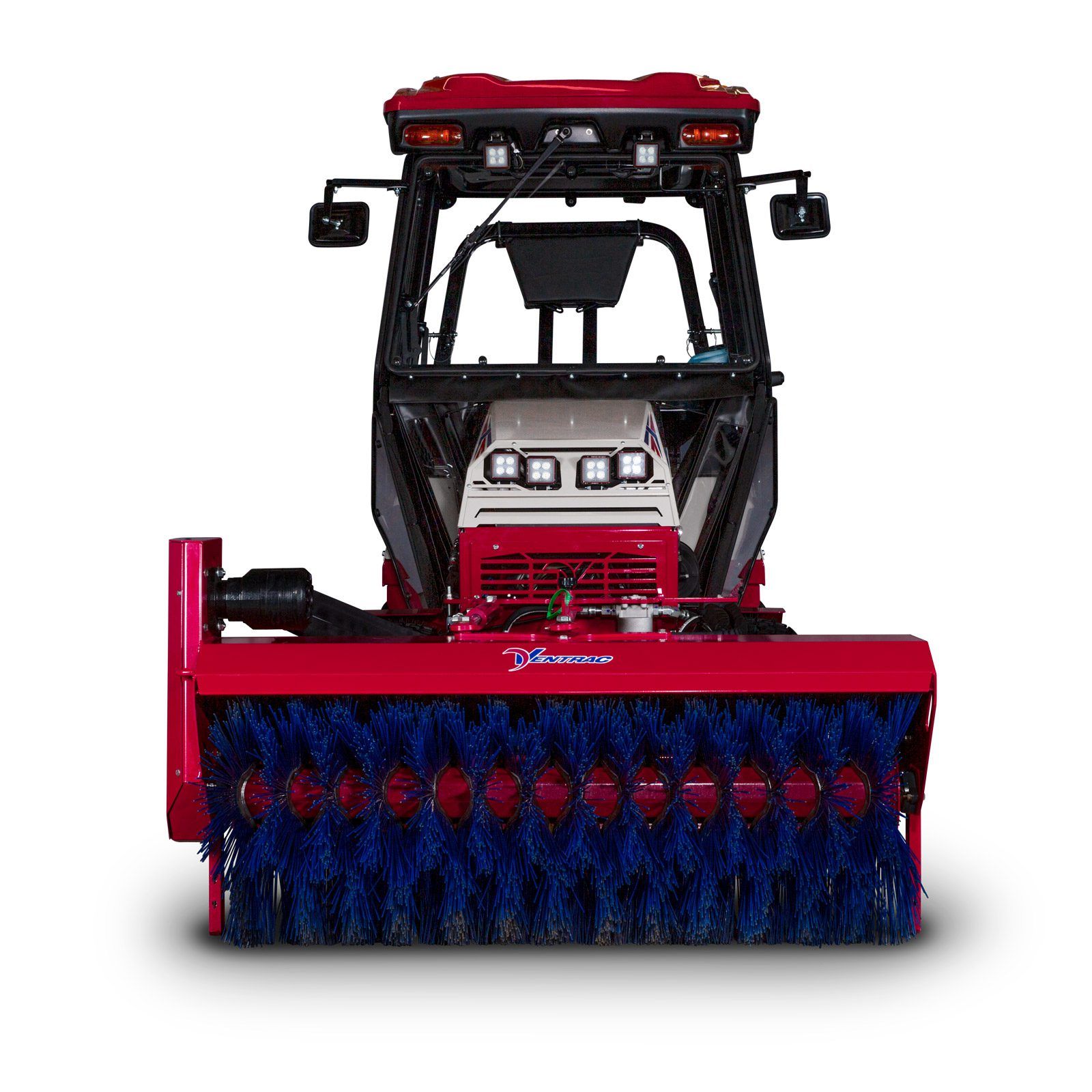

Ventrac Narrow Broom Tractor Attachment

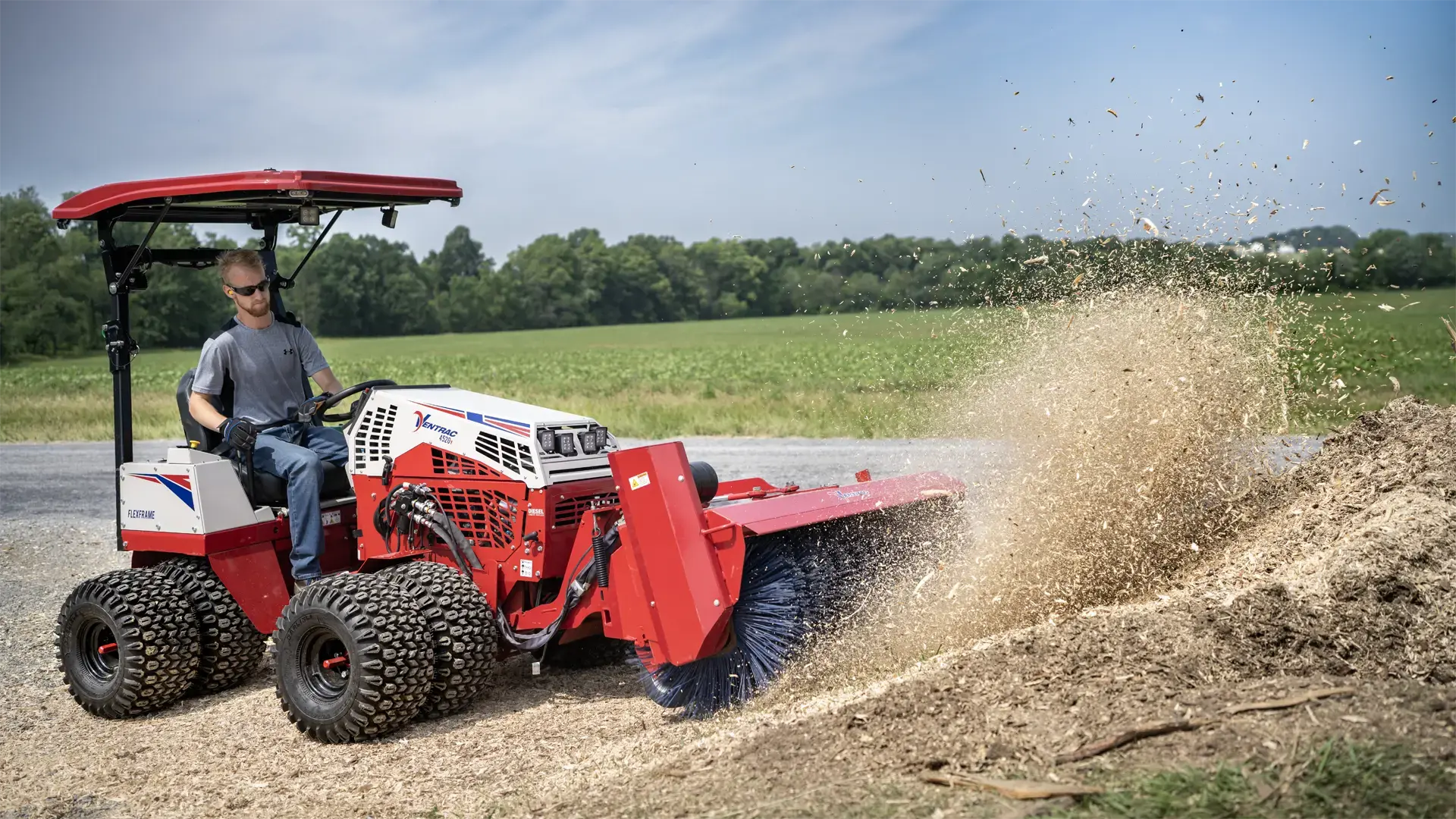

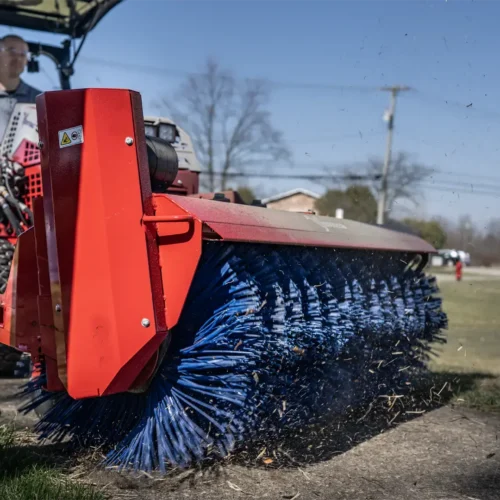

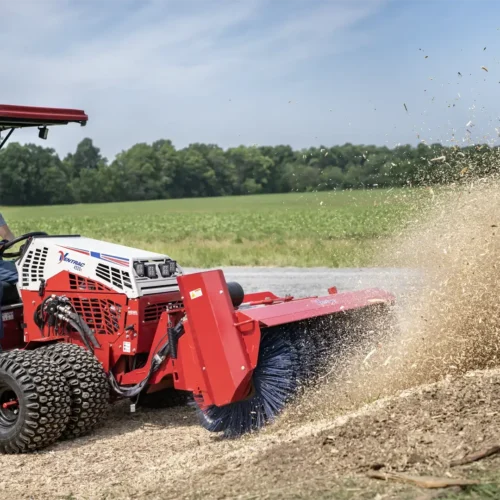

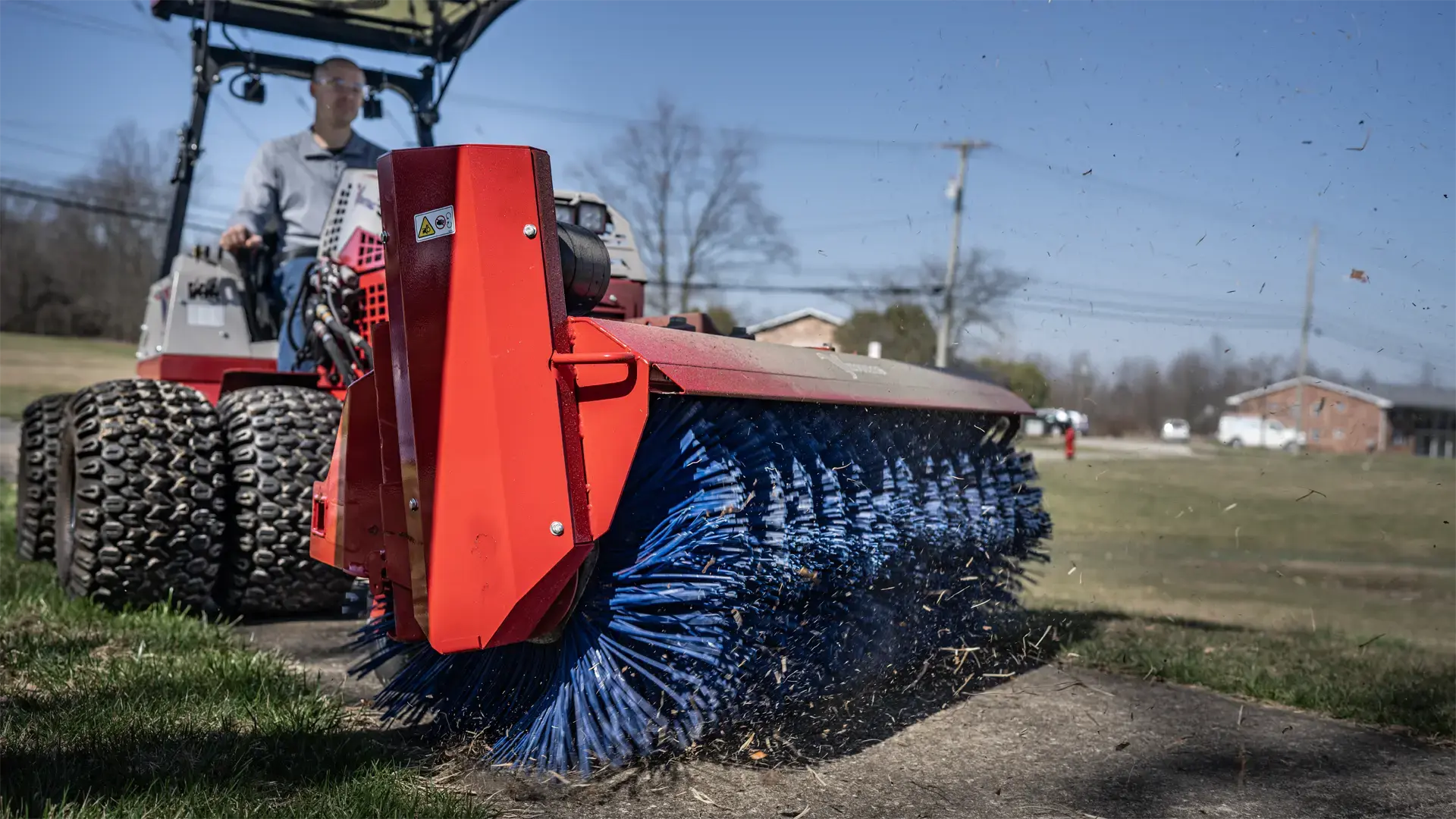

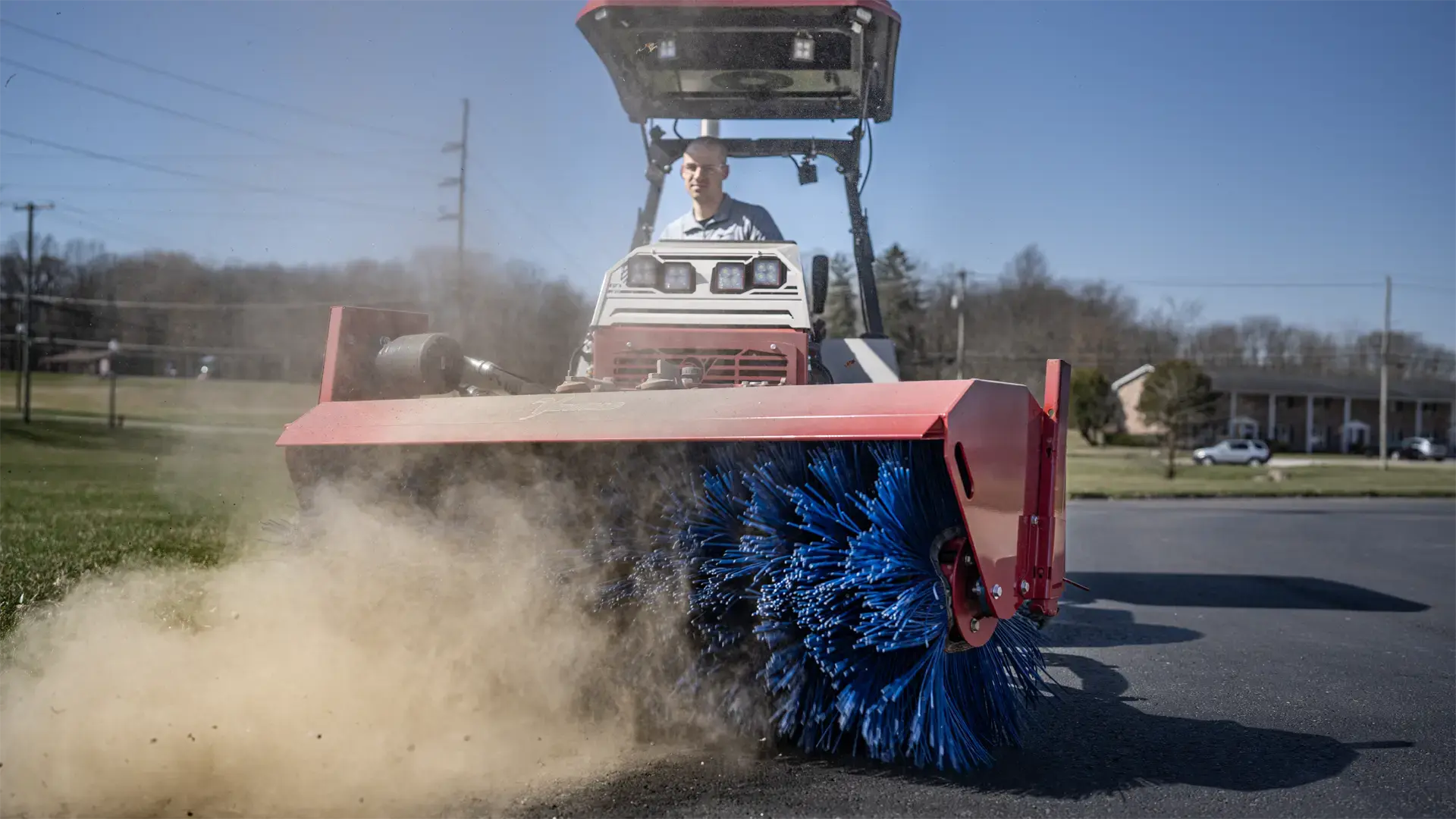

The KJ520 Narrow Broom is designed for sweeping and removal of material such as snow, leaves, dirt, light gravel, and even thatch. It is designed to fit narrow walkways, operational on a 48in walk.
The KJ520 Broom can be hydraulically angled left or right and lifted up or down all with the S.D.L.A. Controls.
An optional electric actuator allows the operator to adjust the speed and direction of the broom rotation, maximizing effectiveness and allowing the operator to reverse broom rotation, all from the seat of the tractor.
INCREASED TORQUEÂ
The Narrow Broom has 45% more hydraulic power than the HB580 Power Broom.
CLEAN SWEEP

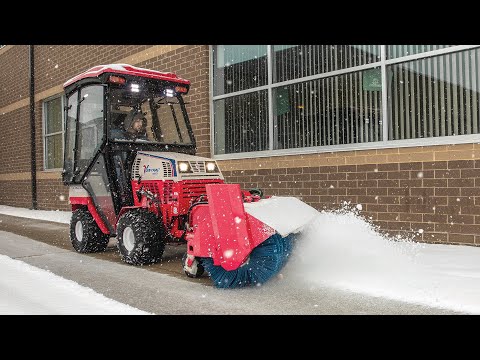

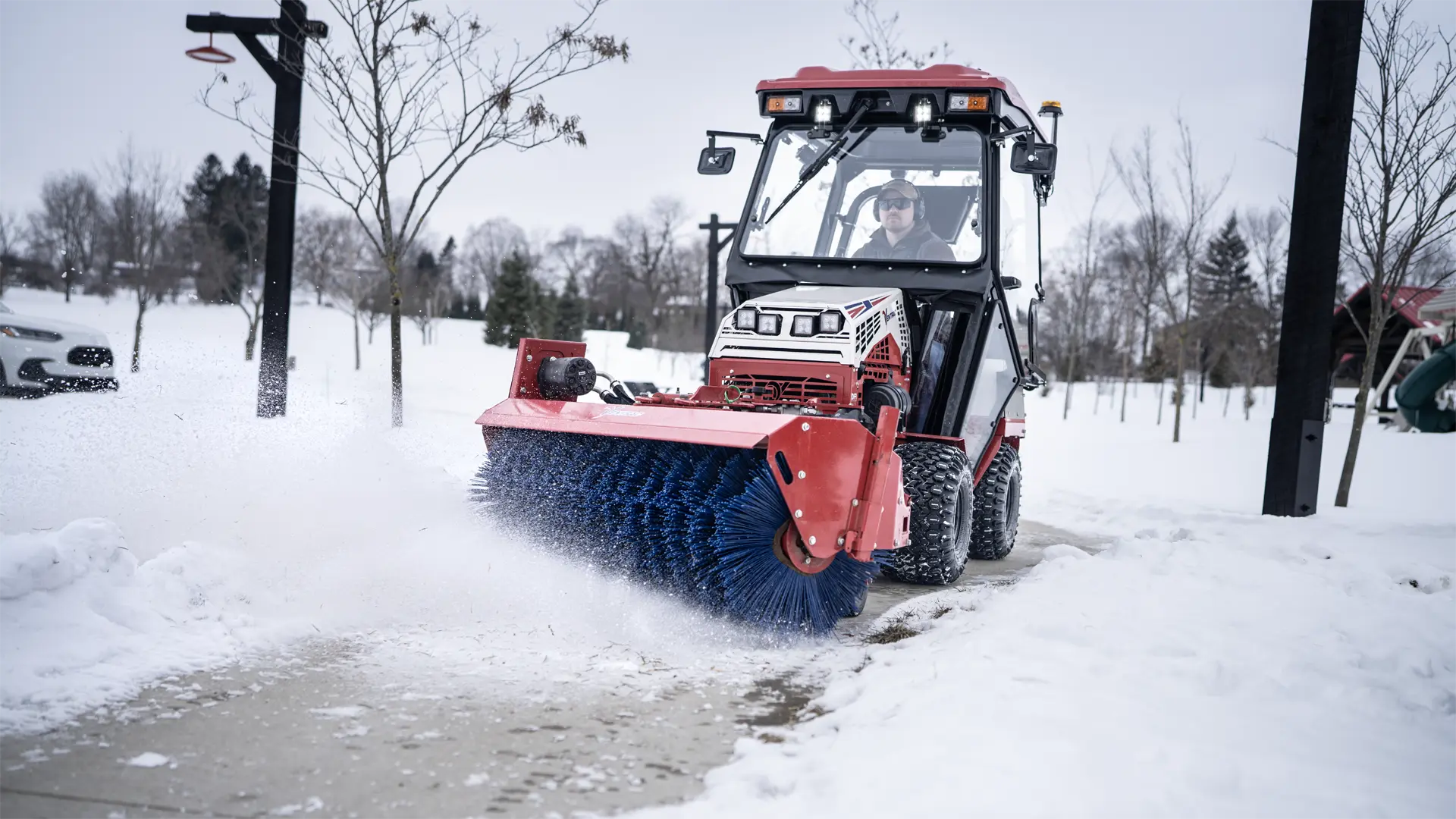

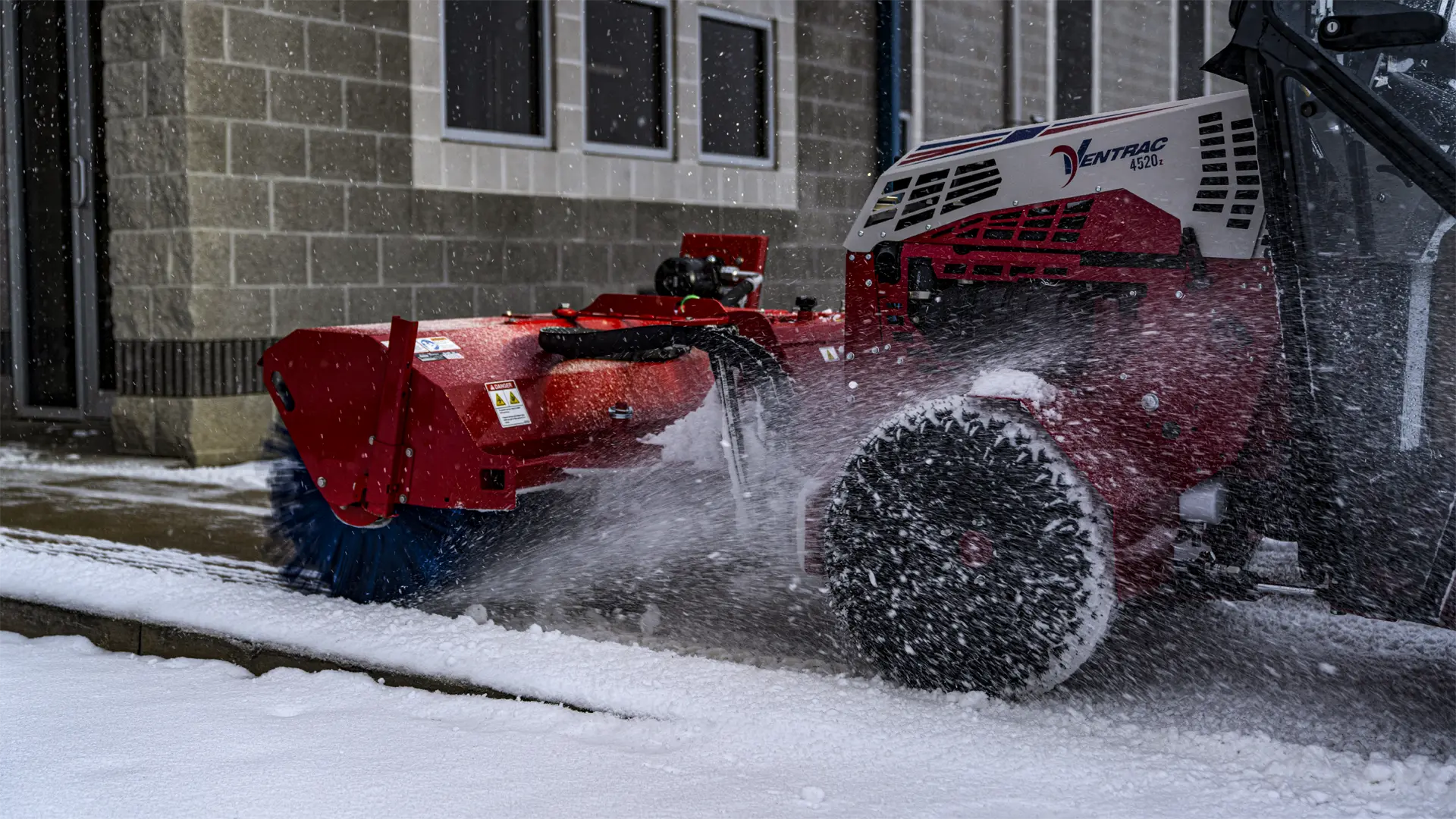

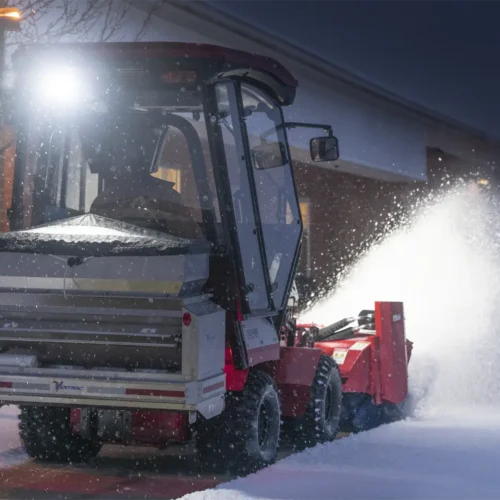

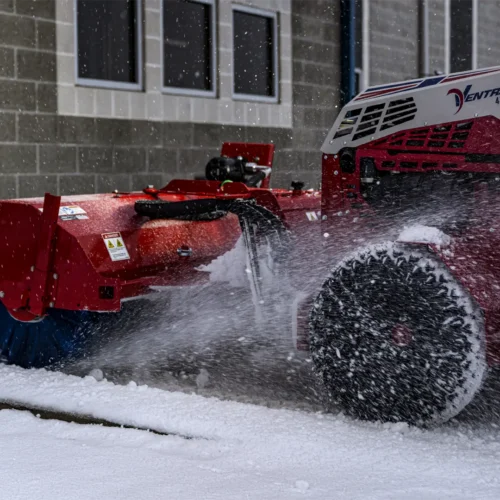

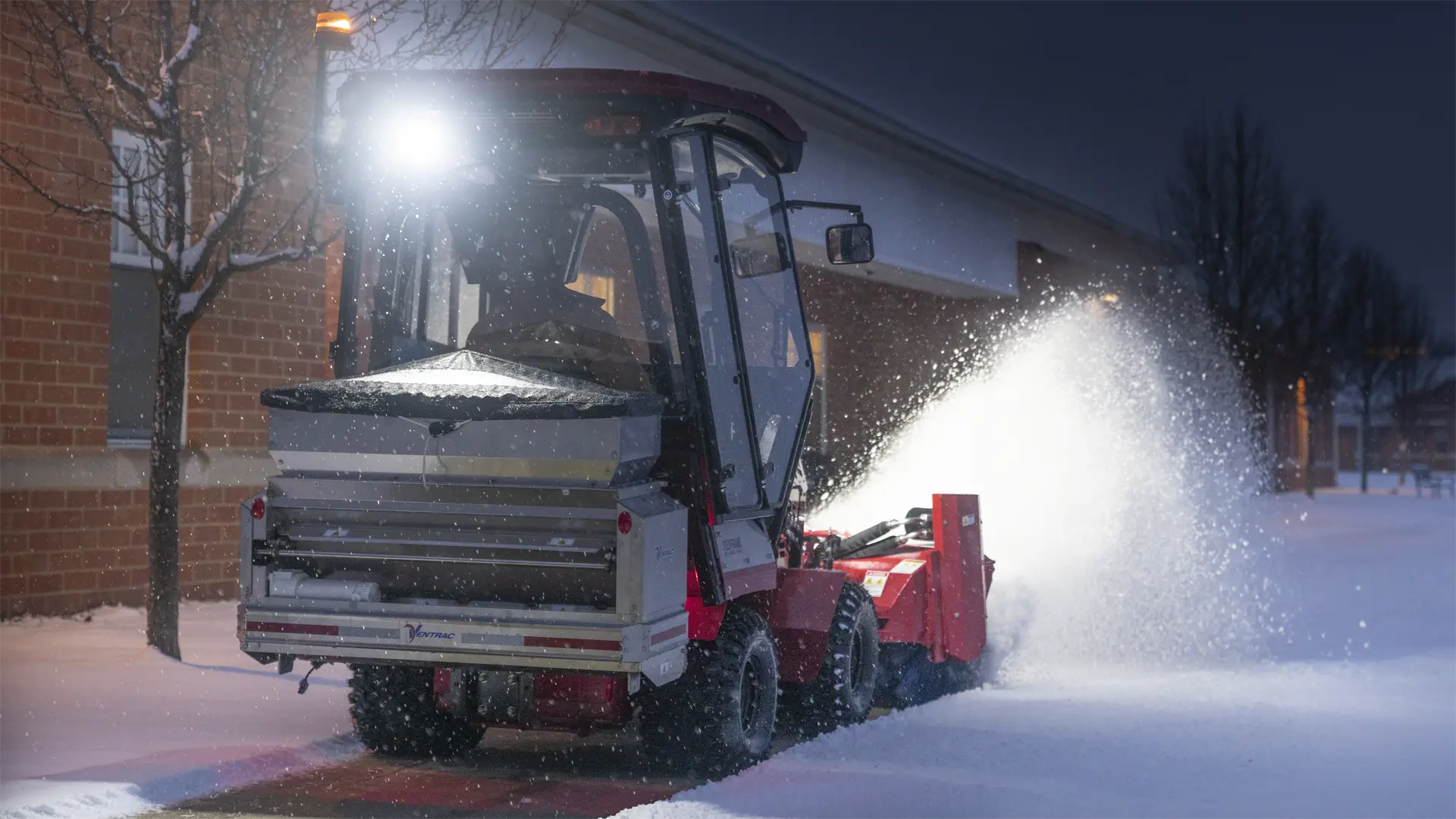

The Narrow Broom is an efficient solution for light to medium snowfalls. Quickly clear a path through snow leaving a clean surface.
REVERSE BROOM ROTATION
The optional electric actuator allows the operator to adjust the speed and direction of the broom rotation, maximizing effectiveness and allowing the operator to reverse broom rotation, all from the seat of the tractor.
Description
The KJ520 Broom can be hydraulically angled left or right and lifted up or down all with the S.D.L.A. Controls.
An optional electric actuator allows the operator to adjust the speed and direction of the broom rotation, maximizing effectiveness and allowing the operator to reverse broom rotation, all from the seat of the tractor.
| Sales Model | KD482 | KD602 | KD722 |
| Full Description | KD, KD482 48″ Dozer Blade | KD, KD602 60″ Dozer Blade | KD, KD722 72″ Dozer Blade |
| Product Type | Attachment | Attachment | Attachment |
| CATEGORY | |||
| Front Mount | Ventrac Mount System | Ventrac Mount System | Ventrac Mount System |
| 3000 Series Mount | |||
| 4000 Series Mount | |||
| DIMENSIONS | |||
| Length | 68.6Â cm | 68.6Â cm | 68.6Â cm |
| Overall Height | 55.9Â cm | 55.9Â cm | 55.9Â cm |
| Overall Width | 122Â cm | 152Â cm | 183Â cm |
| Weight | 73.9Â kg | 92.1Â kg | 102Â kg |
| Shipping Dimensions(LWH) | 64×24.5×15.6Â cm | 76×24.5×15.6Â cm | 88×24.5×15.6Â cm |
| Crated Weight | 93.9Â kg | 123Â kg | 134Â kg |
| GENERAL | |||
| Work Width – 30 degrees | 107Â cm | 132Â cm | 157Â cm |
| Work Width – 0 degrees | 122Â cm | 152Â cm | 183Â cm |
| Ground Clearance | 33 cm @ 0 deg. | 33 cm @ 0 deg. | 33 cm @ 0 deg. |
| Skid Shoes | |||
| Spring Trip | Mechanical On/Off | Mechanical On/Off | Mechanical On/Off |
| Hydraulic Power Angle | |||
| Hydraulic Cylinder Bore and Stroke | 2×8Â cm | 2×8Â cm | 2×8Â cm |
| Max Angle (Left/Right) | 30 ° | 30 ° | 30 ° |
Additional information
| Brands | VENTRAC |
|---|
