Grillo Climber 10.27 AWD Ride-On Mower

Name: Parkland Products
Price range: $$

Model: 8011AQAG

Grillo Climber 10.27 AWD Ride-On Mower

Model: 8011AQAG

The Climber 10.27 is an All Wheel Drive (AWD) machine but provides maximum maneuverability. Its small turning circle of only 70cm is best in its class. It also features differential lock which provides superior traction, allowing the user to manage any tricky areas by depressing the diff lock pedal to engage both rear wheels simultaneously. Its low center of gravity enables the Grillo Climber to handle steep and undulating terrain safely and competently. The driver is positioned directly over the cutting deck and sits low in the seat as you would driving any other vehicle.

Extremely low center of gravity
Balanced weight distribution to provide maximum stability
High wheel grip and Differential Lock where traction is required on steep slopes
Low engine noise
Hydrostatic transmission
A large 13 litre fuel tank to enhance productivity
Foldable roll bar fitted
Ergonomically designed Grammer suspension seat with arm rests and seat belt
Tow bar and twin LED headlights fitted as standard
Will safely go places a tractor can’t go

$31,848 incl. gst

or $ per week*

Calculate Finance

*Based on $6,370 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.

Talk to a rep Find a Stockist Find a Store

Compare the Climber Slope Mowers Series

Specification	Climber 7.15	Climber 7.18	Climber 9.18	Climber 9.22S	Climber 10.27 Viewing
Engine	Loncin LC1P92F Start electric, with 12 V battery Supply fuel Displacement 452 cc, 1 Cylinder Power 12 HP (9 kW) - Gross power 15 HP Air cooled Dry air filter with interchangeable filter cartridges	Briggs & Stratton 7160 EXi Intek Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 15.2 HP (11.3 kW) - Gross power 18 HP Air cooled Dry air filter	Briggs & Stratton 7160 EXi Intek Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 15.2 HP (11.3 kW) - Gross power 18 HP Air cooled Dry air filter	Briggs & Stratton 7220 PXi PROFESSIONAL Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 18 HP (13.2 kW) - Gross power 22 HP Air cooled Dry air filter	Briggs & Stratton Series 8290 CXi Commercial Start electric, with 12 V battery Supply fuel Displacement 724 cc, 2 Cylinders Power 22 HP (16.2 kW) Air cooled Dry air filter with interchangeable filter cartridges
Fuel tank capacity	Fuel tank 7 litres (reserve tank 1 litre)	7 L (emergency supply 1L)	13 L (emergency supply 3 L)	Fuel tank 13 litres (reserve tank 3 litres)	13 L
Gearbox	Hydrostatic transmission	Hydrostatic transmission	Hydrostatic transmission with reduction gear and differential.	Hydrostatic transmission with reduction gear unit and diff	4-wheel-drive hydrostatic transmission.
Clutch	Clutch: electromagnetic for PTO with blade brake	Electromagnetic with P.T.O and fitted with blade brake	Electromagnetic with P.T.O. and with blade brake	Clutch: electromagnetic for PTO with blade brake	Electromagnetic clutch with P.T.O and blade brake.
Cutter deck	Side/rear discharge	With rear discharge	With rear discharge	Side/rear discharge	Side and rear discharge
Cutting configuration	1 rotating blade	1 rotating blade	One rotating blade	1 rotating blade	1 rotating blade
Cutting width	85 cm (33.5")	85 cm (33.5")	91 cm (36")	91 cm (36")	98 cm (38.5")
Cutting height	6 different cutting positions from 35 to 85 mm and 1 position for transport	From 35 mm (±1.3’’) to 85 mm (±3.3’’) with 6 different cutting positions and 1 transfer position.	From 30 mm to 90 mm(from ± 1.2’’ to ±3.5’’) with 4 different cutting positions and 1 transfer position.	4 different cutting positions from 3 to 9 cm plus 1 for transfer	From 35 mm to 135 mm with continuous adjustment.
Peripheral blade speed	76 m/s	76 m/s	—	—	87 m/1"
Differential locking	Differential lock by pedal action	With pedal engagement	With pedal engagement	Differential locking device by pedal action	On the rear axle, with pedal engagement.
Front tyres	3.50-6 TRACTOR and puncture-proof treated	3,50-6 TRACTOR and puncture-proof treated	13x5.00-6 Tractor	Tractor 13x5.00-6 wheels	16x6.50-8 tractor. With anti-puncture treatment as standard feature.
Rear tyres	16x6.50-8 Tractor	16×6.50-8 TRACTOR	17x8.00-8 Tractor	Tractor 17x8.00-8 wheels	20×10.00-8 TRACTOR
Speed	Continuously variable from 0 to 9 km/h, reverse gear from 0 to 6 km/h	Continuously variable from 0 to 9 km/h + reverse speed from 0 to 6 km/h.	Continuously variable from 0 to 10 km/h + reverse speed from 0 to 6 km/h.	Continuously variable from 0 to 10 km/h, reverse gear from 0 to 6 km/h	Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h
Inner turning radius	45 cm	45 cm	38 cm	38 cm	70 cm
Seat	Dampened and adjustable seat, with roll bar	Sprung and adjustable, fitted with roll bar	Sprung and adjustable with armrests and roll-bar.	Seat equipped with springs, adjustable, with arm-rests and roll bar	With weight-adjustable suspension, equipped with roll-bar
Service brake	On the front wheels brakes are pedal-operated	On the front wheels with pedal engagement	Front service brakes with pedal engagement	On the front wheels brakes are pedal-operated	—
Parking brake	On the rear wheels brakes are lever-operated	On the rear wheels with lever engagement	Rear parking brake with lever engagement	On the rear wheels brakes are lever-operated	On the rear wheels with lever engagement.
Mowing capacity per hour (indicative)	4800 m^2/h	6000 m^2/h	7200 m^2/h	7200 m^2/h	7500 m^2/h
Standard features	Tow bar and front headlight	Tow bar, front headlight	Tow bar	Tow bar	—
Length	1895 mm	1895 mm	180 cm	180 cm	206 cm
Width	950 mm	950 mm	99 cm	99 cm	108 cm
Height	985 mm	985 mm	107 cm	107 cm	118.5 cm
Weight	250 kg	255 kg	297 kg	311 kg	383 kg

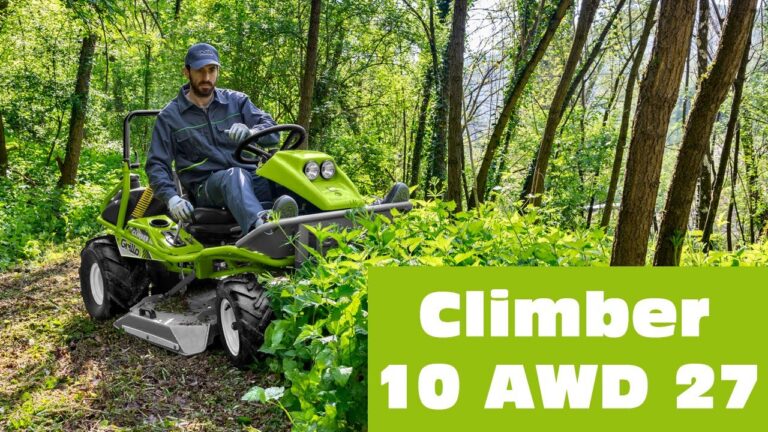

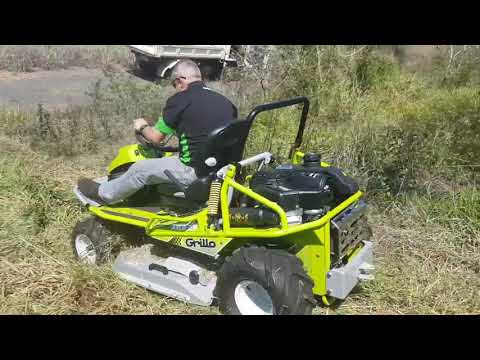

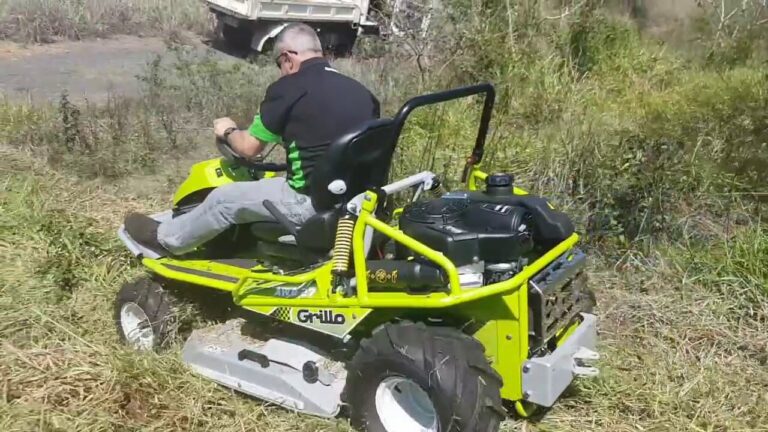

Videos

Features

Green ride-on mower with AWD, compact design, and small turning radius for enhanced maneuverability

Built to Last

Its powerful engine, 4WD, and automatic deck lock conquer slopes. Effortless height adjustment, a durable deck, and self-retracting blades handle any job. Enjoy a comfortable ride and reliable performance, built to last.

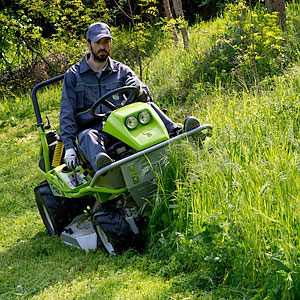

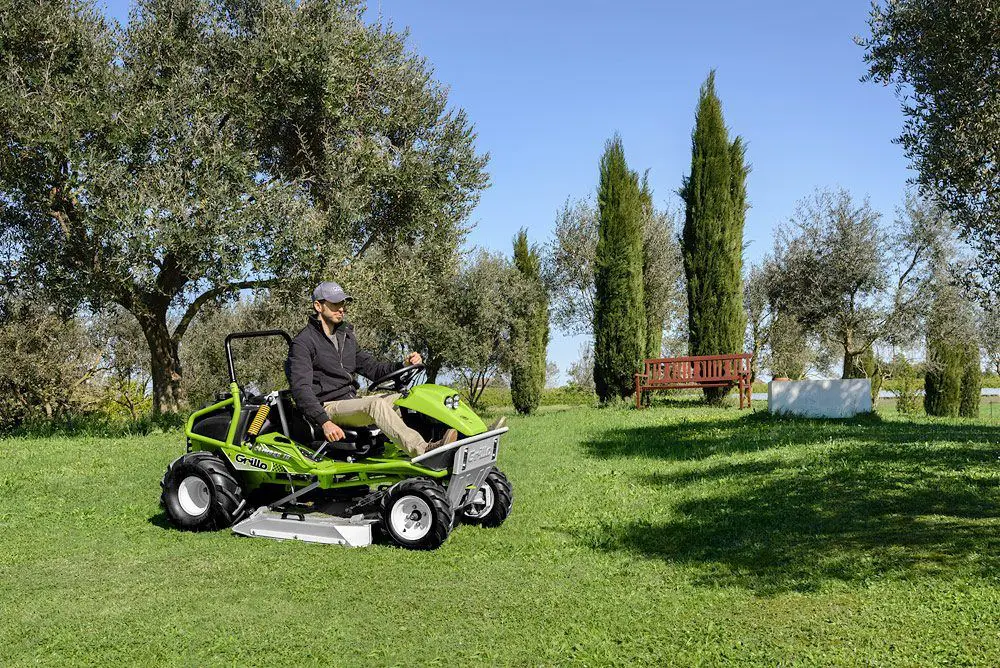

A man operates a green AWD mower in a lush, wooded area, showcasing its maneuverability and design

Adjustable Cutting Height

The Grillo Climber 10 AWD 27 features a smooth lever for effortless cutting height adjustment (3.5cm to 13.5cm). This, combined with the self-leveling cutting deck, ensures a clean cut even on uneven ground.

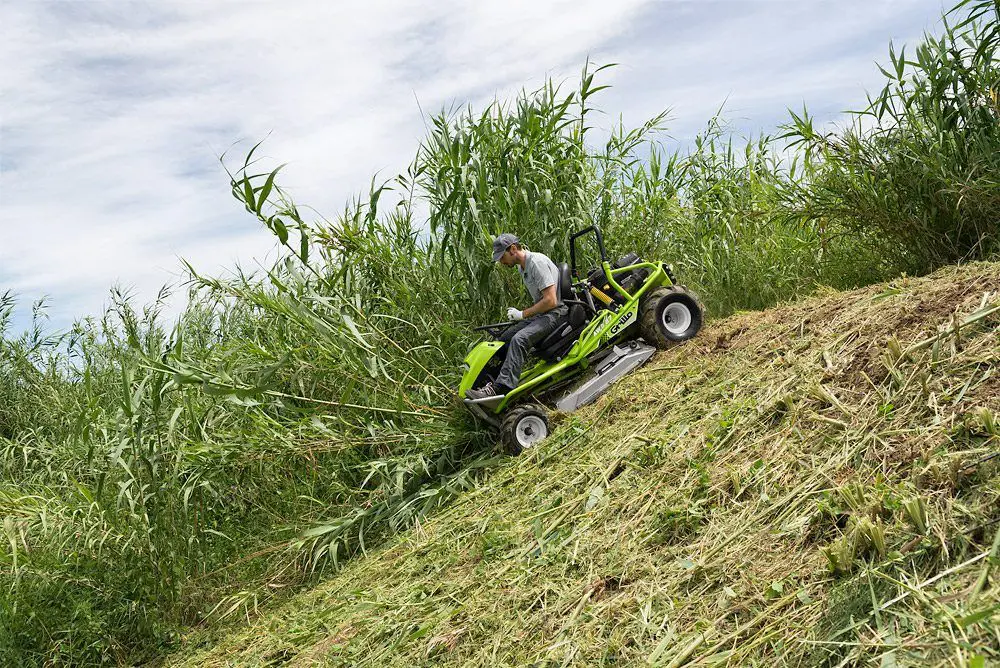

A person operates a green ride-on mower on a sloped, grassy area surrounded by tall vegetation

Handle Steep Slopes

The Grillo Climber 10 AWD 22's 4WD tackles descents with confidence and features puncture-resistant front tires for added toughness. Steel shielding safeguards the hydraulic system, while large cooling tubes ensure peak performance even under heavy loads.

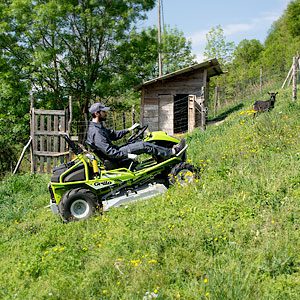

A person operates a green ride-on mower on a grassy slope near a wooden shed

Made for All Situations

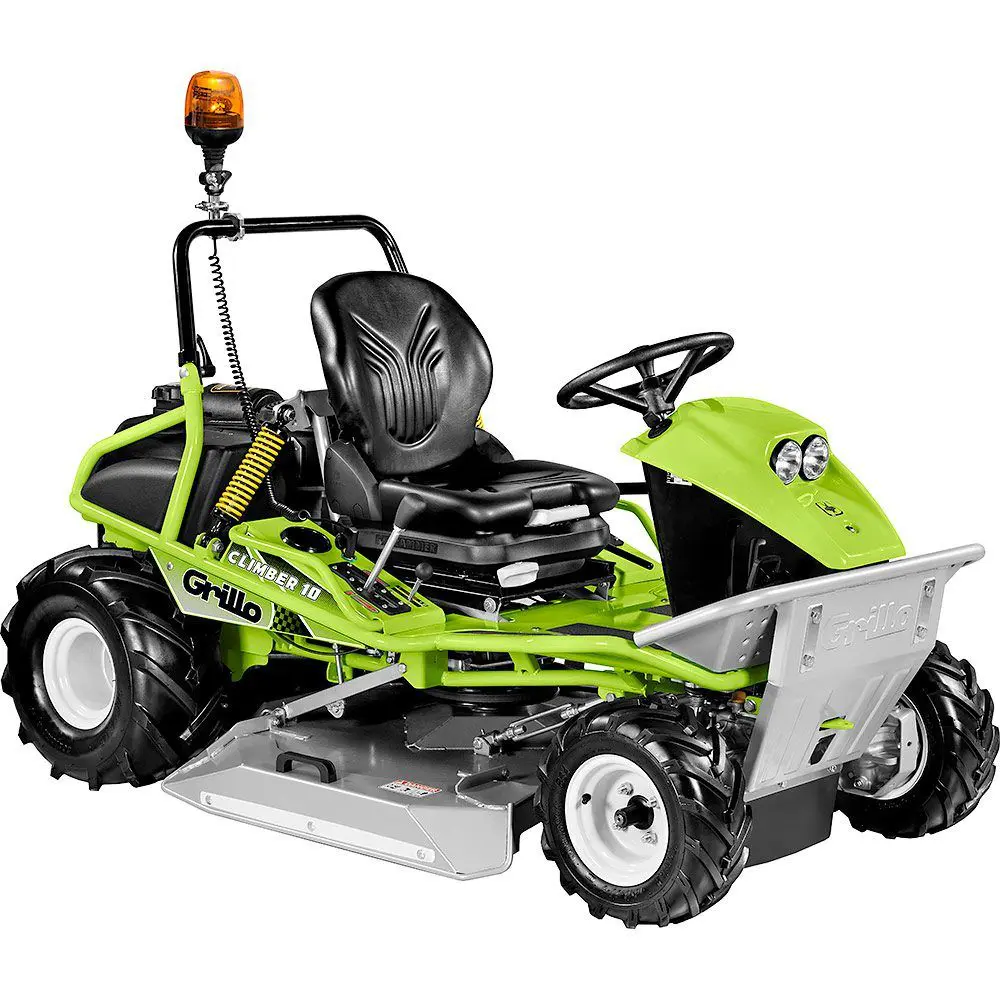

On the upper par of the cutting deck there is a baffle, that if positioned, inside the cutting deck, evenly distributes the grass onto the lawn. The rotating beacon can be mounted on the roll-bar and is then connected to the 12V plug.

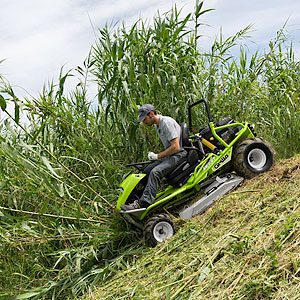

A man operates a green AWD mower, navigating through tall grass in a lush landscape

Two Hydrostatic Axles

Grillo's 4WD system with 2 axles & diff lock tackles slopes & uneven terrain. Large tires & hydraulic front axle grip tight for confident control.

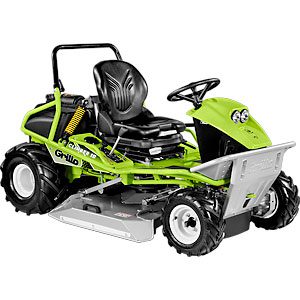

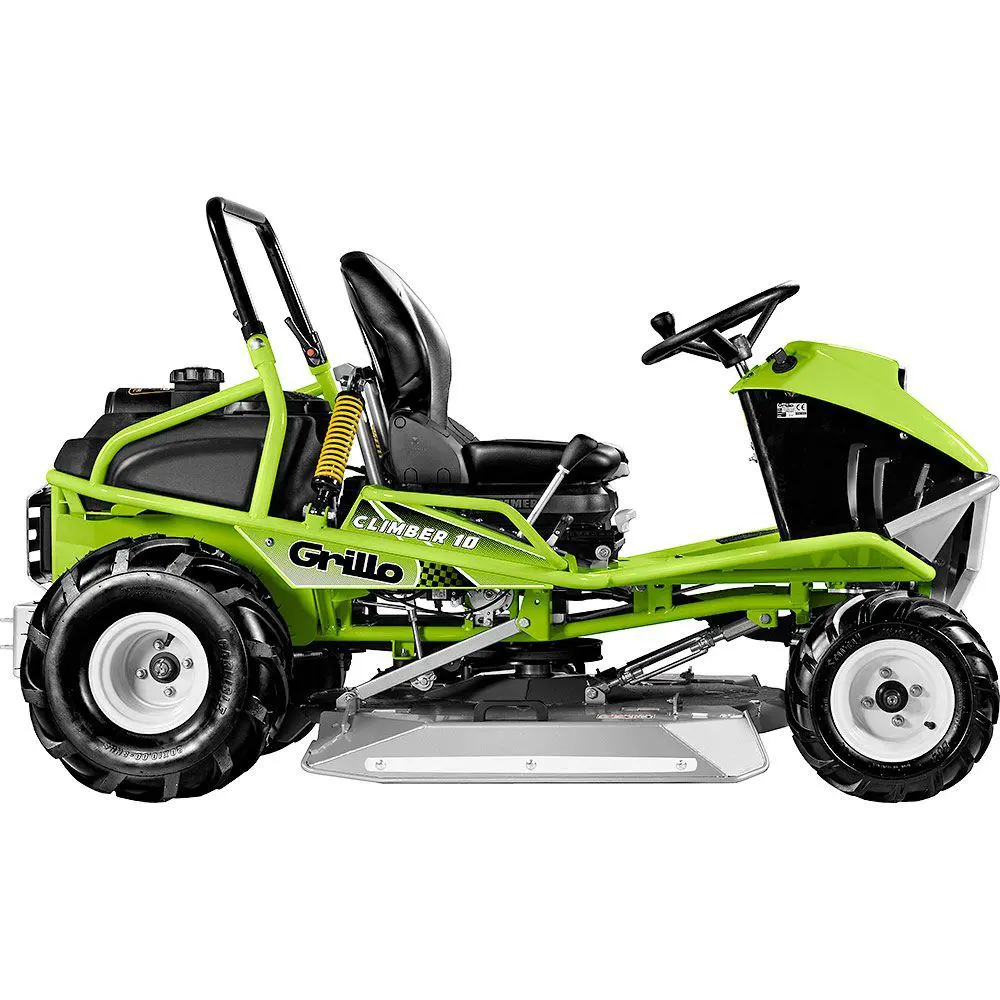

Side view of a green AWD ride-on mower showcasing its compact design and large wheels

Powerful yet quiet

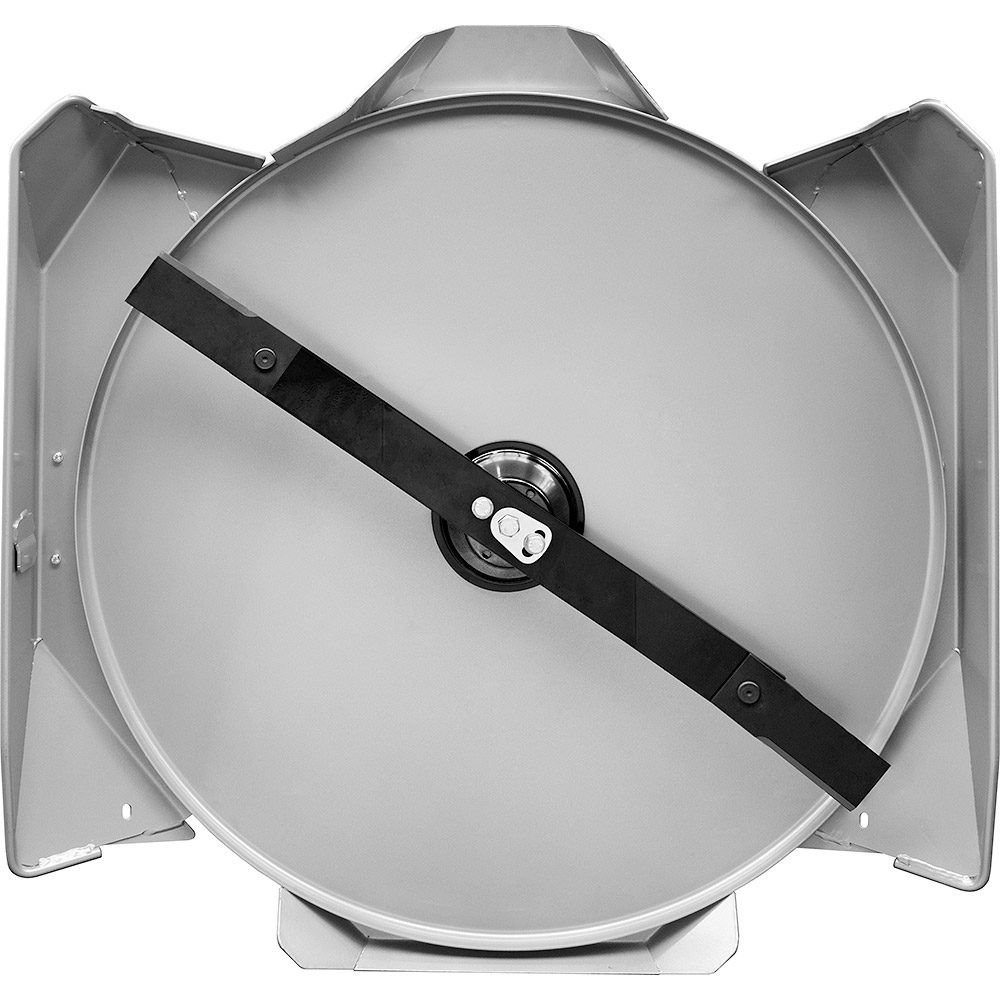

Its low-noise, double-sided blade retracts on impact and flips for extended use. The robust deck handles tough jobs, while the large-diameter blade shaft and cyclonic air filter ensure reliable performance and effortless maintenance.

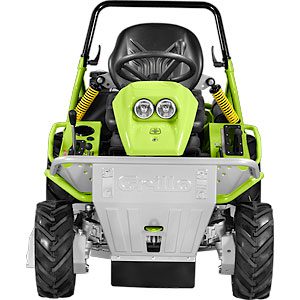

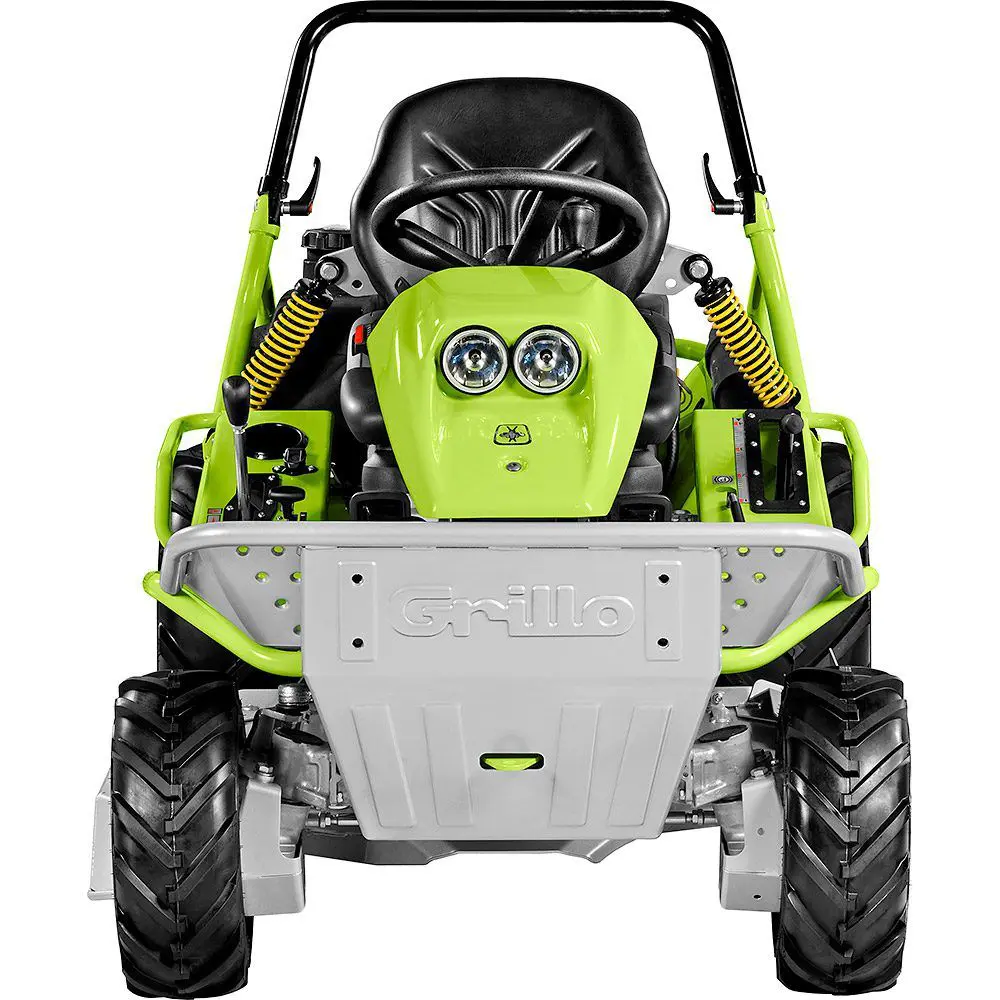

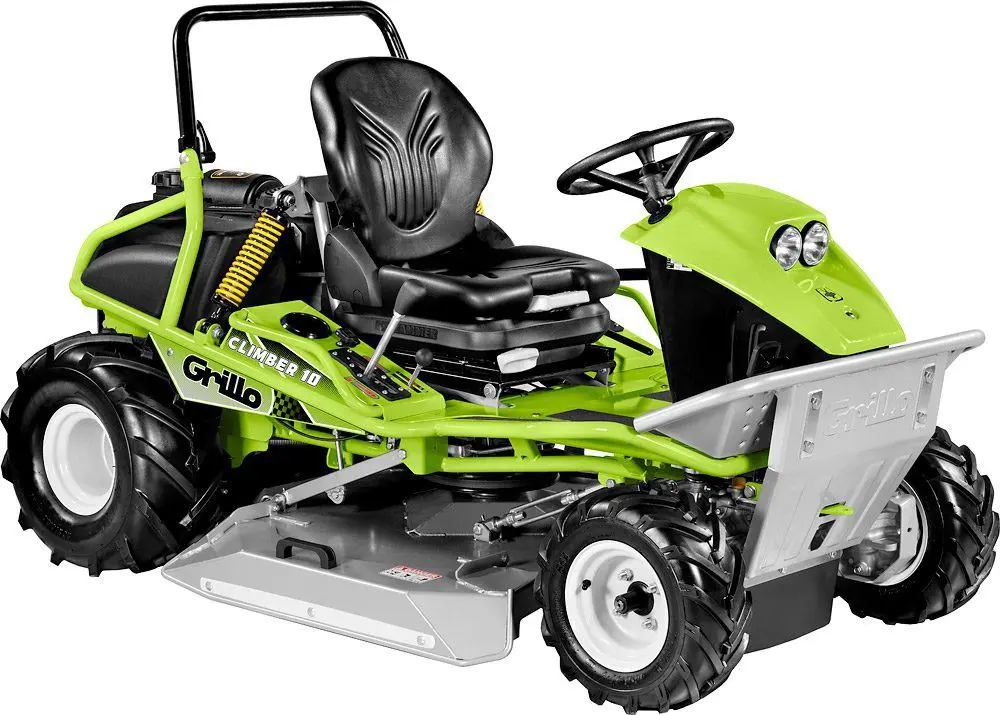

Front view of a green and silver ride-on mower with a compact design and large tires

Adjustable Suspension

The 10.27 prioritises operator comfort with a weight-adjustable suspension seat and twin shock absorbers for a smooth ride, even on long working days. Ergonomic controls ensure effortless operation, while the synchronized brake pedal and forward control lever offer added convenience.

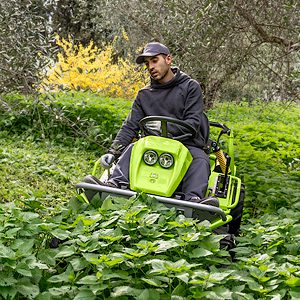

A person operates a green AWD mower in a lush, overgrown area with trees and yellow flowers

Adjustable Roll Bar

The roll-bar can be tilted in a couple of seconds to allow working underneath foliage. The roll-bar can be either raised or lowered via two levers, no other tools are required.

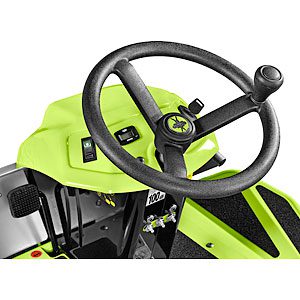

Close-up of the bright green control panel and steering wheel of an AWD ride-on mower

High Speed Transfers

Transfers with Climber 10 are faster thanks to its speed of 9 km/h. In the case of very irregular conditions, the cutting deck can be raised up to 13,5 cm from the ground.

Full Description

Increased Traction and Agility

Its low center of gravity enables the Grillo Climber to handle steep and undulating terrain safely and competently. The driver is positioned directly over the cutting deck and sits low in the seat as you would driving any other vehicle. Other machines covered by this class of hill mower do not provide anywhere near the same level of operator comfort. Why would you want to drive a machine with your knees up around your ears!

Extremely low center of gravity
Balanced weight distribution to provide maximum stability
High wheel grip and Differential Lock where traction is required on steep slopes
Low engine noise
Hydrostatic transmission
A large 13 litre fuel tank to enhance productivity
Foldable roll bar fitted
Ergonomically designed Grammer suspension seat with arm rests and seat belt
Tow bar and twin LED headlights fitted as standard
Will safely go places a tractor can’t go

Specifications

Engine	Briggs & Stratton Series 8290 CXi Commercial Start electric, with 12 V battery Supply fuel Displacement 724 cc, 2 Cylinders Power 22 HP (16.2 kW) Air cooled Dry air filter with interchangeable filter cartridges
Fuel tank capacity	13 L
Gearbox	4-wheel-drive hydrostatic transmission.
Clutch	Electromagnetic clutch with P.T.O and blade brake.
Cutter deck	Side and rear discharge
Cutting configuration	1 rotating blade
Cutting width	98 cm (38.5")
Cutting height	From 35 mm to 135 mm with continuous adjustment.
Peripheral blade speed	87 m/1"
Differential locking	On the rear axle, with pedal engagement.
Front tyres	16x6.50-8 tractor. With anti-puncture treatment as standard feature.

Rear tyres	20×10.00-8 TRACTOR
Speed	Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h
Inner turning radius	70 cm
Seat	With weight-adjustable suspension, equipped with roll-bar
Parking brake	On the rear wheels with lever engagement.
Mowing capacity per hour (indicative)	7500 m^2/h
Length	206 cm
Width	108 cm
Height	118.5 cm
Weight	383 kg
