| Armrests | Standard
|
| Battery | 12V
|
| Blade Style/Type | Rotary |
| Blade Type (Description) | 20" (50.8 cm) heat-treated steel blades
|

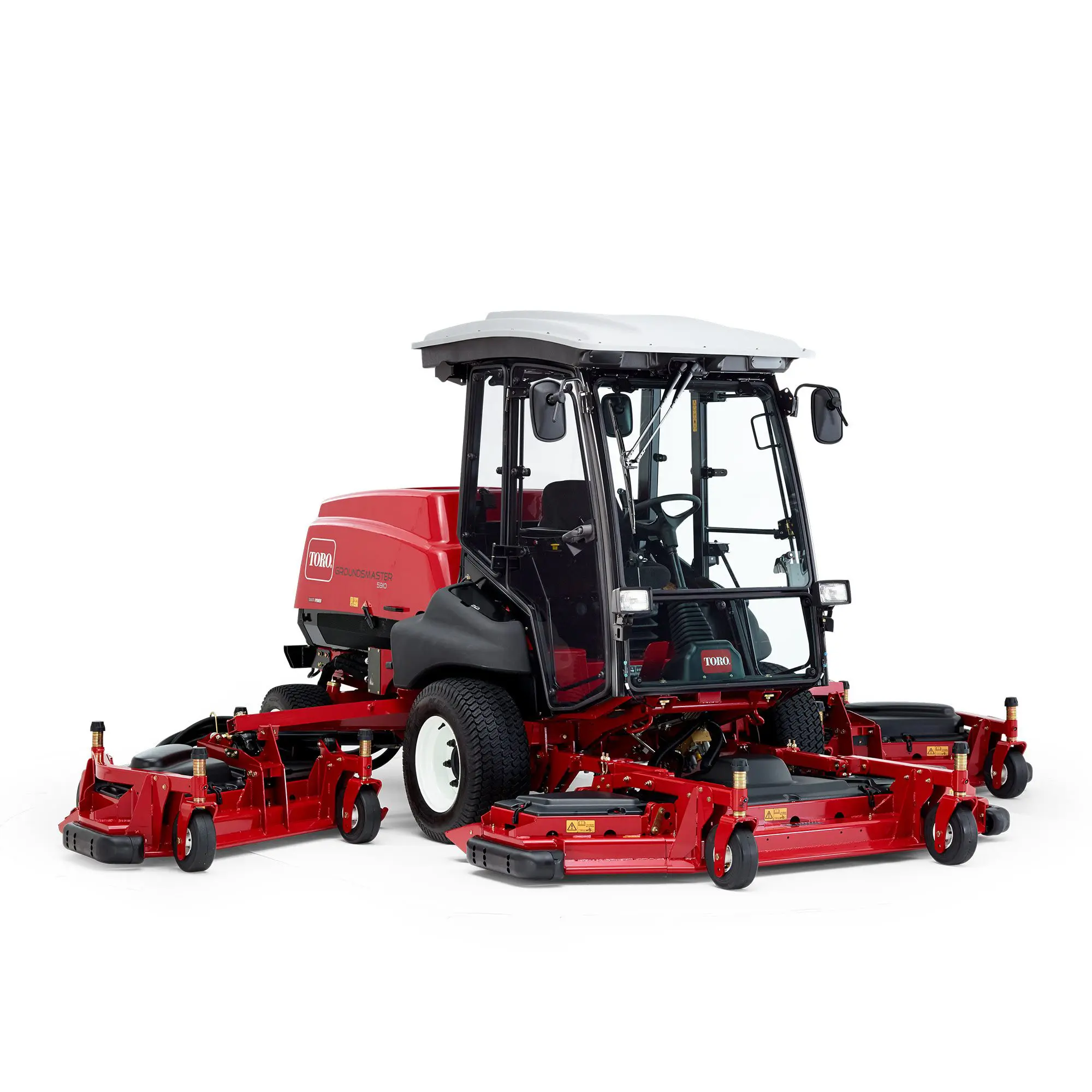

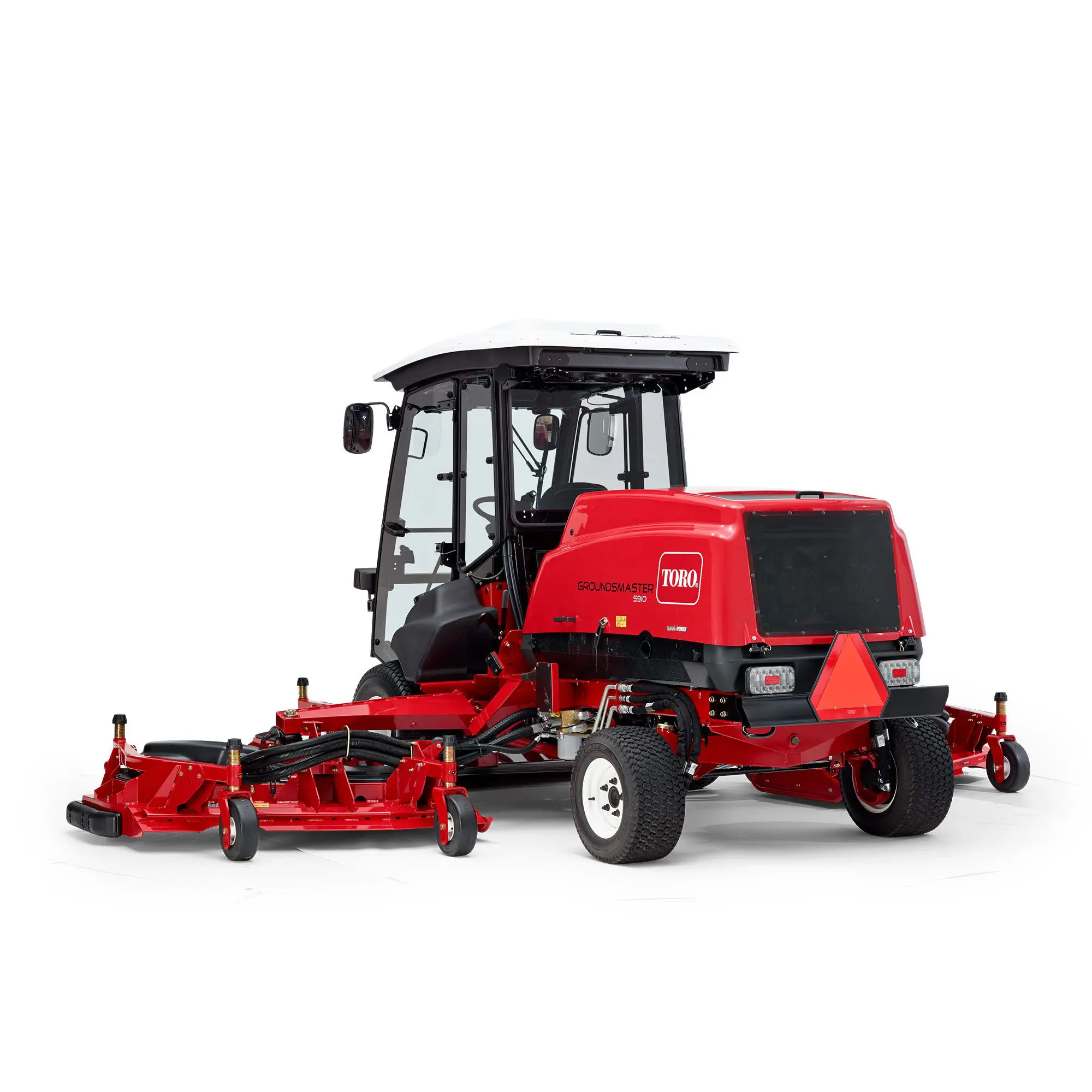

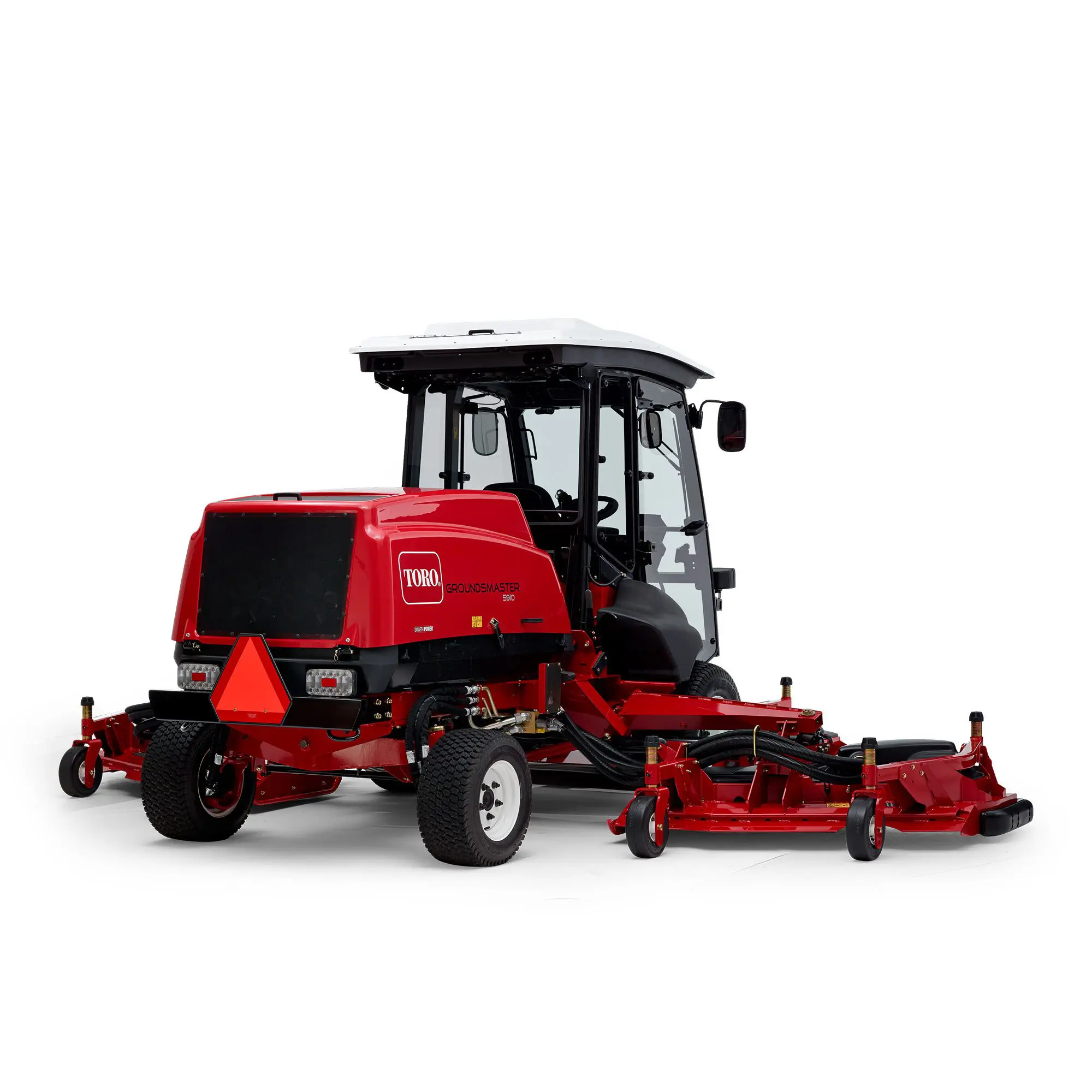

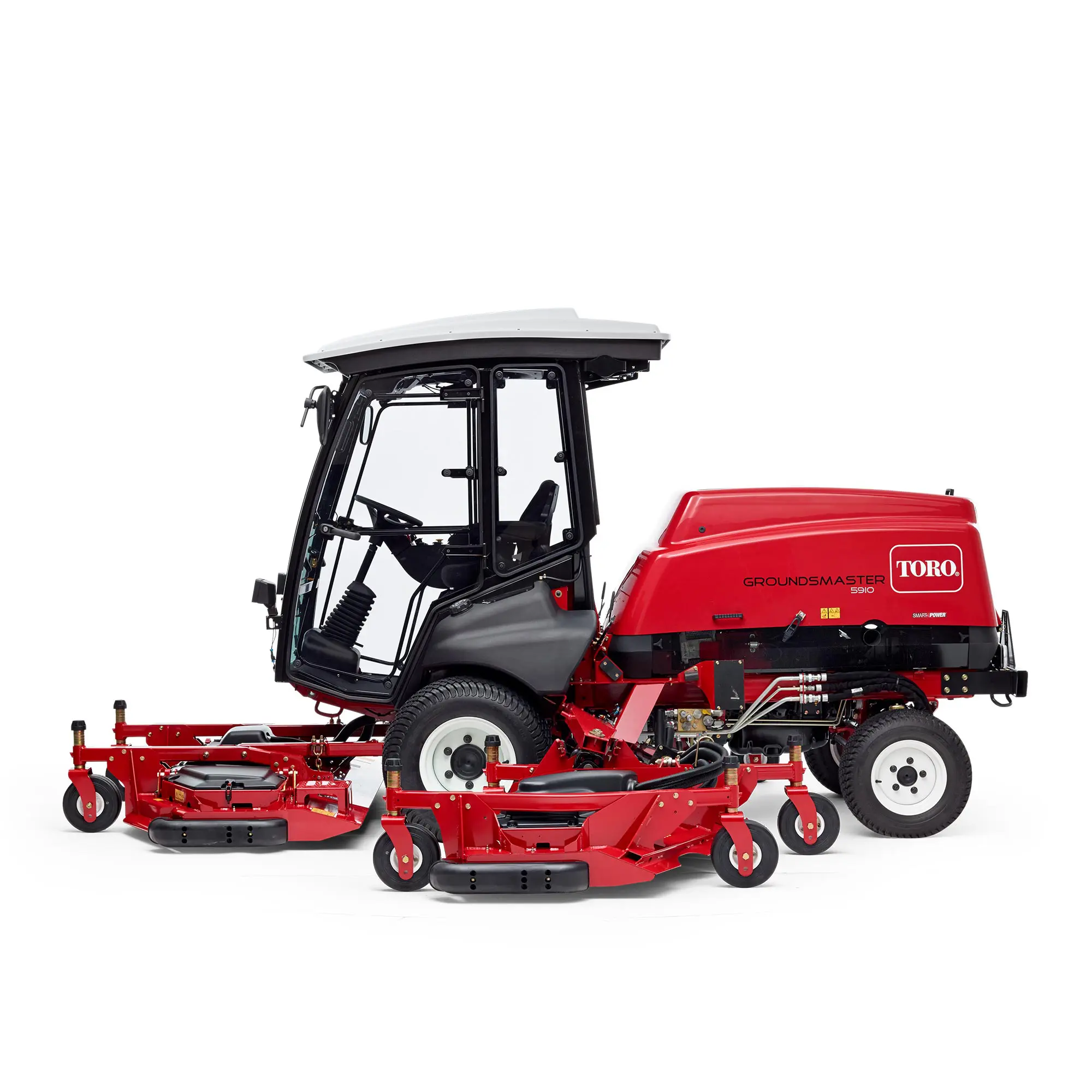

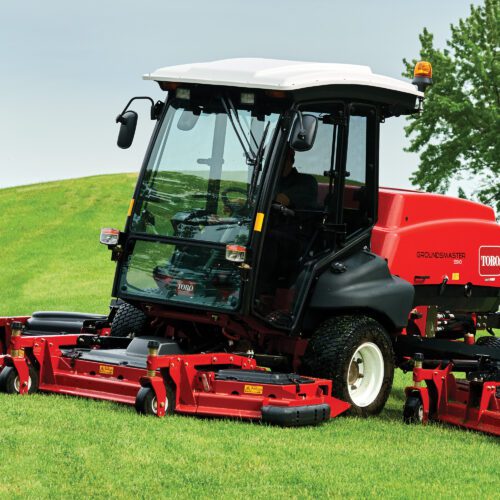

| Cab Unit | Heat & Air-Conditioned Safety Cab
|
| Cab Unit Description | ROPS certified cab with heat & AC; Includes: climate system pressurized cab, windshield wiper & washer, folding exterior side mirrors, molded front fenders, right, left & rear window have tinted (50%) glass, quick release window latches, rubber sound isolator cab mounts, interior dome light.
|

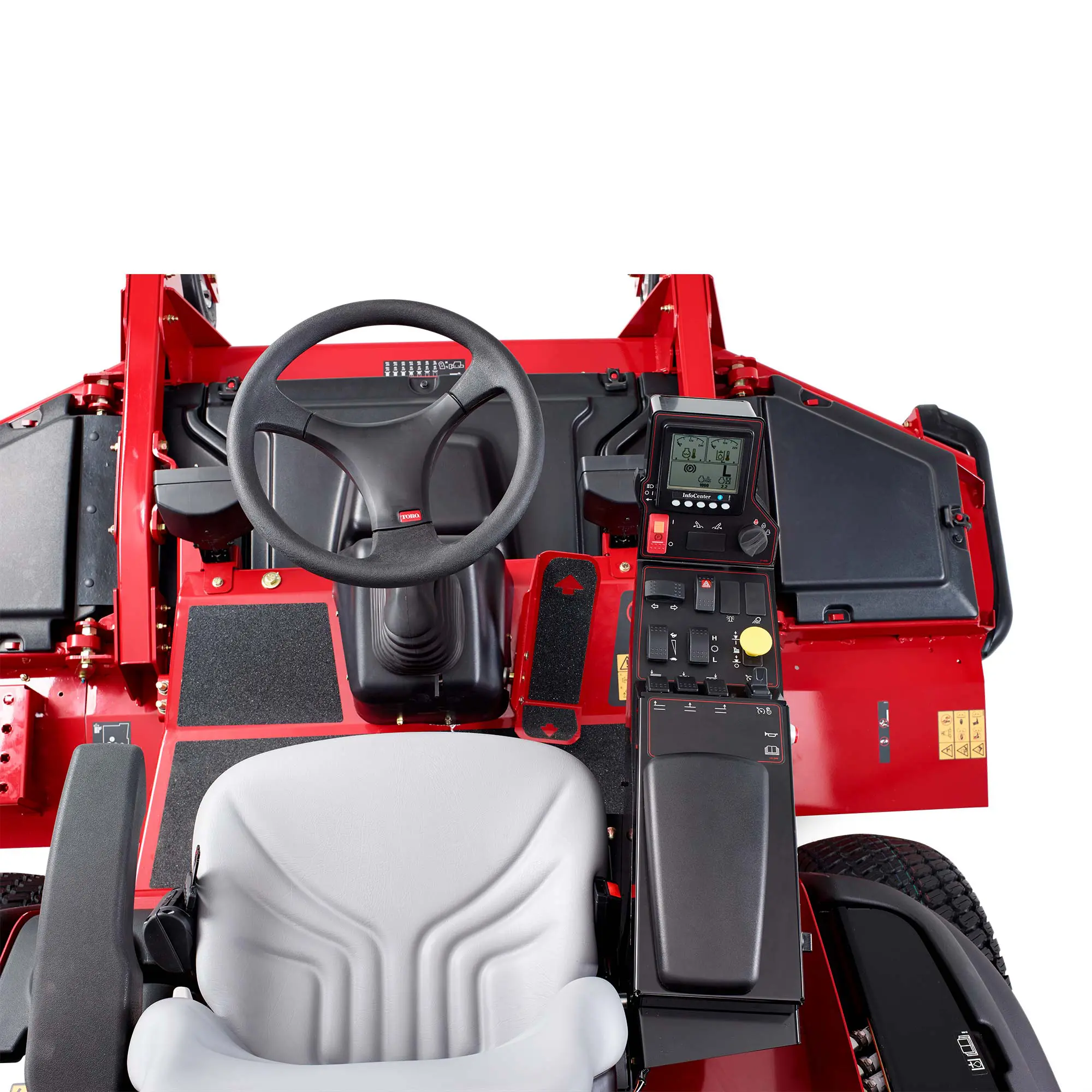

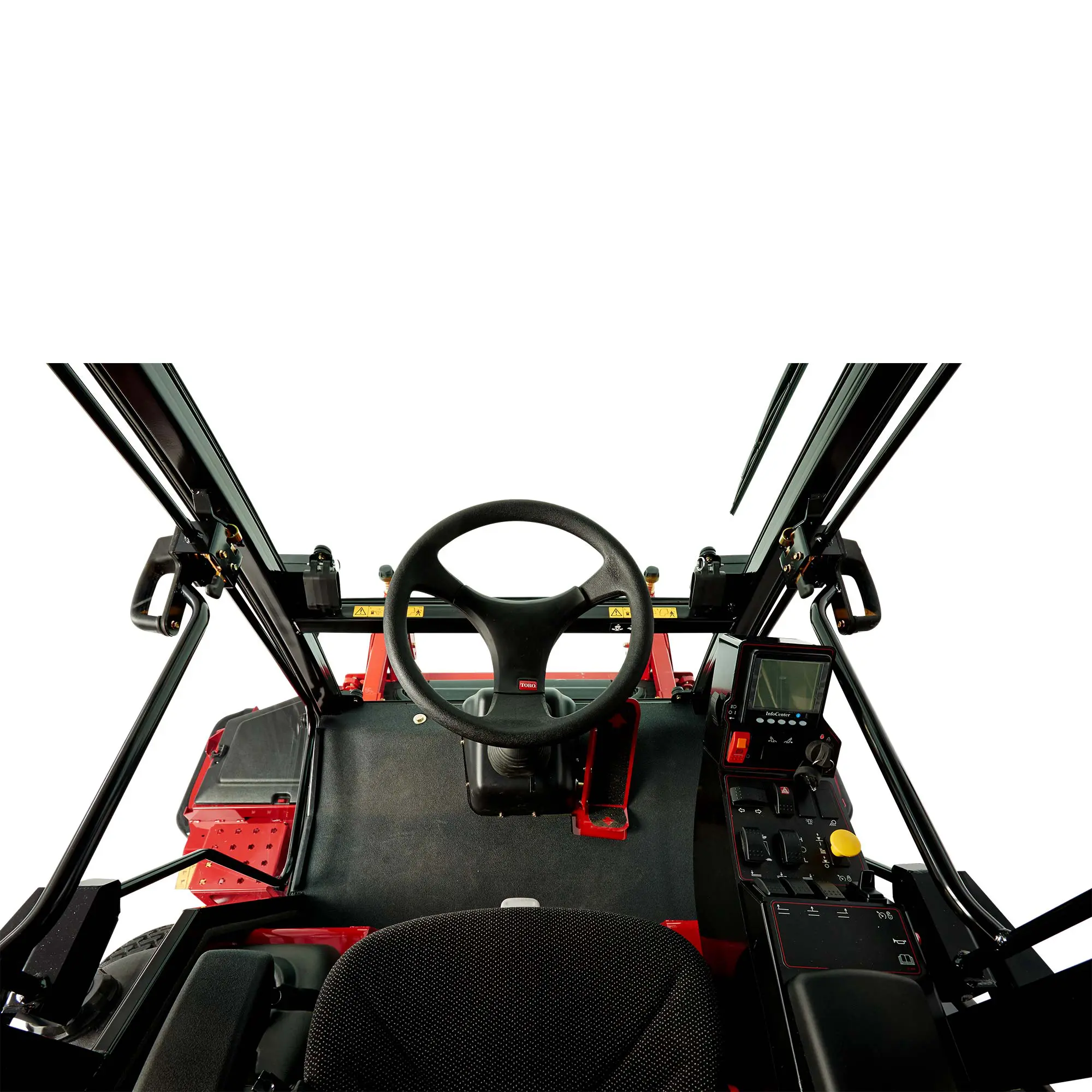

| Controls | Control arm, right armrest, travels with seat and suspension. Deck lift/lower, electrohydraulic switches. Throttle; electronic, variable. Traction pedal, electronic. Park brakes: double-motion switch. Steering; hydrostatic load sensing.
|

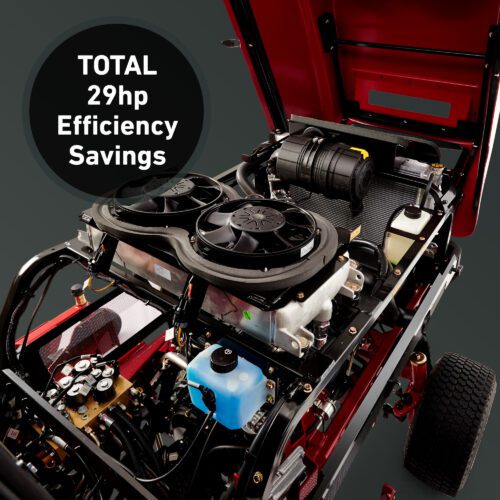

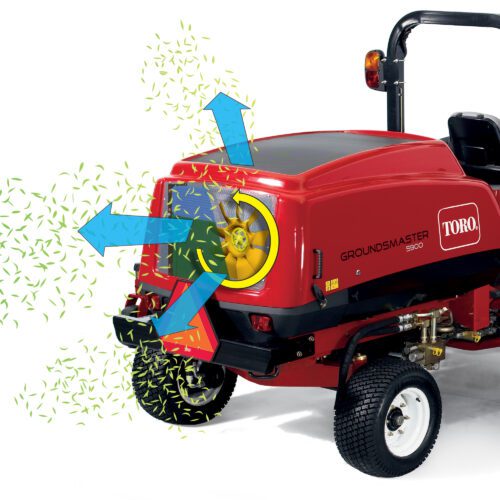

| Cooling System Description | 24V dual electric fan banks for separate engine radiator and hydraulic oil cooling; fan banks are variable speed and have auto-reverse, radiator is cross flow, 3 rows, 9 FPI. Hydraulic oil cooler is crossflow, 6 FPI.
|
| Cup Holder | Standard
|
| Cutting Unit Accessories | Atomic™ Mulching Blades, Flat Blades
|

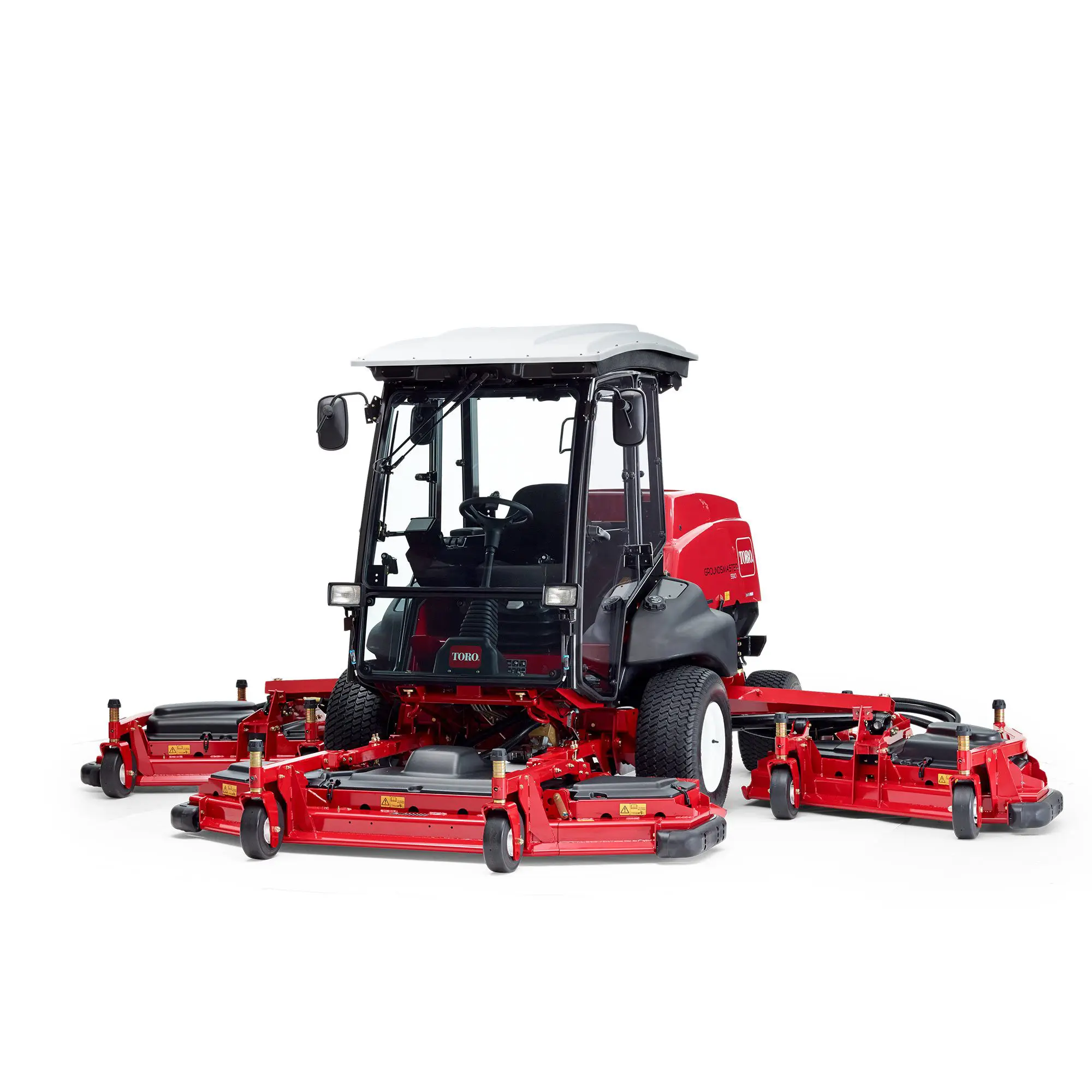

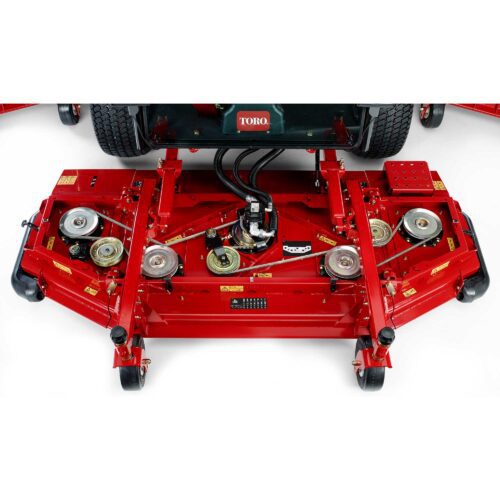

| Cutting Unit Type/Configuration | Three rear discharge rotary decks. All three decks: 192" (488 cm), One wing: 57" (145 cm), center deck: 92" (234 cm), center deck + one wing: 144" (366 cm)
|
| Deck Construction | 11-gauge high-strength steel. 7-gauge, reinforcements, bullnose bumpers.
|
| Deck Wing Protection | 2-way shock absorption on wing decks
|
| Drivetrain | Diesel |
| Electrical System | Main: 12 volt system; Alternator: 12V, 80 amp, supplied w/ engine Battery: 1380 CCA (2x 690 CCA), Cooling Fans, Engine/Hydraulic cooling: 24 volt system; Alternator: 24V, 105 amp w/ remote sense; Battery: 350 CCA.
|
| Engine Cooling | Liquid Cooled
|
| Fuel / Power Source | Diesel / Biodiesel
|
| Fuel Capacity | 35 U.S. gal. (132.5 L)
|

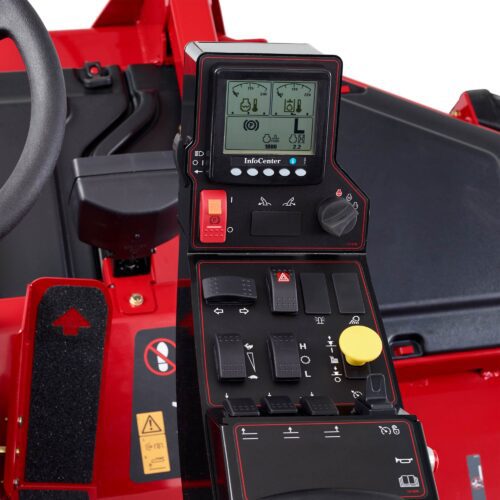

| Gauges/Instrumentation | InfoCenter™: Shows gauges, service reminders, advisories/faults and troubleshooting assistance. Shows fuel level, coolant temp, hydraulic oil temp, engine glow plug, low oil pressure, air cleaner restriction, 12V & 24V alternator output, engine hours, rpm and DPF regeneration.
|
| Ground Clearance | 10.3" (26.1 cm)
|
| Ground Speed - Forward | 0 - 20 mph (0 - 32.2 km/h)
|
| Ground Speed - Reverse | 0 - 10.5 mph (0 - 16.9 km/h)
|
| Height | 95" (241 cm)
|
| Height of Cut Range | 1" - 6“ (2.5 cm - 15 cm) in 0.5" (1.3 cm) increments
|
| Hydraulic Fluid Capacity | 19 U.S. gal. (71.9 L)
|
| Hydraulic Fluid Type | Toro PX™ Extended Life Hydraulic Fluid
|

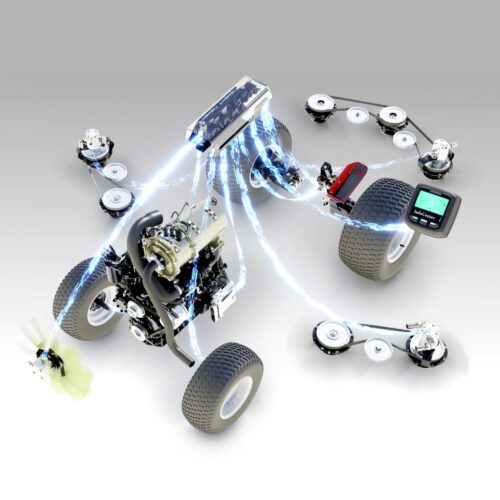

| Implement Drive | HybridDrive™ - Hydraulic motor to spindle, remaining spindle(s), driven by “B” section v-belts with automatic, spring loaded idlers
|
| Lighting | Standard |
| Main Frame/Chassis | All welded formed-steel frame with integral tie-down anchors
|
| Max Slope Angle | Refer to operator's manual
|

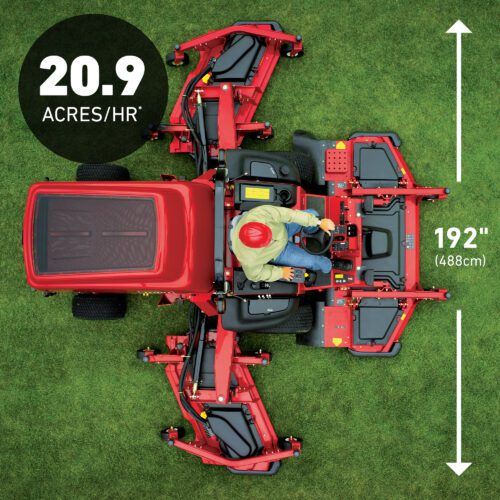

| Mowing Rate (Productivity) | Up to 20.9 acres/hr (8.5 hectacres/hr)
|
| Mowing Speed | 0 - 10.8 mph (0 - 17.4 km/h)
|
| Number of Blades | 11 |
| Oil Capacity | 11 U.S. qt. (10.4 L)
|
| Oil Cooler Description | Crossflow, hydraulic oil cooler @ 6 FPI
|
| Operator Area | Storage box, cup holder, 12-volt power outlet, double USB port
|
| Optional Accessories | Red Sunshade, White Sunshade, Rotating Beacon Kit, Work Light Kit, Additional Turn Signals, Horn, Backup Alarm, Auxiliary Braking System
|
| Overall Width | 199" (505 cm)
|
| Parking/Service Brakes | Parking: Electrohydraulic controlled via double-motion rocker switch. Service: Dynamic, hydrostatic 4WD in low range. Front wheel drive braking in high range.
|
| Power Steering | Yes |

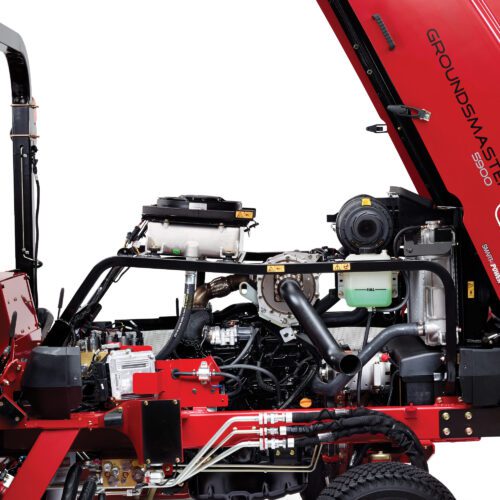

| Power Train (Engine Description) | 3.3 L Yanmar® EPA Tier 4 Final and EU Stage IV emissions compliant turbo-diesel engine. 72 HP (53.7 kW) @ 2500 rpm, Torque: 206 ft.-lbs. (279 Nm) @ 1625 rpm Displacement: 202 cu. in. (3.3 L).
|
| Product Length | 174" (442 cm)
|
| Safety/Operator Safety | LED headlights, brake lights, tail lights, amber turn signals and flashers
|

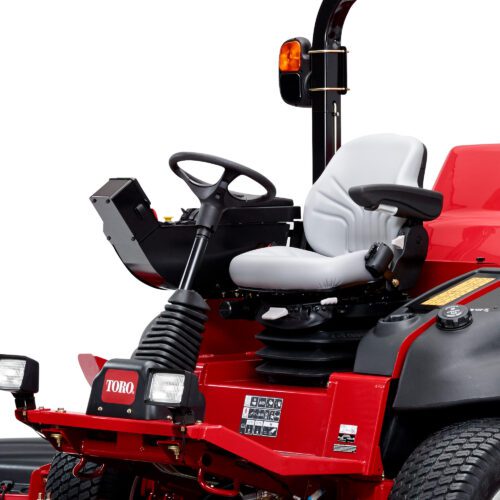

| Seat | 4 -way adjustable seat with cloth cushions. Air ride suspension with 3" (7.6 cm) of adjustability.
|
| Spindle Assembly | Shaft: 1.25" (3.2 cm) hardened steel. Housing: 9” (22.9 cm) ductile iron. Bearings: Greaseable tapered roller.
|
| Starting | Key Start
|
| Steering System Description | Power steering with dedicated power source. Steering wheel tilts to desired operator position.
|
| Tires - Front | 29" x 12" - 15", 6-ply
|
| Tires - Rear | 23" x 10.5" - 12", 6-ply
|
| Tool Box | Standard |
| Traction Drive | 4WD |
| Traction Drive (System) | Full time automatic forward and reverse 4WD in low (mow) range. Front drive: 2-speed, fixed displacement high torque, low speed radial piston motors. Rear drive: single speed, fixed displacement, high torque, low speed radial piston motors.
|

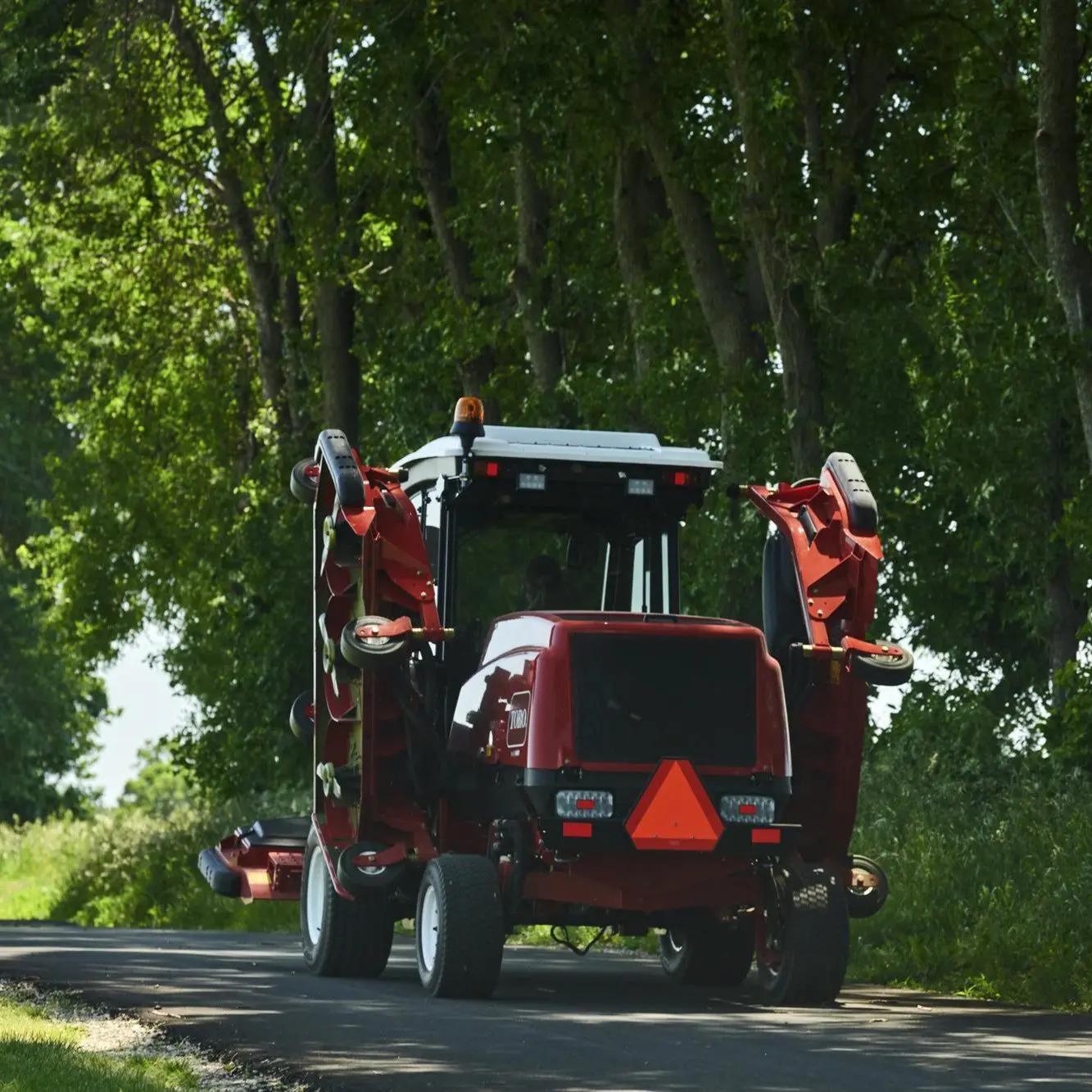

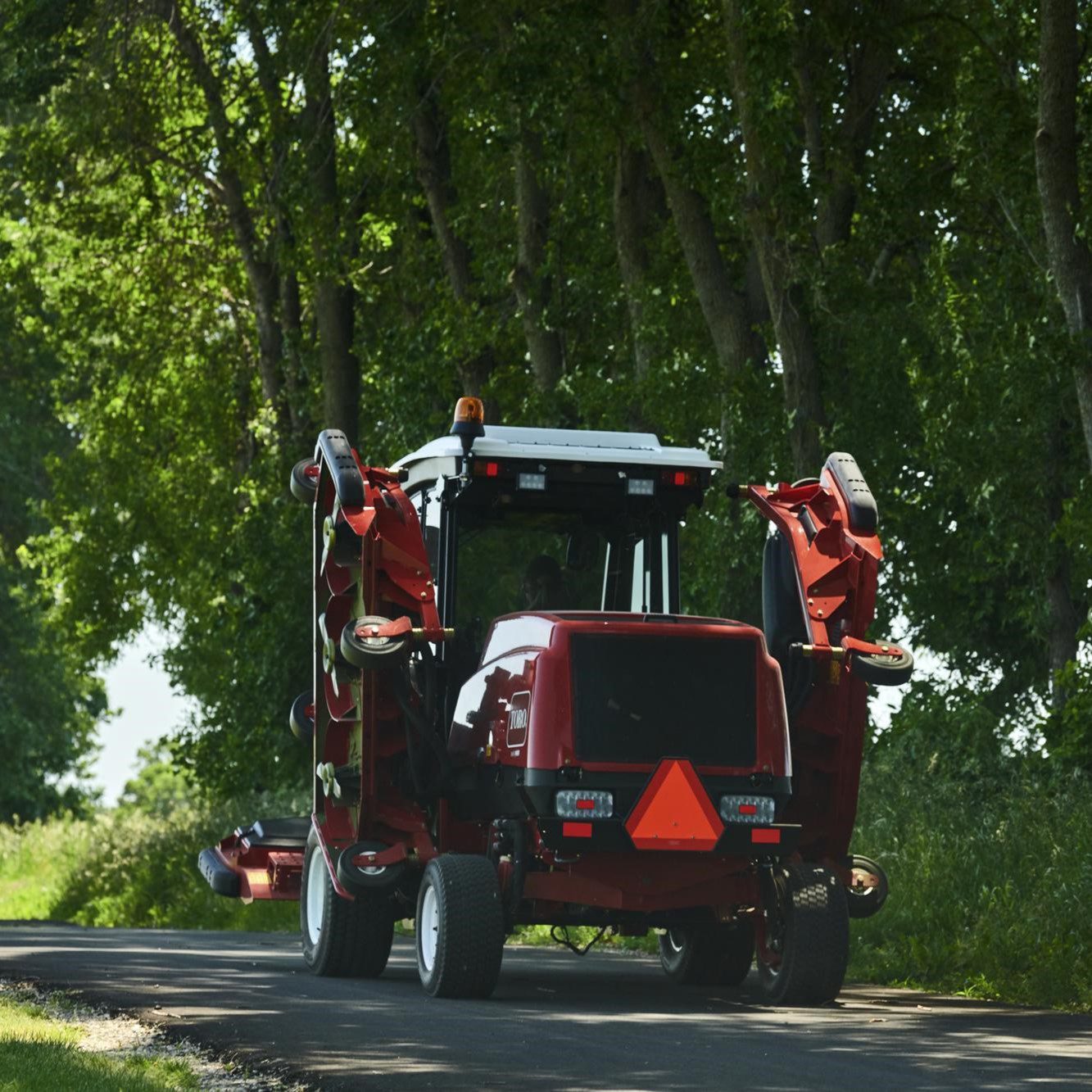

| Transport Width | 99" (251 cm)
|
| Turning Circle (Diameter) | Uncut circle - 0" diameter. Turning radius - 86" (218 cm)
|
| Weight | 7,304 lbs. (3313 kg) with full fluids.
|
| Wheelbase | 77" (196 cm)
|
| Width of Cut | 192" (488 cm)
|
