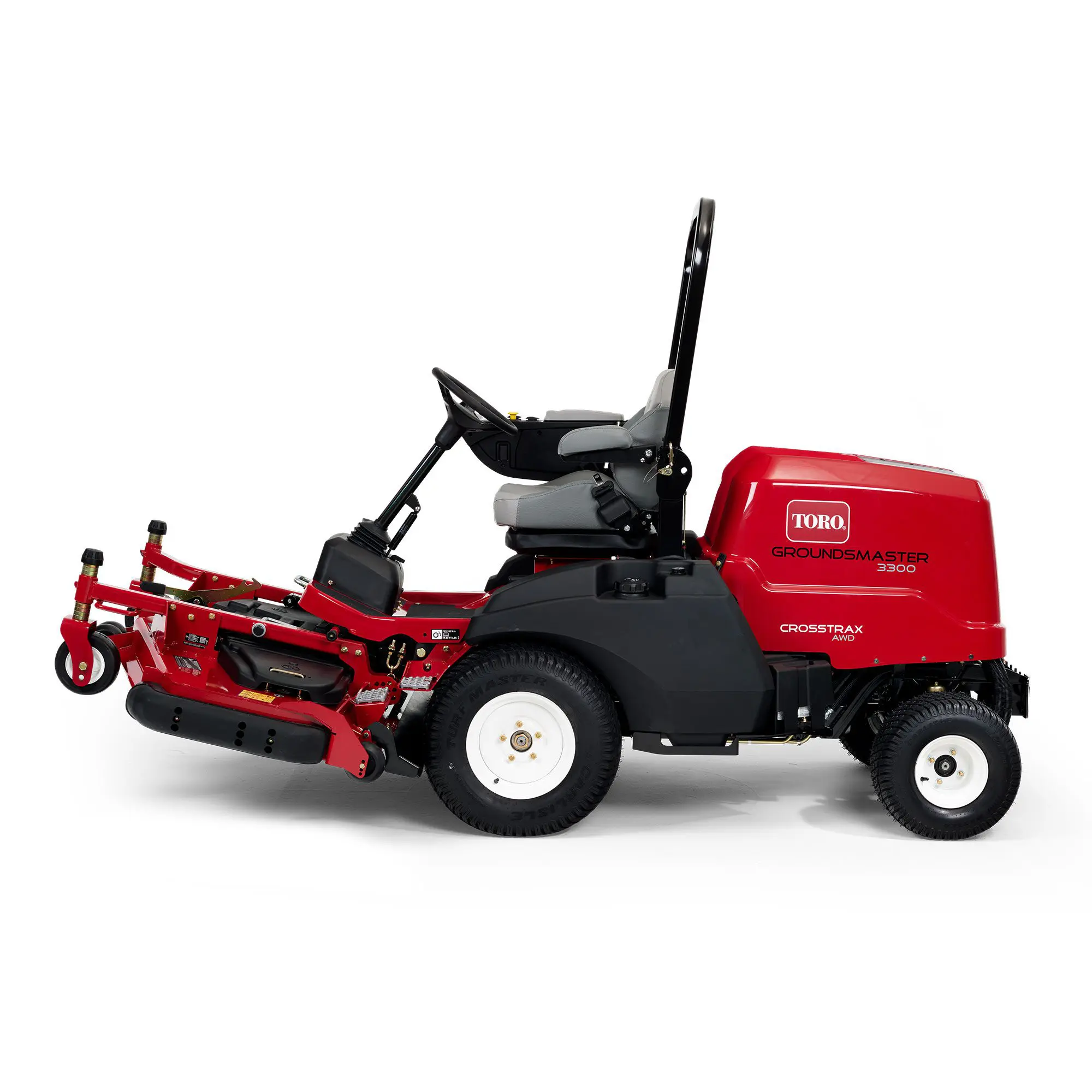

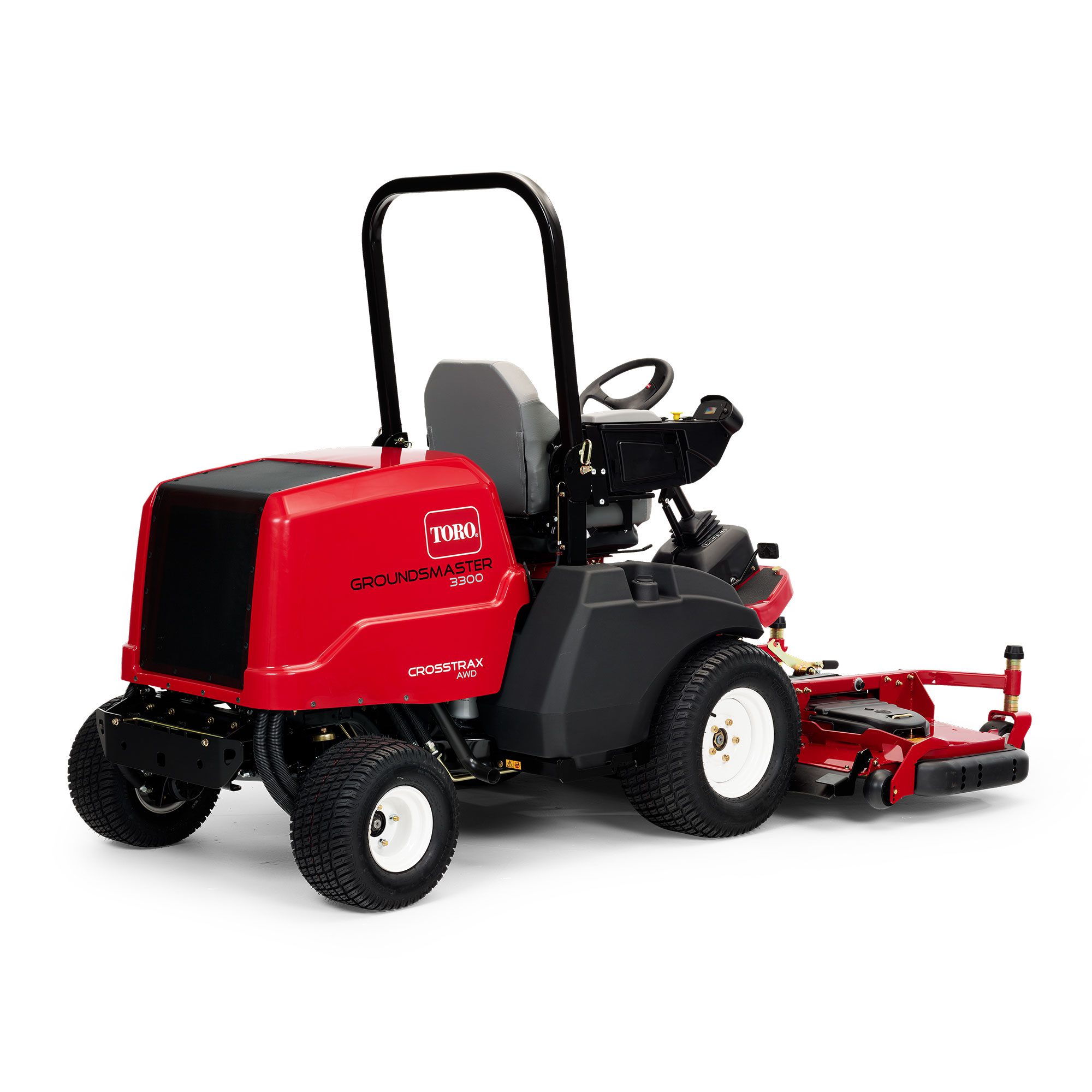

Toro Groundsmaster® 3300 Ride-on Mower

Model: 31900A & 31901A
Toro

Toro Groundsmaster® 3300 Ride-on Mower

Model: 31900A & 31901A
Toro

The Groundsmaster® 3300 delivers unparalleled productivity. Featuring a powerful 36.8 hp (27.5kW) diesel engine, CrossTrax® all-wheel drive and legendary Groundsmaster decks, the Groundsmaster 3300 makes quick work in even the toughest terrain while delivering an exceptional quality of cut. From the fully adjustable suspension seat and steering column to the fingertip engine controls and optional cab, this new mower is designed for all-day comfort. Routine maintenance is also easy with the Groundsmaster 3300 with the innovative tilt-up deck design making blade maintenance and deck cleaning simple. Productivity, comfort, reliability. That’s the Groundsmaster 3300.

  • Operator comfort: adjustable seating, tilt steering, easy access controls.
  • Powerful traction: CrossTrax® 4-wheel drive for tough terrain.
  • Durable build: strong steel decks, cast iron spindle housings.
  • Safety first: ROPS with seatbelt included.
  • Versatile: high ground clearance, various engine options, optional cab.
  • Efficient maintenance: innovative tilt-up design for easy cleaning.
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

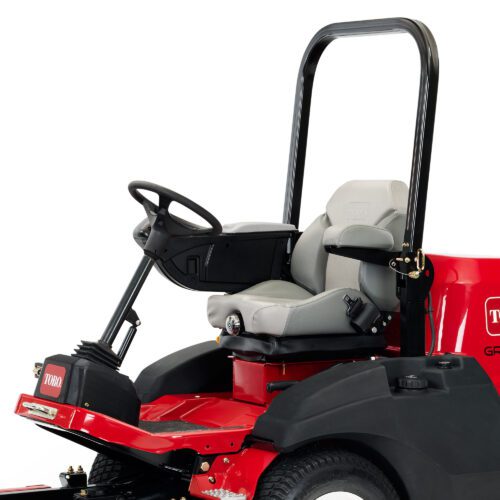

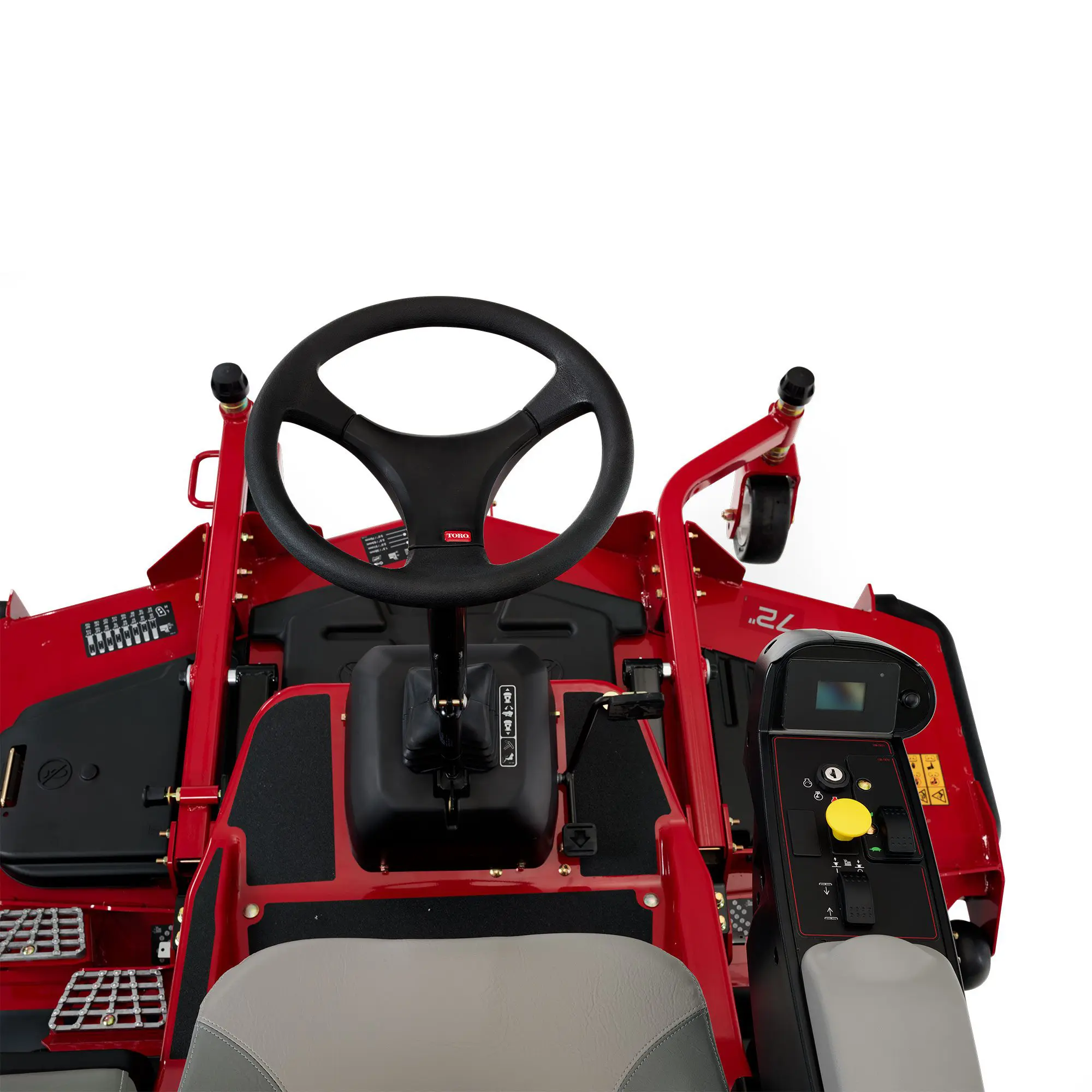

Close-up of Toro mower's operator seat and controls, showcasing comfort and ergonomic design features

Superior Operator Comfort

Adjustable seating, tilt steering, easy access controls provide optimal operator comfort. Standard, mechanical suspension, and air ride seat options available.

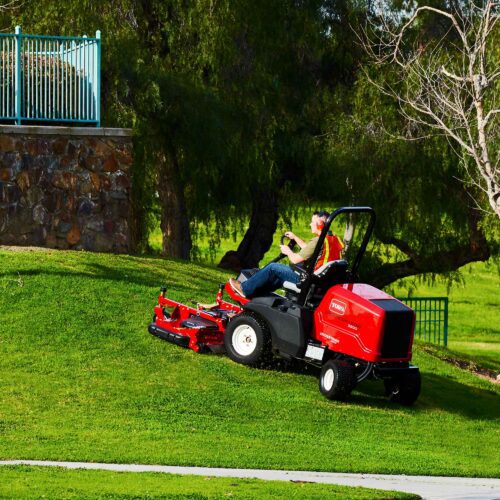

A rider operates a red Toro mower on a grassy slope, showcasing its maneuverability and design

CrossTrax®

CrossTrax® powers through challenging terrain by optimizing traction with full-time, bi-directional 4-wheel drive.

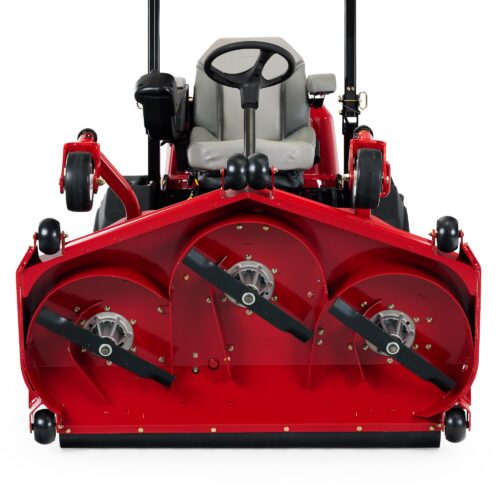

Front view of a red Toro mower showcasing three rotary blades and a comfortable seat

7-Gauge Welded Steel Decks

The deck shells are constructed from high-strength 7-gauge welded steel, for greater durability and long life.

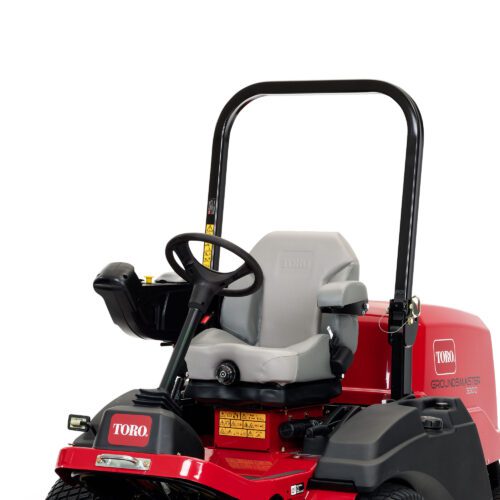

Close-up of a Toro Groundsmaster 3200 mower's seat and controls, showcasing its ergonomic design and robust build

Folding Rollover Protection System (ROPS)

A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.

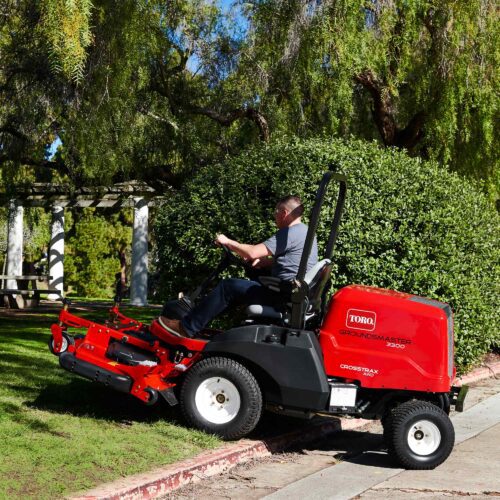

A person operates a red Toro mower on a landscaped area, showcasing its maneuverability and design

Easily Move Between Jobsites

With ground speeds up to 12.5 or 15 mph (20 km/h or 24 km/h) and either 7.8" (19.8 cm) or 8.3" (21.1 cm) of ground clearance, you can easily climb curbs and get to job sites other mowers simply can’t access.

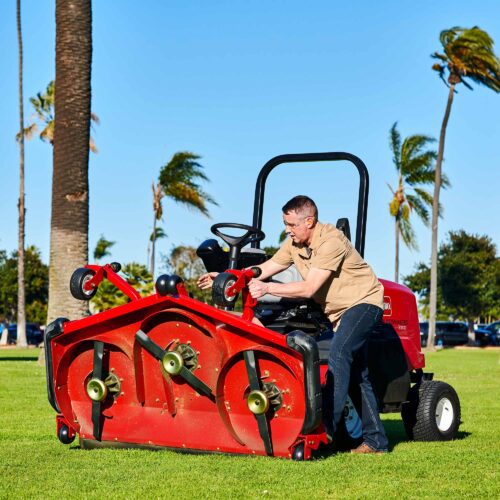

A man operates a red ride-on mower with a wide cutting deck on a grassy area

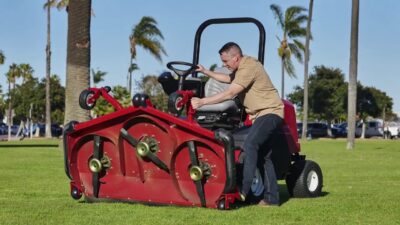

Simple Maintenance

Innovative tilt-up design makes maintenance and cleaning simple. Rotary decks tilt almost 90º while keeping the driveline intact.

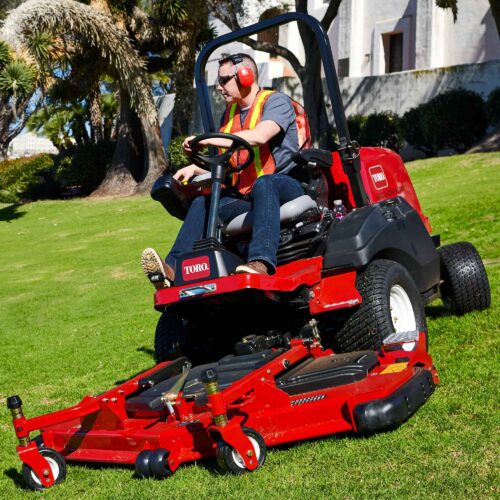

A person operates a red Toro mower on grass, showcasing its design and functionality in a landscaped area

Tackle Any Terrain

Bullnose bumper, rugged spindles, and 7-gauge high strength steel decks are built for all mowing applications.

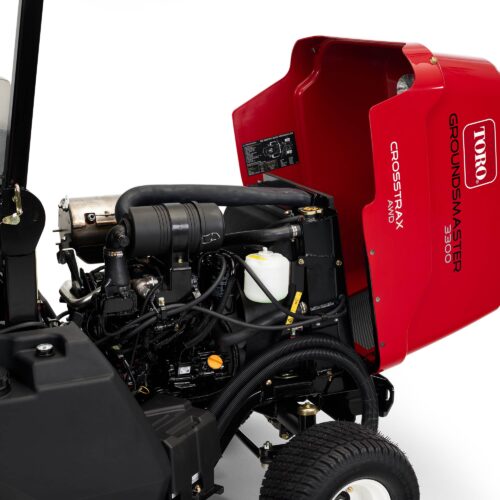

Close-up of Toro Groundsmaster 3200 engine compartment showcasing key components and red engine cover

Powerful Yanmar® Engines

Choice of efficient 24.7hp (18.4 kW) or powerful 37.4hp (27.9 kW) Tier 4/Stage V emission compliant Yanmar diesel engines.

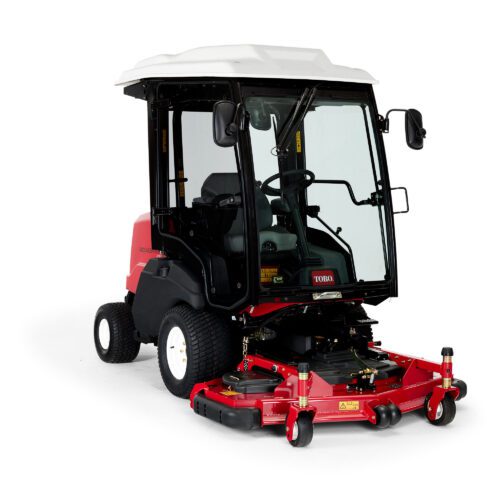

Red and black ride-on mower with a protective cab and front rotary cutting deck

Optional Cab

Move snow or clear debris... all from the comfort of the optional heated cab.

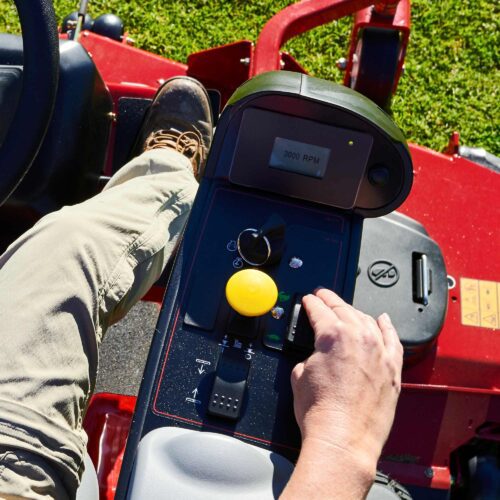

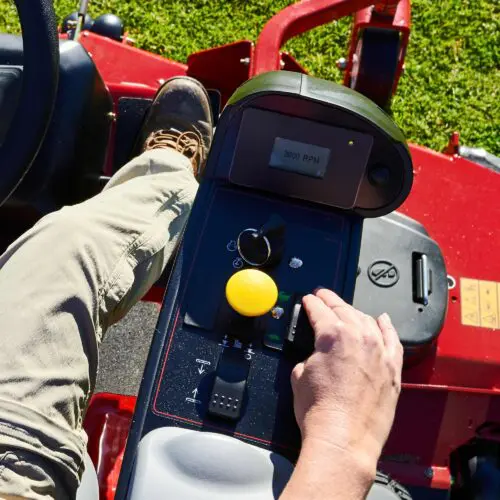

Close-up of mower controls with a hand adjusting settings, showcasing ergonomic design and functionality

InfoCenter™ Control Panel

Real-time information such as service reminders, alerts, and diagnostic information are delivered to the operator’s fingertips for ultimate control.

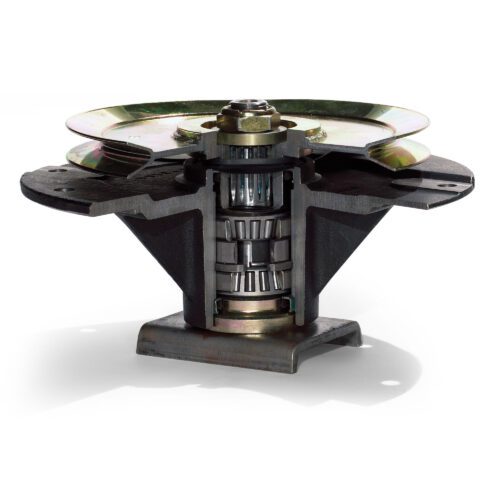

Detailed view of a mower's cutting deck assembly showcasing key components and design features

Industry's Toughest Spindle Assembly

The cast iron spindle housings feature a massive 9" (22.9 cm) diameter base and eight-bolt mounting pattern that spread impact loads across a broader area of the robust deck shell. The high-efficiency, tapered roller bearings offer greater durability, which means more stability and strength, resulting in longer deck and spindle life.

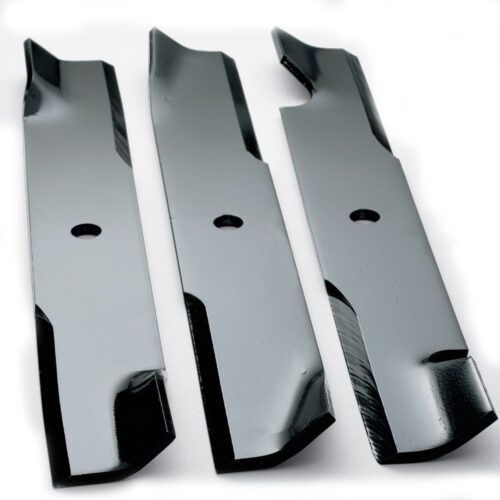

Three black mower blades designed for the Toro Groundsmaster series, showcasing sharp edges and durability

Steel Blades

The high-strength one-quarter inch (6 mm) thick heat-treated alloy steel blades resist flexing and abrasive wear. The result is a crisp cut time after time.

Specifications

Armrests Standard
Battery 12V
Blade Style/Type Rotary
Cab Unit N/A
Controls Foot-operated pedal for forward and reverse. Manually adjustable forward speed limiter. Control arm includes hand-operated throttle, PTO switch, deck/implement lift lower switch, ignition switch, glow plug switch
Cooling System Description Rear-mount, cross flow radiator with 8.5 fins per 1" (25 mm), 8 quart (7.6 liter) capacity
Cup Holder Standard
Cutting Unit Type/Configuration 72" (183 cm) Side Discharge Deck
Drivetrain Diesel
Electrical System 12V maintenance-free battery with 540 cold cranking amps at 0 degrees F (-18 degrees C). 80 minute reserve capacity at 80 degrees F (27 degrees C). 40-amp alternator.
Engine Cooling Liquid Cooled
Fuel / Power Source Diesel
Fuel Capacity 12 U.S. gal. (45.4 L)
Fuel Filter Fuel filter/water separator
Gauges/Instrumentation InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates coolant temps, oil pressure, alternator voltage, engine hours.
Ground Clearance 8.3" (21 cm)
Ground Speed - Forward 0 - 15 mph (0 - 24 km/h)
Ground Speed - Reverse 0 - 6 mph (0 - 9.7 km/h)
Height 79" (200.6 cm) with ROPS up
Hydraulic Cylinders Twin 2.5" (6.4 cm) bore, 1.25" (3.2 cm) rod hydraulic cylinders operate lift arms. Hydraulic counterbalance for optimum traction and stability.
Hydraulic Fluid Type Toro PX™ Extended Life Hydraulic Fluid
IntelliDash™ Capable No
Interlocks Seat, PTO, lift/lower, traction, parking brake
Lighting Optional
Main Frame/Chassis All welded tubular and formed steel
Max Slope Angle Refer to operator's manual
Mowing Rate (Productivity) Up to 7.3 acres/hr (2.9 hectacres/hr) with 60" deck Up to 8.7 acres/hr (3.5 hectacres/hr) with 72" deck
Oil Capacity 5.2 L (5.5 US qt)
Optional Accessories LED kits: work light, road light, beacon; recycler kits, slope sensor kit, heat only cab, accs control kit, storage box kit, USB charging kit, aux hydraulic kit, hydraulic hose kit, SMV kit, storage bag kit, power harness kit, ROPS-certified heat-only cab
Overall Width 53.5" (135.9 cm)
Parking/Service Brakes Dynamic braking through hydrostat and foot pedal. Parking Brake: Hand-actuated drum type on front left and right traction wheels.
Power Steering Yes
Power Train (Engine Description) Yanmar® 3-cylinder, liquid-cooled diesel. Power: 36.8 hp (27.5kW) @ 3000 rpm, Torque peak: 80.7 ft-lbs. (109.4 Nm) @ 1950 rpm. Displacement 1642cc. EPA Tier IV Final / Stage V compliant.
Product Length 107" (271.7 cm)
PTO Clutch Engine mounted 350 ft. lb. (475 Nm) rated electro-magnetic PTO clutch drives 2" (5 cm) telescoping shaft. Rotary deck connection allows for tip-up service position without disconnection of PTO.
Seat Deluxe bolstered seat with retractable seat belt
Starting Key Start
Steering System Description Hydraulic power steering. Tilt steering wheel released and locked by a foot-actuated lever.
Tires - Front 24" x 12" - 12", 4-ply
Tires - Rear 18” x 9.5” - 8”, Turf Tire
Tool Box Optional
Traction Drive 4WD
Traction Drive (System) CrossTrax® 4WD. Series/Parallel hydraulic traction system w/ full time, bi-directional 4-wheel drive. Parallel Series hydraulic flow between front and rear wheels.
Weight 1,886 lbs. (855 kg)
Wheelbase 52" (132 cm)
Width of Cut 72" (183 cm)
