Grillo Climber MD22N Ride-On Mower 110cm

Model: 8013AHTRAG
Grillo

Grillo Climber MD22N Ride-On Mower 110cm

Model: 8013AHTRAG
Grillo

The MD 22N is a hydrostatic mower with dual functions. It has a 3-blade 110 cm cutter deck, fitted with a “quick-shift” lever to change between rear discharge or mulch which can be directly operated from the driver’s seat. It is recommended for steep lawns, in the private or professional sector. The MD 22N has the same ground-hugging characteristics as a Climber series, but unlike the Climber range MD22N is not designed to mow scrub, or very long grass.

The MD22N is safe to use on properties that are undulating and/or steep, but primarily where you need a quality lawn finish. The height of the deck is continuous – controlled steplessly by a single hand control. Step-less cutting height adjustment allows you to select a precise finishing height. With a 110 cm (43″) cutting width and a quality built Briggs & Stratton OHV Intek 7220 professional series engine, you can be sure the MD22N will go above and beyond the mowing job. The specially designed deck is unique in its ability to leave behind a great result on a steep lawn while safely mowing in places you couldn’t take a normal ride on mower. The deck comes configured with a Quick Change lever to allow the operator to change mowing modes from rear discharge to mulching and back again.

Its cutting width allows for increased productivity, and the design offers two functions – rear discharge for longer grass (but not high grass) and mulching mode for a high-quality finish. A Quick Change Lever allows either mode to be selected with ease! There are many applications that require the design of the MD22N to handle steep terrain but also the quality of a precision deck to produce a manicured finish on a steep lawn.

  • Recommended for slopes, operates well in tough conditions (climber/treaded tyres optional).
  • Achieve a clean park-like finish
  • Save time and effort
  • Quick change lever makes mulching or removing discharge easy
  • Adjustable cutting height (2.5 – 11cm)

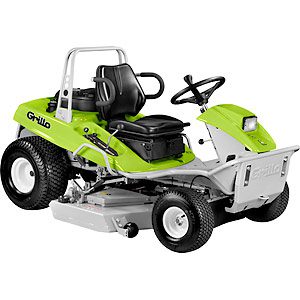

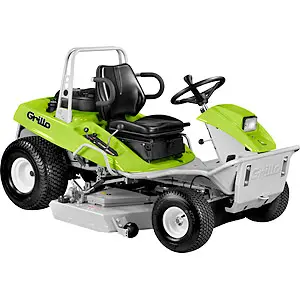

PLEASE NOTE: In New Zealand this model comes with the lug tires depicted in the first picture.

This product has been discontinued. We suggest taking a look at the comparable Grillo Climber 10.27 | AWD Ride-On Mower

Features

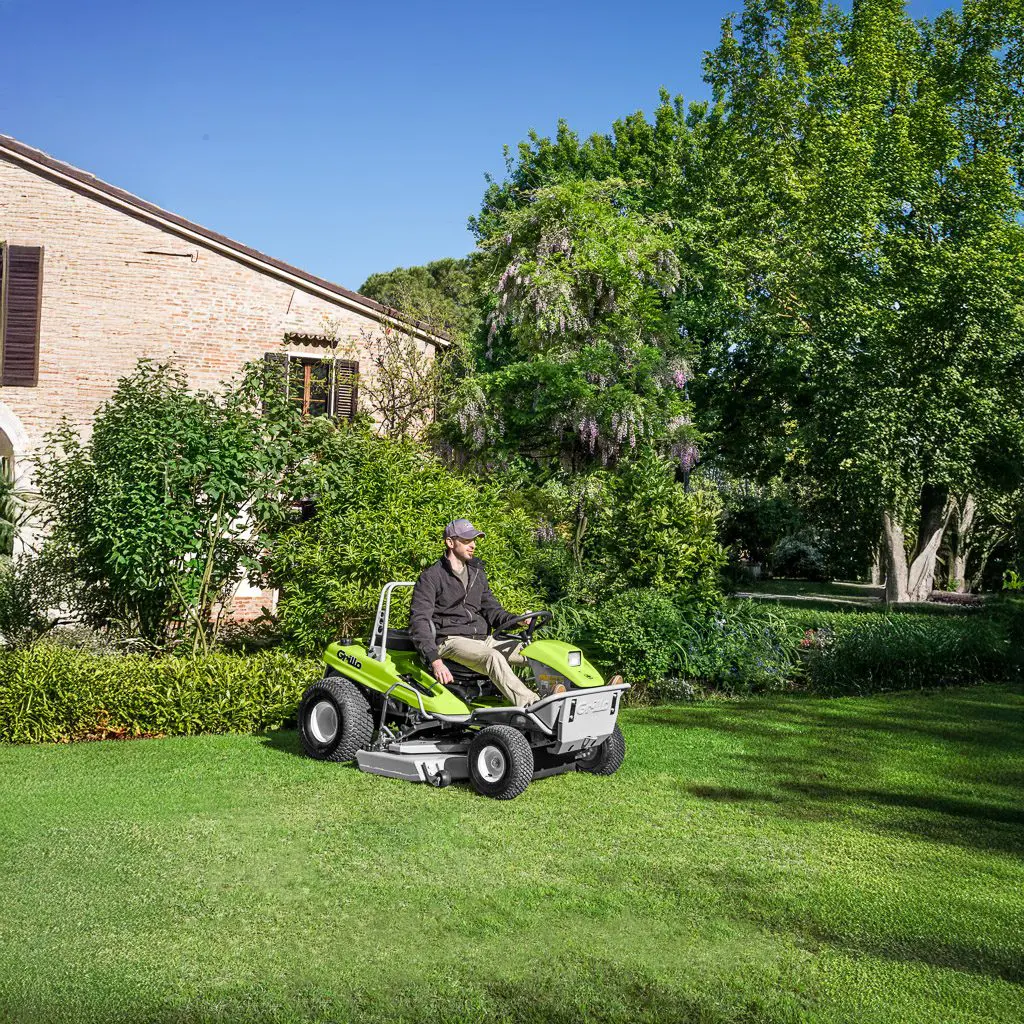

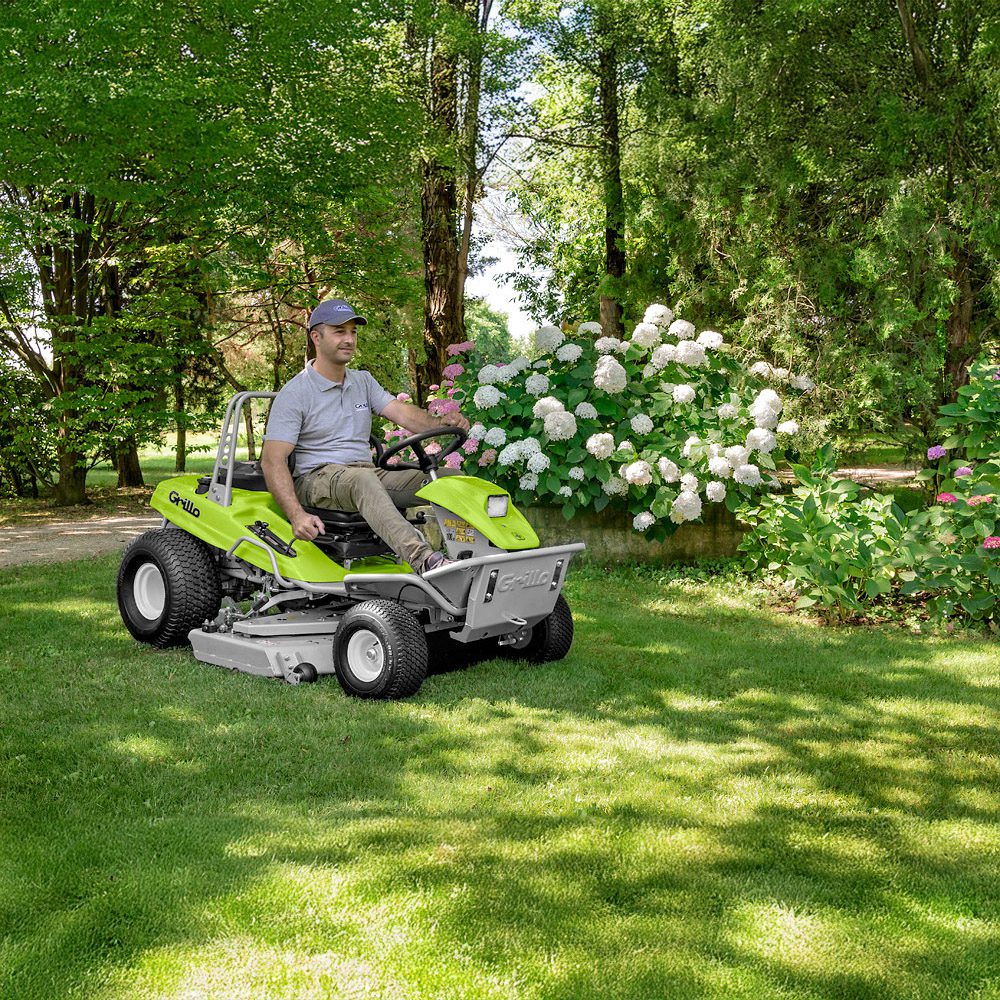

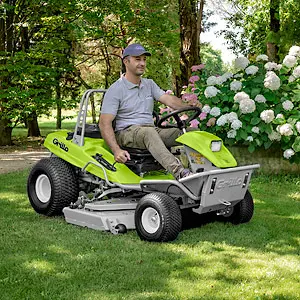

A man operates a bright green ride-on mower on grass, surrounded by trees and flowers

Efficient and Precise Control

With hydrostatic transmission and fan cooling, the MD22N operates smoothly at variable speeds up to 10.5 km/h. The tilting front axle and differential lock ensure stability on uneven terrain, while its 48 cm turning radius delivers superior manoeuvrability.

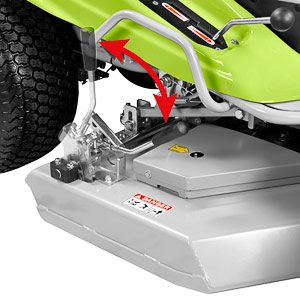

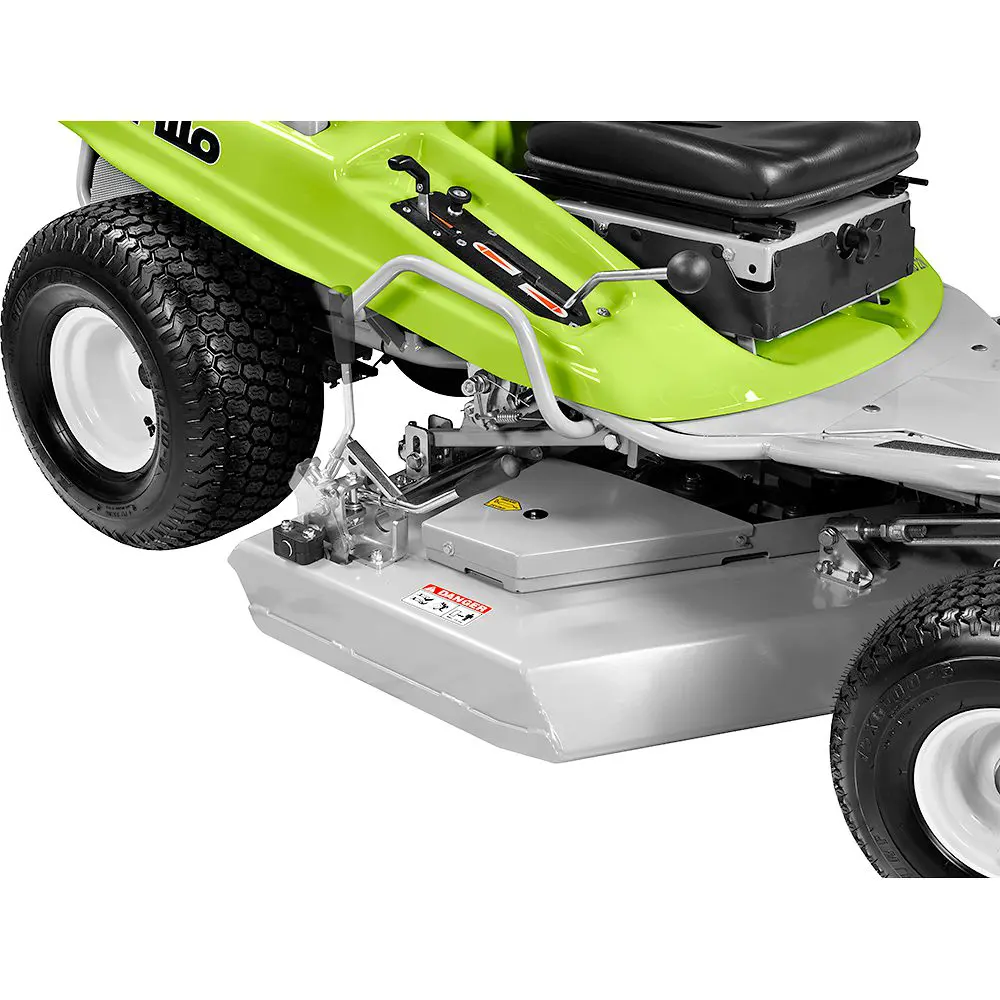

Close-up of the mower's quick-shift lever and 110 cm cutter deck, showcasing its hydrostatic design and features

Quick Shift Cutting Modes

Easily switch between rear discharge and mulching with the MD22N’s 'Quick Shift' lever, without leaving your seat or pausing work. Rear discharge handles tall grass, while mulching helps return nutrients to the soil for a lush, healthy lawn.

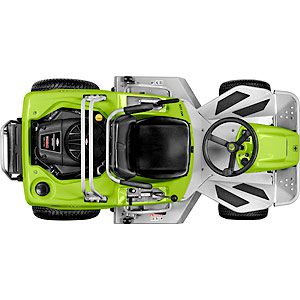

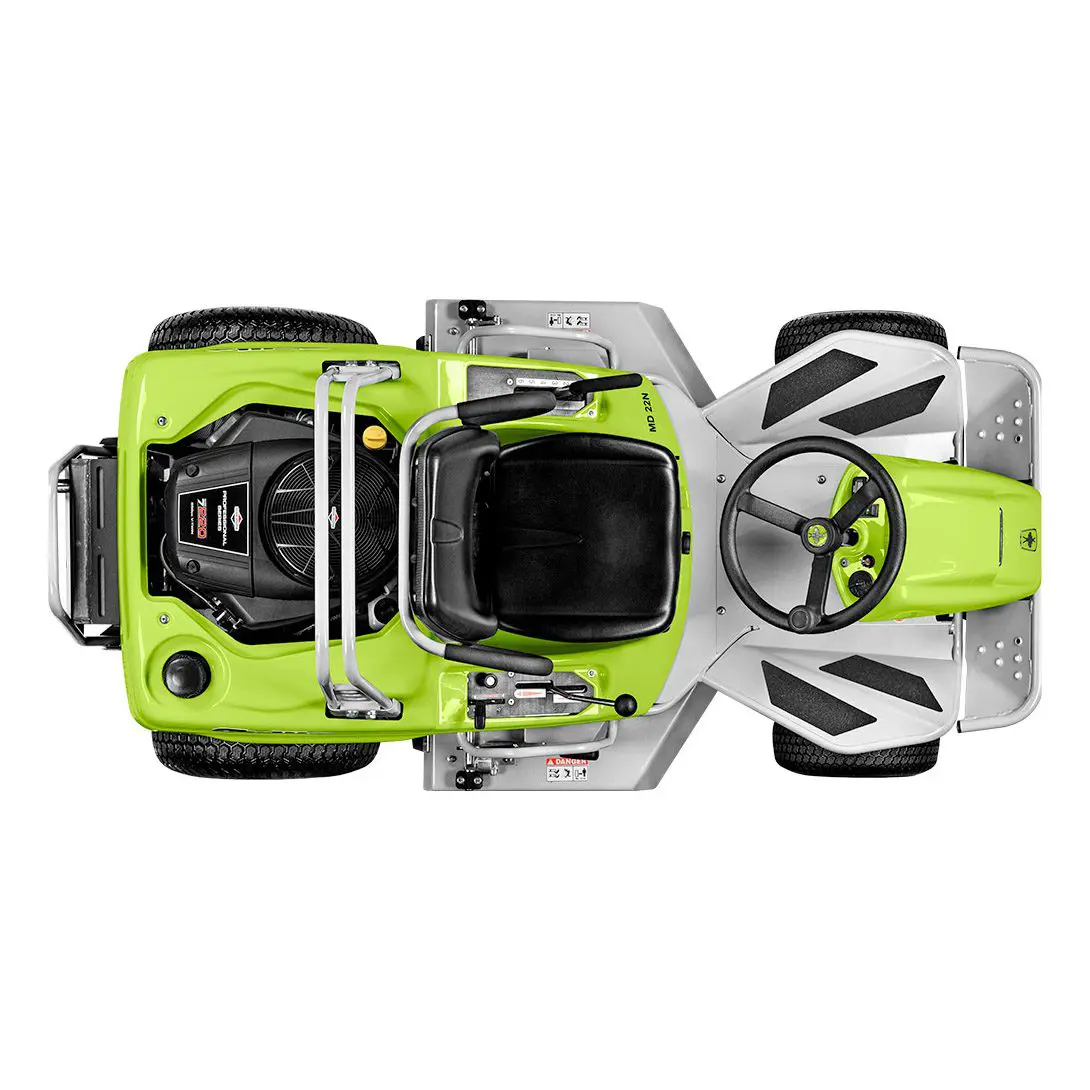

Top view of a green ride-on mower with a black seat and steering wheel, showcasing its 110 cm cutter deck

Compact and Ultra-Stable

The MD 22N's low centre of gravity, optimal weight distribution, and roll bar ensure stability and safety. With an adjustable, suspended seat and ergonomic controls, it offers maximum comfort and control for long hours of work.

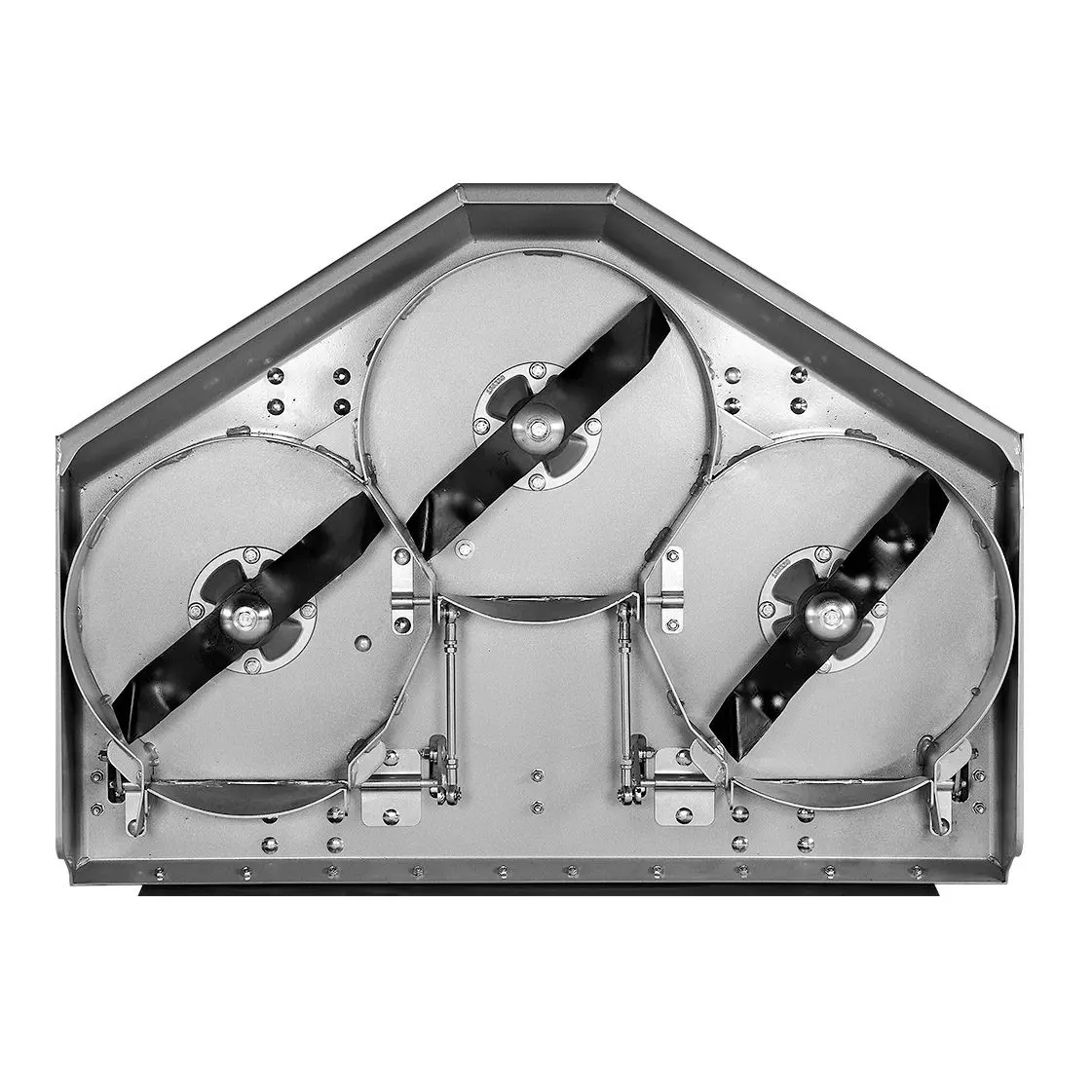

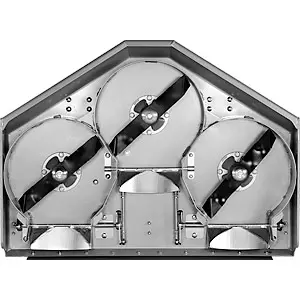

Close-up of a 110 cm mower cutter deck showing three blades and quick-shift lever for discharge options

Effortless Cutting Precision

The MD22N’s cutting deck has three blades, with height adjustments from 2.5 to 10 cm for a seamless cut. The gas-spring-assisted lever ensures comfort during every operation. Reliable steel construction and self-adjusting belt tension keep cutting quality top-notch, even after years of tough work!

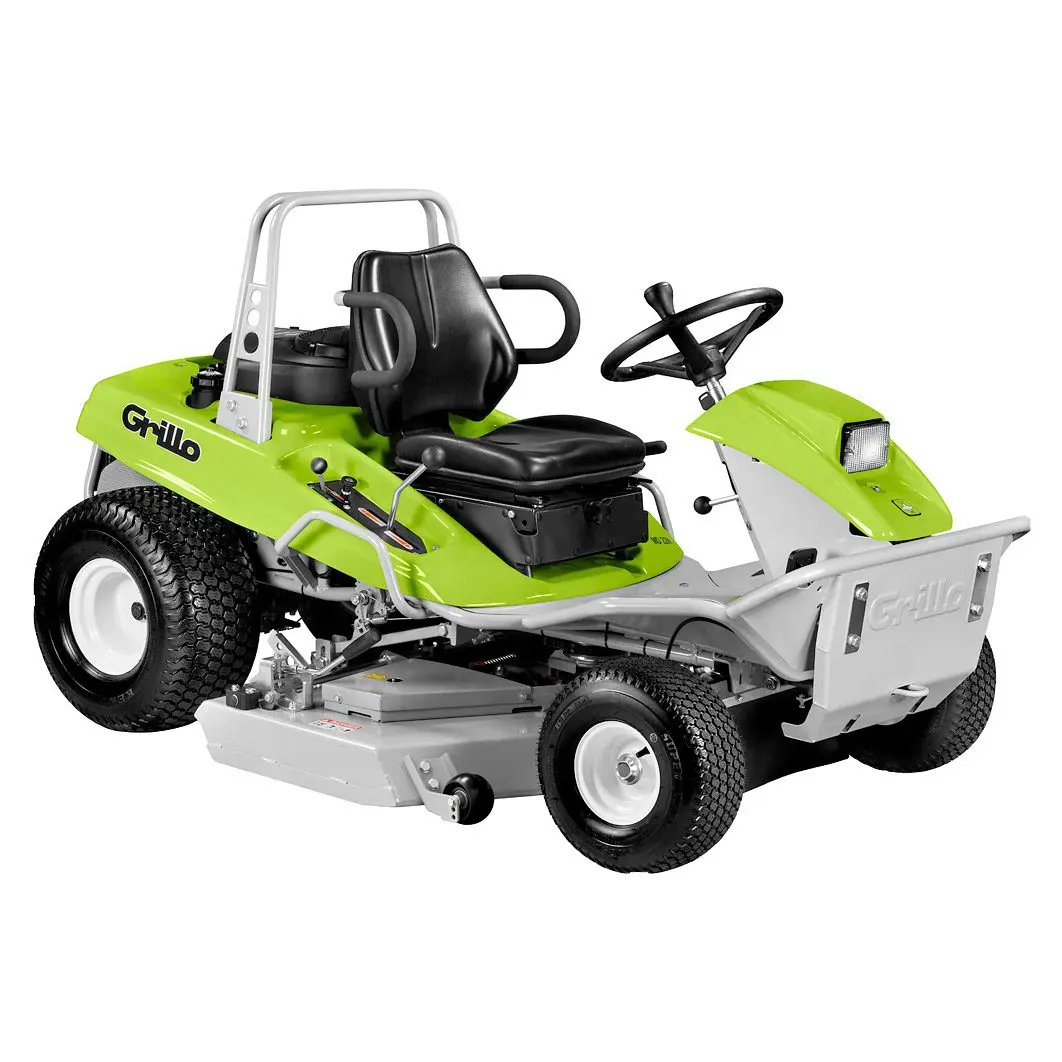

Green ride-on mower with a 110 cm cutter deck and hydrostatic controls, showcasing its compact design

Built for Durability

Every component of the MD 22N, from frame to transmission, is crafted in Italy with premium materials. Grillo’s double-layer electrostatic powder coating ensures lasting protection, while each machine undergoes rigorous testing for guaranteed quality.

Specifications

Engine Briggs & Stratton 7220 PXi PROFESSIONAL
Start electric, with 12 V battery
Supply fuel
Displacement 656 cc, 2 Cylinders
Power 18 HP (13.2 kW) - Gross power 22 HP
Air cooled
Dry air filter
Fuel tank capacity 7 L. (emergency supply 1 L.)
Gearbox Hydrostatic transmission with diff. lock
Clutch Electromagnetic clutch for PTO with blade brake
Cutter deck Rear discharge or mulching, via a "Quick Shift" lever
Cutting configuration 3 rotating blades
Cutting width 106 cm
Cutting height Continuously adjustable from 2,5 to 11 cm
Differential locking Via pedal control
Front tyres 15x6.00-6 Turf
Rear tyres 20x10.00-8 Turf
Speed Continuously variable, from 0 to 10,5 km/h; reverse speed from 0 to 6 km/h
Inner turning radius 48 cm
Seat High-comfort, sprung and adjustable seat, equipped with armrests and roll-bar
Service brake On the front wheels, via a pedal
Parking brake On the rear wheels, via a lever
Mowing capacity per hour (indicative) 8500 m^2/h
Standard features Tow hitch
Length 180 cm
Width 113 cm
Height 107 cm
Weight 315 kg
