Grillo FD450 Grass-Collection Mower - 450L Capacity
Model: 8Y5AH
Grillo FD450 Grass-Collection Mower - 450L Capacity
Model: 8Y5AH

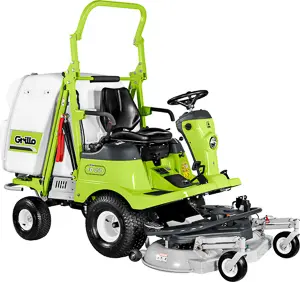

A professional hydrostatic mower with front-mounted cutter deck with a grass-catcher capacity of 450 Lt. The grass-catcher discharge height is 170 cm with an ejection of 45 cm; the cutting and high performance collection of this model are its best features. The innovative cutting system “Grillo Overblow” allows tremendous acceleration of the grass/air flow into the discharge chute considerably increasing its collection capability, even in damp, wet conditions whilst at the same time keeping its noise level of the whole cutting/collecting system extremley low. The front-mounted cutter deck gives the operator excellent visibility of his working area.

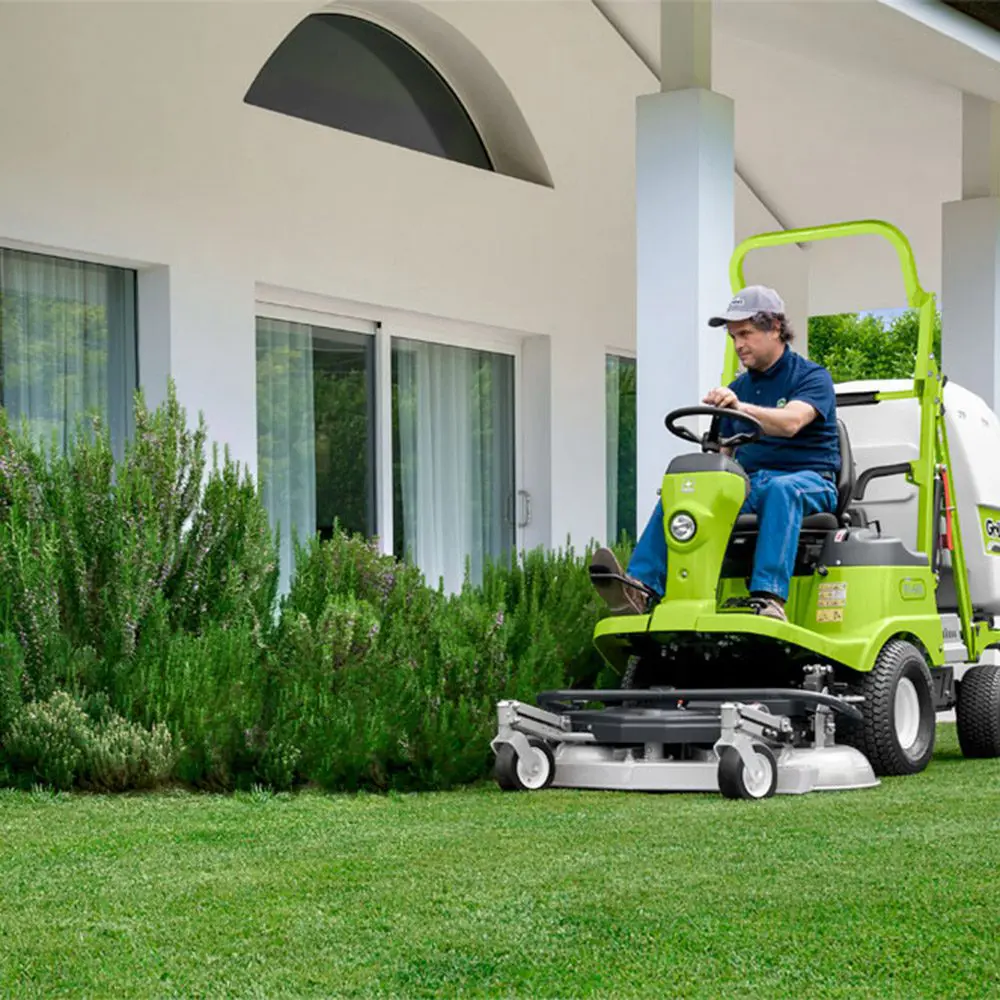

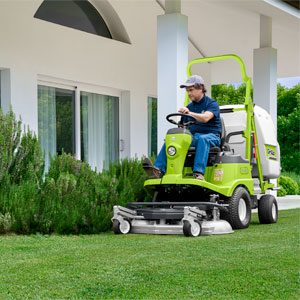

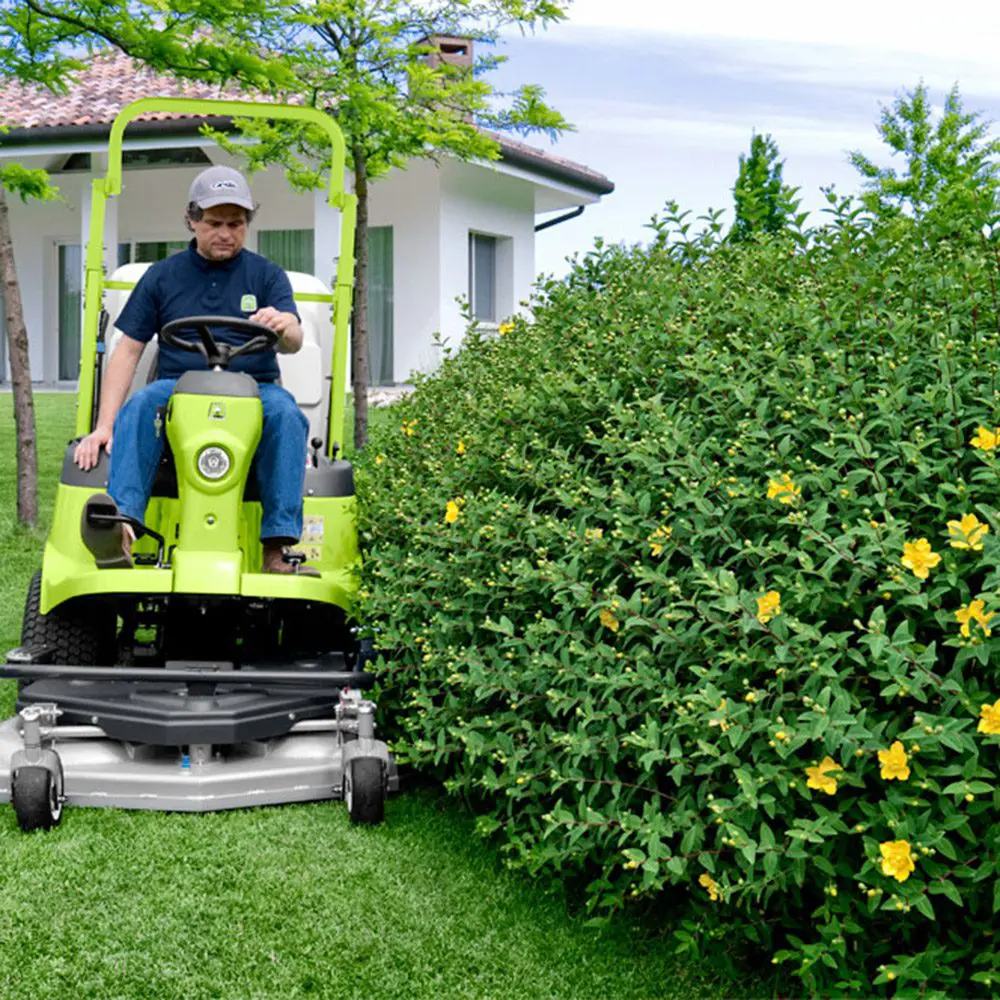

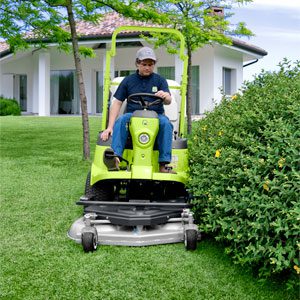

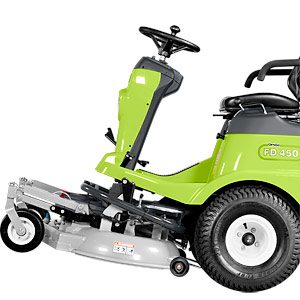

The out-front floating deck allows the operator to mow into corners, under bushes and trees and offers excellent visibility. Because the deck follows the contours of the land, the mower produces a quality finish which results in a beautiful looking lawn. If you need to lift the deck to get over kerbs it’s simply a case of pushing a button to hydraulically raise it.
The FD450 collects 450 litres of grass – much larger capacity than most commercial machines and with it’s 46” out-front deck can reduce mowing time dramatically.
Efficient Cutting System
The FD450’s cutting system boosts grass/air flow acceleration, directing grass into a large chute for optimal compression and improved efficiency of the 450 L catcher. It excels even in challenging conditions, handling high, wet grass and leaves during autumn with ease.
Modern Design & Comfort

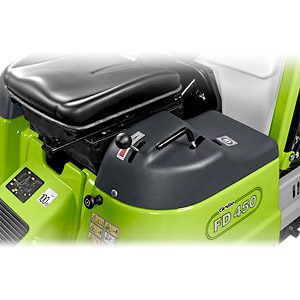

The FD450’s sleek, contemporary design and meticulous attention to detail make a striking impression. The ergonomic operator's position features a comfortable, adjustable suspension seat tailored to the operator’s weight.
Uncompromising Quality
Grillo FD450 features high-quality components built in Italy with premium materials and advanced technology, ensuring 100% quality control. The double electrostatic powder coating process provides durability and shine, while meticulous assembly and rigorous final testing guarantee top performance.
Automatic Blades Disengage

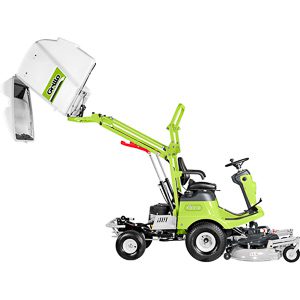

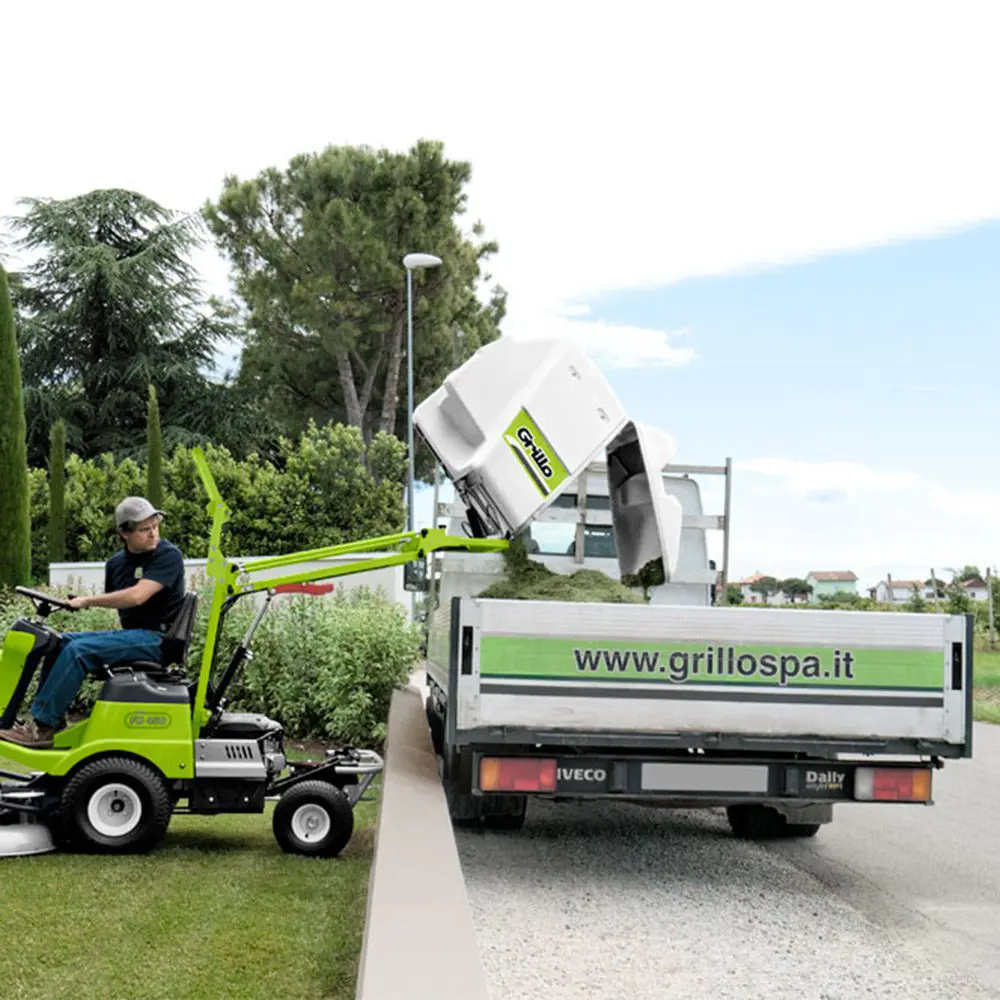

Blades automatically disengage when the grass catcher is full, with an optional buzzer to alert you. Emptying is simple with electrical push-buttons, raising the catcher to 170 cm for easy tipping, and the rear door opens automatically for convenience.
Exceptional Maneuverability

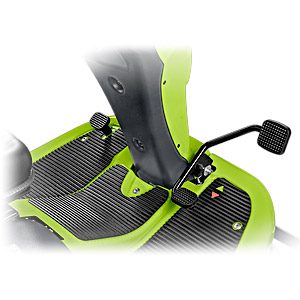

The Grillo FD450 offers exceptional maneuverability with rear wheel steering and an inner turning circle of just 30 cm. Its hydrostatic transmission is controlled via a smooth-pedal system, making it agile and easy to navigate around obstacles.
Effortless Blade Engagement

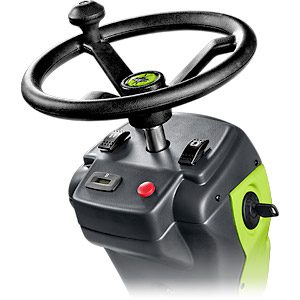

The cutter blades engage smoothly via an electromagnetic clutch controlled by a push-button. The parking brake allows for safe dismounting with the engine running and blades disengaged, automatically excluding the hydraulic controls for the cutter deck and grass catcher.
Powerful and Efficient Engine
The FD450 is equipped with an 18hp B&S 7220 Professional Series twin-cylinder engine, featuring electric start and a 17L fuel tank with a level indicator. Its 656cc displacement ensures reliability, low emissions, minimal vibration, and high performance, while the “Grillo Super Silent” exhaust maximises noise reduction and efficiency.
Exceptional Cutting Performance
The FD450’s floating cutting deck ensures a flawless cut on uneven terrain, thanks to its rear pivoting axle and anti-skid tyres. With a speed range of 0 to 11 km/h, continuous adjustability, and a pedal-operated differential lock, this mower offers both precision and enhanced traction for a superior lawn care experience.
Effortless Cleaning & Maintenance
Cleaning the FD450’s cutting deck is a breeze—simply connect a water hose to the quick coupling, engage the blade for a few seconds, and the deck will be thoroughly cleaned. For maintenance, the deck can be easily removed and positioned vertically on its designed supports; the drive belt can be quickly detached, and engine components are readily accessible by lifting the grass-catcher or seat.
Versatile and Precise

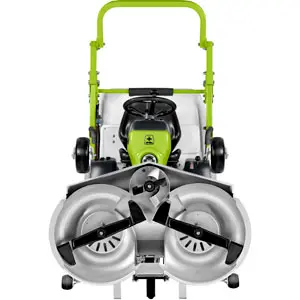

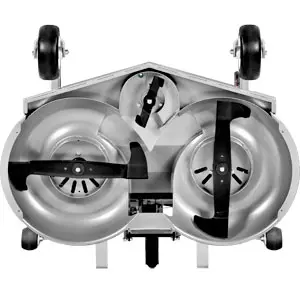

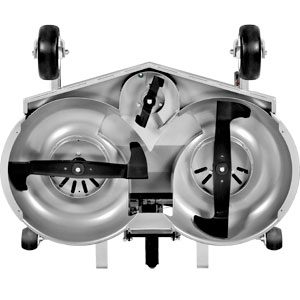

The FD450 combines easy steering and a tight turning circle, making it ideal for both domestic and professional use. Its innovative cutter deck features twin counter-rotating blades plus a front blade, ensuring clear visibility and precision cutting around obstacles. The deck’s robust design includes additional reinforcements and a double-backed drive belt, offering durability and protection against damage.
Specifications
| Engine |
Briggs & Stratton 7220 PXi PROFESSIONAL
Start electric, with 12 V battery
Supply fuel
Displacement 656 cc, 2 Cylinders
Power 18 HP (13.2 kW) - Gross power 22 HP
Air cooled
Dry air filter |
| Fuel tank capacity |
17 litres (reserve tank 2.5 litres)
|
| Transmission |
Hydrostatic transmission with differential locking
|
| Clutch |
Electromagnetic PTO clutch with magnetic blade brake
|
| Cutter deck |
Frontal cutting deck with collection. Mulching kit cod. 9M0611 is an optional attachment. Solid wheels. Cutting deck with coupling for washing.
|
| Cutting configuration |
3 rotating blades
|
| Cutting deck width |
1190 mm
|
| Cutting width |
1130 mm
|
| Cutting height |
Continuous electric cutting height adjustment from 25 to 90 mm
|
| Grass collector capacity |
450 litres with full grass catcher motorised micro-switch.
|
| Grass collector discharging system |
Grass-catcher discharge and lifting hydraulically operated. Movements are activated through electric buttons. The grass-catcher opening is automatically activated.
|
| Maximal discharging height |
170 cm
|
| Rear projection |
45 cm
|
| Differential locking |
Mechanical with pedal control
|
| Front tyres |
20x10.00-8 Turf wheels
|
| Rear tyres |
15x6.00-6 Turf wheels
|
| Steering system |
With steering wheel, hydraulic drive, forward and reverse gear engaged through pedal
|
| Speed |
0-11 km/h (forward) and 0-6 km/h (reverse) through pedal control device
|
| Inner turning radius |
30 cm
|
| Seat |
Dampened seat, adjustable by means of a lever
|
| Parking brake |
Disk brake
|
| Mowing capacity per hour (indicative) |
8000 m^2/h
|
| Standard features |
Tow bar and roll bar
|
| Length |
2680 mm
|
| Width |
1190 mm
|
| Height |
1460 mm with lowered roll bar; 1940 mm with raised roll bar
|
| Weight |
450 kg
|
