Grillo G84 Rotary Hoe & Walk Behind Tractor with 58cm Tiller

Model: 8BQ9T
Grillo
SALE!
Sale!

Grillo G84 Rotary Hoe & Walk Behind Tractor with 58cm Tiller

Model: 8BQ9T
Grillo

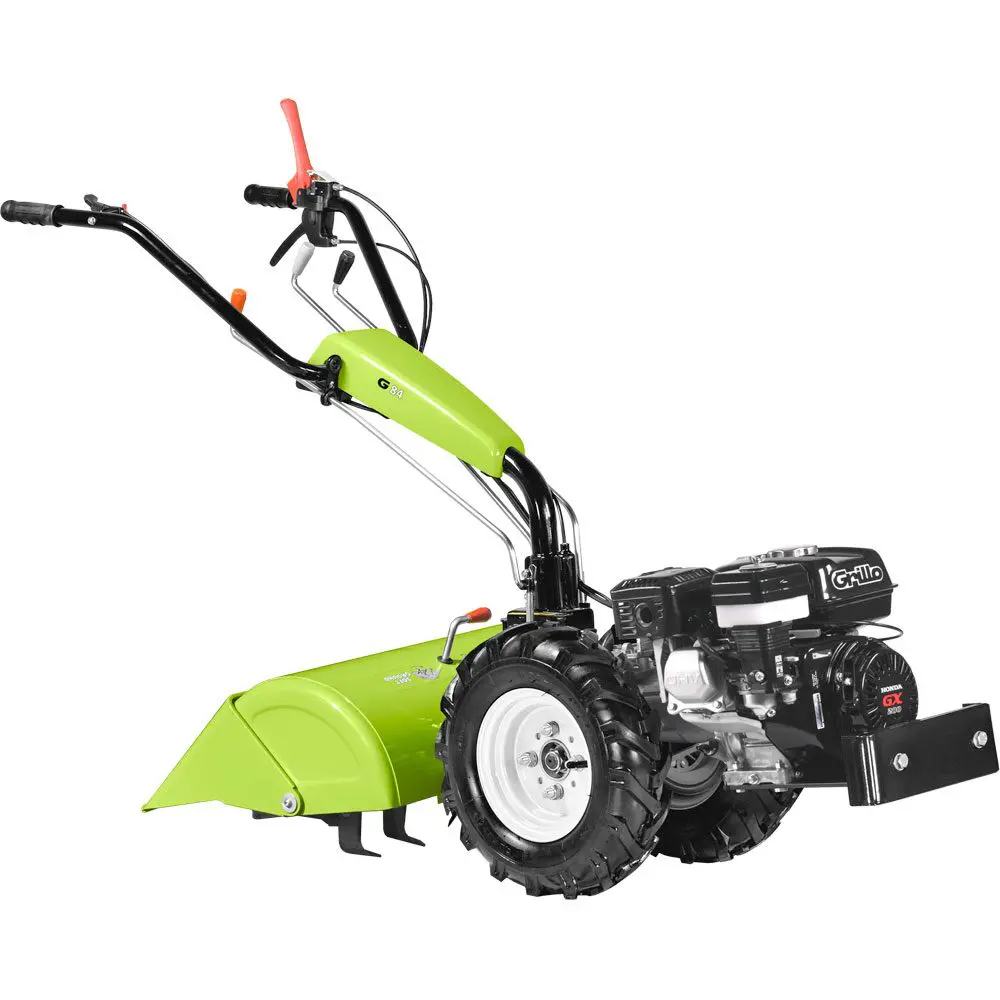

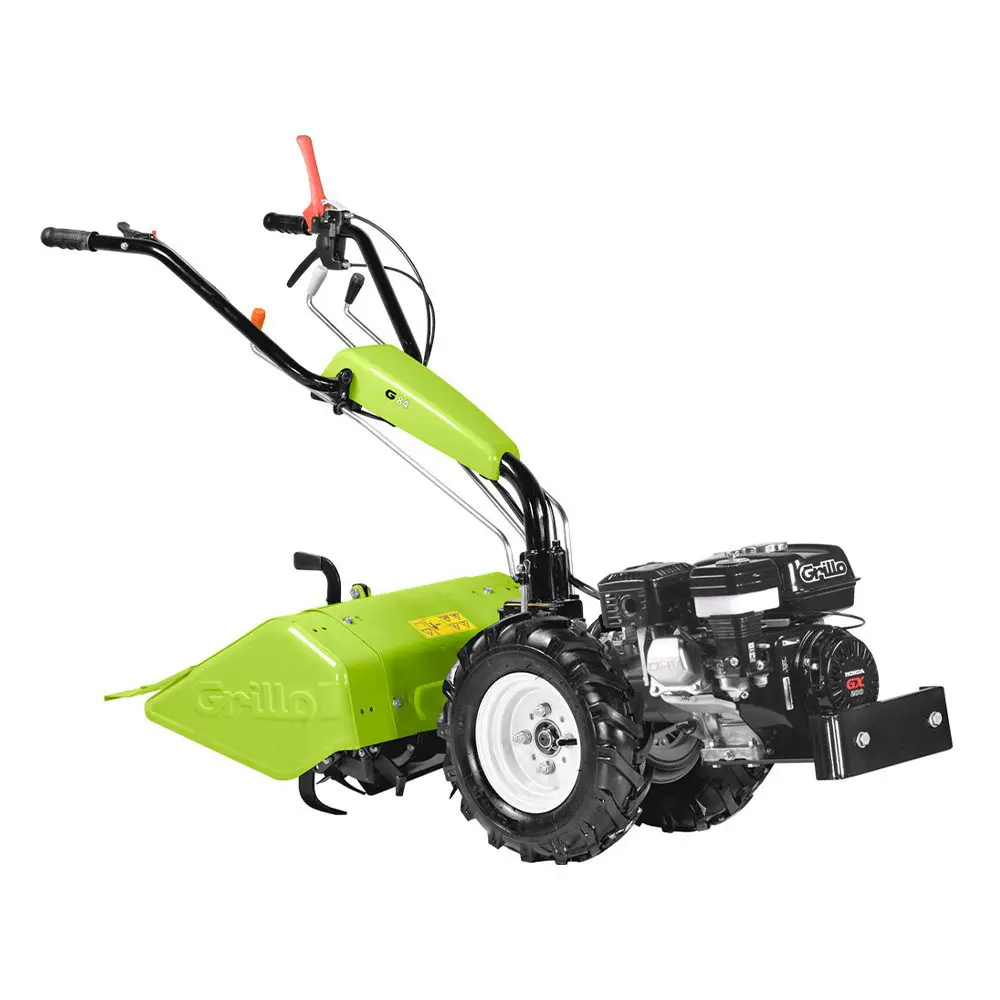

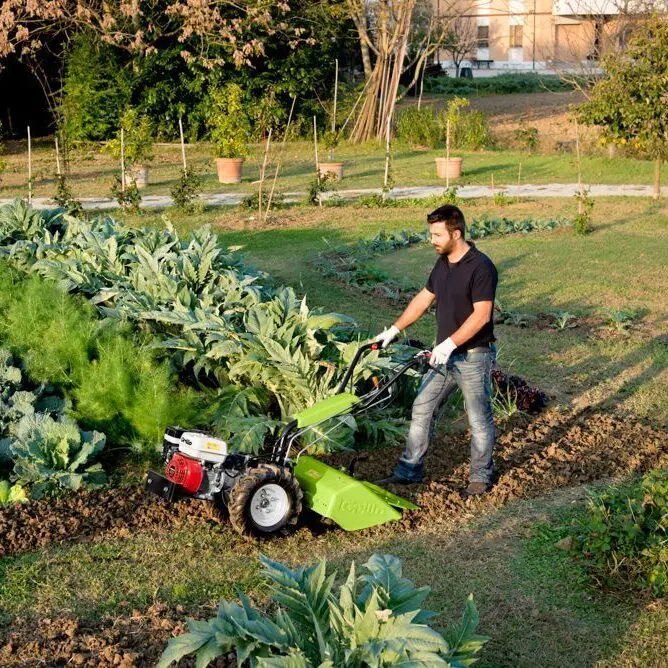

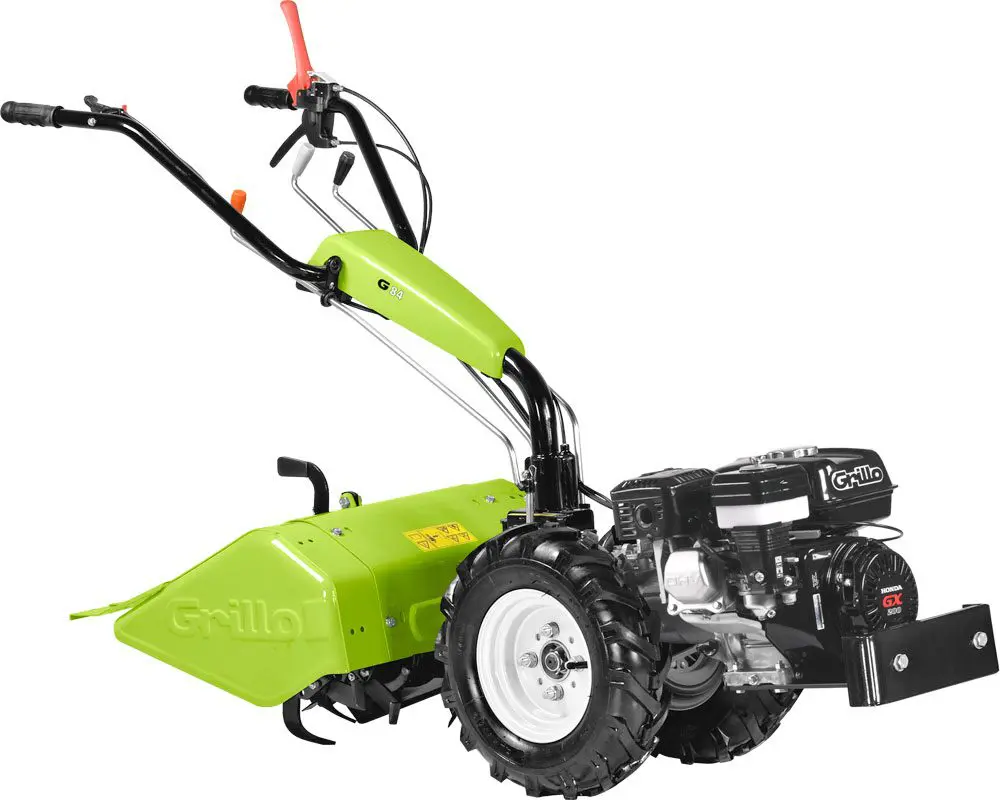

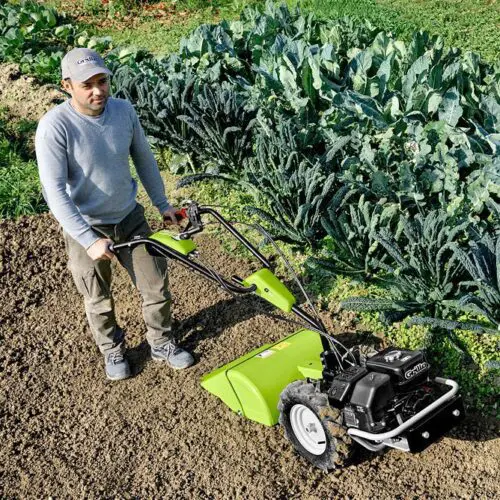

Grillo G84 is a heavy duty domestic (or entry level commercial) rotary hoe/walking tractor, ideal for gardening, horticulture, orchards and vegetable plots. It is a robust machine ideal to work on any kind of soil. G84 is fitted with a 4 speed-gearbox in oil-bath, with 2 forward + 2 reverse gears. Powered by a Honda 5.5 hp engine, 2 Fwd & 2 Rev gears, and 4.00-8 tractor wheels the G84 can handle applications that require more power.

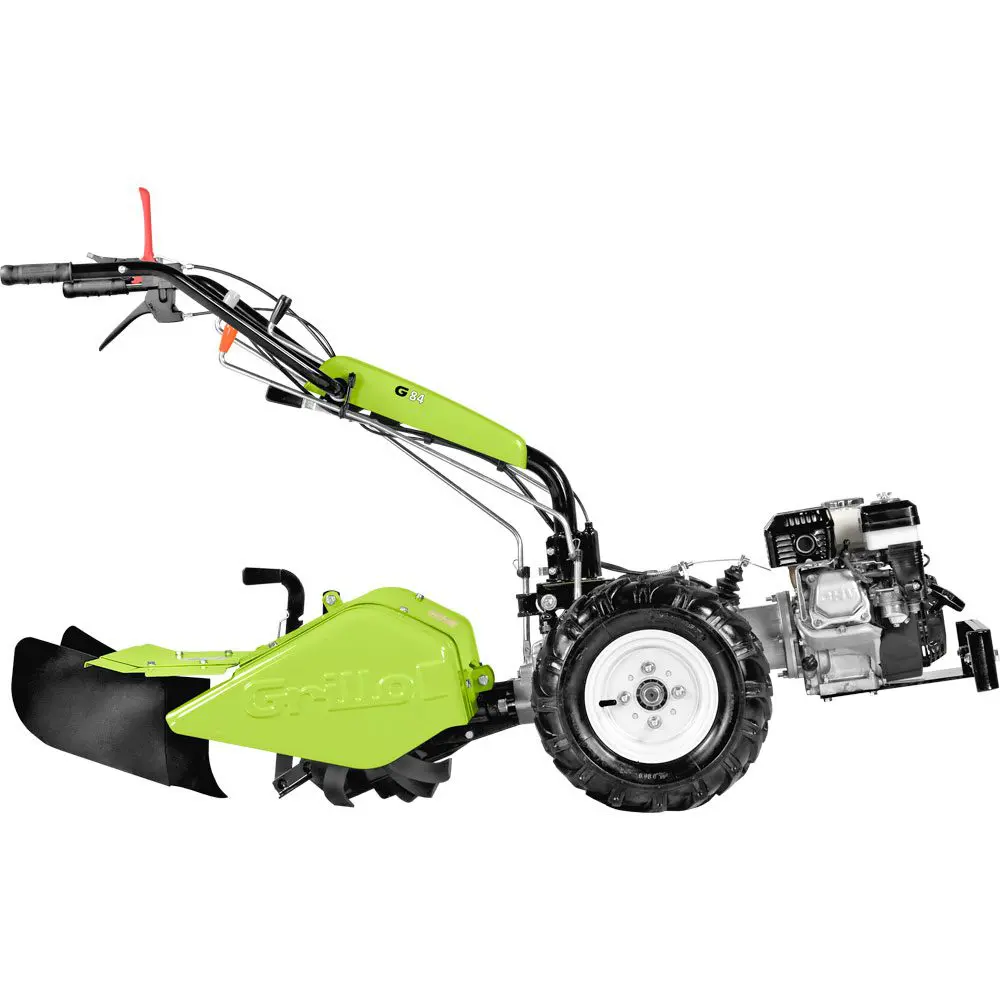

Some of the optional attachments that can be used are the same as the smaller G55 model – making G84 a popular machine that suits more powerful applications. One attachment often purchased with G84 is the adjustable furrower which connects to the rear of the tiller.

The G55 comes standard with 58cm Tiller and Wheels

Optional attachments Include:

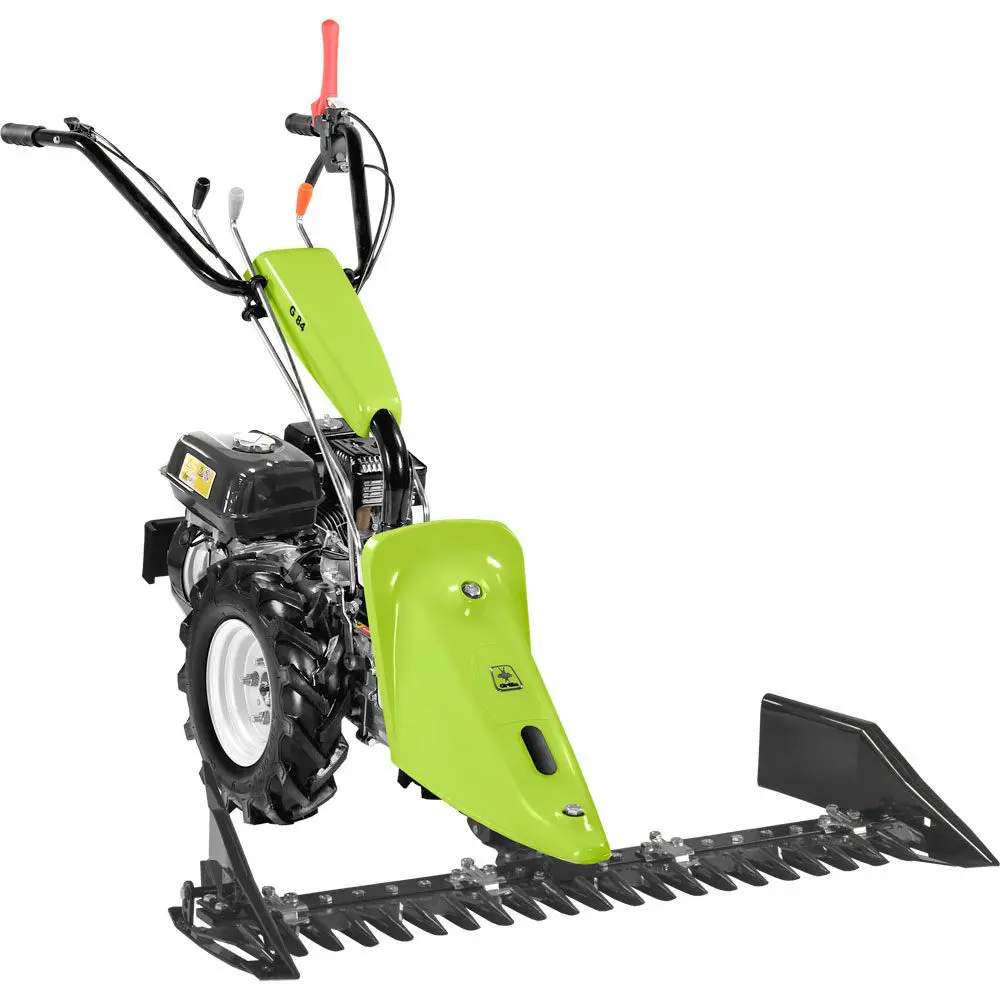

  • Central cutter bar 115cm (sickle bar)

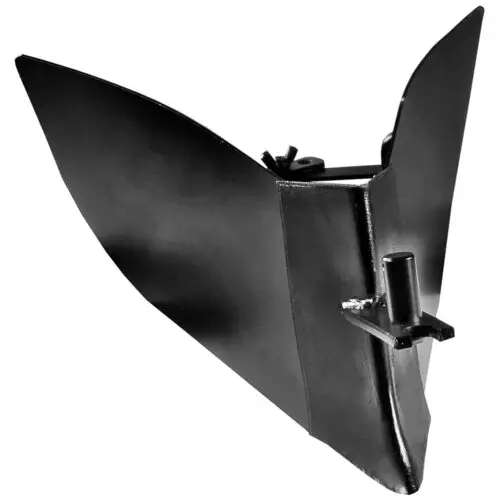

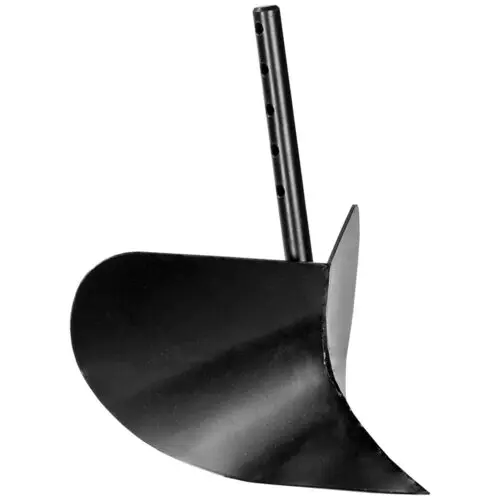

  • Furrower behind tiller
  • Standard rotary tiller
  • Counter-rotating tiller
  • Sickle bars
Original price was: $6,171.Current price is: $4,628. incl. gst

1 in stock

Enquire

Specifications

Engine Honda GX200 OHV
Start recoil starter
Supply fuel
Displacement 196 cc, 1 Cylinder
Power 5.5 HP (4.1 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 3.1 L
Transmission With oil bath gears
Gearbox With clutch engagement. The walking tractor version has 2 forward gears + 2 reverse gears. The sickle bar version has 2 forward gears + 2 reverse gears
Reverse gear unit By lever
Clutch Conic active

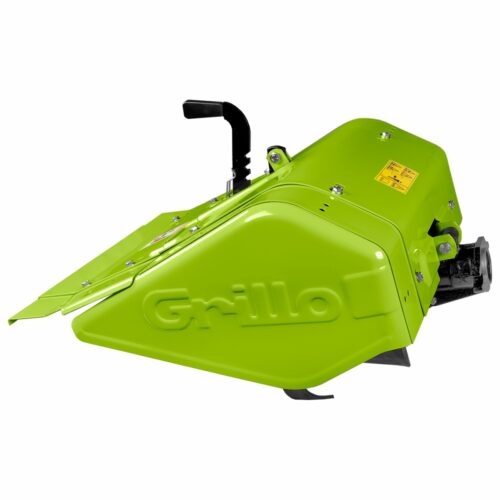

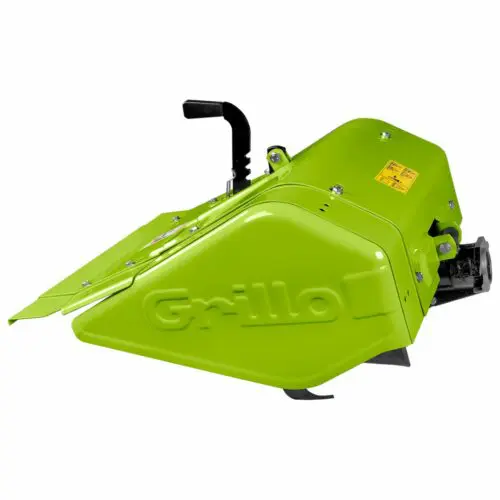

Standard rotary tiller Adjustable rotary tiller with x 4 tines. Working width 580 mm
Hoes system diameter 32 cm
Working width Adjustable at 370 and 470 mm (680 mm with extensions)
Working depth 16 cm
P.T.O. 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
Available tyres Pneumatic wheels tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels tractor 5.00-12 (adjustable disks) for plough kit. Wheels made of iron having diameter 40 x 10 cm. Pneumatic Turf wheels 20x10.00-8 (extensions cod. 937112 needed)
Service brake Brake drum (kit upon request cod. 978111)
Handlebar Height and side adjustment. Fitted on anti-vibration blocks
Safety devices Active clutch, reverse speed – PTO cut-out
External sizes of the wheels 42 or 37 cm with 4.00-8 wheels
Weight With tiller, 111 kg
