| Armrests | Standard |
| Battery | 12V |
| Bedknife Adjustment | Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) allows quick bedknife to reel adjustment.
|
| Blade Style/Type | Reel |
| Blade Type (Description) | EdgeSeries™ DPA radial or forward swept reels.
|
| Clip Frequency/Backlapping | 5" reel 2,350 (+/- 150) rpm max reel speed, at highest setting. 200 rpm max at low idle and lowest setting for backlapping.
|
| Controls | Foot operated controls: Forward and reverse traction pedal, mow/transport speed limiter. Hand operated on control panel: Parking brake lever, ignition switch, engine throttle lever, LED work light switch, on/off switch for cutting units, joystick for cutting unit lift and lower. Other controls: Steering wheel tilt control, reel speed control, backlap engagement lever.
|
| Cooling System Description | Aluminum side-by-side oil cooler/radiator. 8.5 fins per inch, wavy fin, non-louvered. 5.25 quart (4.9 liter) capacity.
|
| Cup Holder | Standard
|
| Cutting Unit Accessories | Rear Roller Brush Kit, Universal Groomer, Broomer, Grass Baskets
|
| Cutting Unit Lift/Lower | Hydraulic - front and rear cutting unit lift/lower are sequenced for uniform starting and ending points.
|

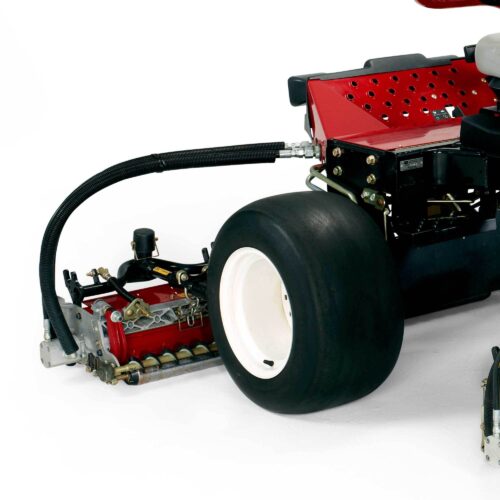

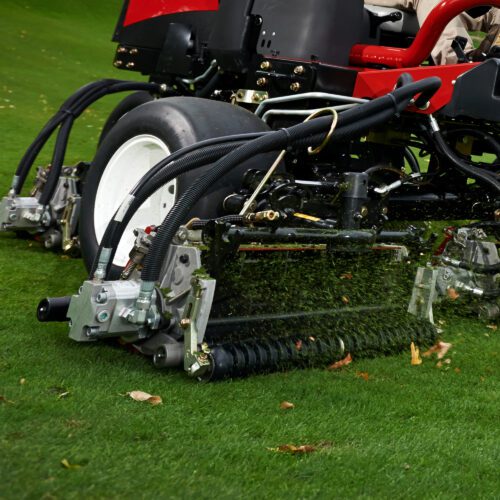

| Cutting Unit Type/Configuration | Five hydraulically driven, balanced, DPA cutting Units. Frame precision manufactured, die-cast aluminum for increased strength, simple click adjustment maintenance.
|
| Drivetrain | Diesel
|
| Electrical System | Heavy-duty 12-volt battery, 570 CCA; 40 amp alternator/regulator. Electronic control unit is microprocessor based, solid state control unit with diagnostic capabilities.
|
| Engine Cooling | Liquid Cooled
|
| Fuel / Power Source | Diesel
|
| Fuel Capacity | 7.5 U.S. gal. (28.4 L)
|
| Fuel Filter | 10 micron spin-on filter with integral water separator.
|
| Gauges/Instrumentation | Hour meter, fuel gauge, diagnostic lamp, cluster gauge with glow plug and charge indicator lights. Low engine oil pressure and high coolant temperature warning lights (high temperature safety shut off).
|
| Ground Speed - Forward | 0 - 10 mph (0 - 16.1 km/h)
|
| Ground Speed - Reverse | 0 - 3.5 mph (0 - 5.6 km/h)
|
| Height | 74" (188 cm)
|
| Height of Cut Range | 8-Blade: 0.5" - 1.5" (13 mm - 38 mm)
11-Blade: 0.25" - 0.75” (6 mm -19 mm) |
| Hydraulic Fluid Capacity | 6 U.S. gal. (22.7 L)
|
| Hydraulic Fluid Type | Toro PX™ Extended Life Hydraulic Fluid
|
| IntelliDash™ Capable | Yes |
| Interlocks | Traction pedal neutral, parking brake, operator presence in seat, and cutting unit engage/disengage.
|
| Lighting | Standard
|
| Main Frame/Chassis | Formed steel, welded steel and steel tubing.
|
| Max Slope Angle | Refer to operator's manual.
|
| Mowing Speed | 0 - 7 mph (0 - 11.3 km/h)
|
| Number of Blades | 11, 8
|
| Oil Capacity | 3.5 U.S. qt. (3.3 L)
|
| Oil Cooler Description | Pressurized lubrication system.
|
| Optional Accessories | Sunshade (with optional operator cooling fan, LED work lights, rotating amber beacon)
|
| Overall Width | 94" (238.8 cm)
|
| Parking/Service Brakes | Hydrostatic service brake. Hand-operated parking brake.
|
| Power Steering | Yes |

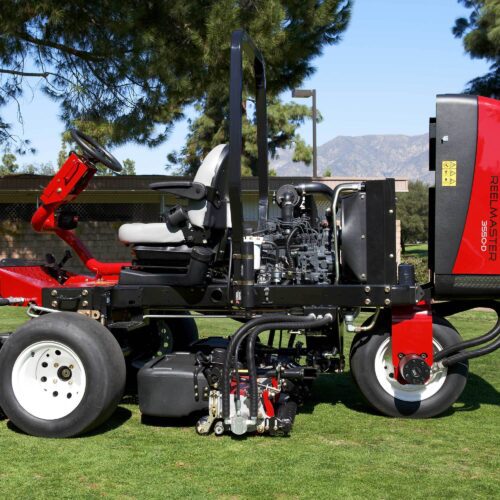

| Power Train (Engine Description) | Kubota® liquid-cooled diesel engine, 3-cylinder, 24.8 hp (18.5 kW) @ 3000 RPM. Engine governed to 3220 RPM high idle (± 50 RPM), 1400 RPM low idle (± 50 RPM). Displacement: 68.5 cu.in. (1123 cc). Peak torque: 57.2 lbs-ft @ 2200 RPM. Tier IV compliant.
|
| Product Length | 110" (279.4 cm)
|
| Reel Diameter | 5 in. (12.7cm)
|
| Reel/Cylinder Drive | Hydraulic
|
| Rollers | Wiehle front roller and standard rear roller included. Optional front full and shoulder rollers, and short and long rear rollers available.
|
| Safety/Operator Safety | 2-post ROPS and retractable seat belts standard.
|
| Seat | Mechanical suspension standard.
|
| Starting | Switch |
| Steering System Description | Power steering with tilt steering wheel.
|
| Tires - Front | 22" x 12" - 12", 4-ply, No Tread
|
| Tires - Rear | 22" x 12" - 12", 4-ply, No Tread
|
| Traction Drive | 3WD
|
| Traction Drive (System) | Series/Parallel hydraulic traction circuit provides continuous 3-wheel drive, in mow and transport. Hydrostatic traction drive provides infinitely variable speed in forward and reverse.
|
| Transport Width | 91" (231 cm)
|
| Weight | 1,985 lbs. (900.38 kg) with (5) 18" 8-blade cutting units.
|
| Wheelbase | 59.5" (151.1 cm)
|
| Width of Cut | 82" (208 cm)
|
