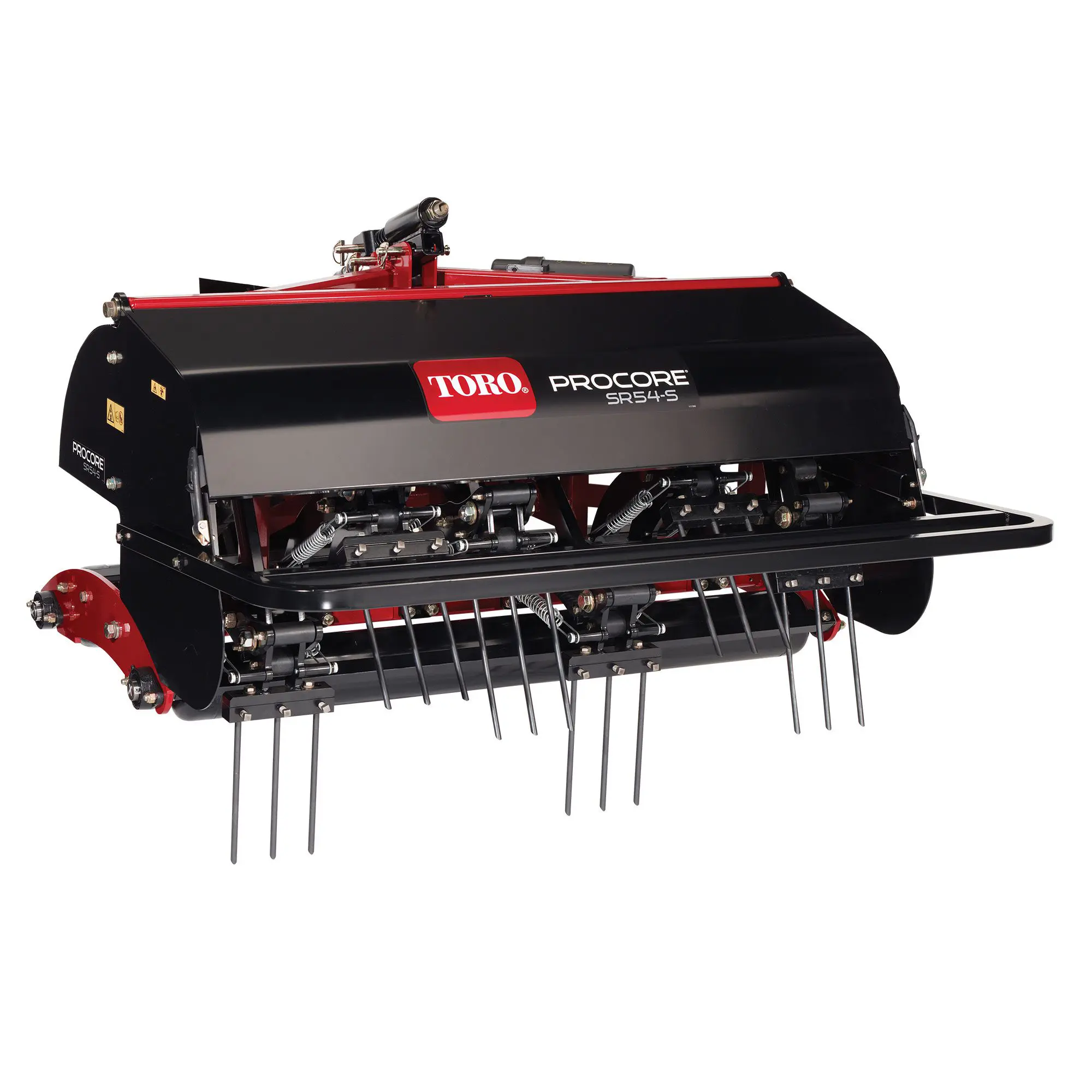

Toro ProCore® SR54 Turf Aerator

Model: 09931
Toro

Toro ProCore® SR54 Turf Aerator

Model: 09931
Toro

Non-S model. Single roller, with a hydraulic top link so you can change tine depth from the tractor seat.

This compact, lightweight Procore SR54 machine can aerify to depths of up to 10 inches (250 mm), leaving a smooth playing surface. The SR54 produces a “soft touch” and is the ideal machine for aerating at a deep level, quickly and efficiently. Deep-tine aerification relieves soil compaction at lower soil levels than typical aerification. The tines fracture the soil creating channels through the root zone allowing oxygen, water and critical nutrients to penetrate deep into the soil profile.

ProCore SR54 Series deep-tine aerators alleviate subsurface soil compaction, helping to create an environment for turf to thrive. These durable and time-tested products are capable of withstanding the most extreme aeration conditions. From lightweight, precision machines to robust, heavy-duty machines to break up soil on even the most compact surfaces, the ProCore SR Series deep-tine aerators are the ultimate choice for performance and quality.

  • Adjustable soil fracturing capabilities
  • Versatile range of coring and solid tines
  • Control depth from the tractor
  • Easy to use
  • Heavy-duty design
  • Superior punching power.
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Compare the ProCore® SR Series Turf Aerator Series

12 of 14 specs differ
Specification ProCore® SR54 Viewing ProCore® SR54-S ProCore® SR70 ProCore® SR70-S ProCore® SR72
Featured specs
Roller Design Single roller Dual roller Single roller Dual roller Single roller
Depth Adjustment Hydraulic top link (from the tractor seat) Manual, spring-loaded top link Hydraulic top link (from the tractor seat) Manual, spring-loaded top link Hydraulic top link (from the tractor seat)
Maximum Operating Depth (Working Depth) 25 - 250 mm (1" - 10") 25 - 250 mm (1" - 10") 25 - 250 mm (1" - 10") 25 - 250 mm (1" - 10") 25 - 406 mm (1" - 16")
Operating Width (Working Width) 1.37 m (54") 1.37 m (54") 1.85 m (73") 1.85 m (73") 1.83 m (72")
Aeration
Aeration Type Deep Deep Deep Deep Deep
Forward Hole Spacing 64 - 102 mm (2.5" - 4") 64 - 102 mm (2.5" - 4") 64 - 102 mm (2.5" - 4") 64 - 102 mm (2.5" - 4") 75 - 150 mm (3" - 6")
Number of Tine Heads 6 6 8 8 6
Operating Speed 2.41 - 4.02 km/h (1.5 - 2.5 mph) 2.41 - 4.02 km/h (1.5 - 2.5 mph) 2.41 - 4.02 km/h (1.5 - 2.5 mph) 2.41 - 4.02 km/h (1.5 - 2.5 mph) 1.29 - 2.41 km/h (0.8 - 1.5 mph)
Maximum PTO Speed 400 - 500 rpm 400 - 500 rpm 400 - 500 rpm 400 - 500 rpm 400 - 500 rpm
Productivity 3,345 sq. m / hour (36,000 sq. ft. / hour) 3,345 sq. m / hour (36,000 sq. ft. / hour) 4,460 sq. m / hour (48,000 sq. ft. / hour) 4,460 sq. m / hour (48,000 sq. ft. / hour) 3,530 sq. m / hour (38,000 sq. ft. / hour)
Lift System Standard 3-point. Standard 3-point hitch Standard 3-point hitch Standard 3-point. Standard 3-point.
Recommended Tow Vehicle Requirement 16 - 18 hp (12 - 13.4 kW) with minimum 544 kg (1,200 lb.) lift capacity 18 hp (13.4 kW) with minimum 682 kg (1,500 lb.) lift capacity 25 - 35 hp (18.6 - 26.1 kW) with minimum 773 kg (1,700 lb.) lift capacity 25 - 35 hp (18.6 - 26.1 kW) with minimum 817 kg (1,800 lb.) lift capacity 45 hp (33.6 kW) with minimum 1270 kg (2,800 lb.) lift capacity
Dimensions & Weight
Weight 528 kg (1,165 lbs.) 563 kg (1,242 lbs.) 623 kg (1,373 lbs.) 750 kg (1,655 lbs.) 945 kg (2,091 lbs.)
Accessories
Optional Accessories Rear Roller Kit (09952) Rear Roller Kit (09952) Rear Roller Kit (09953) Rear Roller Kit (09953) Rear Roller Kit (09954)

Features

Close-up of the Toro aerator's chain drive and mechanical components in red and black

Precision Design

The crankshaft, tine arms and frame are perfectly aligned allowing for superior performance and long life. With its fast, efficient performance and innovative design, the deep-tine aerators are able to run smoothly at all depths, relieving pressure-packed soil with superior hole quality.

Various aerator tines and components displayed on a dark surface, showcasing their design and functionality

Coring & Solid Tines

There are many coring and solid tines available to cover a wide variety of cultivation practices. View the Toro Titan Tines Guide & Catalog

Close-up of a red and black turf aerator showcasing its key components on a green lawn

Easy Hook-Up & Operation

All of the deep-tine models utilize a standard 3-point hitch hook-up and are powered from the PTO.

Close-up of Toro aerator's tines and cutting deck on green turf, showcasing its compact design and functionality

Superior Punching Power

The leverage of the aerator allows the weight to be placed directly over the point of impact, enabling lightweight units to do heavyweight jobs while reducing shock and wear and tear on the machines.

Diagram comparing typical aerification and deep-tine aerification showing soil fracturing benefits

Adjustable Soil Fracturing Capabilities

There are multiple positions available to adjust the soil fracturing movement of the tines. This allows you to adjust and control this motion to your desired application.

A man operates a Toro turf aerator on a grassy field, showcasing its large aeration tines

Depth Control from the Operator's Seat

The distinctive frame construction incorporates perfectly aligned arcs following the movement of the crank arms and the movement of the main frame. This design allows the operator to change the tine depth without changing the angle of entry by using the hydraulic top link from the tractor while the machine is in operation. Because of this one-of-a-kind feature, you can apply the ideal tine position for every soil type and condition, without leaving your seat.

Close-up of the Toro aerator's chain drive system, showcasing its robust design and engineering

Heavy-Duty Design

These robust machines are capable of withstanding extreme aeration conditions. The heavy-duty design includes an oversized gearbox, heavy-duty bearings, crank arms and chains, allowing you to operate in the toughest conditions.

Specifications

Aeration

Aeration Type Deep
Roller Design Single roller
Depth Adjustment Hydraulic top link (from the tractor seat)
Forward Hole Spacing 64 - 102 mm (2.5" - 4")
Maximum Operating Depth (Working Depth) 25 - 250 mm (1" - 10")
Number of Tine Heads 6
Operating Width (Working Width) 1.37 m (54")
Operating Speed 2.41 - 4.02 km/h (1.5 - 2.5 mph)
Maximum PTO Speed 400 - 500 rpm
Productivity 3,345 sq. m / hour (36,000 sq. ft. / hour)
Lift System Standard 3-point.
Recommended Tow Vehicle Requirement 16 - 18 hp (12 - 13.4 kW) with minimum 544 kg (1,200 lb.) lift capacity

Dimensions & Weight

Weight 528 kg (1,165 lbs.)

Accessories

Optional Accessories Rear Roller Kit (09952)

Brochures, Parts & Manuals

2023-24 Toro Performance Parts Quick Reference Guide (Full Brochure)

View Download

Parts Search

You will need your Serial # to search for Parts, Manuals, Accessories, Specifications and Product Details on Toro.com .

ToroParts for Model: 09931 Need Help? Contact Us

Frequently Asked Questions

What’s the difference between ProCore SR and SR-S models?

The S models (SR54-S and SR70-S) use a dual roller for improved balance and ground-following, which helps keep tine depth consistent on uneven ground. Depth is set with a manual, spring-loaded top link.

The non-S models (SR54, SR70 and SR72) use a single roller. Depth is a hydraulic top link, so you can change it from the tractor seat as soil conditions change.
