SMG TurfCare TCA1400 Artificial Turf Cleaner Drag Behind

Model: 6400160
SMG

SMG TurfCare TCA1400 Artificial Turf Cleaner Drag Behind

Model: 6400160
SMG

Ground driven, tow-behind device for the cleaning and care of artificial turf.

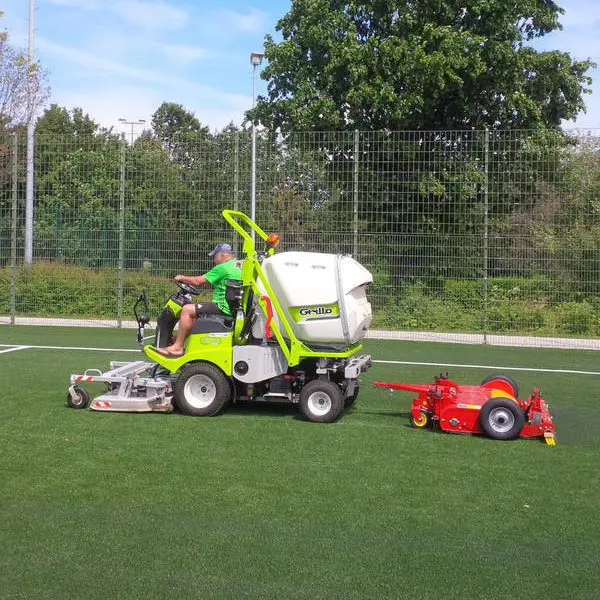

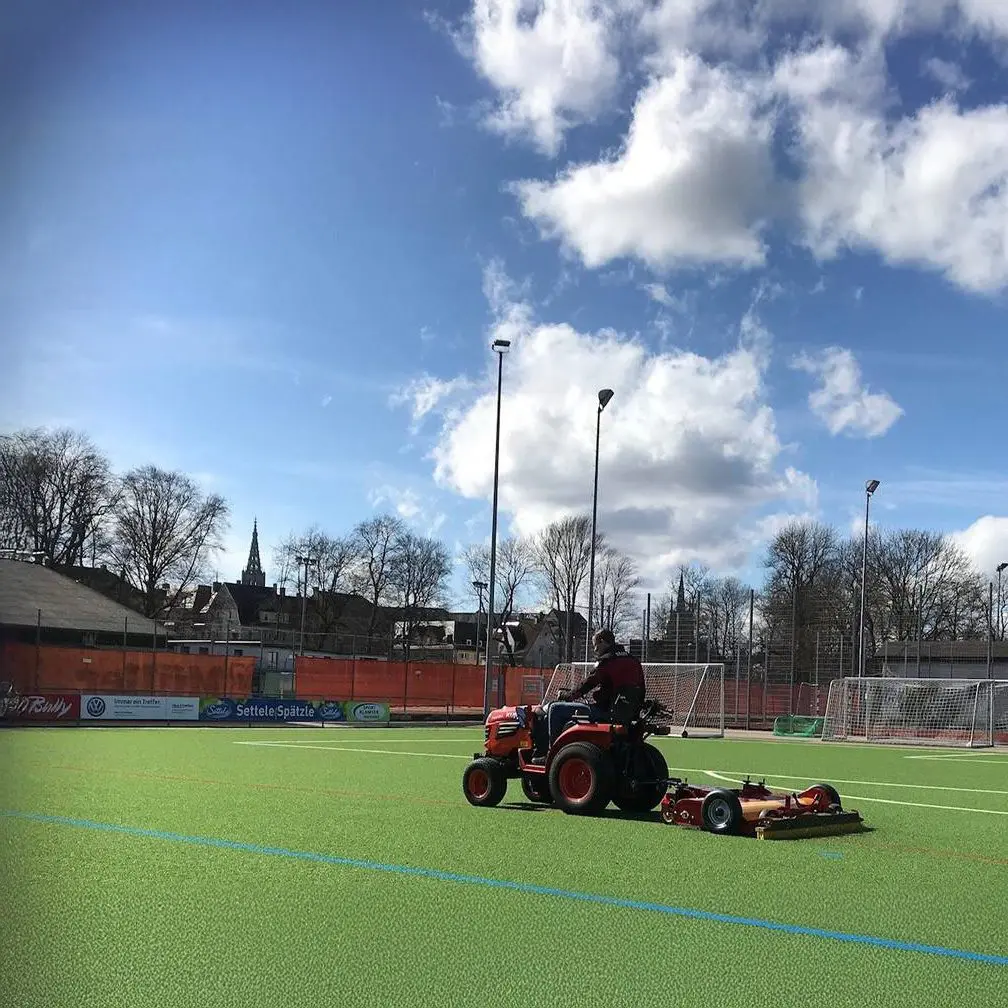

TurfCare TCA1400 maintains any kind of infilled and unfilled artificial turf systems. The wheel drive makes the equipment independent from any hydraulic or power shaft drives. Therefore the TurfCare can be pulled by various vehicles such as small compact tractors or quads.

The working depth can be precisely set and locked via two adjusting spindles.

The vibrating screen can be precisely adjusted with variable settings from 4 – 10 mm depending on the degree of pollution and the grid size of the infilling material.

For passing through narrow doorways, the two transport rollers can be folded up and the tow bar can be raised up.

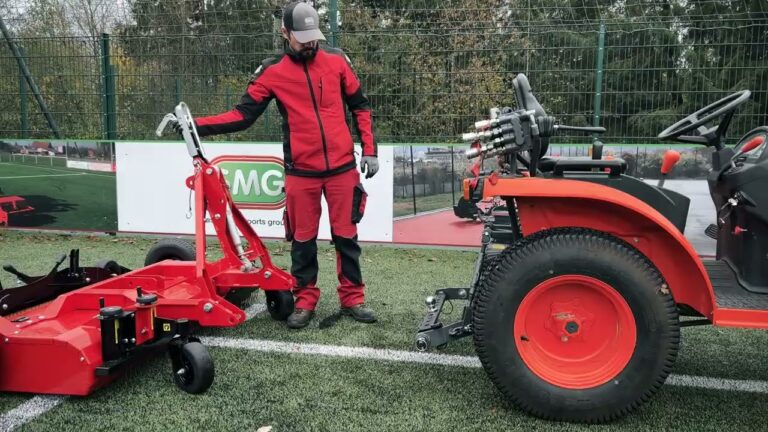

For safe and comfortable road transport, the TCA1400 can also be retrofitted with a unique three-point hitch (optional). Toll-free changeable from 3-point to drawbar.

$19,183 incl. gst
or $ per week*
*Based on $3,837 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.
Enquire

Features

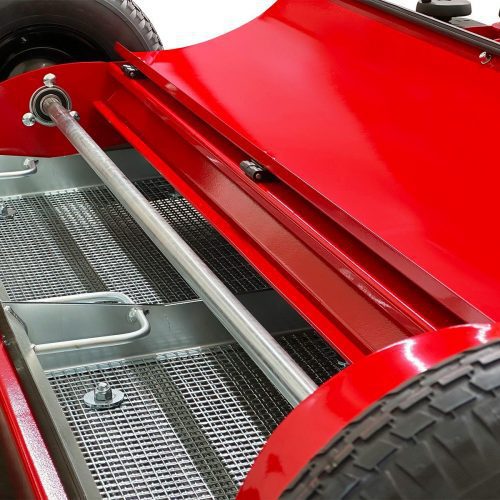

Close-up of a red turf cleaner's interior showing metal mesh and wheel components for artificial turf maintenance

Smooth Adjustability

Vibrator sieve adjustable from 4 - 10 mm, cleans dirt out of the infill material with simultaneous repatriation.

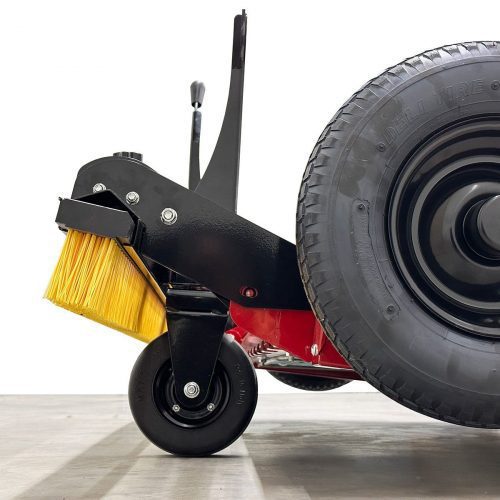

Close-up of a turf cleaner's wheel and brush, showcasing its robust design for artificial turf maintenance

One of a kind

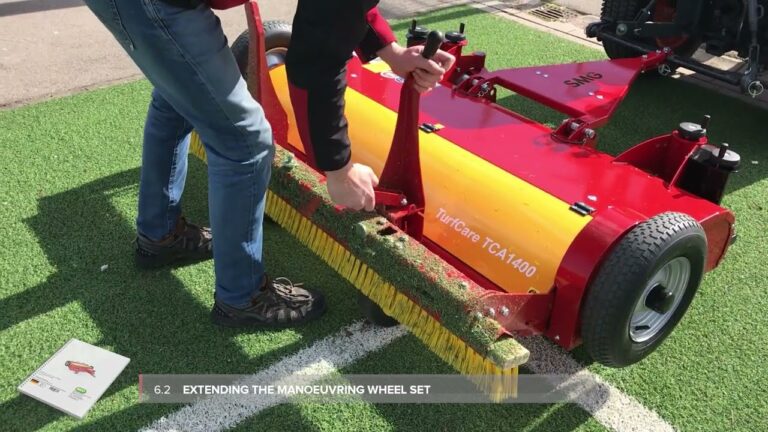

Fold-out transport rollers for transverse drive through doors and tine gates.

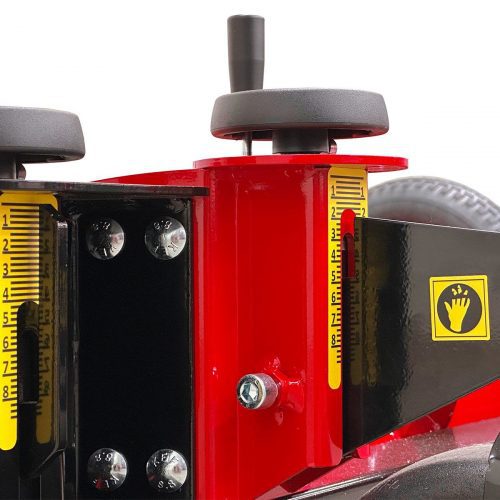

Close-up of the TurfCare cleaner's controls and measurement indicators in red and black

Lock and Dial

Spindles with lock and dial to adjust working depth for cleaning brush and optinal tines.

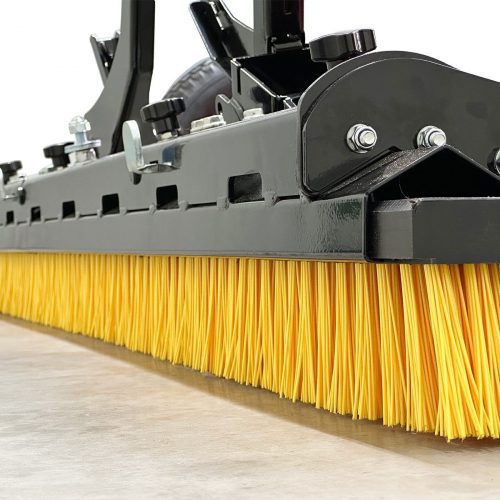

Close-up of a black artificial turf cleaner with yellow bristles, showcasing its cleaning mechanism

SMG-OMEGA

Quick change system for drag brush and steel tines

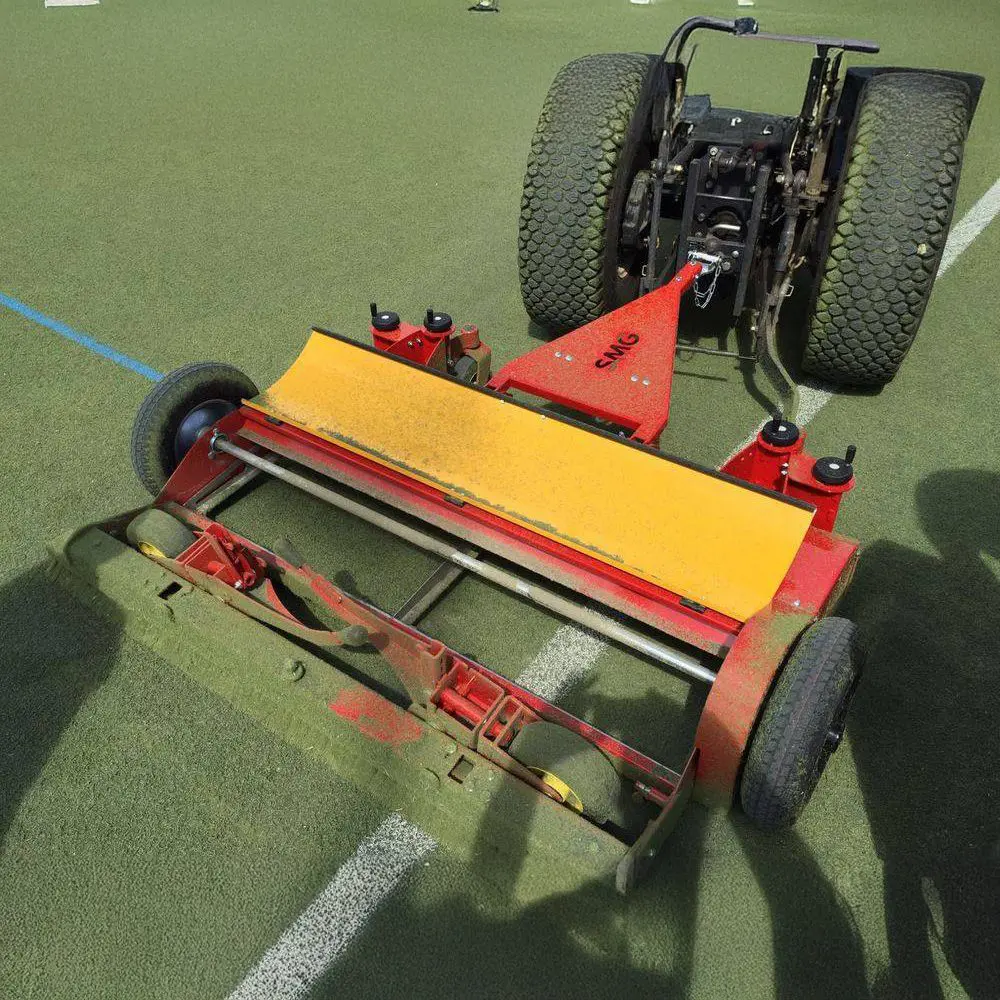

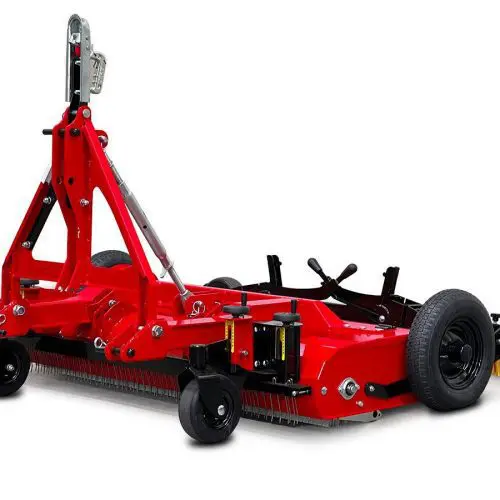

Red tow-behind turf cleaner with wheels and brushes for maintaining artificial grass surfaces

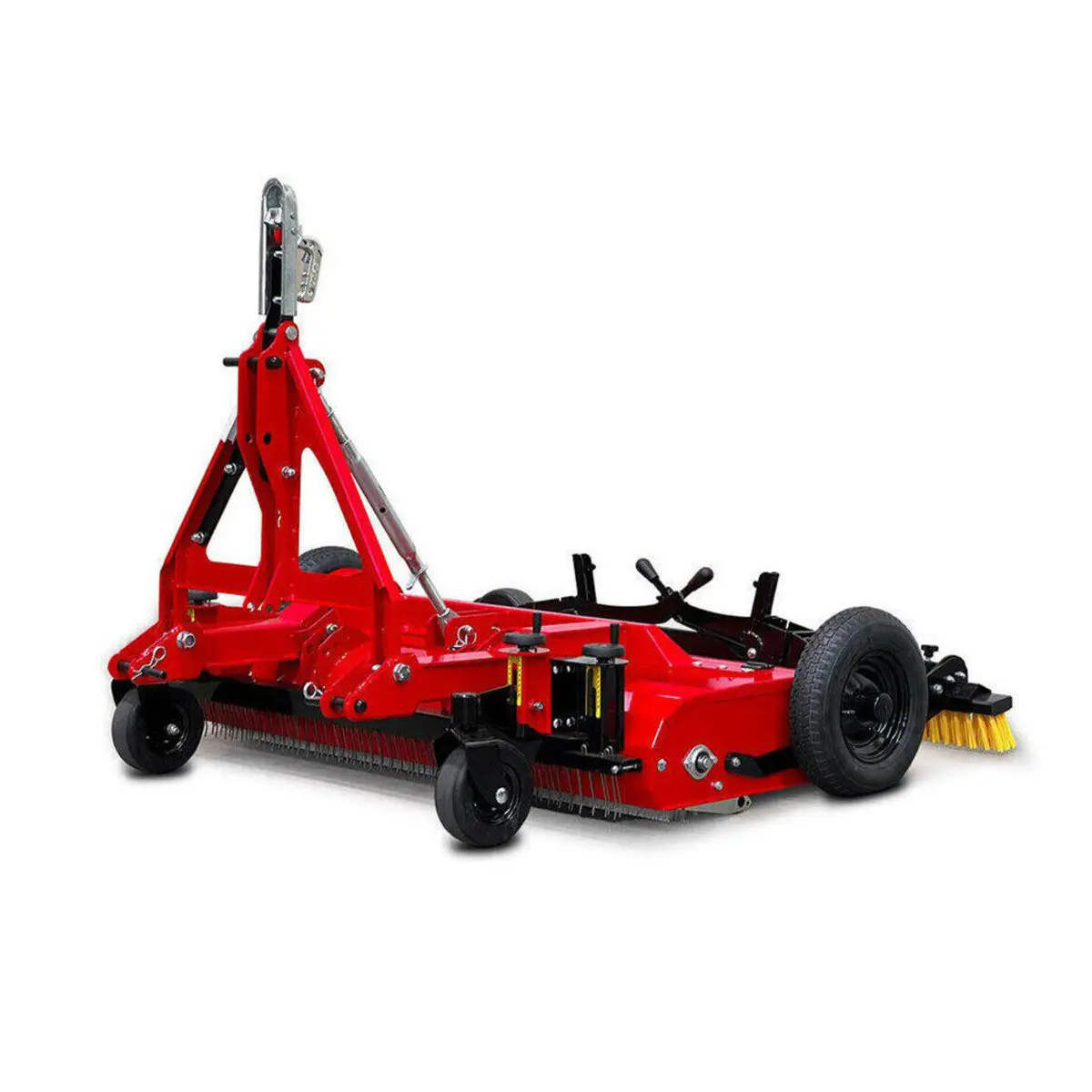

Optional Extra

Three point hitch and draw bar combination for safe and easy transportation.

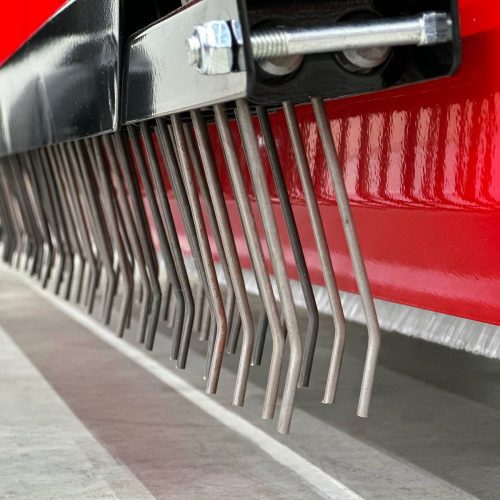

Close-up of metal tines on a red turf cleaner, designed for maintaining artificial grass surfaces

Tines (optional)

Working width of the steel tines (optional) are adjustable for gently loosening of the infilling material.

Green and red logo featuring the letters "SMG," representing a brand related to turf maintenance

Made in Germany

Since 1975 SMG till today our quality assurance ends in Germany.

Specifications

Working width 1.400 mm
Weight 185 kg
Dimensions L 1,800 x W 1,310 x H 500 mm
Shipping dimensions L 1,950 x W 1,450 x H 560 mm

Brochures, Parts & Manuals

Parts Search

You will need your Serial # and will need to register on the SMG site to view your parts diagrams.
