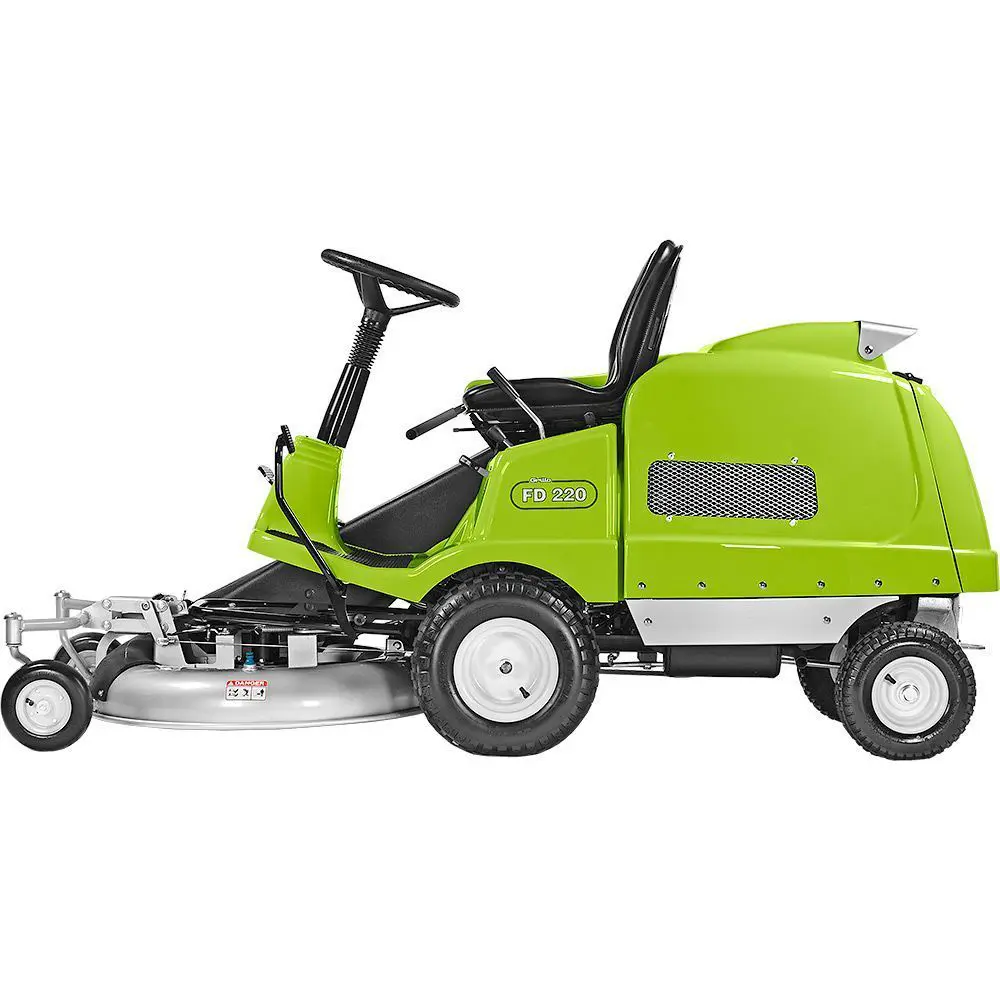

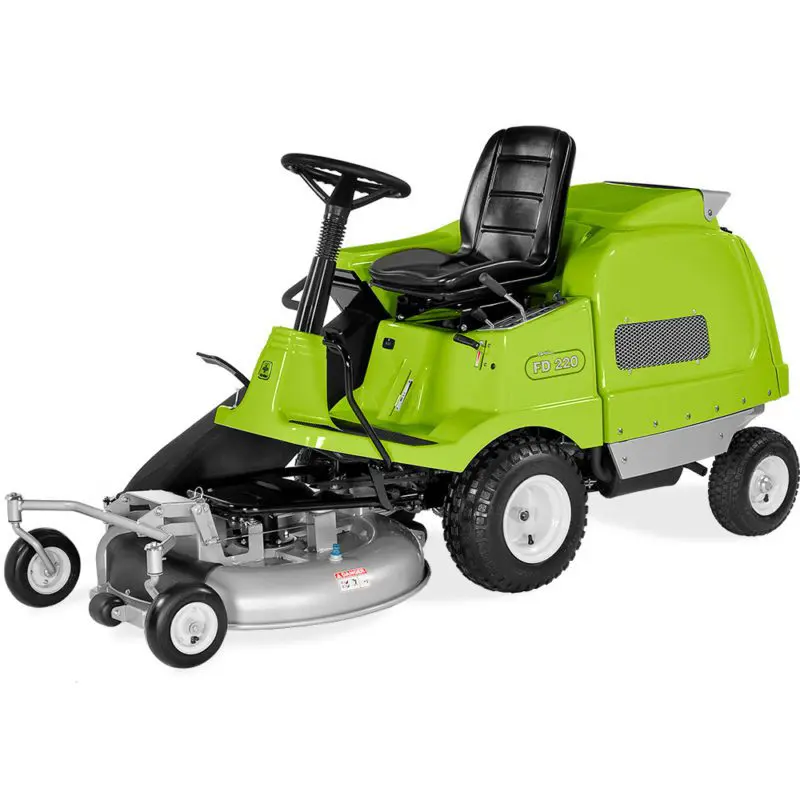

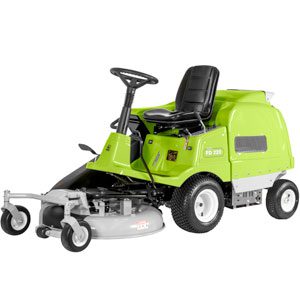

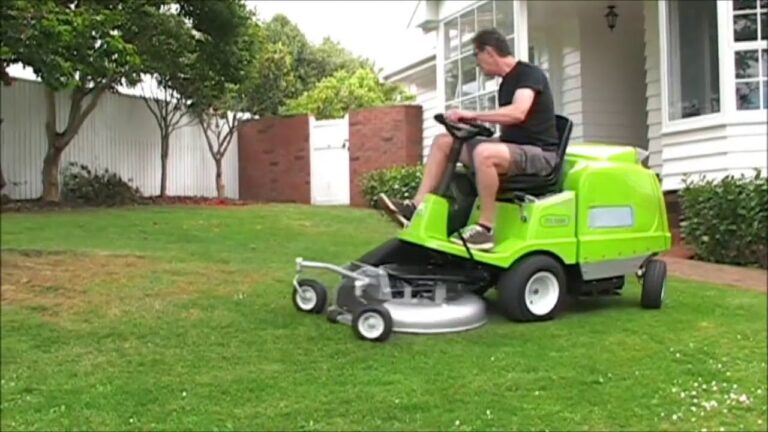

Grillo FD220R Grass-Collection Ride-on Mower 86cm (34") - 220L Capacity
Model: 8RR7C
Grillo FD220R Grass-Collection Ride-on Mower 86cm (34") - 220L Capacity
Model: 8RR7C
Are you looking for a grass collection ride on mower that doesn’t block up all the time? Are you sick of expensive service bills when gearboxes and drive shafts need repairing?
Grillo FD220R offers the professional results of a much more expensive ride on mower. Thanks to clever deck and blade design the FD220R produces a beautiful finish on your lawn. Featuring an out front, floating collection deck, hydrostatic drive, highly efficient grass collection, and a large 200 litre collection bin, the narrow cut deck enables the machine to pass through 90cm gates.
With its large 220 litre collection bin and direct discharge system you can mow for longer and then dump your grass without leaving your seat! Its collection ability is well proven in handling leaf and lawn debris, damp and wet conditions or very long grass! The professional out front floating deck, (with deck lift pedal for getting over kerbs) follows the ground contours and enables you to mow landscaped areas easily – under bushes and in tight spaces. FD220R even fits through 90cm gates! Its small turning circle and rear wheel steer makes this a very agile, maneuverable machine achieving a faster mow. The rear wheel steer system provides less than 40cm circle of uncut grass.

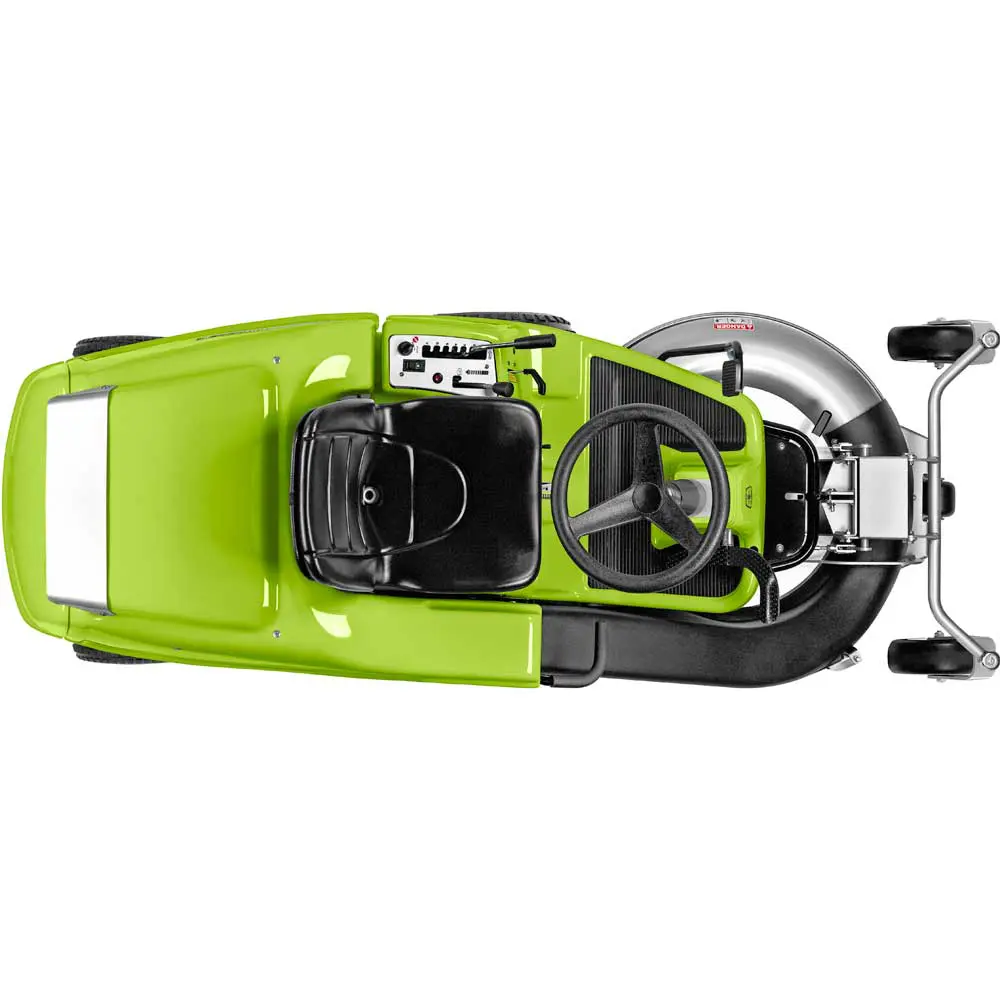

Striking Design & Comfort

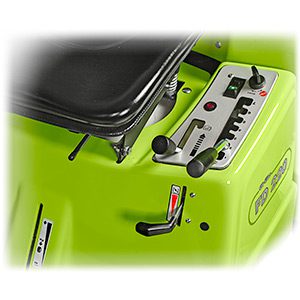

The modern design and attention to detail are immediately noticeable. With an ergonomic driver’s position, adjustable seat, and height-adjustable steering wheel, mowing is both comfortable and enjoyable.
Superior Manoeuvrability
With a turning radius of just 30 cm, the FD220 R excels in tight spaces. Its hydrostatic transmission and smooth pedal control make it incredibly agile and easy to drive.

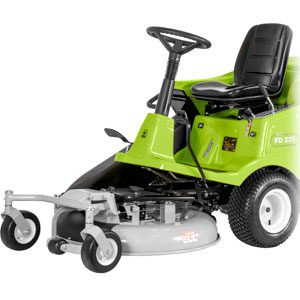

Front-Mounted Precision

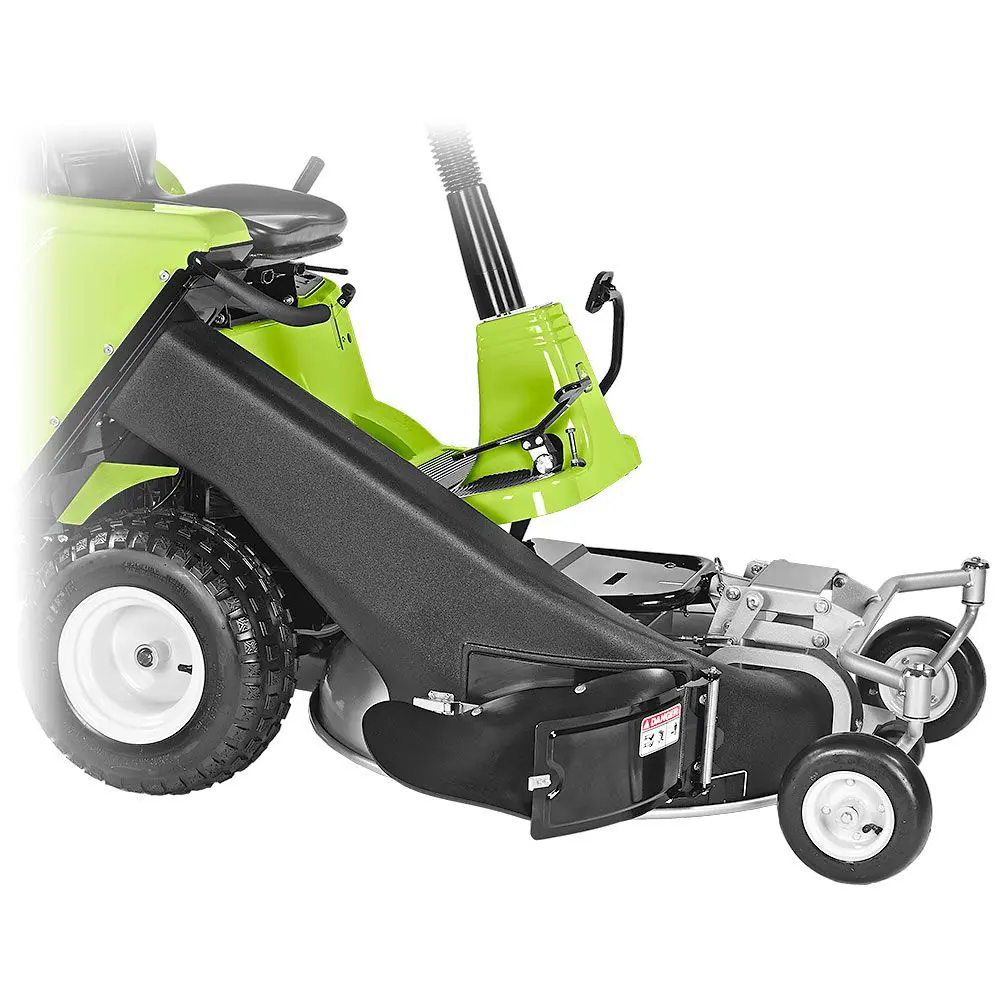

The FD 220 R’s cutting deck offers excellent visibility, ensuring precise cuts under bushes and low branches. It features an 800 mm cutting width with easy height adjustment from 30 to 90 mm via a lever.
Versatile Cutting Options

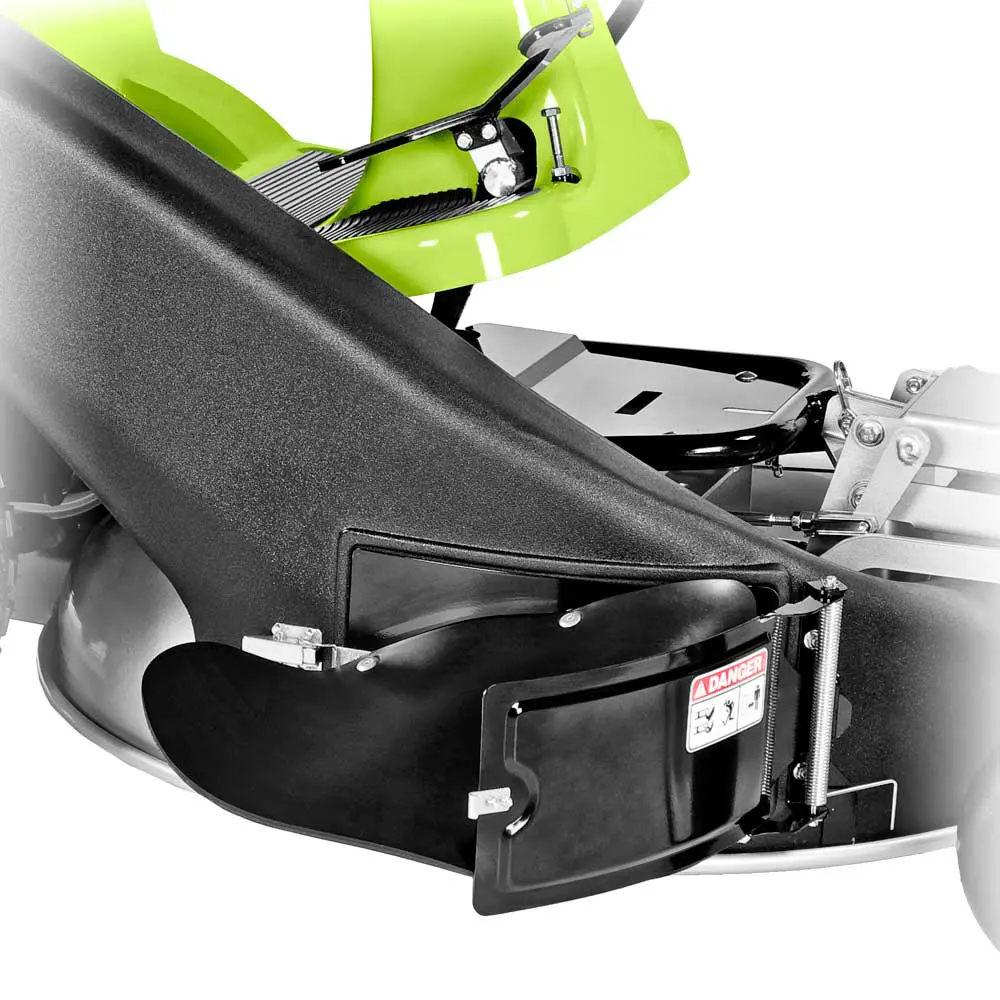

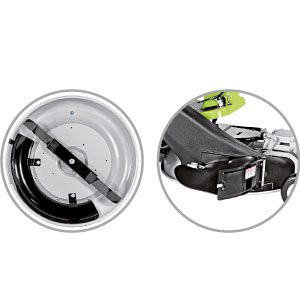

The FD 220 R's cutting deck can be converted to mulching or lateral discharge with optional kits. Its 200 L grass catcher and special blade profile ensure excellent cutting and collection, even in humid conditions.
Powerful Engine Options
Choose between a Vanguard 14 HP or Loncin 12 HP engine, both with electric start and advanced OHV technology. The "Grillo Super Silent" exhaust ensures quiet operation with minimal resistance.
Built to Last
Every component of the FD 220 R is made with high-quality materials and cutting-edge technology. The double electrostatic powder-coated paint ensures durability and a brilliant finish, with final inspections guaranteeing top-notch performance.
Perfect Cut on Any Terrain
The floating deck adapts effortlessly to uneven grounds, preventing grass scalping. With adjustable deck pressure and a 0-9 km/h speed range, it ensures precise, high-quality mowing even on slopes.
Easy Cleaning & Maintenance

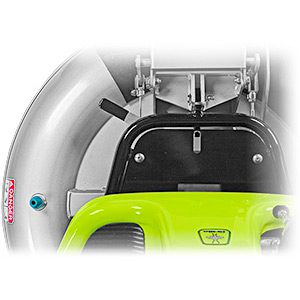

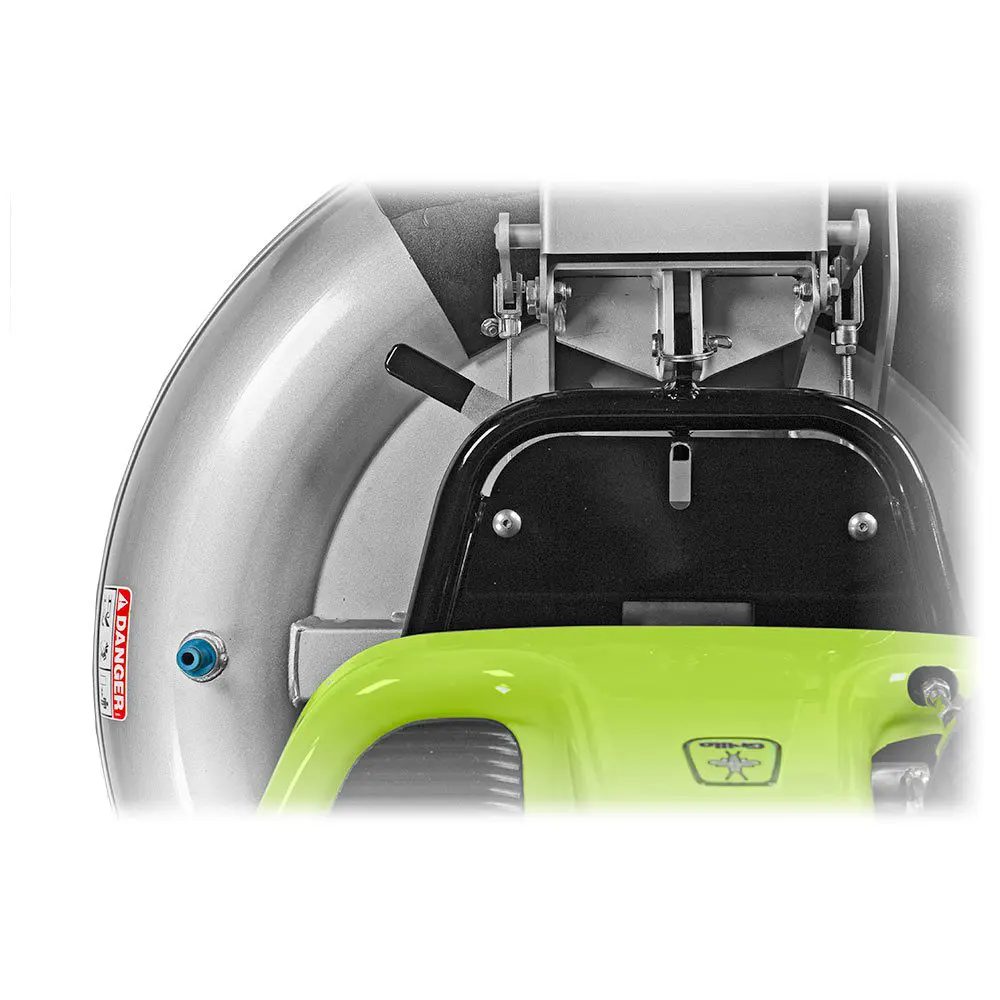

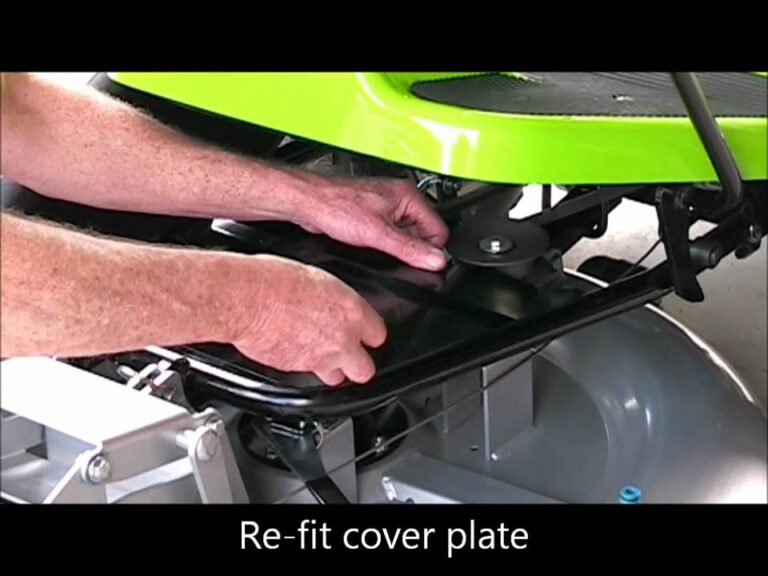

Cleaning the cutting deck is effortless thanks to the water hose coupling. The pedal-operated deck lift allows easy access for blade maintenance or removal with minimal hassle.
Automatic Blade Stop

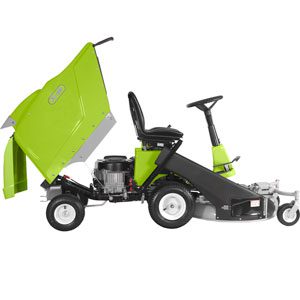

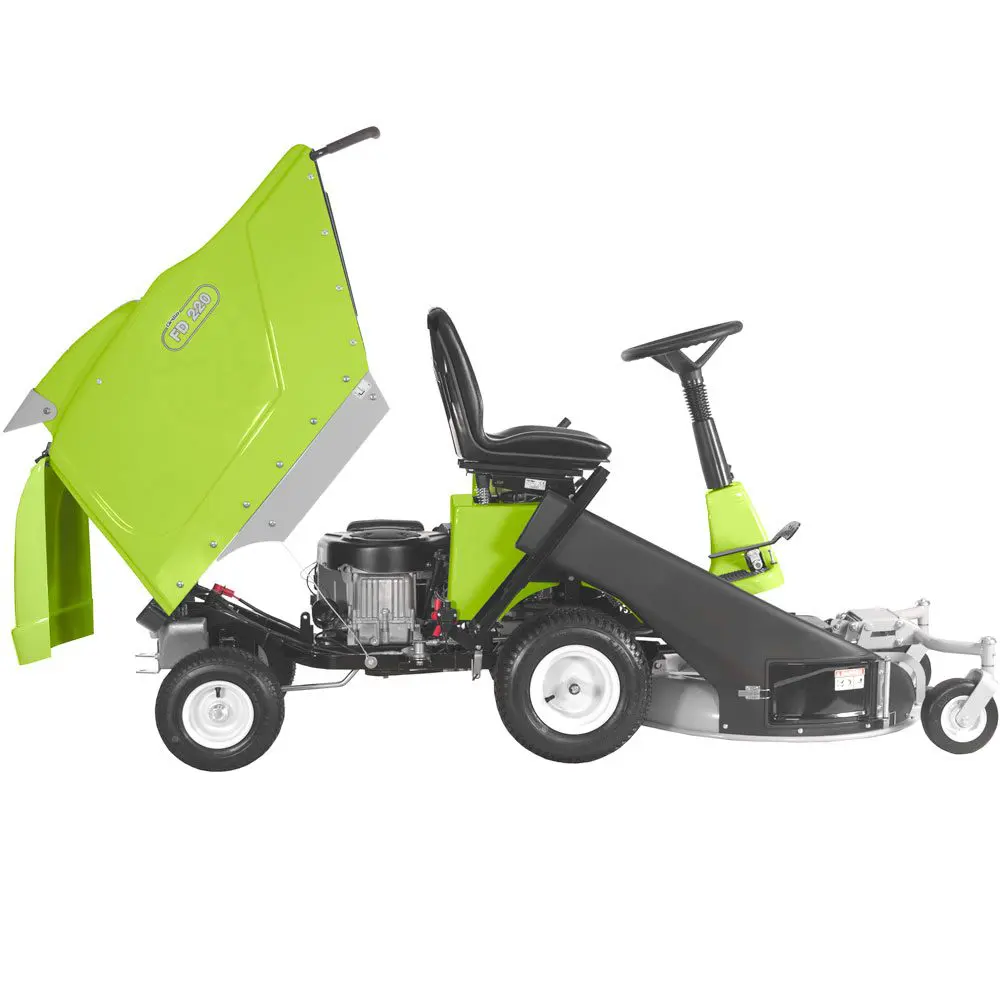

Blades stop when the grass catcher is full, preventing blockages. Simply reverse, lift the lever, and the catcher empties automatically from the driver’s seat.
Specifications
| Engine (Option 1) |
Briggs & Stratton 16 Vanguard V-Twin OHV
Start electric, with 12 V battery
Supply fuel
Displacement 479 cc, 2 Cylinders
Power 14 HP (10.3 kW) - Gross power 16 HP
Air cooled
Dry air filter with interchangeable filter cartridges |
| Engine (Option 2) |
Loncin LC1P92F
Start electric, with 12 V battery
Supply fuel
Displacement 452 cc, 1 Cylinder
Power 12 HP (9 kW) - Gross power 15 HP
Air cooled
Dry air filter with interchangeable filter cartridges |
| Fuel tank capacity |
Fuel tank 7 litres (reserve tank 1 litre)
|
| Transmission |
Hydrostatic transmission with differential
|
| Clutch |
Electromagnetic for PTO with magnetic blade brake |
| Cutter deck |
Front mowing deck with collection. Optionals: mulching kit cod. 9L9211 and side discharge kit cod. 9M0511. Deck lifting with “easy-up” pedal. Solid wheels. Cutting deck with plug for cleaning
|
| Cutting configuration |
1 rotating blade
|
| Cutting deck width |
860 mm
|
| Cutting width |
800 mm
|
| Cutting height |
7 different cutting positions from 30 to 90 mm height
|
| Grass collector capacity |
200 L |
| Grass collector locking system |
Magnetic closure system with automatic opening during the discharge
|
| Front tyres |
Turf 16x7.50-8
|
| Rear tyres |
Turf 13x5.00-6
|
| Steering system |
Driving system with steering wheel and pedal-operated forward and reverse speeds
|
| Speed |
Continuously variable from 0 to 9 km/h, with pedal-operated
|
| Inner turning radius |
30 cm
|
| Seat |
Seat mounted on shock-absorbers, adjustable by means of a knob
|
| Parking brake |
Disk brake
|
| Mowing capacity per hour (indicative) |
4000 m^2/h
|
| Standard features |

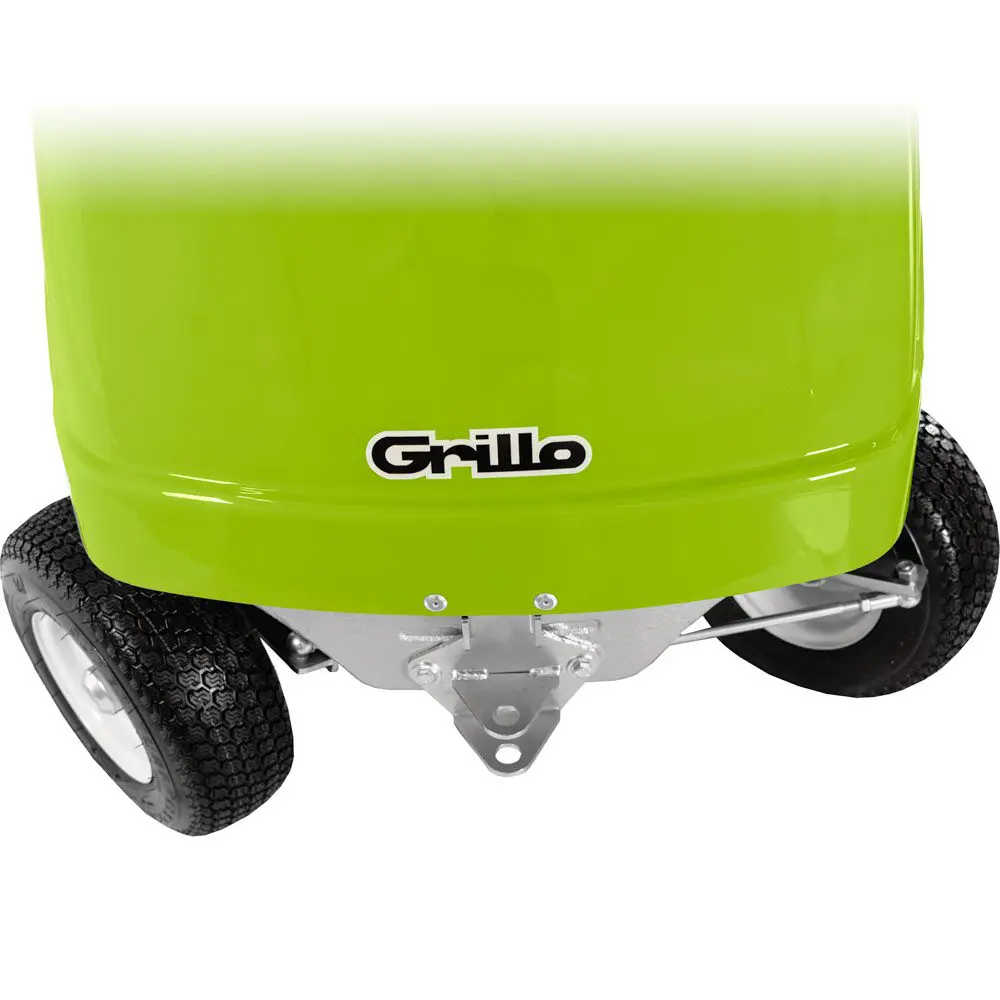

tow bar
|
| Length |
2345 mm
|
| Width |
860 mm
|
| Height |
1140 mm
|
| Weight |
Weight with Loncin engine: 263 kg. Weight with Vanguard 16 HP engine: 270 kg
|
