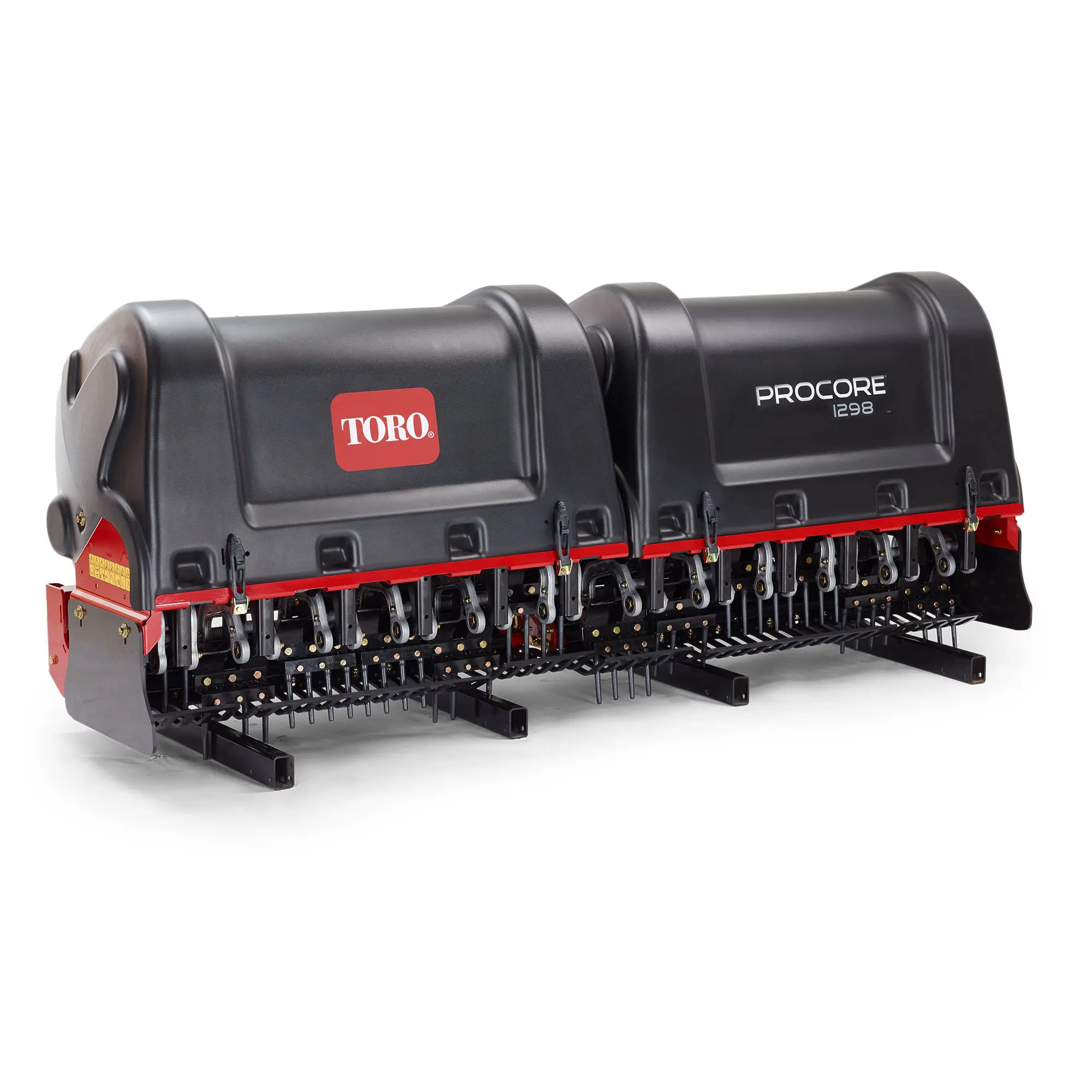

Toro ProCore 1298 Turf Aerator

Model: 09716
Toro

Toro ProCore 1298 Turf Aerator

Model: 09716
Toro

The ProCore® 1298 takes the proven coring head technology from the very successful ProCore® 648s and combines it with an improved platform, the result is the most productive and durable large area aerator available today.

  • Kevlar reinforced belt drives provide smooth, quiet operation along with robust durability. This leads to increased operator comfort and a more enjoyable aeration experience.
  • The ProCore® drive has precision balancing weights and each coring head is modeled after a 6-cylinder engine with precision balancing. This configuration eliminates hopping, rocking, and uncomforting vibration. This leads to less operator fatigue and a more productive and efficient aeration experience.
  • The precision balancing weights eliminates hopping, rocking, and uncomfortable vibration for less operator fatigue and a more productive and efficient aeration experience. It allows the aerator to run in the up position and simplifies operation and increases efficiency in turn around.
  • Easy access to service components and minimal grease points result in less maintenance and less time performing maintenance tasks. This leads to higher machine and operator productivity and allows technicians to be more efficient.
  • The RotaLink™ tine guide mechanism ensures tines remain vertical as they enter and exit the ground. This produces consistently clean holes for better looking turf and easier top dressing fill if required. The ProCore® tine placement is close to the roller, keeping them at a consistent depth as the operator travels over undulations.
  • The efficient 98″ (249 cm) aeration swath deliver maximum productivity for a broad range of forward hole spaces.
Fleet Finance & Leasing Options Talk to us today 0800 807 333

Features

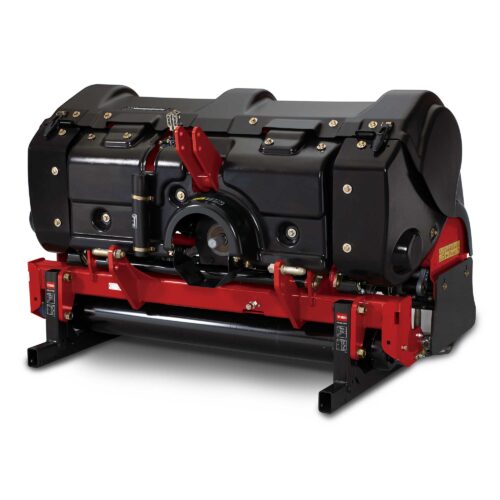

Oversized Gear Box

The oversized gear box provides improved capacity and durability for the toughest turf conditions.

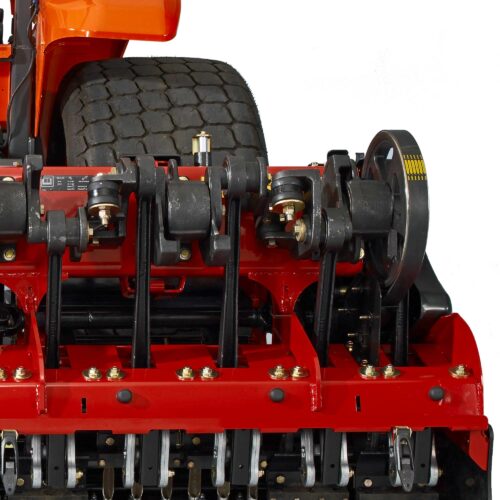

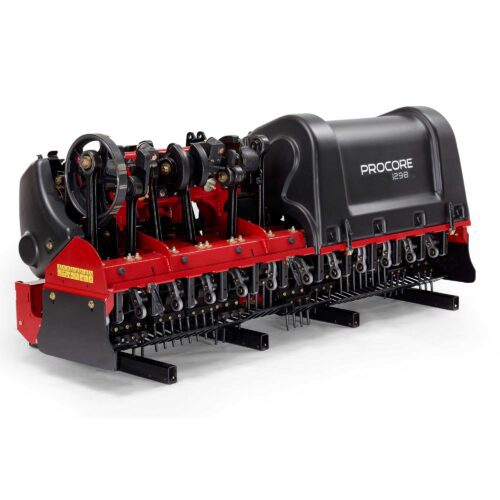

Belt Drive Aeration Head

Kevlar reinforced belt drives provide smooth, quiet operation along with robust durability. This leads to increased operator comfort and a more enjoyable aeration experience.

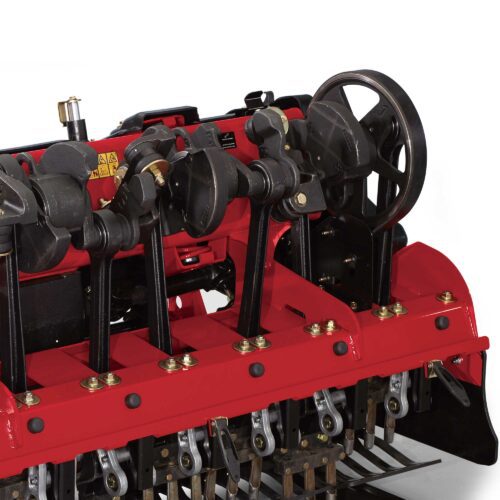

Precision-Balanced Drive System

The ProCore® drive has precision balancing weights and each coring head is modeled after a 6-cylinder engine with precision balancing. This configuration eliminates hopping, rocking, and uncomforting vibration. This leads to less operator fatigue and a more productive and efficient aeration experience.

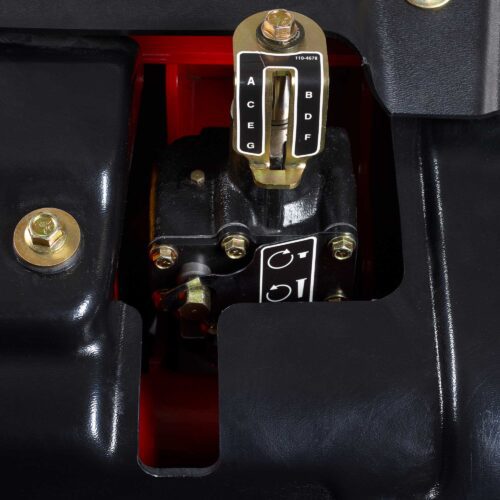

Depth Control Mechanism

The depth control mechanism provides a quick and easy method for changing hole depth. The depth setting has a high gear ratio making changing depth a quick and effortless task.

Operator Comfort & Ease of Use

The precision balancing weights eliminates hopping, rocking, and uncomfortable vibration for less operator fatigue and a more productive and efficient aeration experience. It allows the aerator to run in the up position and simplifies operation and increases efficiency in turn around.

Reduced, Simplified Maintenance

Easy access to service components and minimal grease points result in less maintenance and less time performing maintenance tasks. This leads to higher machine and operator productivity and allows technicians to be more efficient.

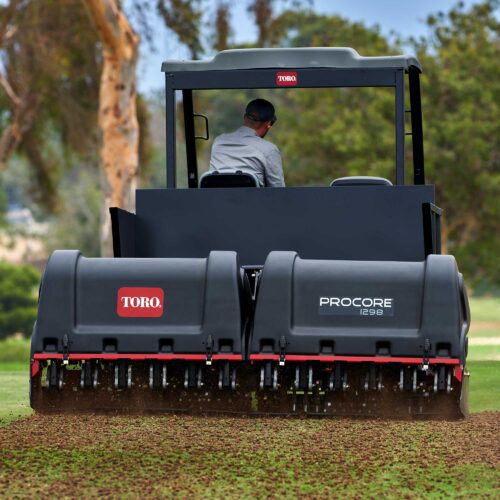

High Quality Holes at Consistent Depths

The RotaLink™ tine guide mechanism ensures tines remain vertical as they enter and exit the ground. This produces consistently clean holes for better looking turf and easier top dressing fill if required. The ProCore® tine placement is close to the roller, keeping them at a consistent depth as the operator travels over undulations.

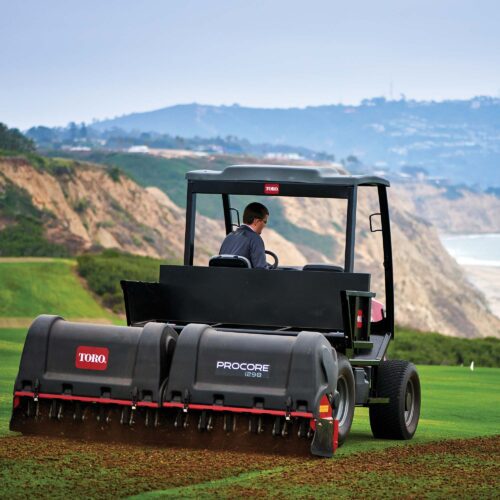

Increased Productivity

The efficient 98" (249 cm) aeration swath deliver maximum productivity for a broad range of forward hole spaces.

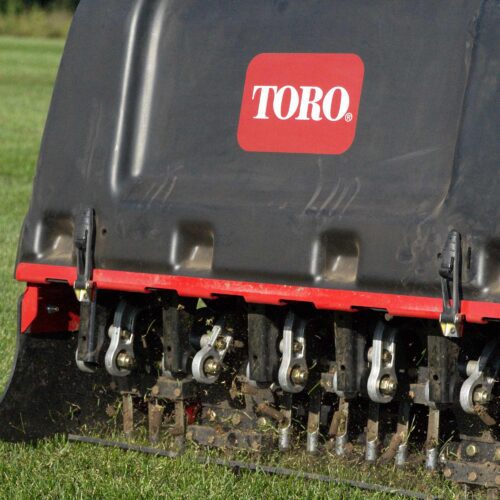

RotaLink™ Tine Guide Mechanism

A linked mechanism that guides the tine actuation path and ensures they remain vertical as they enter and exit the ground. This produces consistent, clean holes for better looking turf and improved top dressing fill.

Impact Resistance System

The compression springs combined with the independent coring head provide positive down pressure to ensure proper hole depth in the downward direction and provide a dampening affect in the upward direction when a large object is impacted during aeration.

Specifications

Aeration Type Shallow
Forward Hole Spacing Variable up to 4.5" (11.4 cm) (tractor dependent)
Height 38.5" (98 cm)
Lateral Hole Spacing 1.3 - 2.6" (3.3 - 6.6 cm) (tine head dependent)
Length 35" (89 cm)
Maximum Operating Depth (Working Depth) 5" (12.7 cm) max. Hole depths greater than 4 inches can only be achieved with 6.5 inch length tines and with turf holders removed. Some degradation in hole quality may be observed in this configuration.
Maximum PTO Speed 540 RPM
Number of Tine Heads 12
Operating Width (Working Width) 98" (249 cm)
Recommended Tow Vehicle Requirement 40 hp (30 kW) minimum, 50 hp (37.2 kW) recommended, 3-point Category 2 hitch
Weight 2,300 lbs. (1043 kg)
Width 101" (256.5 cm)
