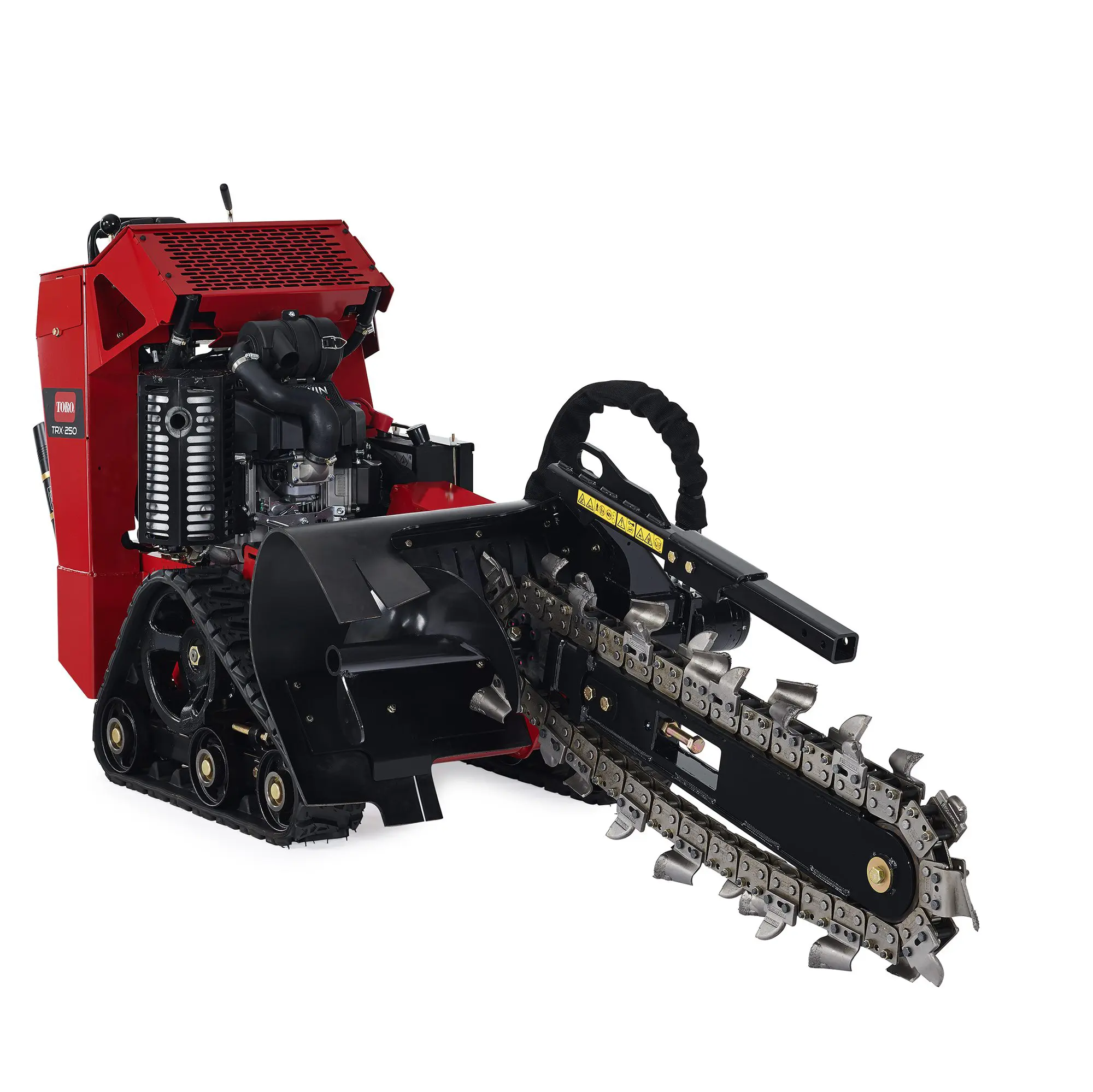

Toro TRX 250 Walk Behind Trencher

Model: 22983
Toro

Toro TRX 250 Walk Behind Trencher

Model: 22983
Toro

The new TRX-250 Walk-Behind Trencher incorporate new design enhancements for better ease of operation, improved hydraulics and streamlined controls.  The new TRX-250 Walk-Behind Trencher also include the new Intelli-Trench™ technology to automatically adjust the hydraulic flow allowing power where needed to maximise productivity.  Plus, these new TRX trenchers offer significantly less parts resulting in less maintenance over time.

  • 24.5 hp (18.3 kW) @ 3,600 rpm TORO® V-twin engine
  • New Intelli-Trench™ technology
  • Groundbreaking maneuverability
  • Simplified service
  • Easy-to-use controls
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Download brochure Talk to a rep Find a Store

Features

Track Design

The track drive design provides a low center of gravity and large footprint, offering stability and increased maneuverability without causing damage to existing turf.

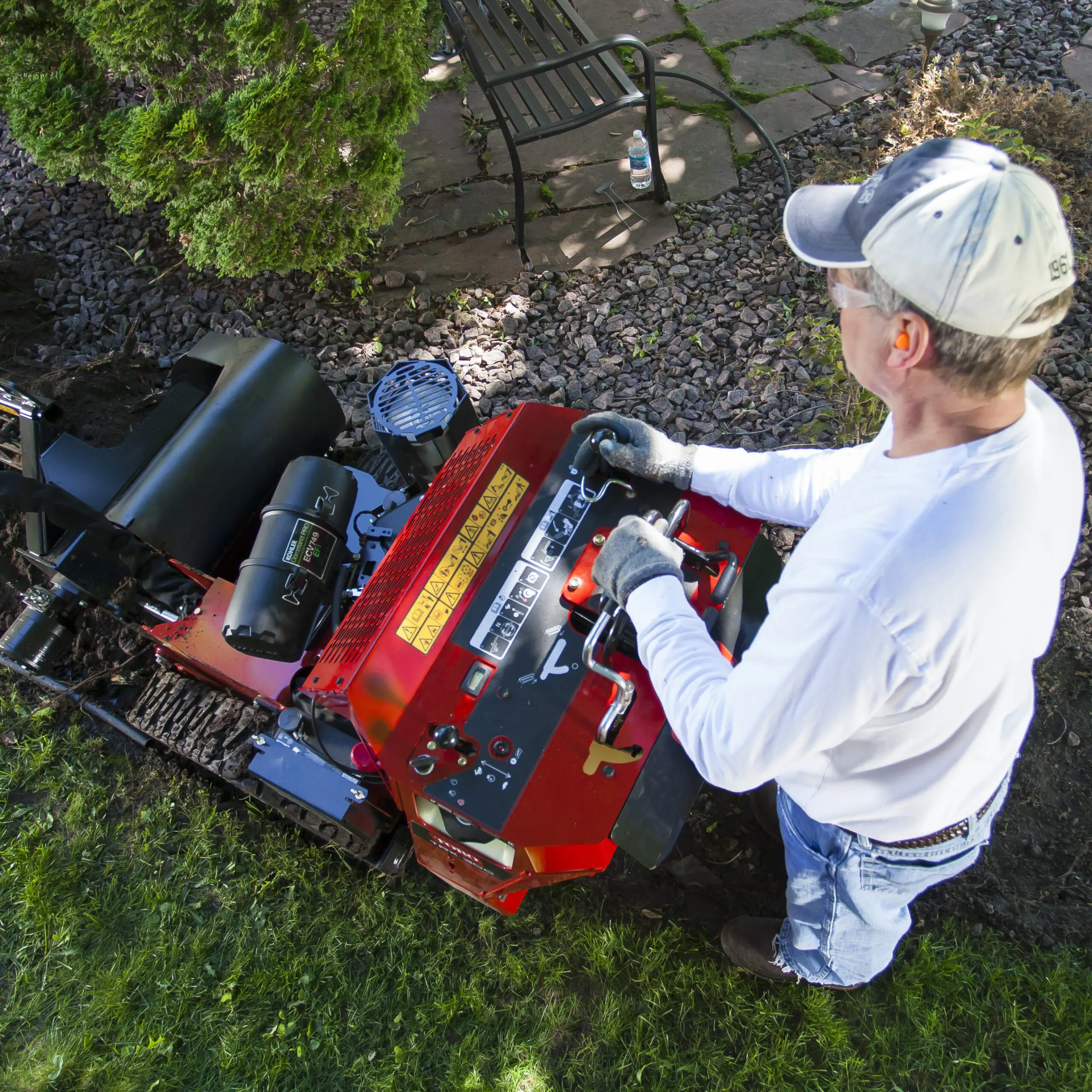

Easy-to-Use Controls

The TRX’s streamlined controls are easy to learn and operate. Designed to include the familiar TRX trencher valve handle and boom lift lever, as well as independent traction control for the left track and the right track.

Exclusive Intelli-Trench® Technology

Intelli-Trench automatically diverts the hydraulic flow from the traction motors to the trencher motor when needed, delivering higher torque while reducing trenching times. Track speed is also adjusted faster and more accurately, eliminating the need for constant manual adjustment of the traction controls.

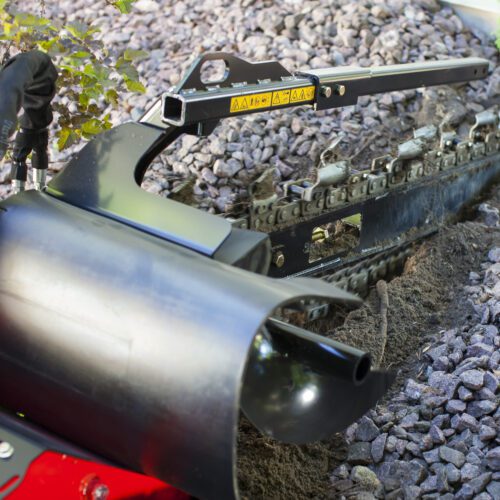

Boom Motion

The boom lift and lower function has been enhanced hydraulically, allowing the boom to move up and down smoothly.

Simplified Service

The new TRX design has significantly fewer parts than previous models, simplifying maintenance and potentially reducing service needs.

Full Description

The TORO TRX-250 walk-behind trenchers are now more efficient and powerful than ever. TORO has added two new models that combine the groundbreaking maneuverability the TRX walk-behind trencher is known for with even better performance and serviceability.

  • Low center of gravity and large footprint, offer stability and increased maneuverability
  • Exclusive Intelli-Trench™ Technology
  • Fewer parts than previous models simplifies maintenance

Specifications

Boom Depth Options (cm) 60.9 cm, 91.4 cm and 121.9 cm
Boom Width Options (cm) 10.1 cm and 15.2 cm
Cooling System Air Cooled
Engine Toro V-Twin 15.1L Gas 24.5hp
Ground Pressure 24" (60.9 cm) boom = 4.1 psi 36" (91.4 cm) boom = 4.4 psi 48" (121.9 cm) boom = 4.5 psi
Ground Speed Foward (km/h) 3.9
Ground Speed Reverse (mph) 1.2
Headshaft Speed 210 rpm with 498 ft/lbs of torque
Hydraulic Flow Auxiliary 13.2 gpm (50.0 lpm)
Overall Length w/61 cm Boom (cm) 209.5
RPM 3600
Start Method Electric
Track Drive Sprocket-drive, 3 road wheels per side
Track Width (cm) 14.9
Tracks Endless nylon reinforced rubber
Traction Two-section hydraulic pump with two hydraulic motors (one for each track)
Weight (kg) 500
Wheelbase (cm) 58.4
