SMG TurfKing TK1100/TK1502 Turf Cleaner Tractor Attachment

Model: TKXXXX
SMG

SMG TurfKing TK1100/TK1502 Turf Cleaner Tractor Attachment

Model: TKXXXX
SMG

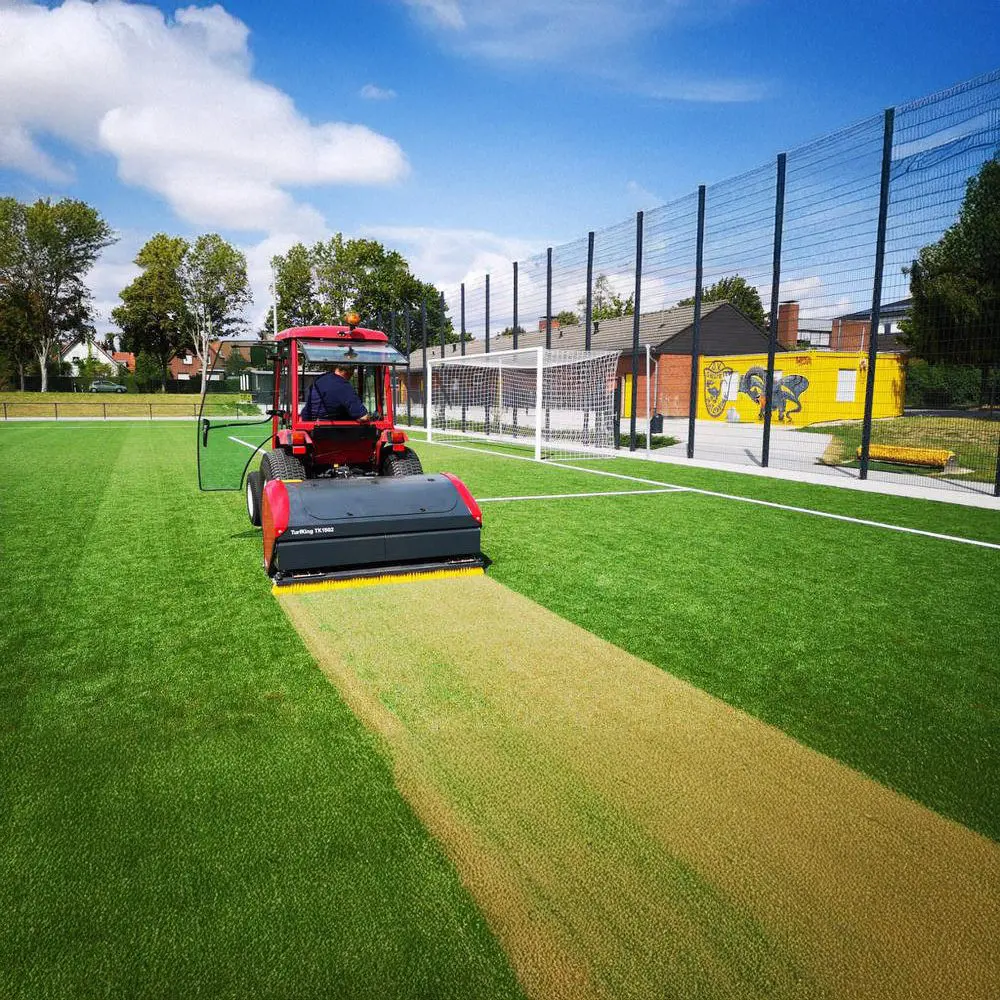

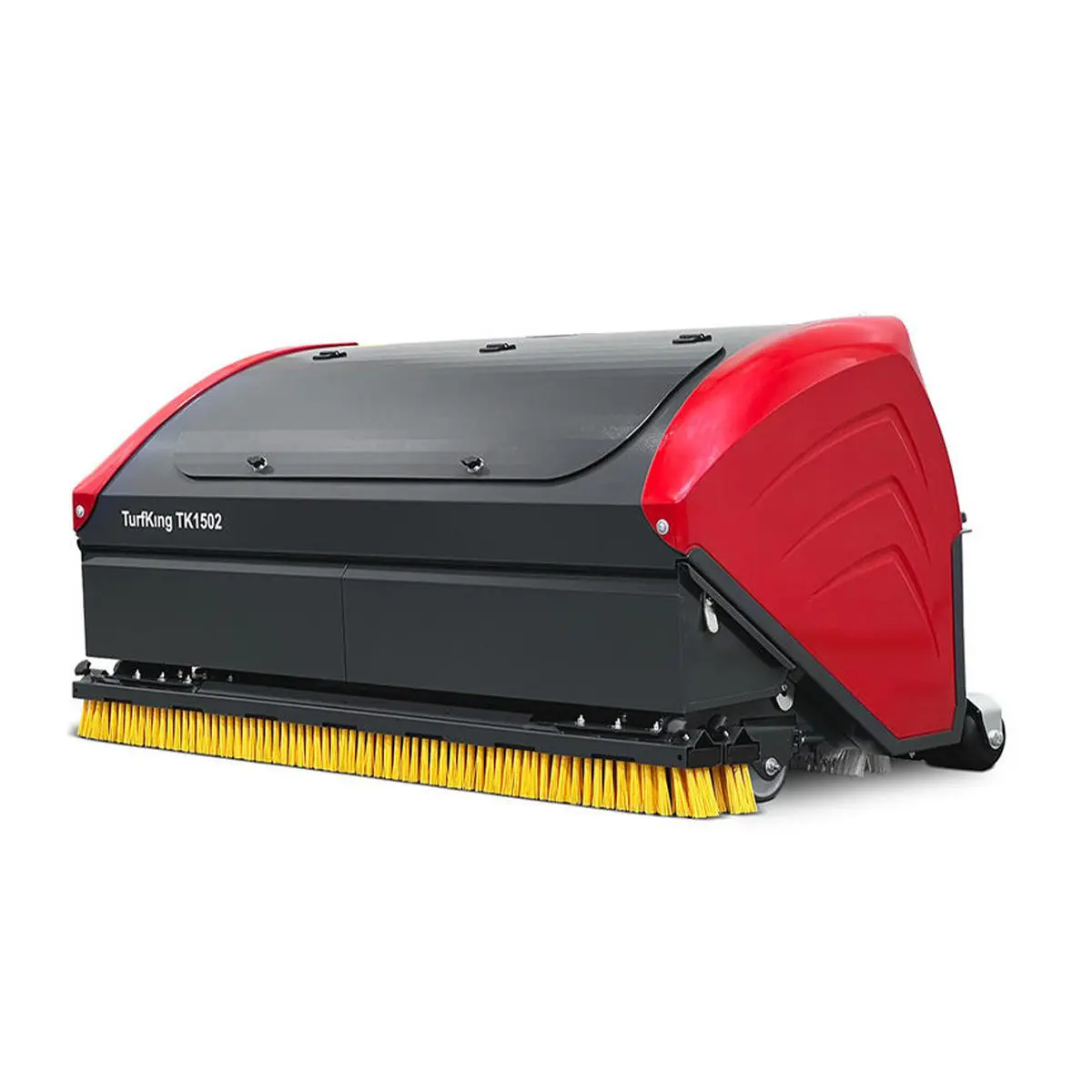

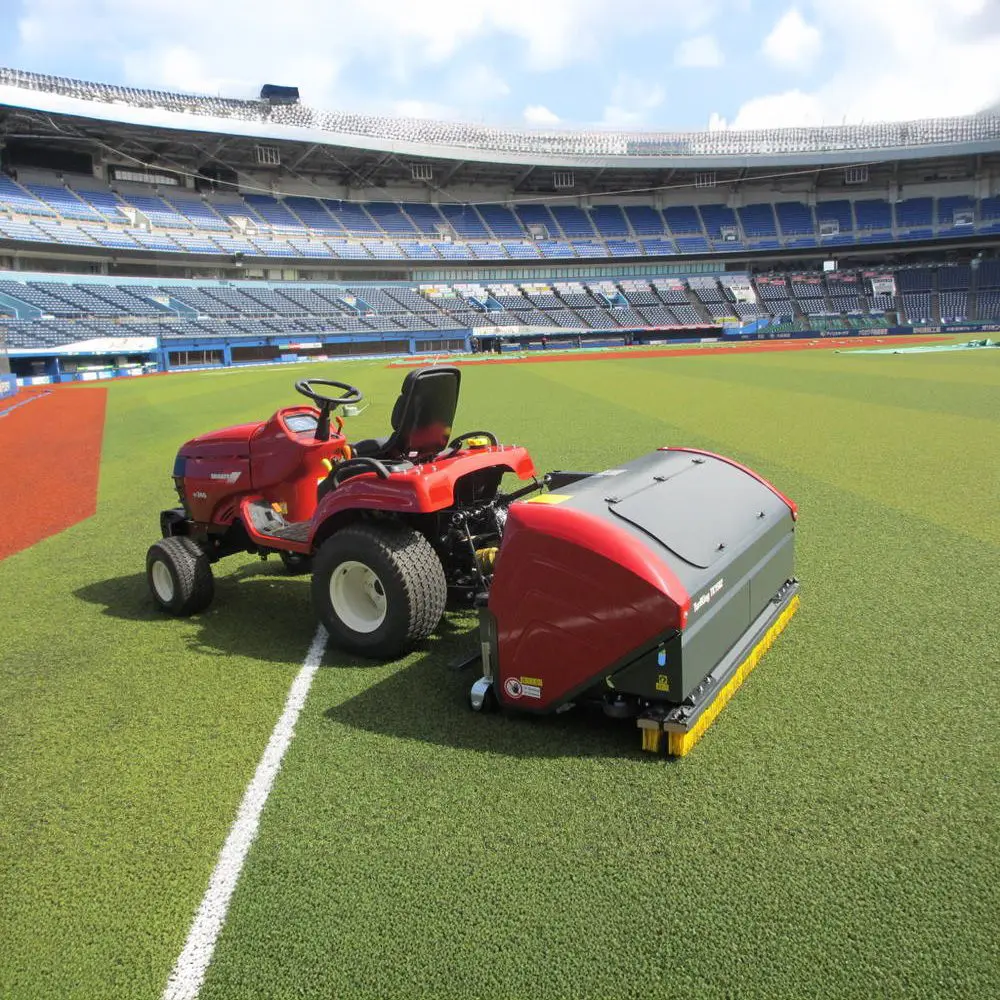

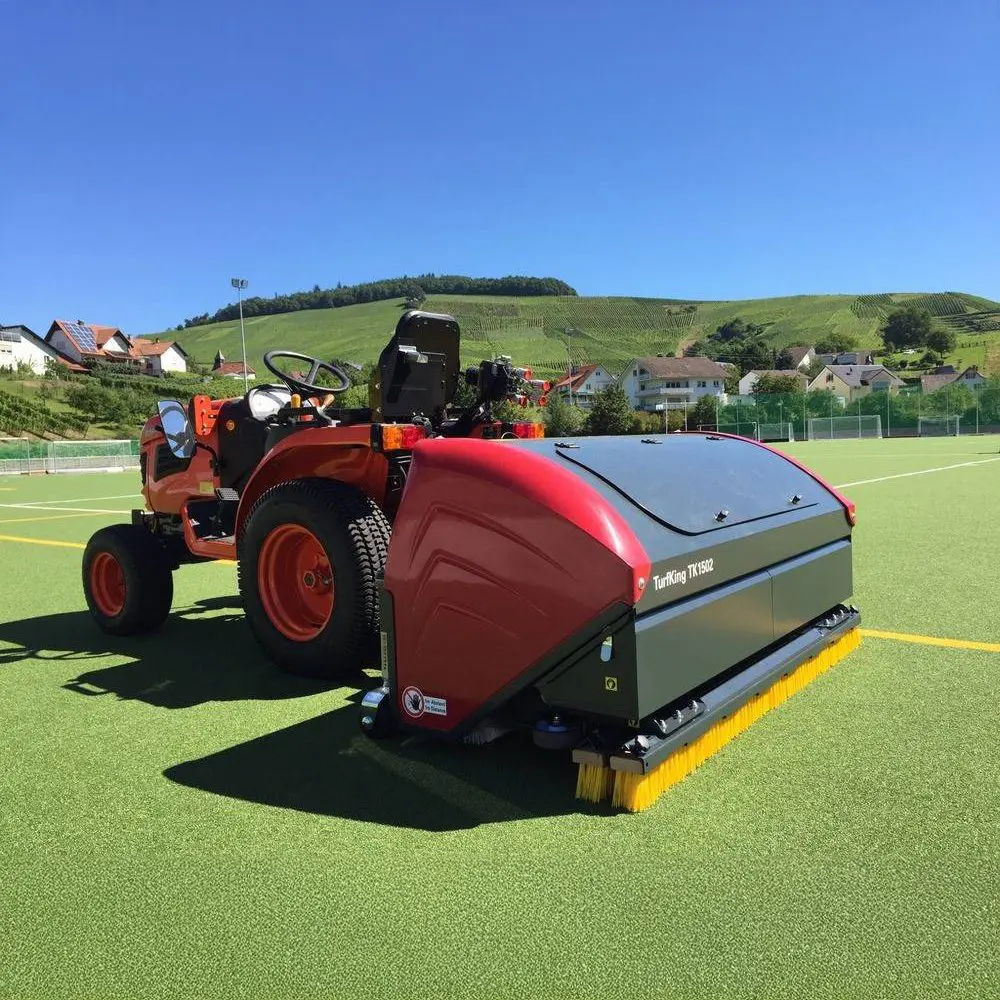

The TurfKing TK1502 is a powerful tractor-mounted device that excels in synthetic turf maintenance. Its advanced brush and vacuum system cleans sports surfaces thoroughly, ensuring optimum playing conditions. Unlike traditional brushes or drag mats, the TK1502 provides deep cleaning for artificial turf filled with sand or rubber. This compact 3-point rear-mount attachment fits tractors with at least 20 to 25 HP and combines all the necessary turf care functions in one machine.

You can easily adjust the working depth using spindles, allowing precise treatment for different turf conditions. Its long-lasting polyester filters handle continuous de-dusting, keeping the system running smoothly. The machine extracts dust and fine particles with a powerful turbine and binds them in the filter, ensuring clean air.

Moreover, the device complies with DIN EN60335-2-69 and EN779 standards, making it a safe and effective solution for managing microplastics. This versatile tool works well for maintaining artificial football, rugby, and hockey fields.

  • Attaches easily with a 3-point rear-mount for compact tractors
  • Allows precise adjustment of working depth for different conditions
  • Uses permanent filters with continuous de-dusting
  • Features a drag brush with a guide pulley for enhanced cleaning
  • Optional steel springs help gently loosen infill materials
  • Perfect for maintaining sports fields, including football, hockey, and rugby turfs
Fleet Finance & Leasing Options Talk to us today 0800 807 333

Features

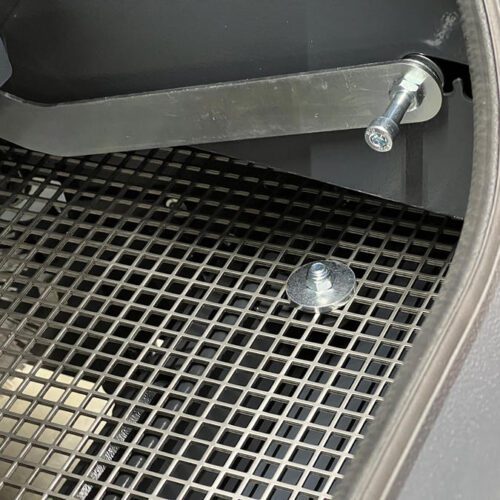

Close-up of a metal grid and fasteners inside a turf cleaner attachment for maintenance

Versatile

Material flap to adjust the flow of debris and infill.

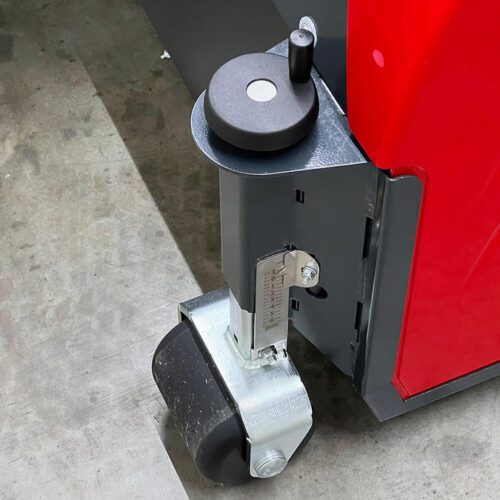

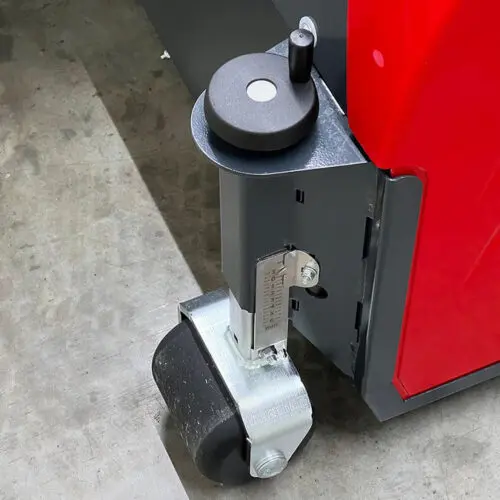

Close-up of a red tractor attachment's wheel assembly and adjustment mechanism for turf maintenance

Precision

Handwheel for comfortable adjustment and scale to control the working depth.

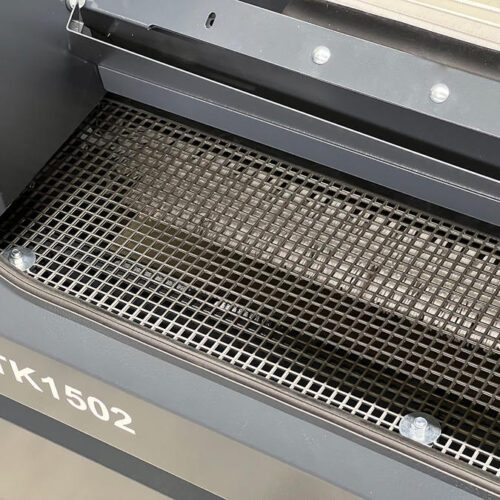

Close-up of the TurfKing TK1502's mesh screen, showcasing its robust construction for turf maintenance

4 – 10 mm

SMG adjustable sieve for every particle size.

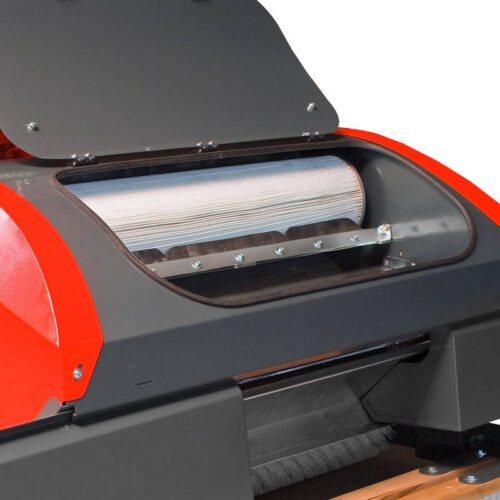

Close-up of a red turf cleaner attachment showing brush and vacuum components for synthetic turf maintenance

SMG dust filter

Self-cleaning dust filer comply with DIN EN60335-2-69/dust class “M” and EN779 “F8” or “F9”.

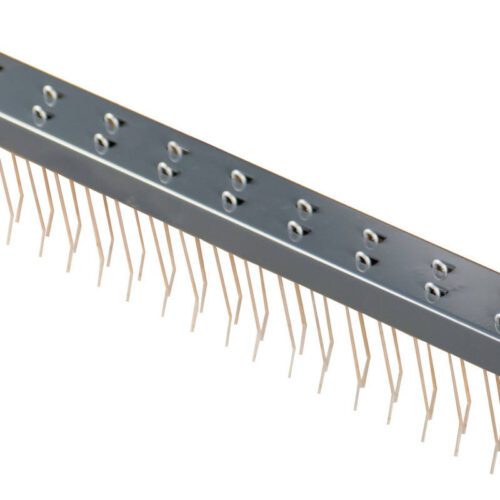

Close-up of a brush attachment with stiff bristles for synthetic turf maintenance

Gentle Loosening

Working depth of the steel tines (optional) are adjustable for gently loosening of the infilling material .

Specifications

Working width TK1100 = 1,100 mm
TK1502 = 1,500 mm
Drive PTO adaptor 540 rpm
Weight TK1100 = 225 kg
TK1502 = 280 kg
Dimensions TK1100: L 900 x W 1,230 x H 830 mm
TK1502: L 1,670 0 x W 950 x H 830 mm
Shipping dimensions TK1100: L 1,300 x W 1,300 x H 1,100 mm
TK1502: L 1,760 x W 1,300 x H 1,000 mm

Brochures, Parts & Manuals

Parts Search

You will need your Serial # and will need to register on the SMG site to view your parts diagrams.
