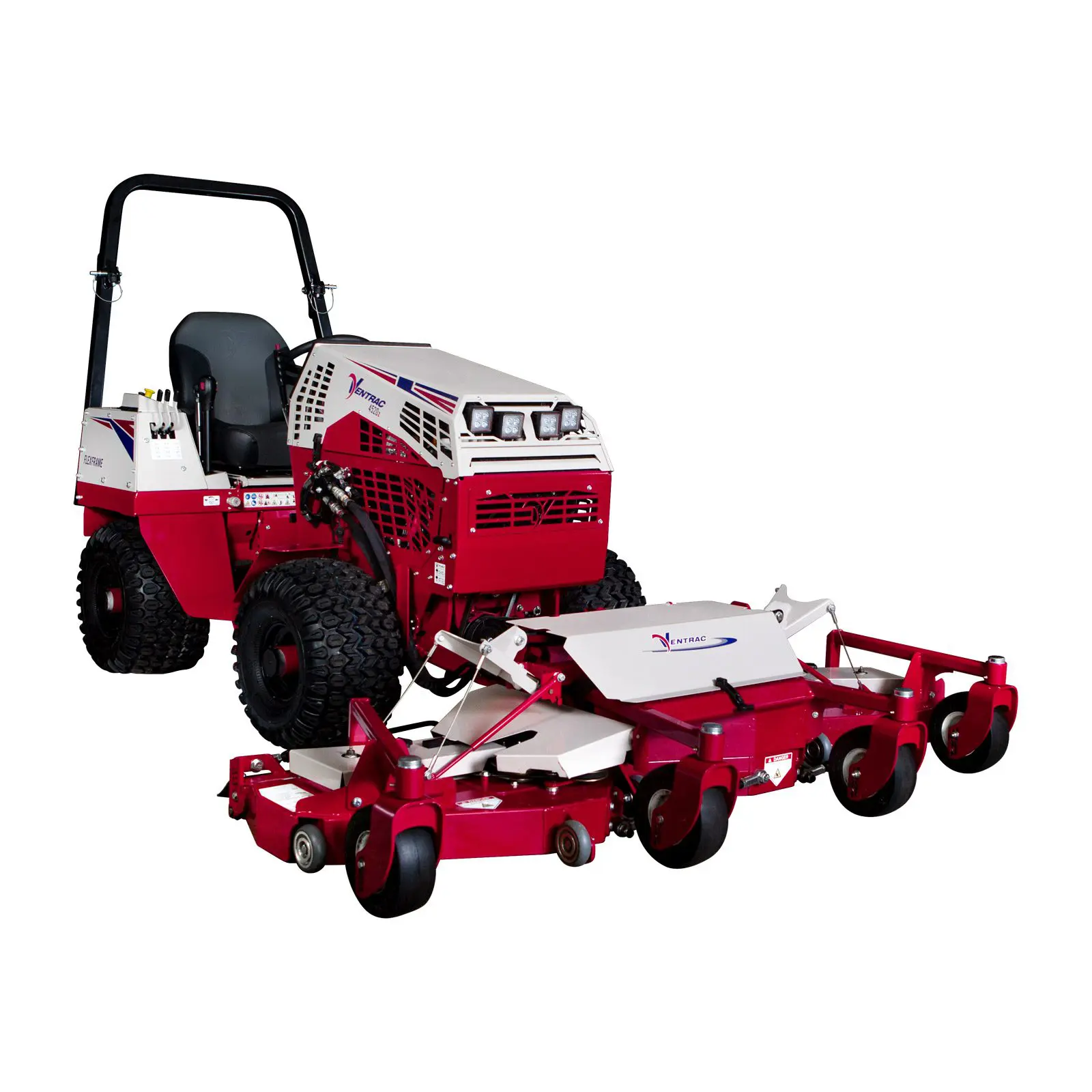

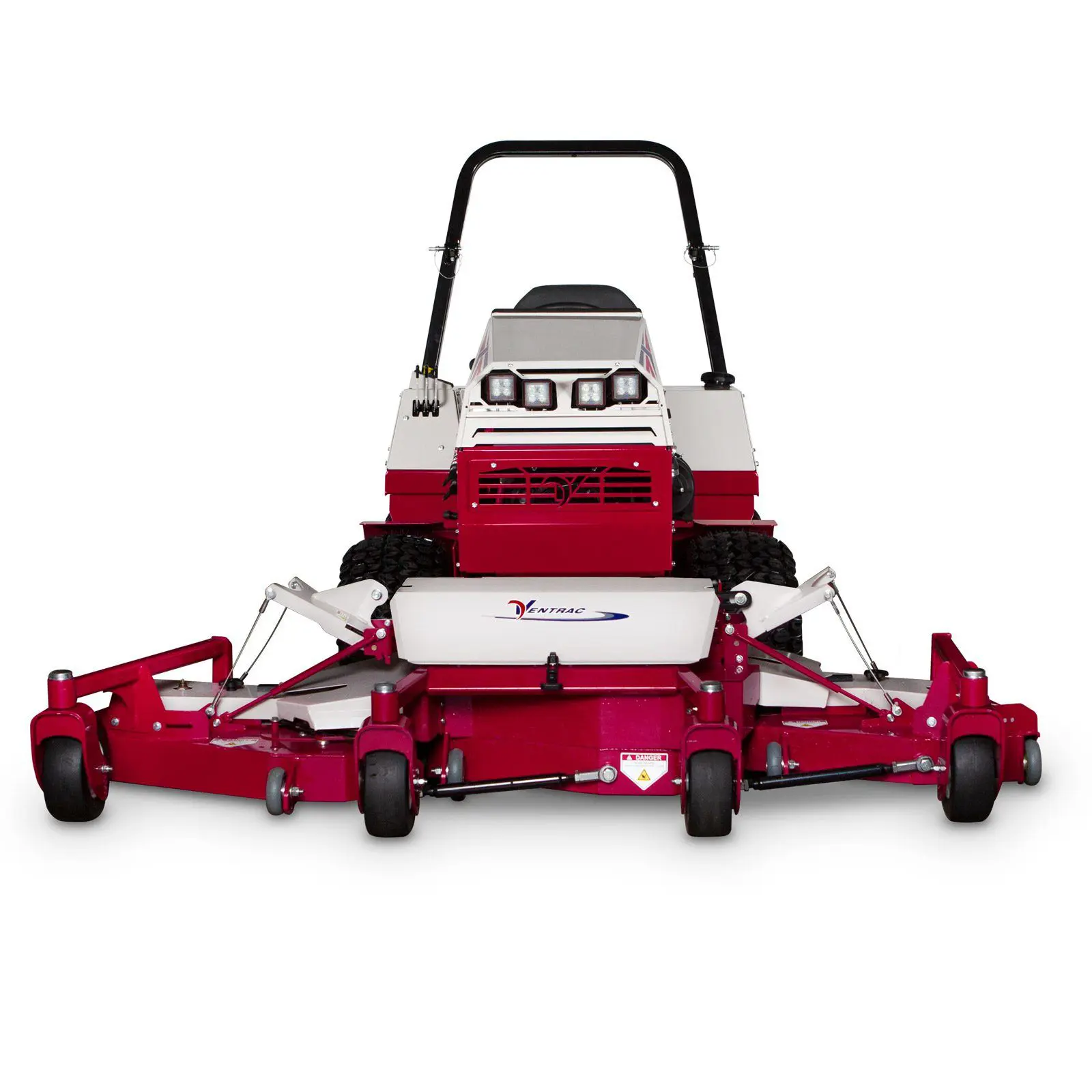

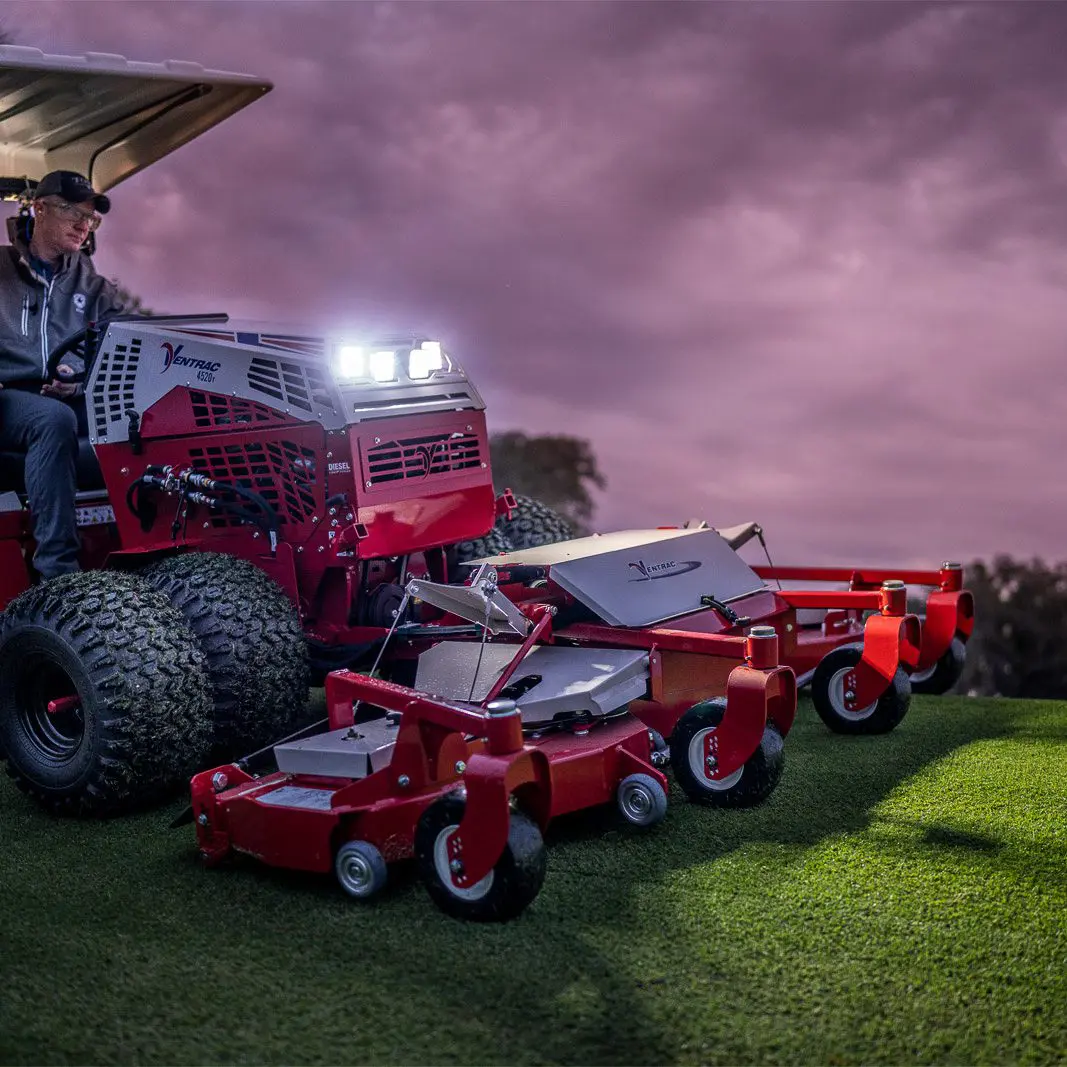

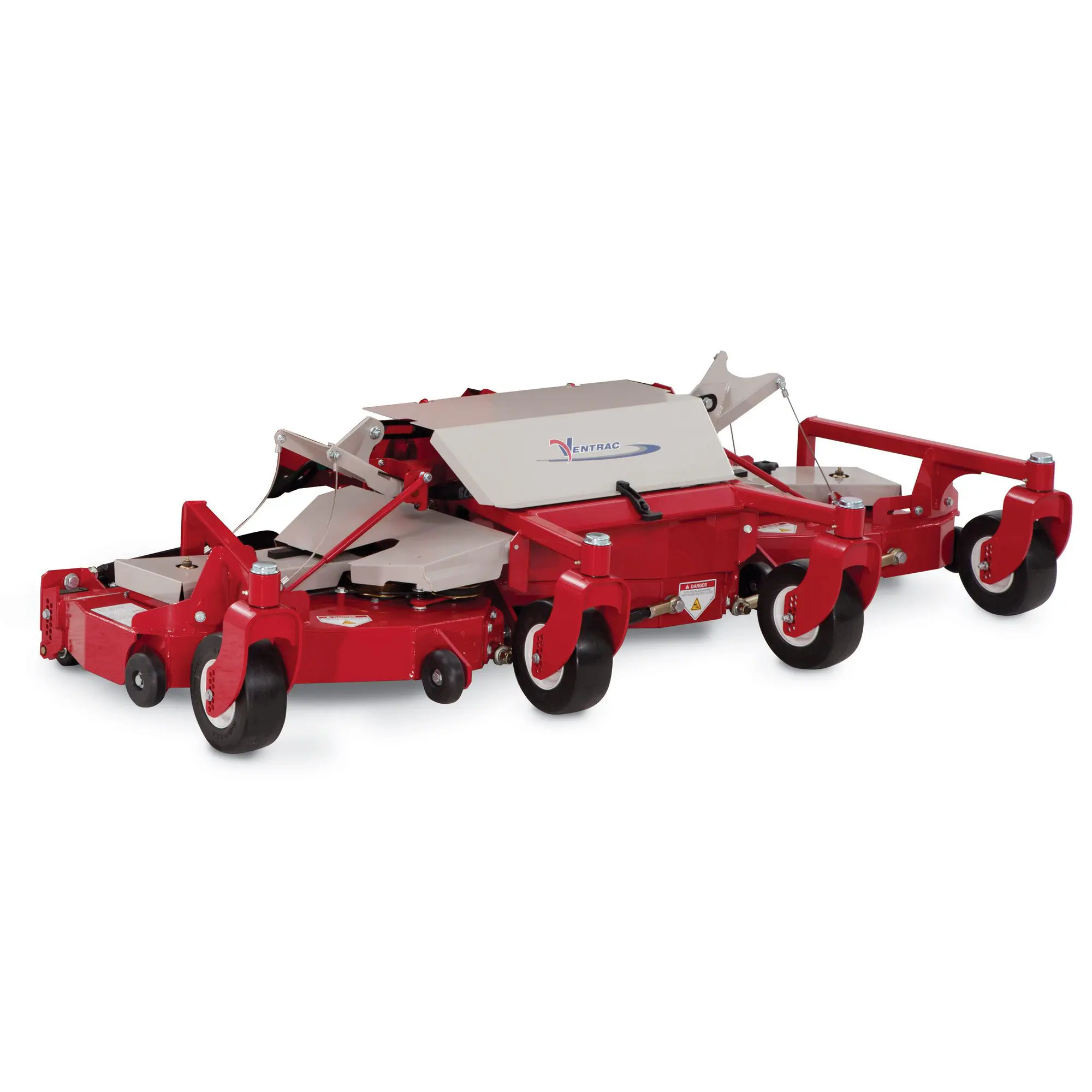

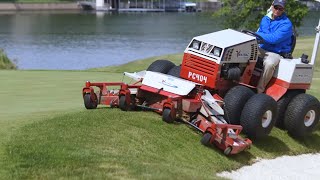

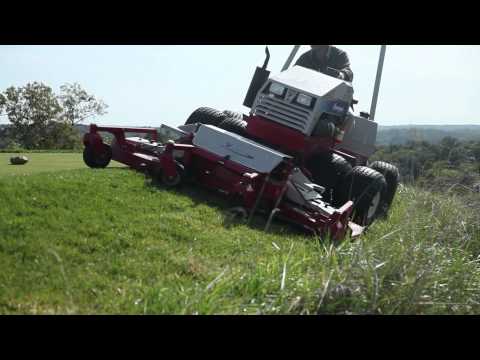

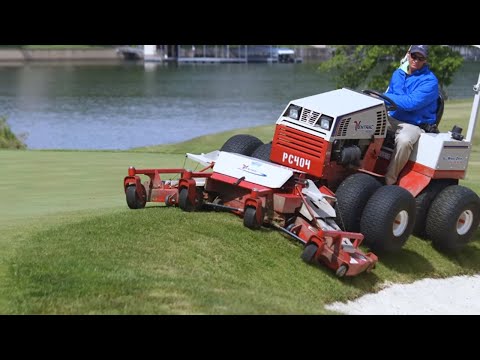

Ventrac Contour Mower 84" Attachment

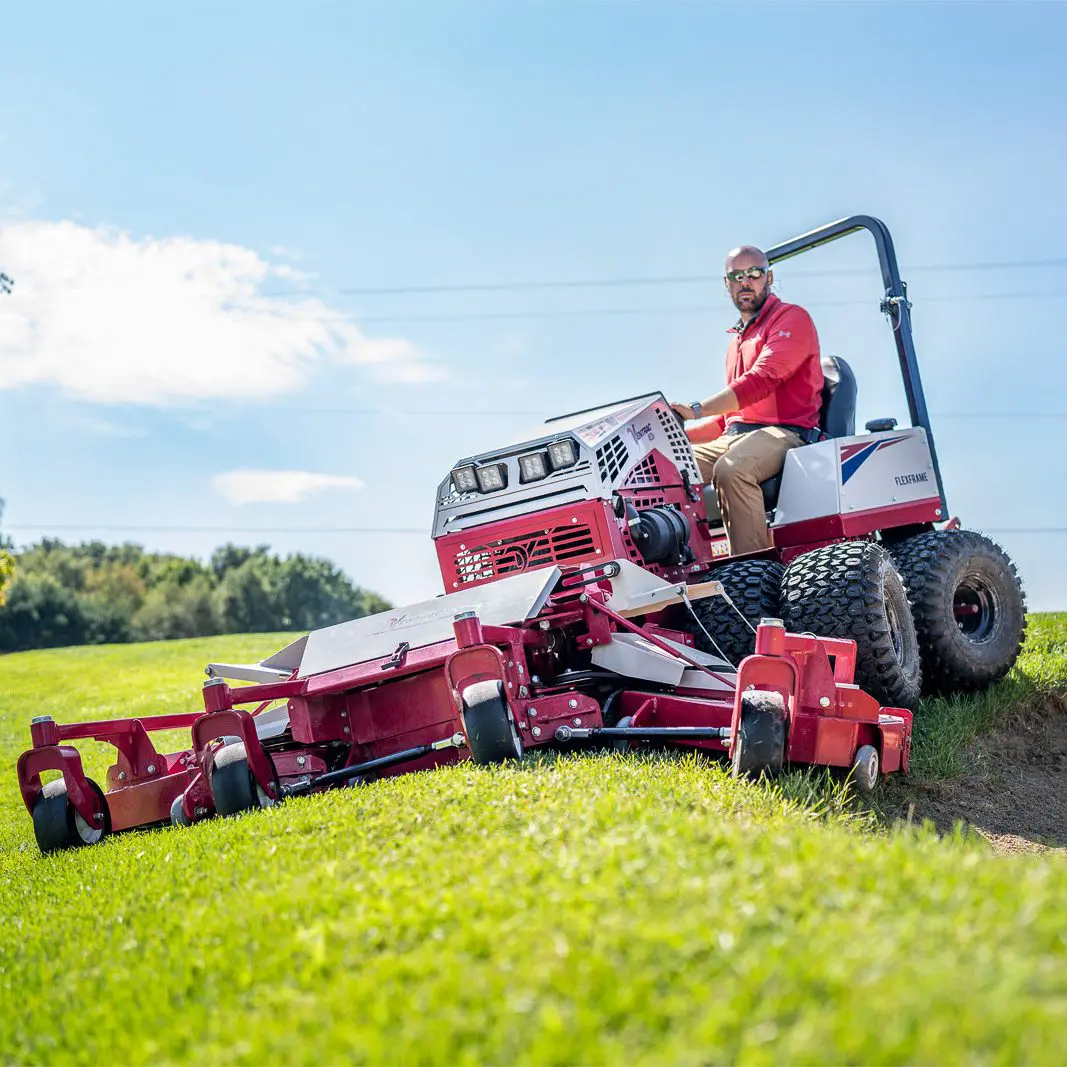

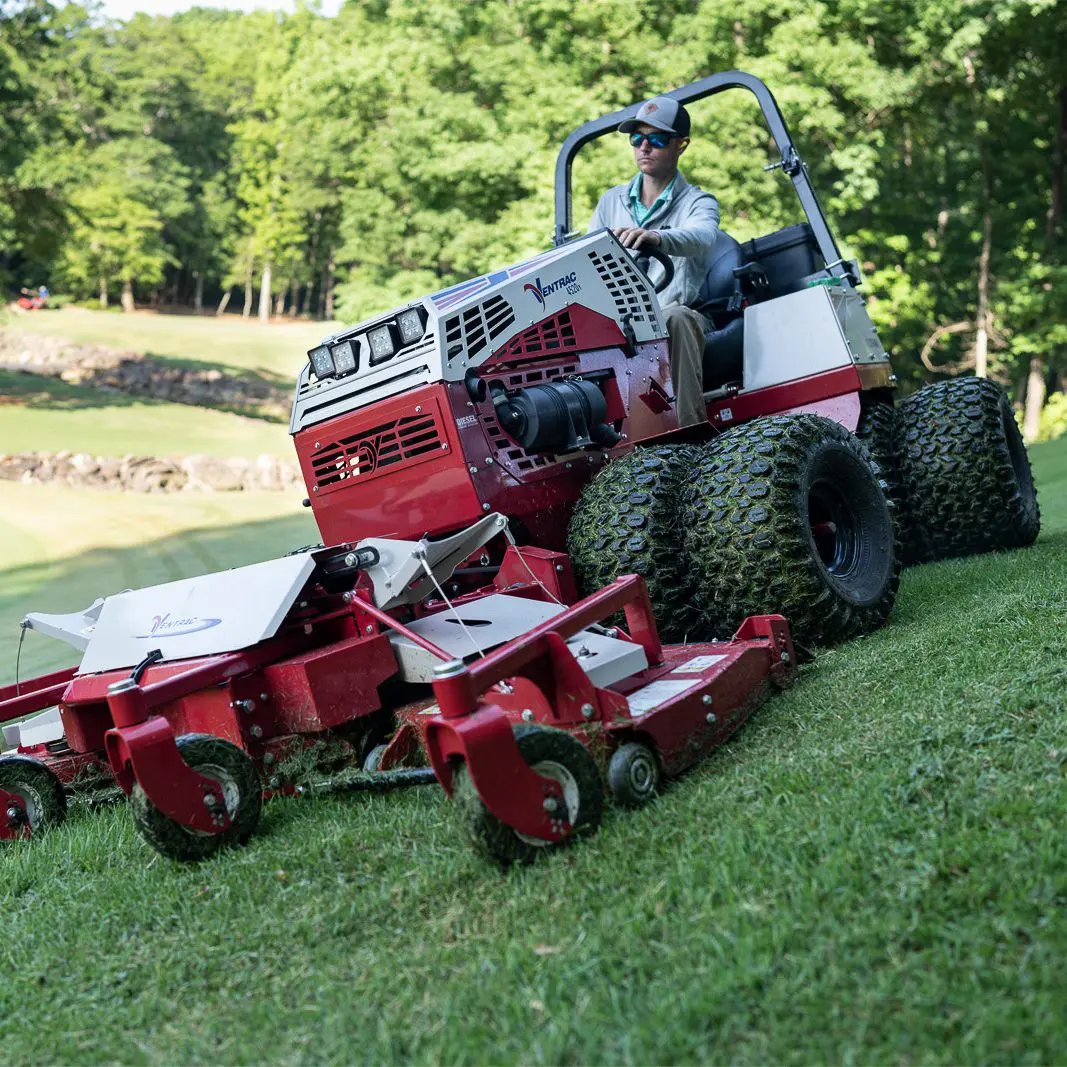

Ventrac’s Contour Mower features a 83 inch working width making quick work of precision mowing on high end properties. Three decks float independently and follow the contour of the terrain with up to 40 degrees of motion for each side deck. The MJ840 also features full rear rollers for even cutting and striping, rear discharge, and a flip-up deck design.
Feature List:
-
- 83″ Mowing width
- 40 degrees of motion for side decks
- Front-to-back motion for ground variation
- Rear discharge
- Full rear rollers for even cutting and striping
- Front rollers for anti-scalping
- Belt drive with gearbox for mechanical
efficiency and reliability
- Flip-up deck design

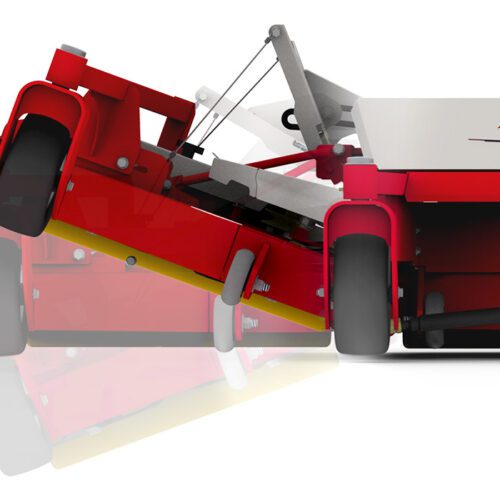

40 DEGREE SIDE DECK MOTION
The contour deck flexes up to 20 degrees up or down (40 degrees range).
SCALP-FREE MOWING

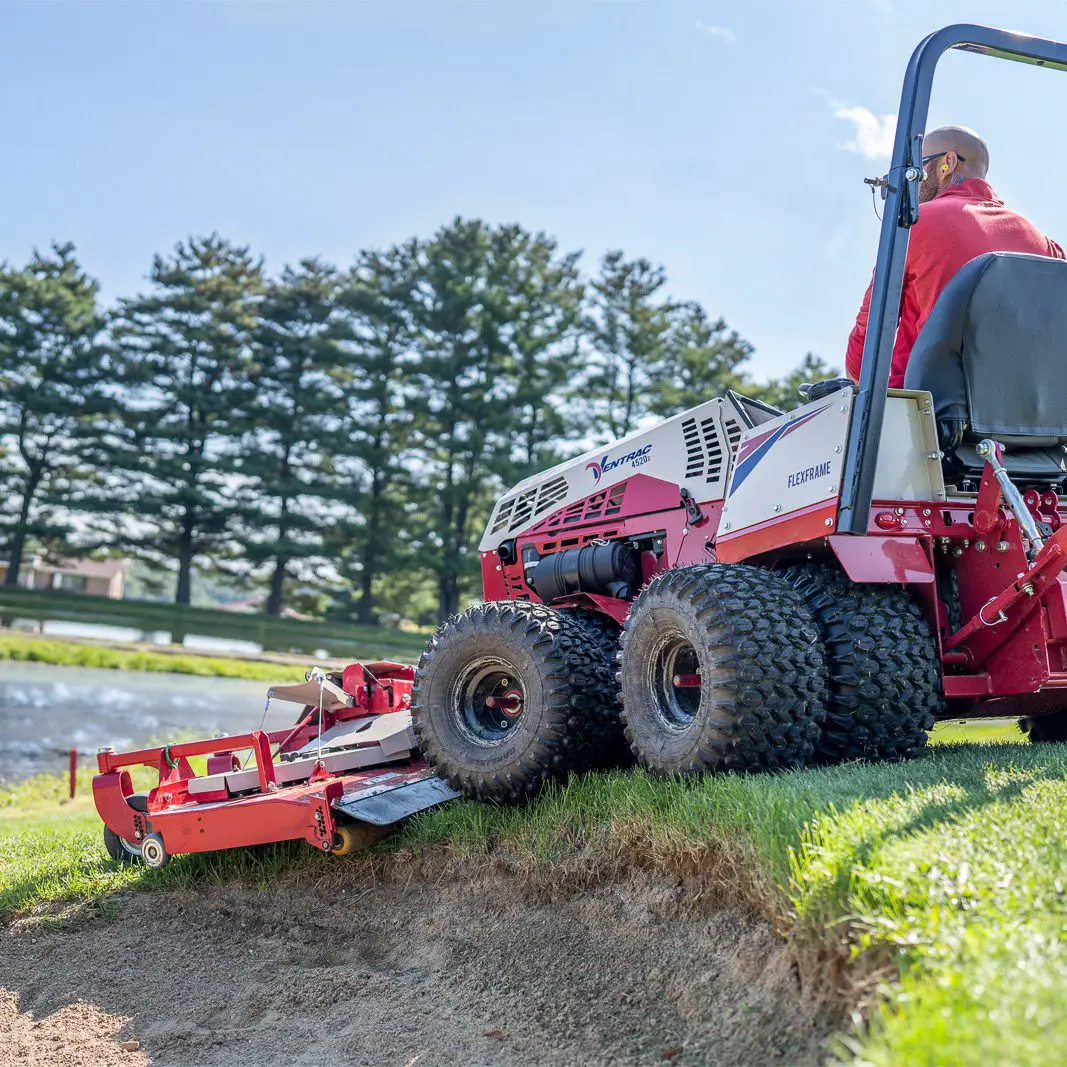

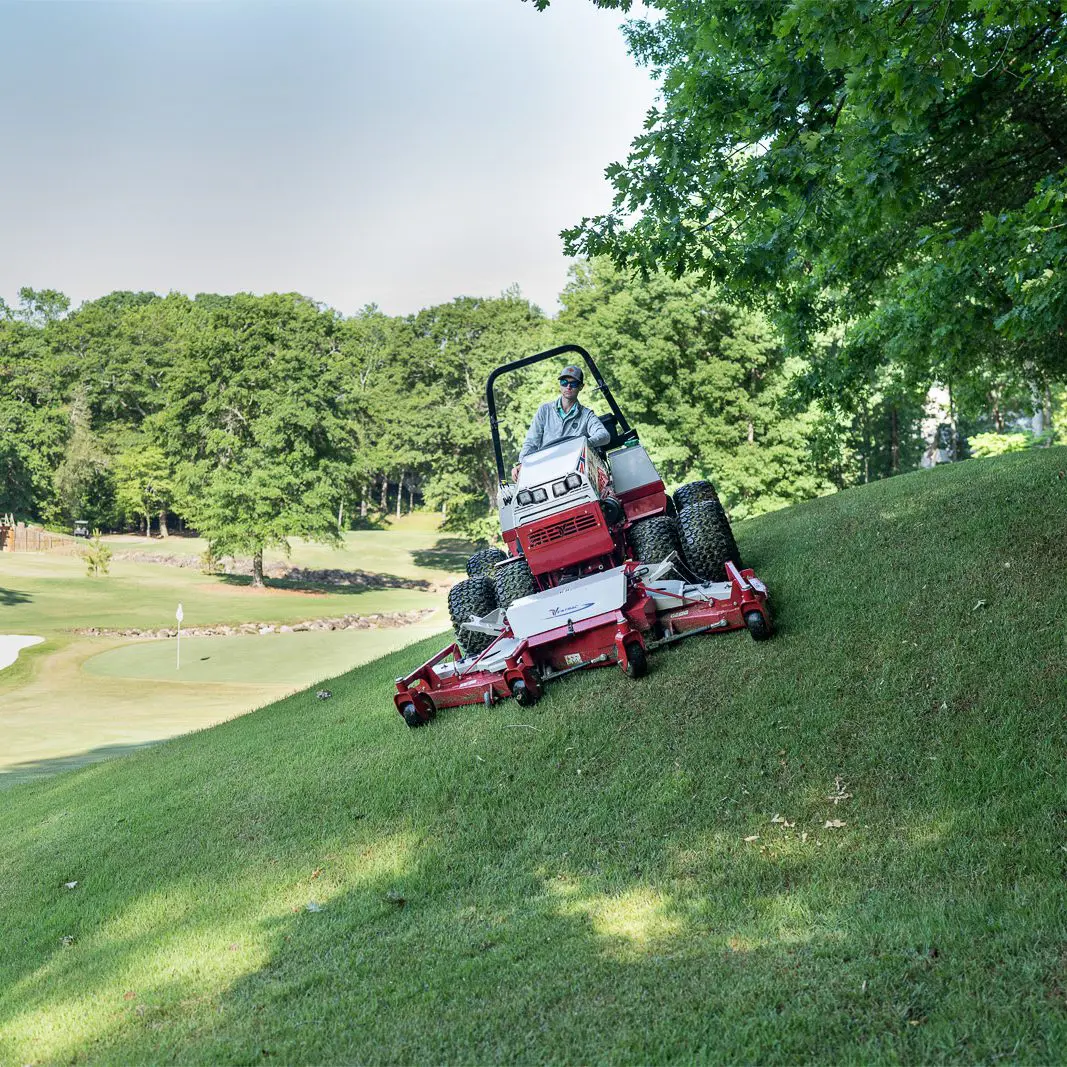

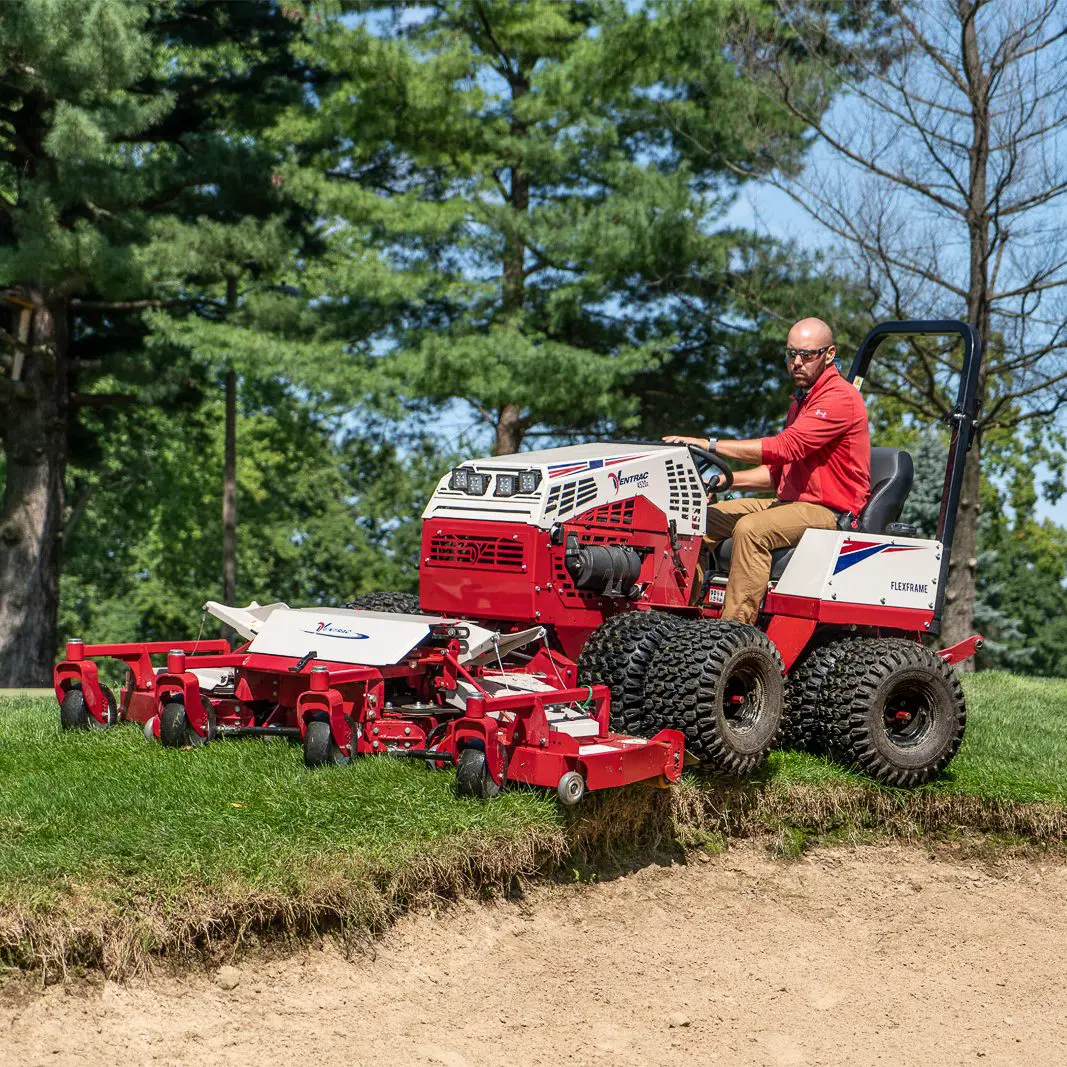

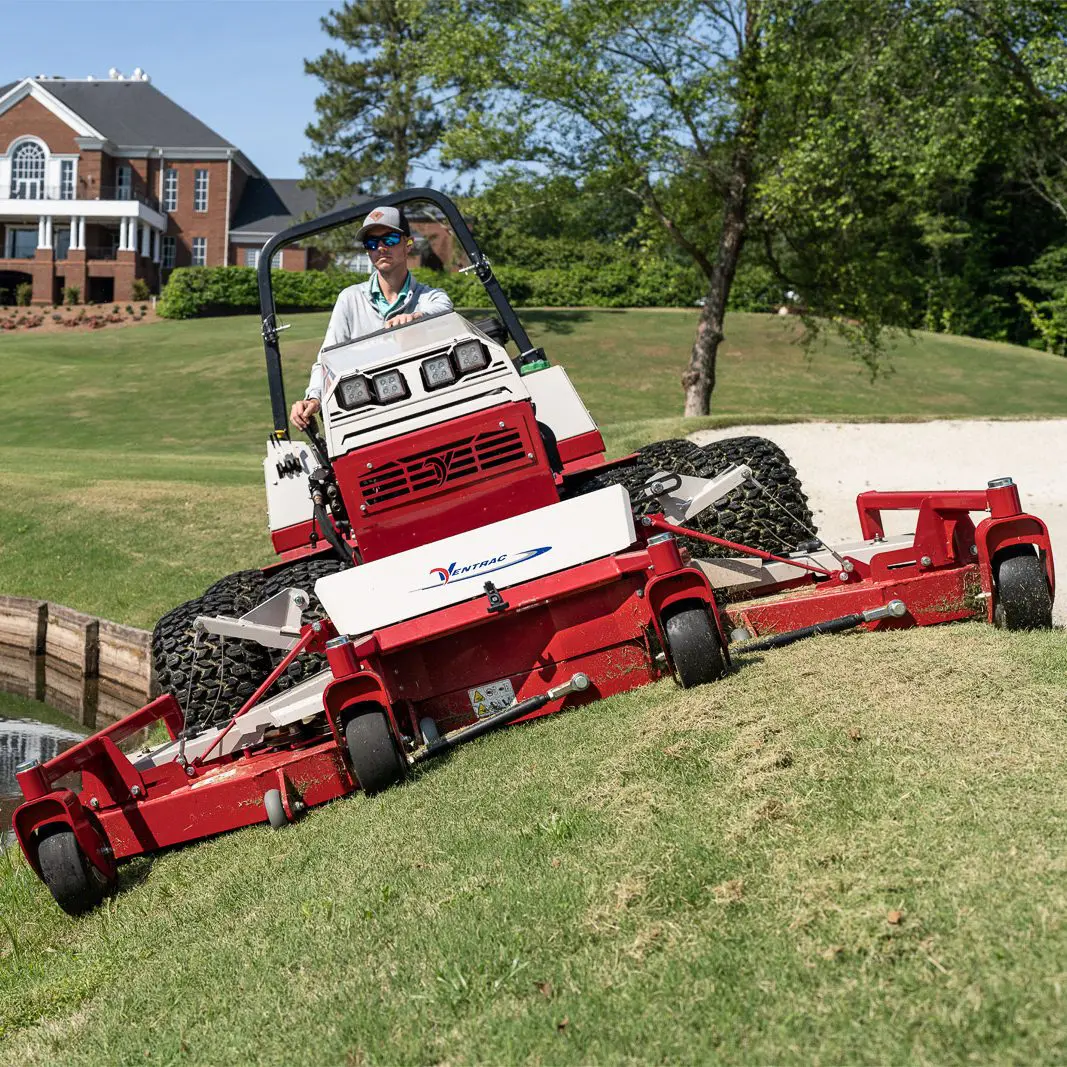

The independent decks follow the most challenging terrains with full-length rollers to prevent scalping of your course.
EASY SERVICE FLIP-UP DECKÂ
Cleaning the deck and changing blades couldn’t be easier with Ventrac’s quick flip-up deck design.
Description
Ventrac’s Contour Mower features a 83 inch working width making quick work of precision mowing on high end properties. Three decks float independently and follow the contour of the terrain with up to 40 degrees of motion for each side deck. The MJ840 also features full rear rollers for even cutting and striping, rear discharge, and a flip-up deck design.
Feature List:
-
- 83″ Mowing width
- 40 degrees of motion for side decks
- Front-to-back motion for ground variation
- Rear discharge
- Full rear rollers for even cutting and striping
- Front rollers for anti-scalping
- Belt drive with gearbox for mechanical
efficiency and reliability
- Flip-up deck design
| Sales Model | MJ840 |
| Full Description | MJ, MJ840 Contour Mower |
| Product Type | Attachment |
| CATEGORY | |
| Attachment Type | Mower |
| Front Mount | Ventrac Mount System |
| Mower Type | Finish |
| 4000 Series Mount | |
| MOWER SPECS | |
| Cutting Width | 211Â cm |
| Discharge Type | Rear |
| Flip-Up Deck | |
| Cutting Heights (Standard) | .75 to 8.89Â cm |
| Cutting Positions | 12 |
| Number of Blades | 6Â (3 left hand, 3 right hand) |
| Blade Type | 38.1Â cm |
| Deck Construction | Multi-Gauge |
| Deck Suspension | 4 front flat-free tires with 3 full rear rollers |
| DIMENSIONS | |
| Overall Height | 55.9Â cm |
| Length | 132Â cm |
| Overall Width | 213Â cm |
| Weight | 265Â kg |
| GENERAL | |
| Anti Scalp Rollers | 5 |
| Tip Speed | 4999Â m/min |
Additional information
| Brands | VENTRAC |
|---|
