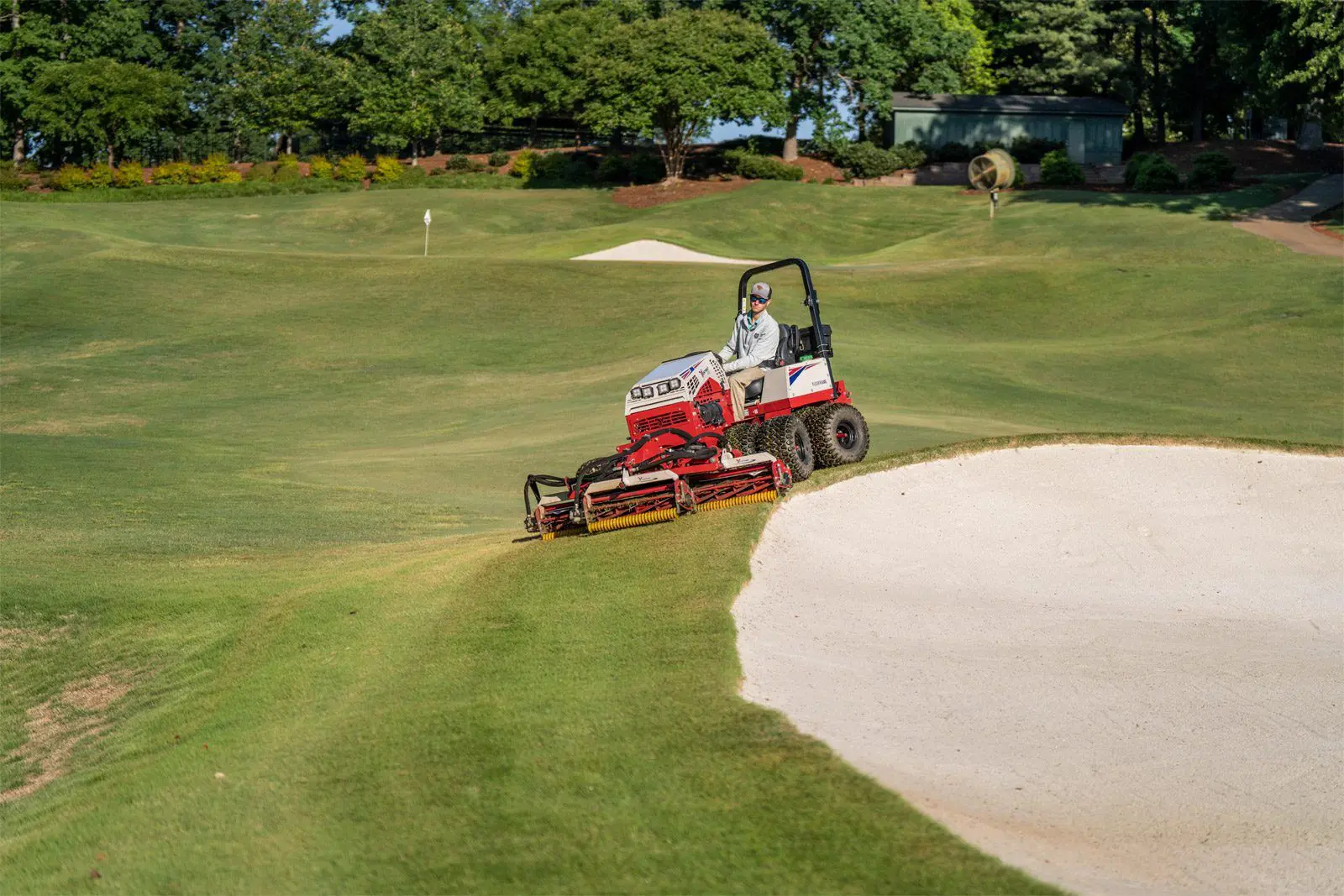

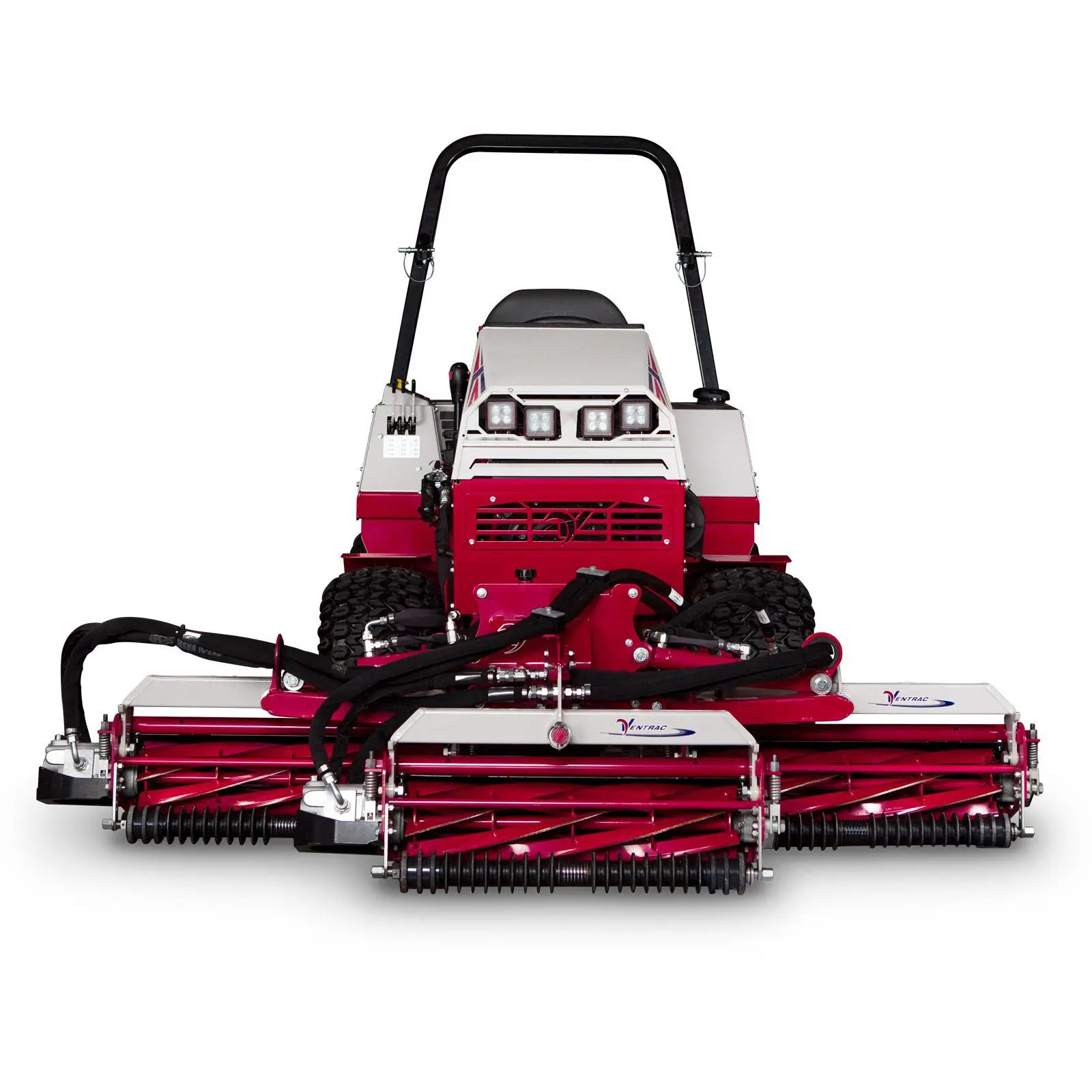

Ventrac Reel Mower Triplex 72" Attachment
The Ventrac MR740 Triplex Reel Mower is designed to be the ultimate trim and surround mower. With a 74″ width of cut, variable speed hydraulics, standard back lapping valves, and offset capability, the Ventrac MR740 includes many features to ensure superior, low-maintenance powered by the all-wheel performance.

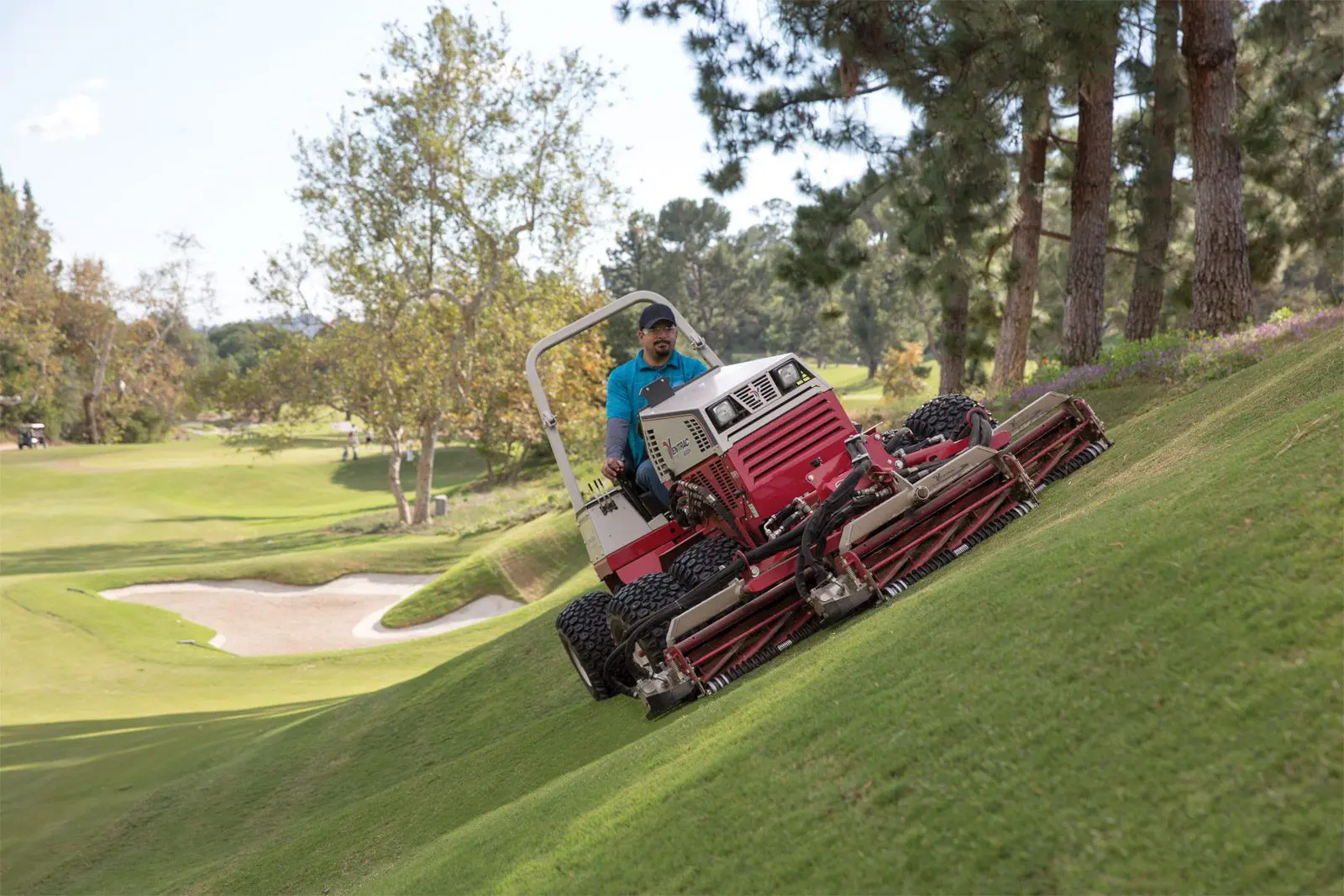

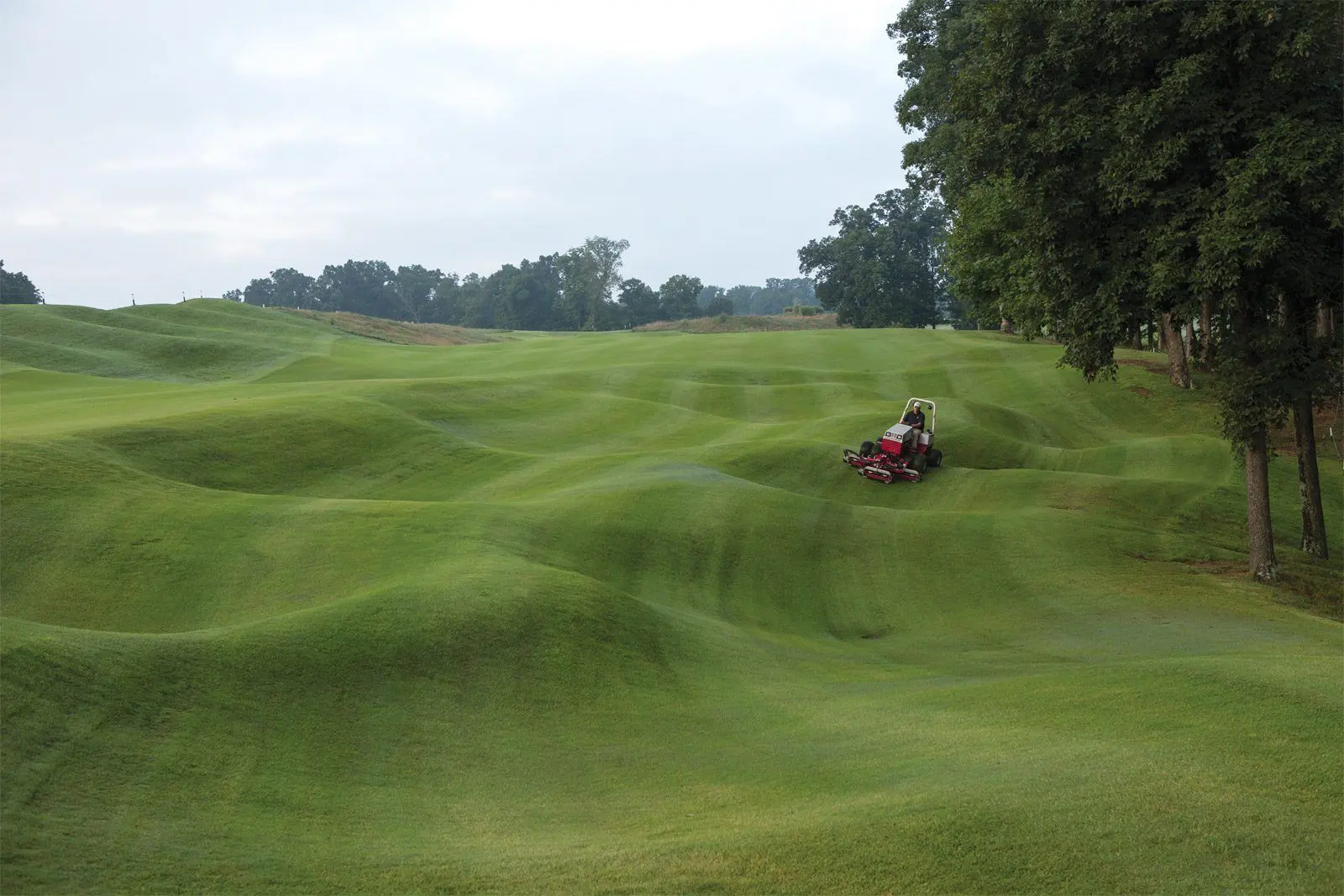

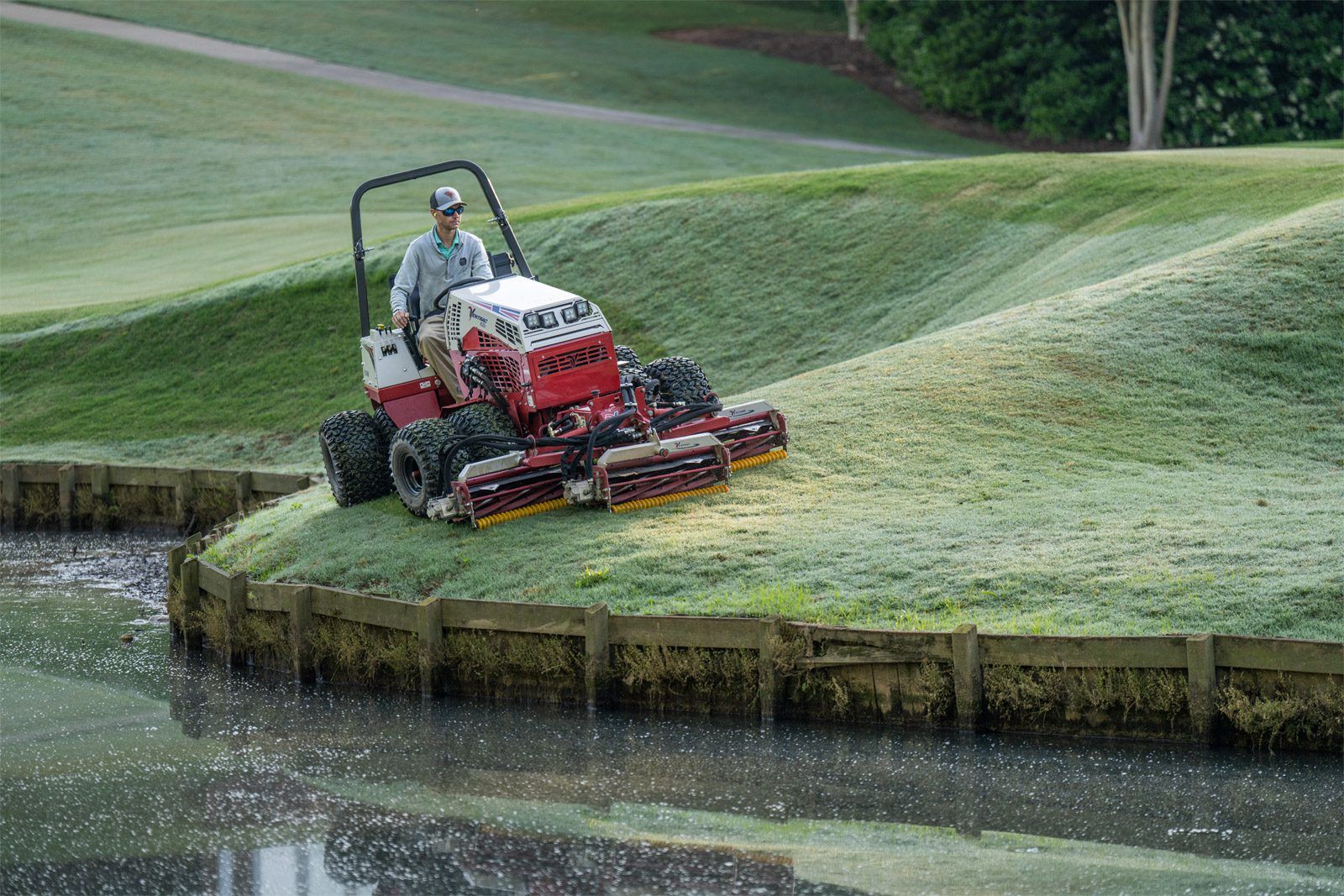

When powered by the all-wheel drive Ventrac 4500 tractor with dual wheels, the MR740 can be operated on hills and slopes up to 30 degrees — allowing you to go where no other reel mower can go. You will be amazed at the time and labor you’ll save, and the beauty you’ll leave behind.
UP FOR THE CHALLENGE
With the industry’s best 30-degree slope rating, you can confidently take reels to difficult places greatly reducing walk behind mowing.
HEAVY DUTY & QUALITY
These heavy duty reels are built to last. You will be amazed by the superior cutting edge retention and life of the bed-knife and reels.
OFFSET CAPABILITY

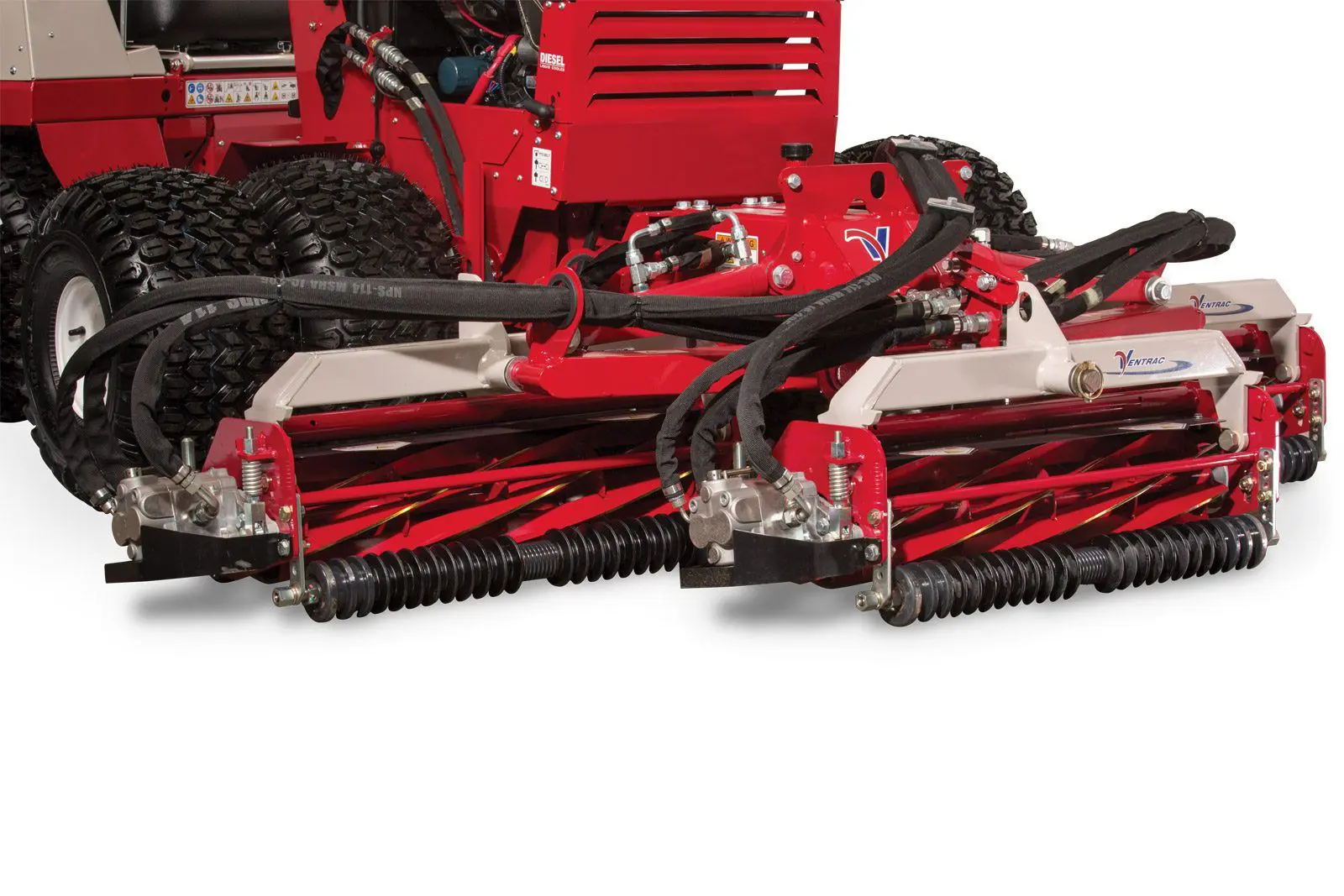

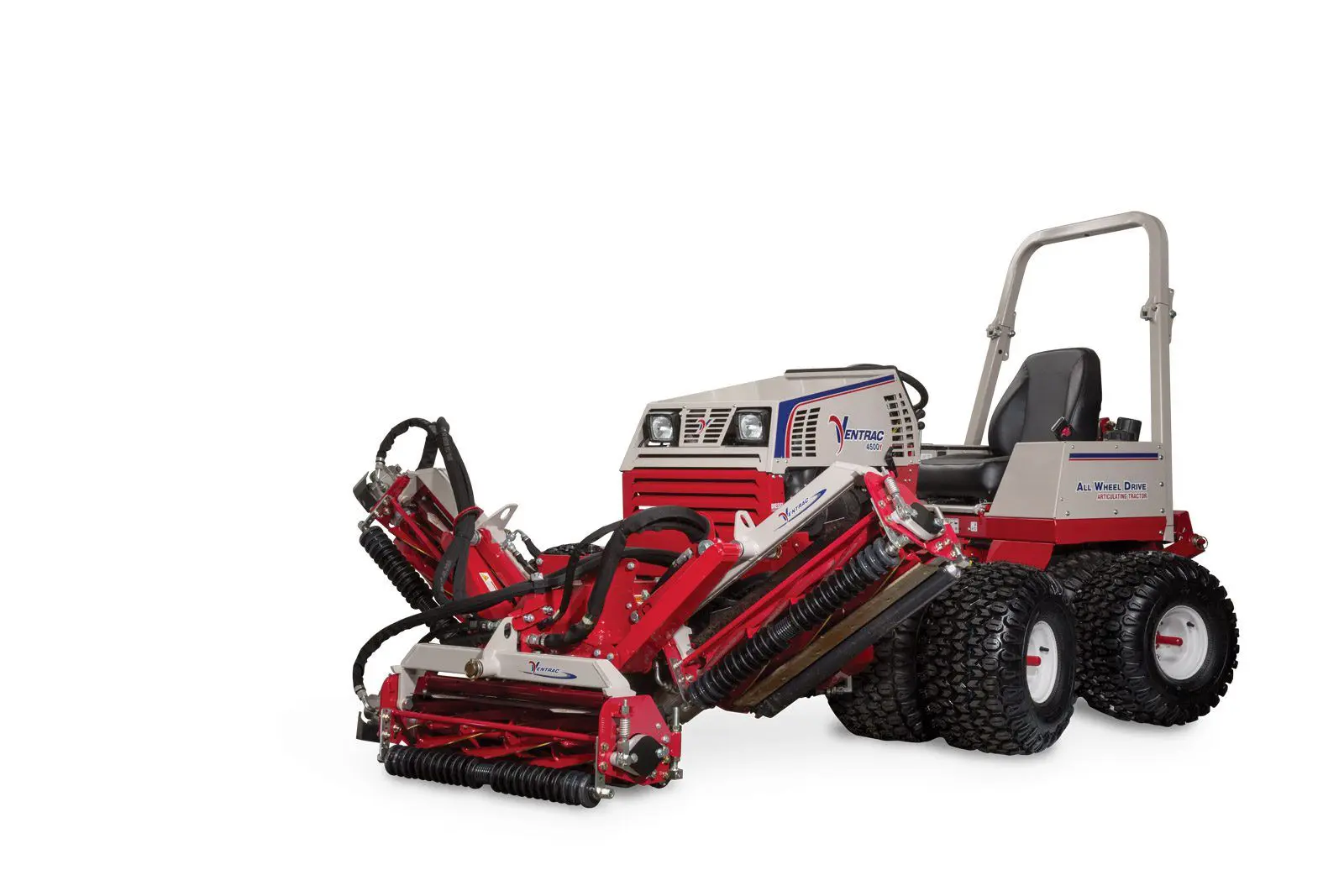

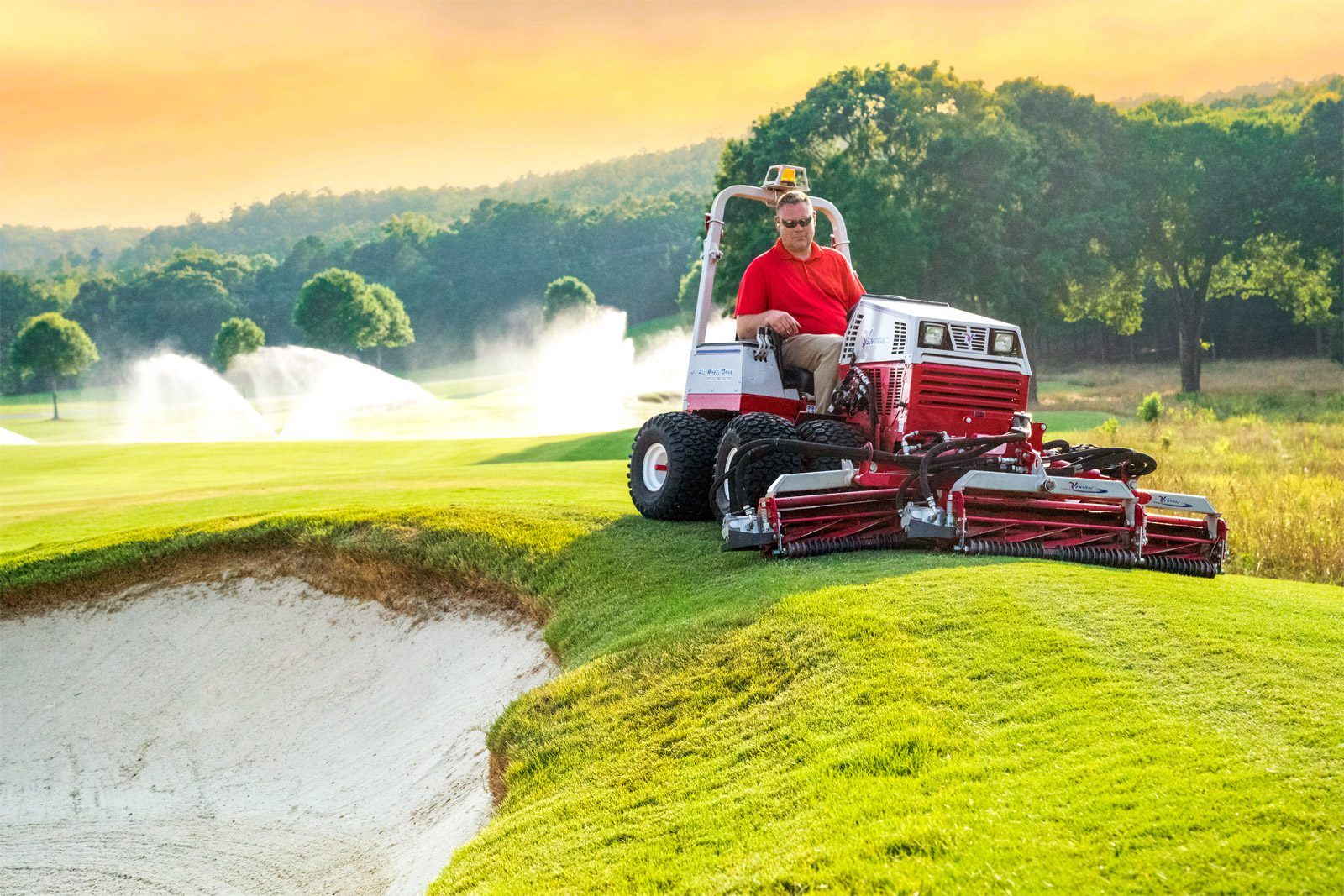

The reels can be offset right and left of center to allow for better trimming around tight turns, and to position the tractor farther from hazards such as water or bunkers for increased safety.
VARIABLE SPEED REELS
Adjust reel speed to match your conditions. Variable speed motors also feature a bypass allowing you to run just one to two reels at a time should you have narrower trim areas or need to cut surrounds.
FRONT MOUNTED
The Ventrac utilizes out-front design with attachments for better visibility.
Description
When powered by the all-wheel drive Ventrac 4520 tractor with dual wheels, the MR740 can be operated on hills and slopes up to 30 degrees — allowing you to go where no other reel mower can go. You will be amazed at the time and labor you’ll save, and the beauty you’ll leave behind.
| Sales Model | MR740 |
| Full Description | MR, MR740 Reel Mower |
| Product Type | Attachment |
| CATEGORY | |
| Attachment Type | Mower |
| Front Mount | Ventrac Mount System |
| Mower Type | Finish |
| 4000 Series Mount | |
| MOWER SPECS | |
| Cutting Width | 74Â in |
| Discharge Type | Rear |
| Flip-Up Deck | Not Available |
| Cutting Heights (Standard) | .3937 – 2.3622Â in |
| Cutting Positions | Infinite |
| Deck Construction | Multi-Gauge .22 inch (56 mm) at spindle mount |
| Deck Suspension | Front Roller (grooved) Rear Roller (smooth) |
| DIMENSIONS | |
| Overall Height | 22Â in |
| Length | 48Â in |
| Overall Width | 84Â in |
| Weight | 613Â lbs |
| Length of Tractor with Deck Up | not a flipup deck |
| REEL SPECS | |
| Adjustment | Reel to Bedknife |
| Reel Blades | 7 |
| Reel Diameter | 7Â in |
| Backlapping | Standard w/ individual bypass valves |
| Reel Speed | 0-1600Â RPMÂ Standard |
| Cutting Units | 3 |
| Reel Drive | Hydraulic |
Additional information
| Brands | VENTRAC |
|---|
