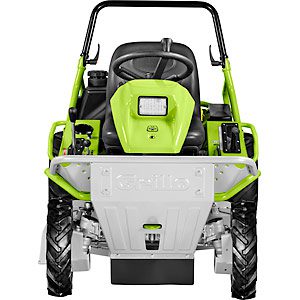

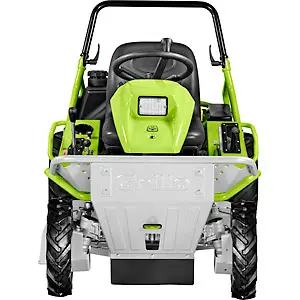

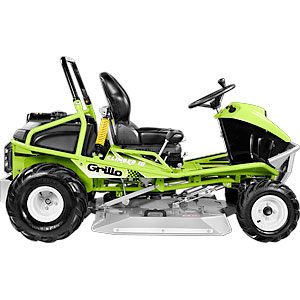

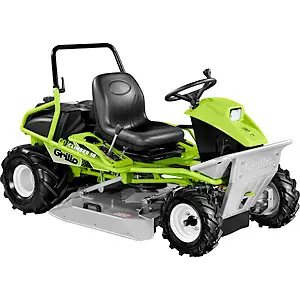

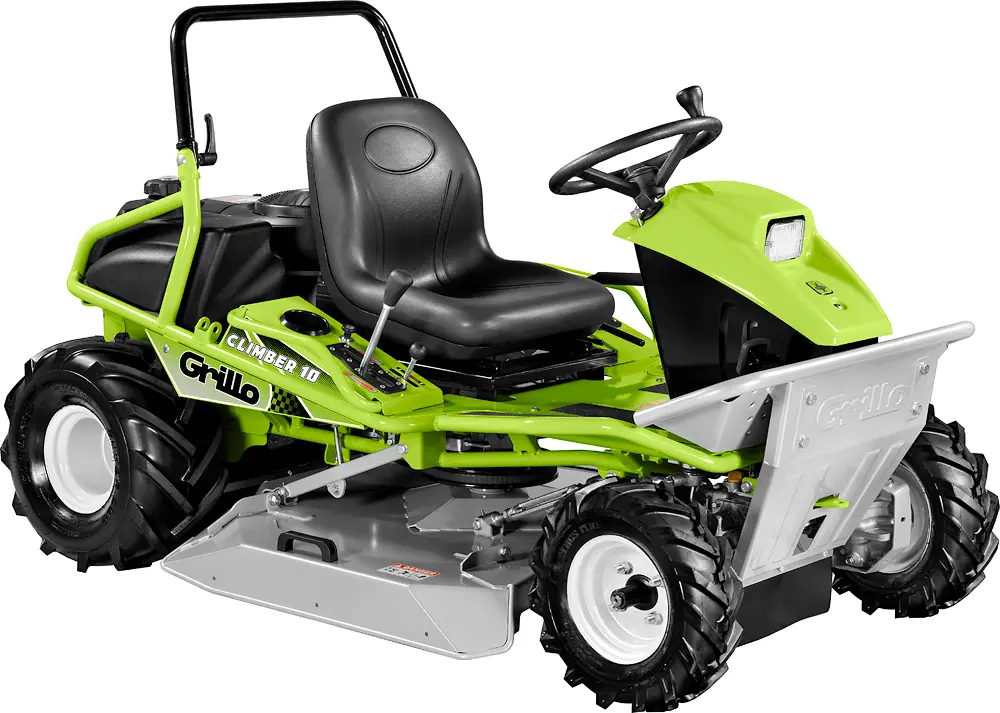

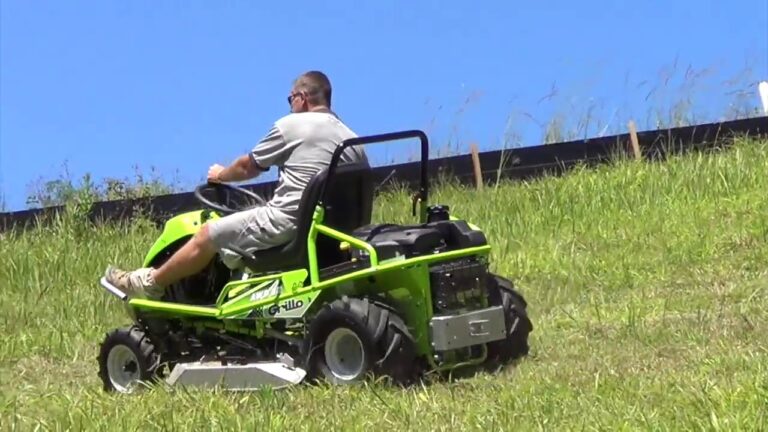

Grillo Climber 10.22 AWD Ride-On Mower 22HP 93cm
Model: 8010AH
Grillo Climber 10.22 AWD Ride-On Mower 22HP 93cm
Model: 8010AH

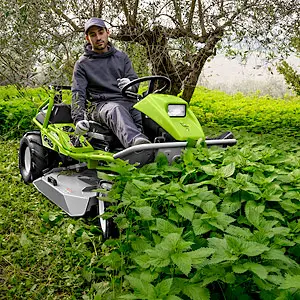

The Grillo Climber 10.22 AWD is built for demanding terrain, offering a powerful 22HP Briggs & Stratton V-Twin engine and a 93 cm cutting width. With all-wheel drive, a differential lock for superior traction, and a low center of gravity, it handles steep slopes and tough conditions with ease. Compact and maneuverable, it ensures maximum safety, reliability, and operator comfort.
- Powerful Performance – 22HP Briggs & Stratton V-Twin engine with 93 cm cutting width.
- Unmatched Traction – AWD and differential lock for tackling steep or uneven terrain.
- Ultimate Control – Small 70 cm turning circle for superior maneuverability.
- Built Tough – Durable, robust design for long-lasting reliability.

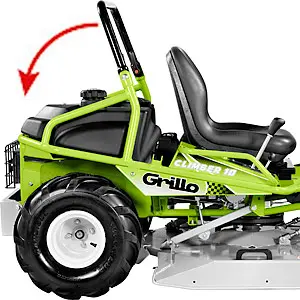

Adjustable Roll Bar
The roll-bar can be lowered in seconds to facilitate working under plants. Because of two practical levers, the roll-bar can be lowered or raised without the use of tools.

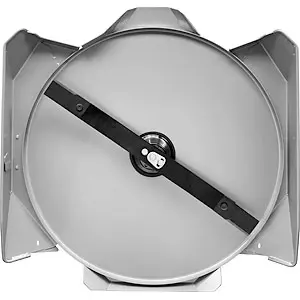

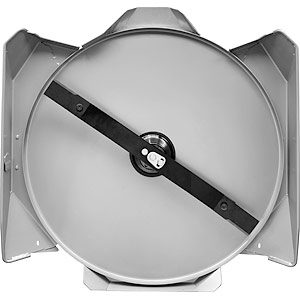

Low Noise Cutting Blades
The cutting blades are made of special molded steel with a special low-noise, low-impact shape, and the ends are retracted in the event of impact. In addition, the knives are reversible, and can be reversed when worn. The deck is equipped with protective side guards that can be raised for easy maintenance and cleaning.
Comfortably Adjustable

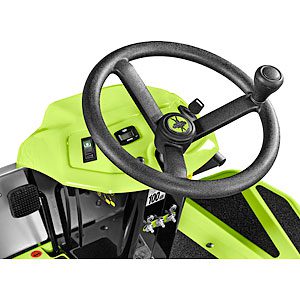

The Climber 10 is fitted as standard with a comfortable, sprung, longitudinally adjustable seat. The optional suspension kit with spring adjustment can be fitted. The driving controls are ergonomic, and the advance lever allows precise speed selection. With the help of the brake pedal, the advance lever automatically returns to zero and the rear axle is braked.
Adjustable Cut Height
The Grillo Climber 10 AWD 22 features a smooth lever for effortless cutting height adjustment from 3.5cm to 13.5cm. This ensures a consistent cut even on uneven terrain, thanks to the automatic deck lock that engages when the lever is released.
High Quality Design
Italian-made with premium materials and cutting-edge tech, the Grillo Climber 10 AWD 22 boasts exceptional durability. Rigorous testing by specialists ensures lasting performance.
Fast Speed
Transfers are fast with the Climber 10 because of its maximum speed of 9 km/h. On very uneven surfaces it is possible to lift the plate up to 13.5 cm off the ground.
2 Hydrostatic Axles
Grillo's 4WD system with 2 axles & diff lock tackles slopes & uneven terrain. Large tires & hydraulic front axle grip tight for confident control.

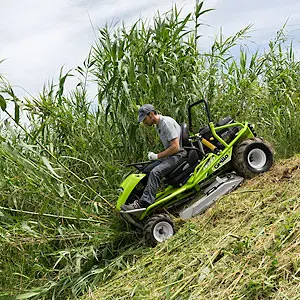

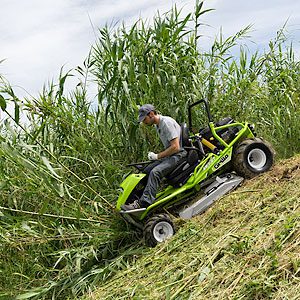

Handles Steep Slopes
The Grillo Climber 10 AWD 22's 4WD tackles descents with confidence and features puncture-resistant front tires for added toughness. Steel shielding safeguards the hydraulic system, while large cooling tubes ensure peak performance even under heavy loads.
Specifications
| Engine |
Briggs & Stratton 7220 PXi PROFESSIONAL
Start electric, with 12 V battery
Supply fuel
Displacement 656 cc, 2 Cylinders
Power 18 HP (13.2 kW) - Gross power 22 HP
Air cooled
Dry air filter |
| Fuel tank capacity |
13 L
|
| Gearbox |
4-wheel-drive hydrostatic transmission
|
| Clutch |
Electromagnetic clutch with P.T.O and blade brake.
|
| Cutter deck |
Side and rear discharge
|
| Cutting configuration |
1 rotating blade
|
| Cutting width |
93 cm (36") |
| Cutting height |
From 3,5 cm to 13,5 cm with continuous adjustment
|
| Peripheral blade speed |
83 m/1"
|
| Differential locking |
On the rear axle, with pedal engagement.
|
| Front tyres |
4.00-8 TRACTOR, puncture proof treated as standard feature.
|
| Rear tyres |
20×10.00-8 TRACTOR
|
| Speed |
Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h.
|
| Inner turning radius |
70 cm
|
| Seat |
Sprung and adjustable comfort seat, equipped with roll-bar.
|
| Parking brake |
On the rear wheels with lever engagement
|
| Mowing capacity per hour (indicative) |
7200 m^2/h
|
| Standard features |
Tow bar and front LED headlight
|
| Length |
206 cm
|
| Width |
103 cm
|
| Height |
118.5 cm
|
| Weight |
345 kg |
