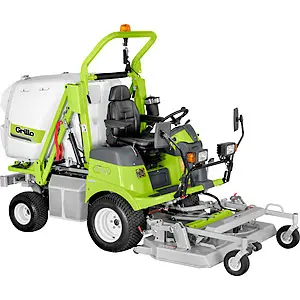

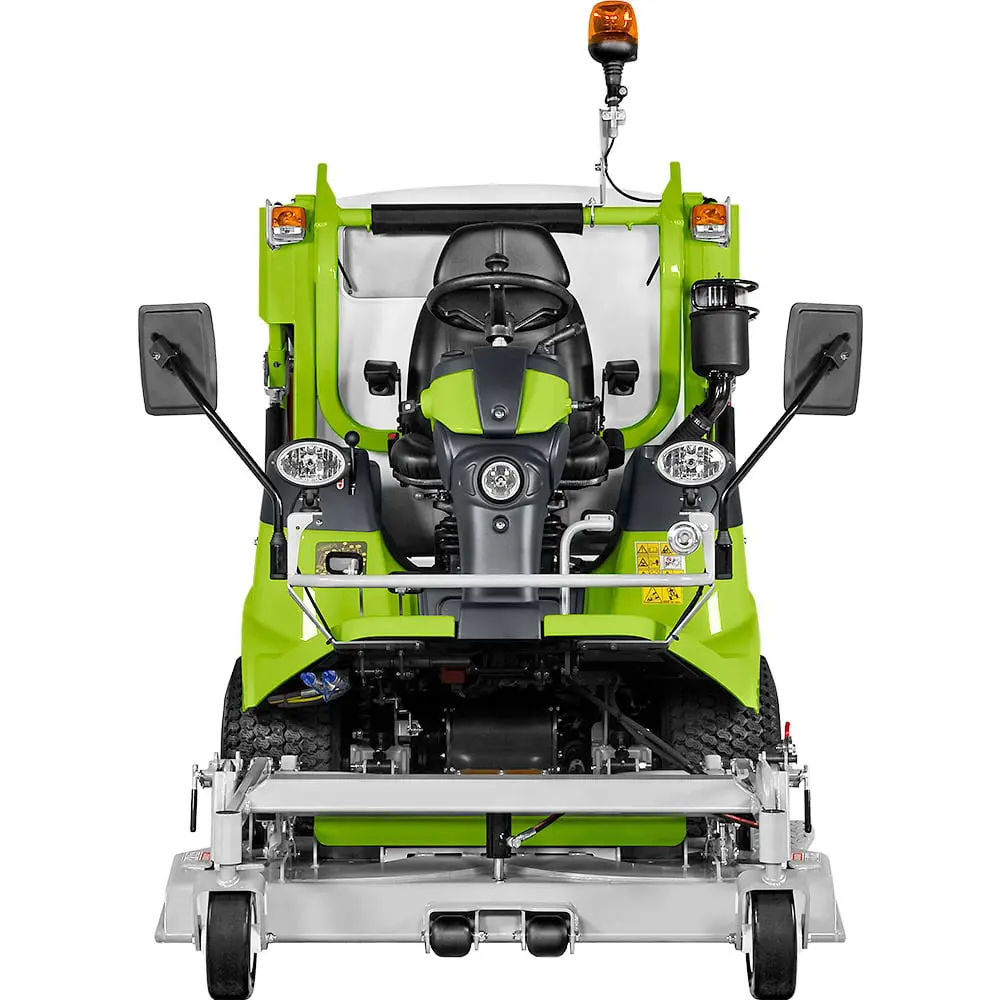

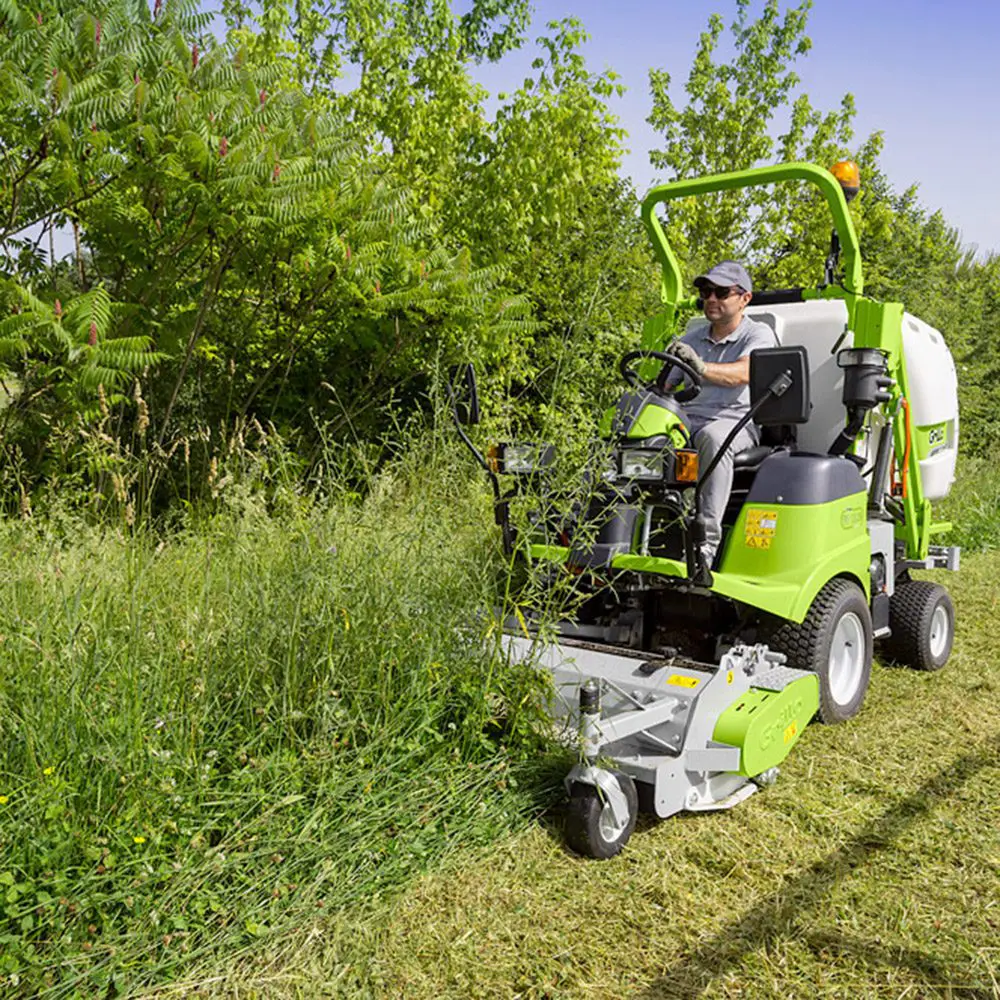

Grillo FD1309 4WD Commercial Grass-Collection Mower 132cm (52") - 900L Capacity
Model: FD1309 4WD
Grillo FD1309 4WD Commercial Grass-Collection Mower 132cm (52") - 900L Capacity
Model: FD1309 4WD

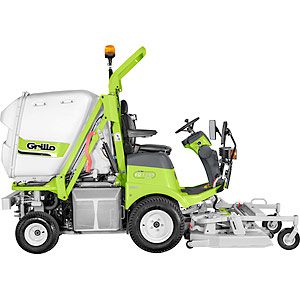

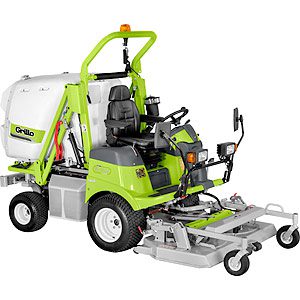

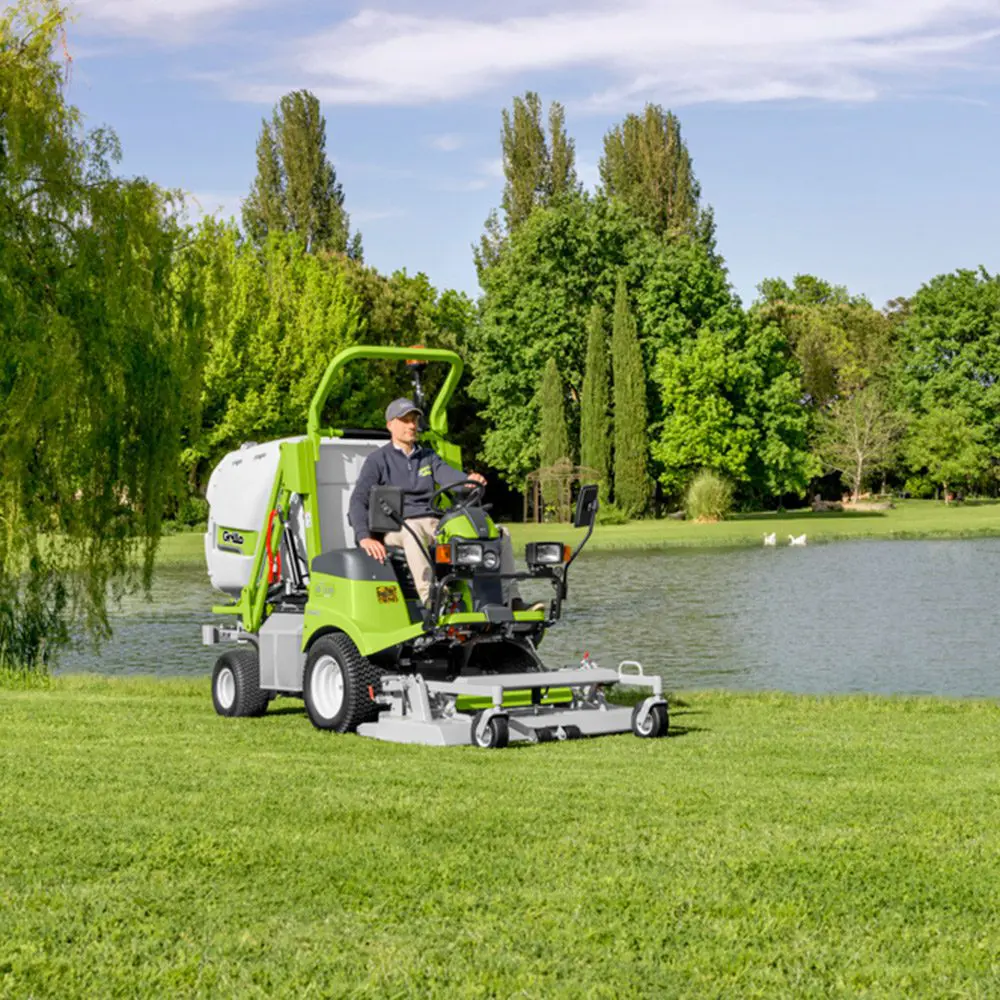

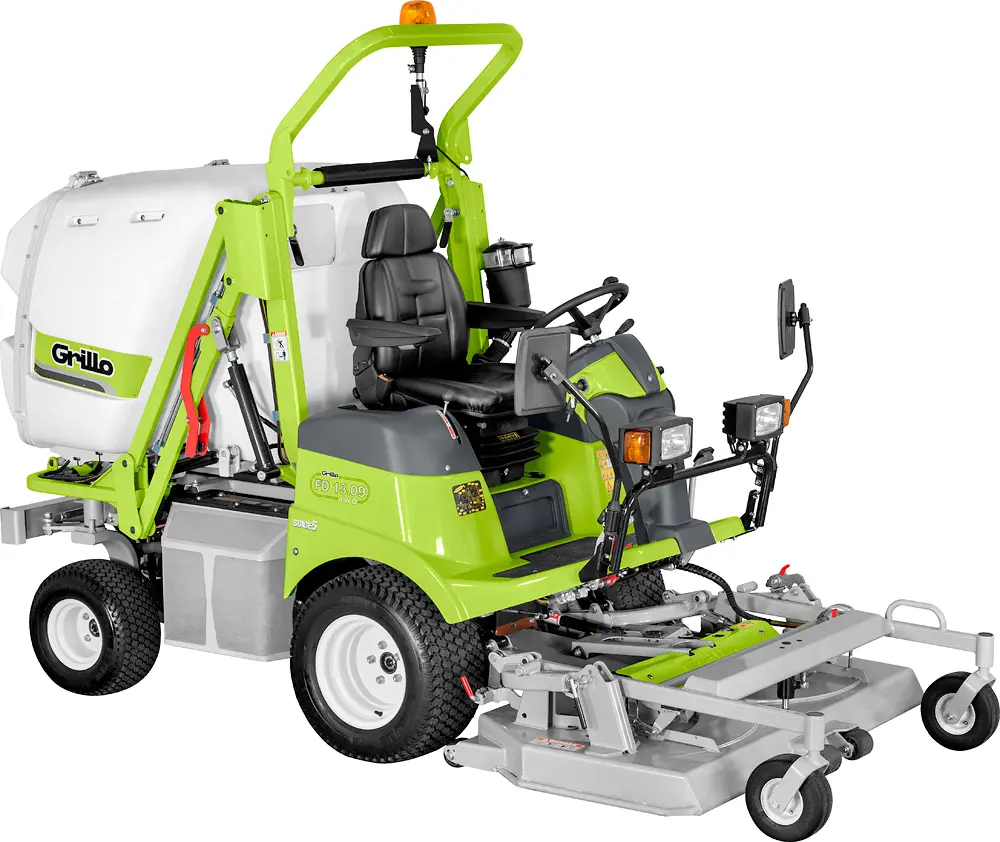

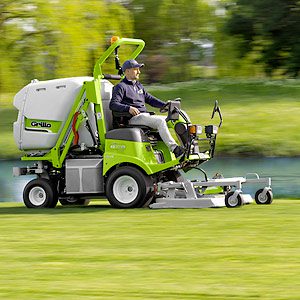

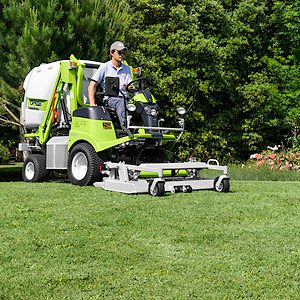

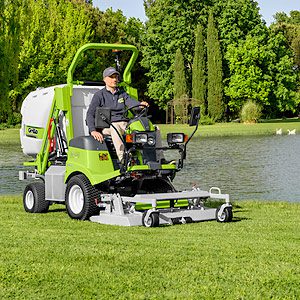

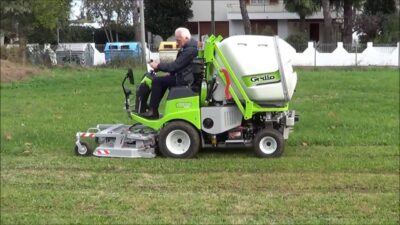

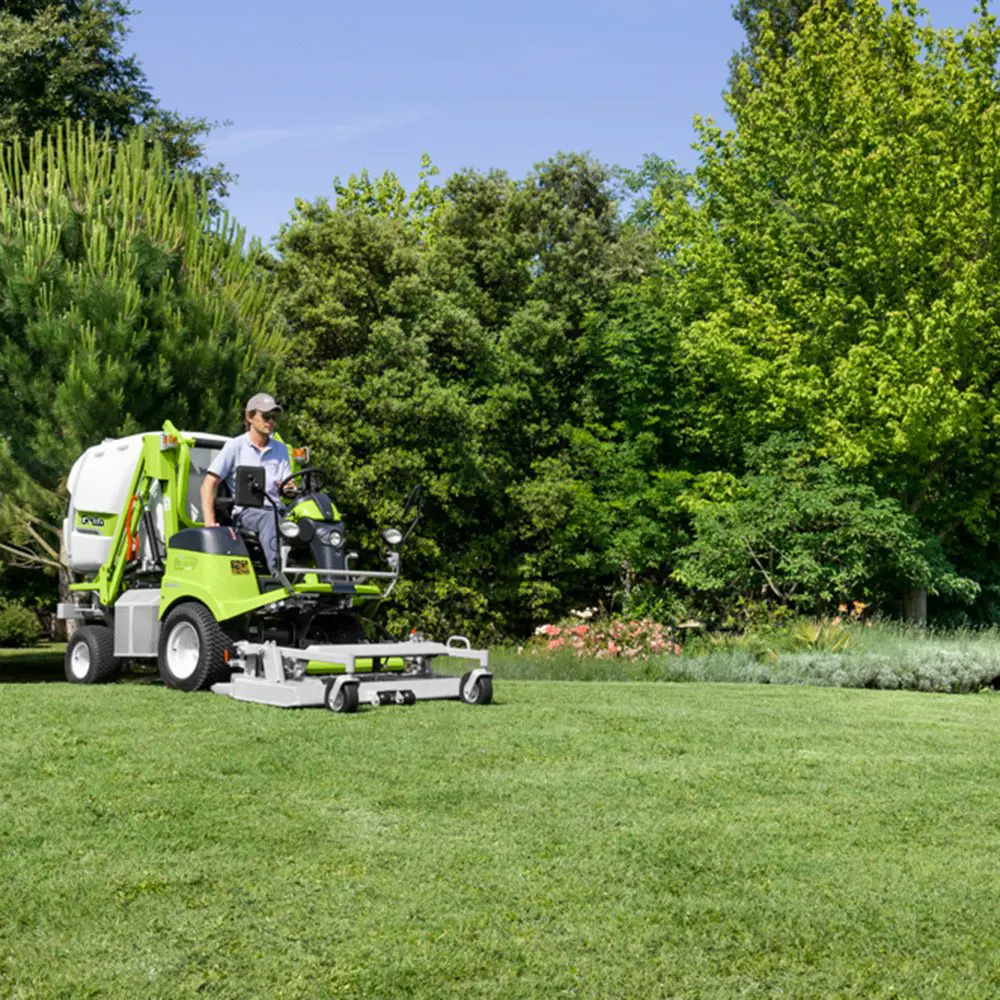

The FD 13.09 4-wheel drive hydro static mower is specially designed for cutting and collecting grass. The wide deck and grass catcher, combined with an extremely small turning radius, make it an ideal machine for maintainers. The permanent four-wheel-drive system allows you to do great work safely on all types of slopes. The FD 13.09 is unsurpassed for the maintenance of school gardens, public parks, sports facilities, campsites, riding stables, and anywhere where an attractive appearance and effective cleaning is required.
- Yanmar 31HP diesel engine

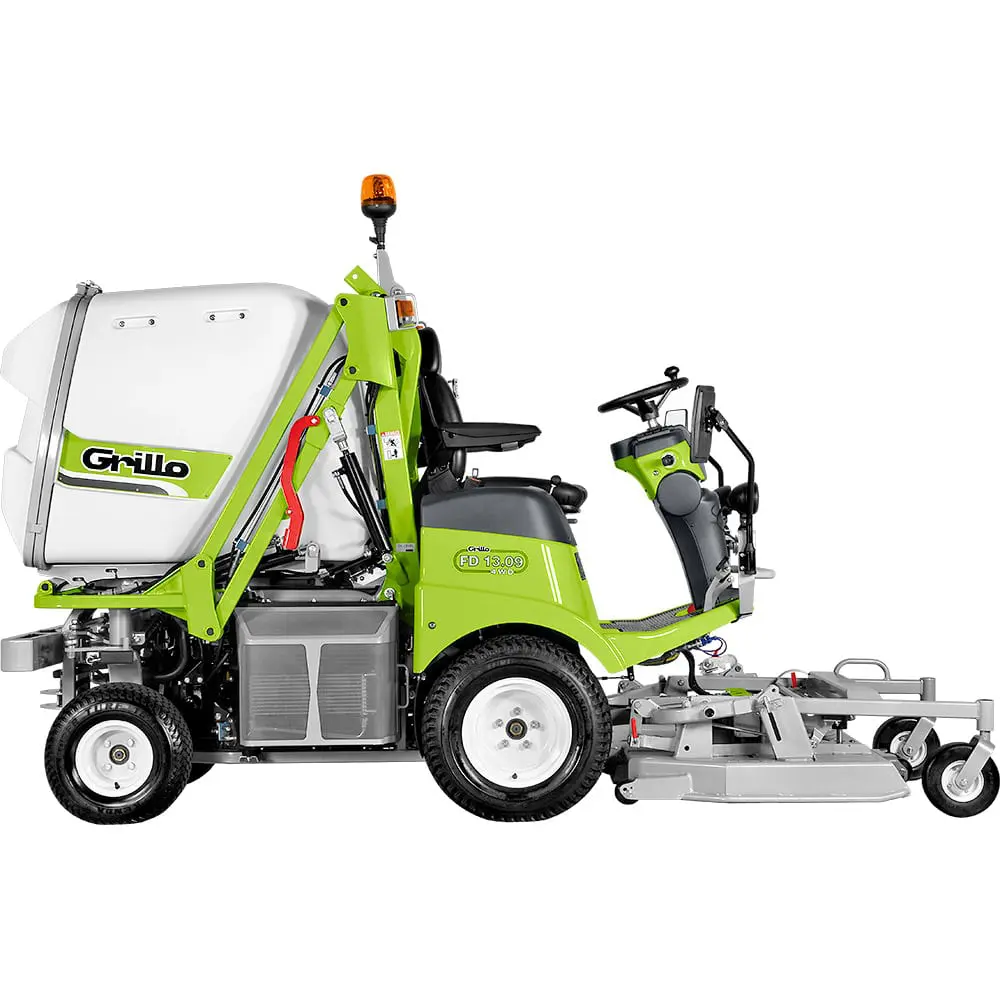

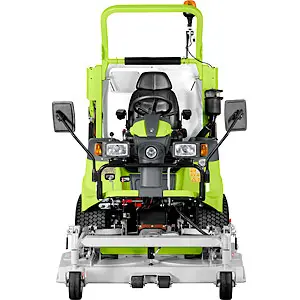

- Floating 132cm (52″) out front collection deck
- Massive 900 litre collection bin

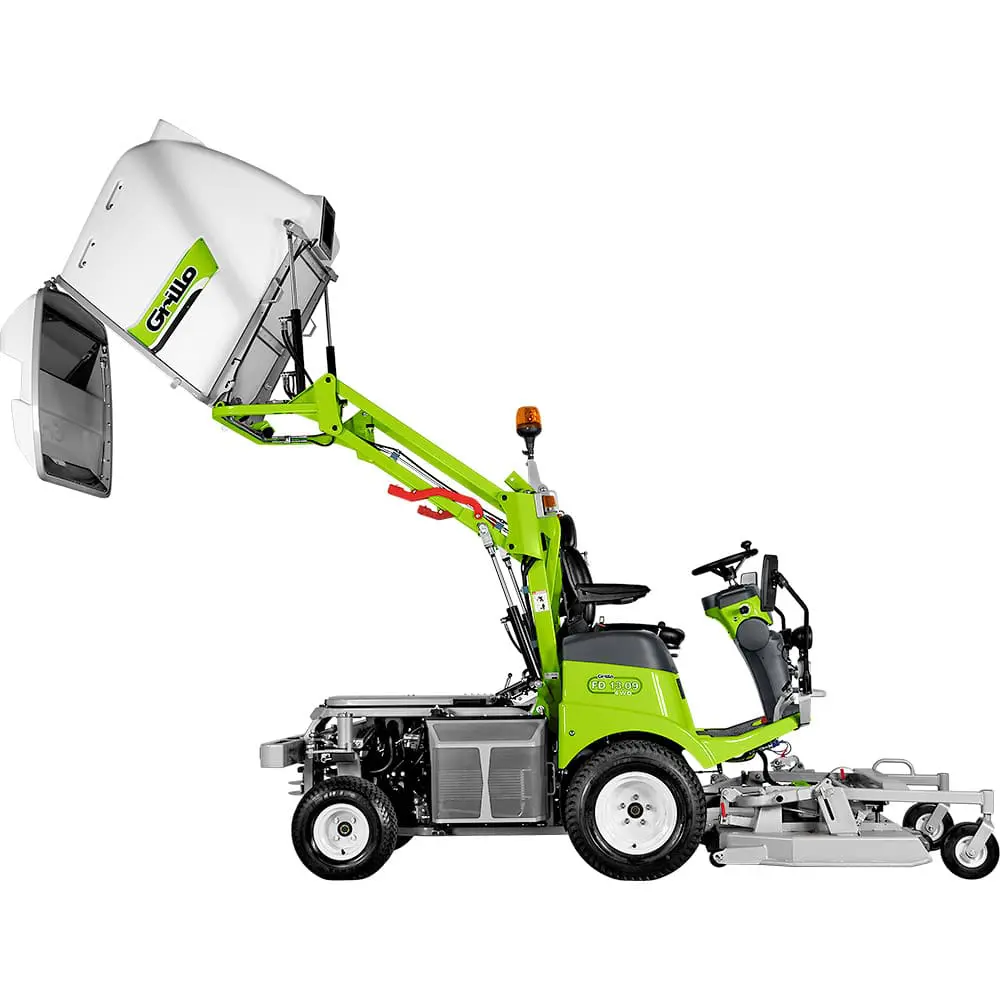

- 2.0m hydraulic hi-lift grass dump
- Excellent turning radius and agility over curbs and footpaths
- Great stability and safety.
- Additional cutting decks are available.
Quality and Durability
Grillo machines feature a double-layer electrostatic powder coating: a protective base layer followed by a high-gloss finish baked at 190°C. Each FD 13.09 4WD is meticulously assembled, tested, and inspected to ensure top quality and performance.
Efficient Grass Collection

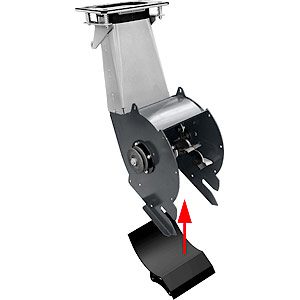

The innovative system uses a loading accelerator to transfer mechanical energy directly to the grass, reducing noise and consumption. An automatic mechanism engages the accelerator before the blades to keep the duct clean, with a flexible coupling ensuring perfect sealing.
Advanced PTO and Deck Features

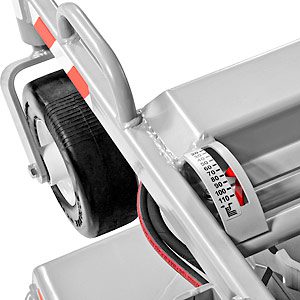

The FD 13.09 features a hydraulic multi-disc PTO clutch with a built-in blade brake, actuated via an electric button for reliability and durability. Its hydraulically floating deck maintains consistent ground pressure and adapts to undulations, while the continuous electric height adjustment allows for quick and precise adaptations to varying conditions.
Powerful and Agile

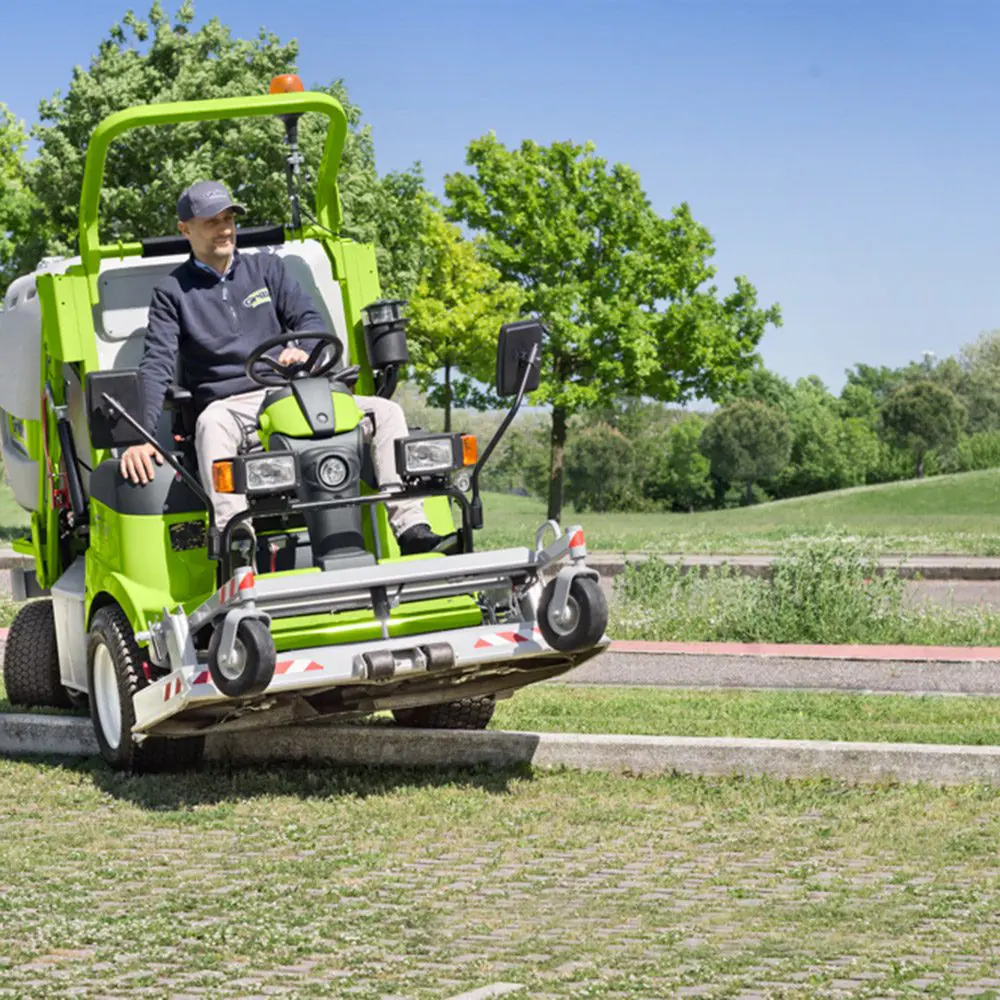

The FD 13.09 excels in high and wet grass conditions, offering impressive cutting and collecting capacity. Its 200 cm unloading height and 20 cm rear overhang make it perfect for easy unloading onto transport vehicles, while its agility and ease of handling kerbs and height differences make it ideal for maintaining flowerbeds and roundabouts.
Exceptional Maneuverability
The FD 13.09 features a compact design with a short wheelbase and hydrostatic steering, boasting a turning radius of just 31 cm. Its unique steering geometry and double articulation steering arm make it highly manoeuvrable and efficient, ideal for navigating obstacle-rich areas.
Comfort and Control
The FD 13.09 boasts a spacious, air-suspended seat with armrests and ergonomic controls, adjustable for all operators. Its quiet, centralised loading system and shock-absorbing grass duct coupling enhance comfort, making it ideal for extended use in large areas.
Versatile Cutting Decks

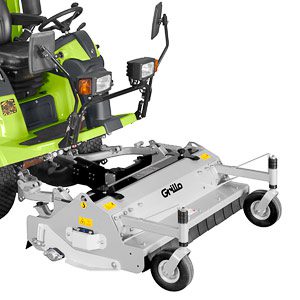

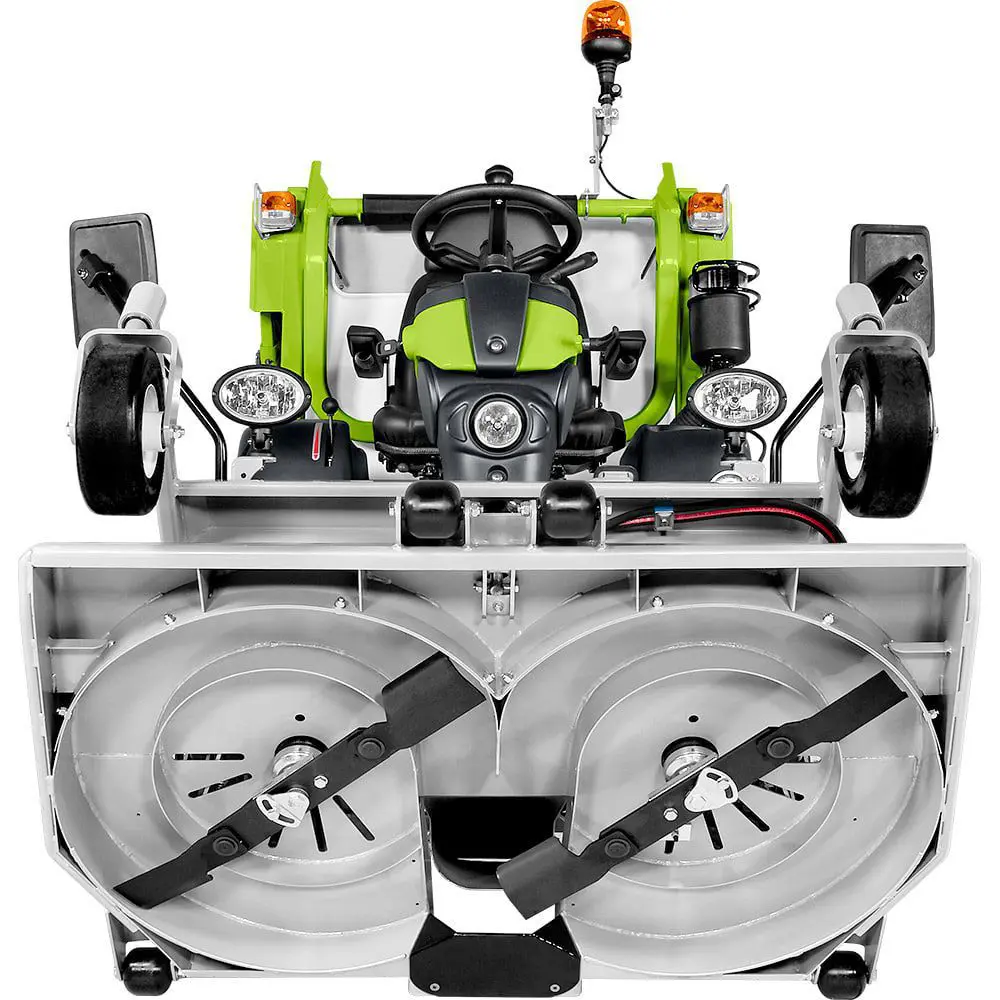

The FD 13.09 offers two front-mounted collecting plates—132 cm and 155 cm—both featuring hydraulic cutting height adjustment via an electric button from the driver’s seat. Equipped with a mulching kit as standard, the sturdy central collection and cardan shaft drive ensure efficient operation, while the automatic stopping of blades and grass catcher system prevents clogging when the catcher is full.
Advanced Differential Locking
The FD 13.09 features an innovative ADL system that automatically manages differential locking, enhancing grip and stability on slopes. This system ensures efficiency and safety in challenging conditions, while the machine’s steering geometry and hydraulic transmission minimise lawn damage and tire wear.
Powerful and Eco-Friendly Engine
The FD 13.09 is powered by a 26 HP 3TNV82A Stage 5 diesel engine, featuring direct injection and advanced cooling with an electric fan. This engine offers low emissions, efficient performance, and a top speed of 15 km/h, making it ideal for environmentally regulated areas. Its 23 L tank and permanent four-wheel drive ensure excellent stability and performance on steep slopes.
Optional Mulchers & Kits
The FD 13.09 offers two mulching options: 160 cm and 130 cm, with both supporting an optional Scarifier Kit. The 160 cm mulcher also provides the option to add a Grass Blade Kit, enhancing its versatility.
Versatile Cutting Decks

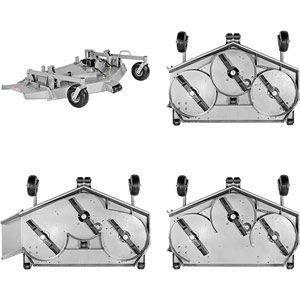

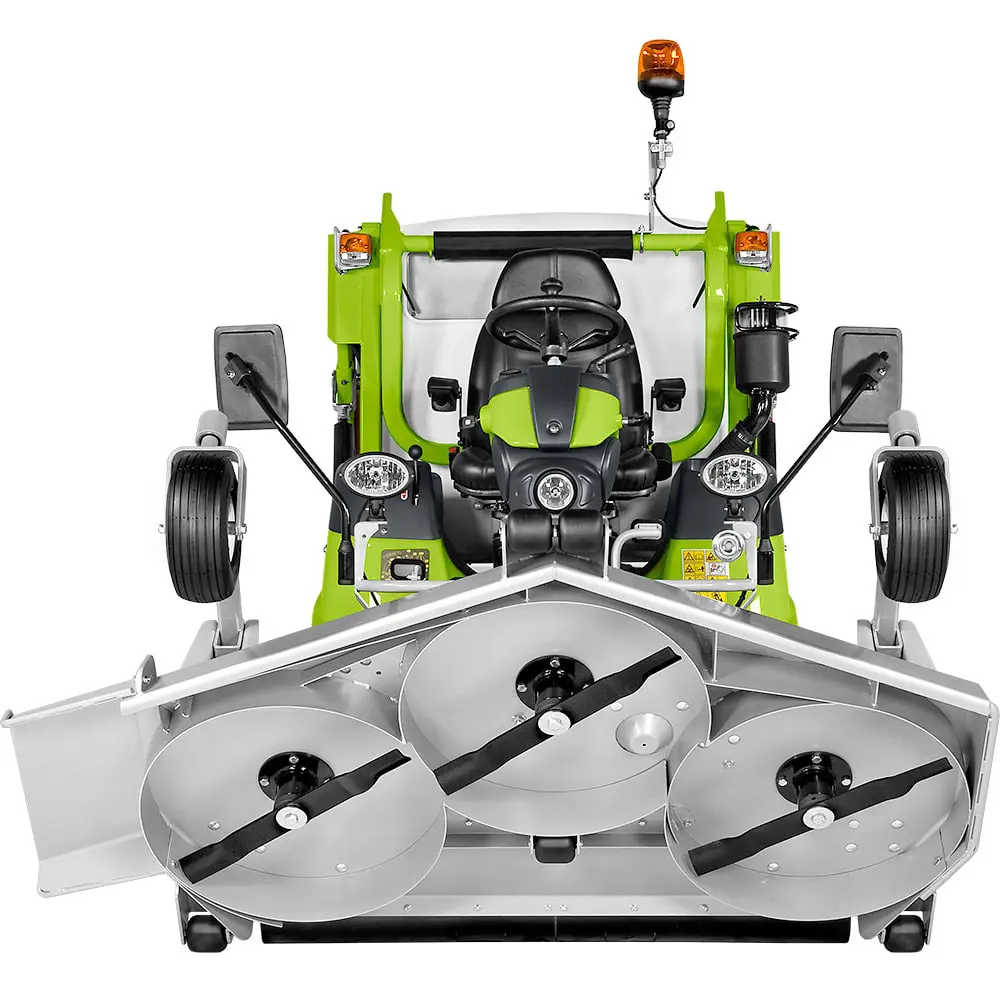

The FD 13.09’s 130 cm MP deck features mulching and rear discharge options, easily switched via an electric button. The 160 cm LMP deck offers mulching, side discharge, and rear discharge functions, with quick field adjustments for different blade types. A 150 cm snow blade is also available for year-round versatility.
Specifications
| Engine |
Yanmar 3TNV82A Stage5
Start electric, with 12 V battery
Supply diesel
Displacement 1331 cc, 3 Cylinders
Power 26 HP (18.9 kW)
Liquid cooled
Dry air filter with interchangeable filter cartridges, safety filter and prefilter |
| Fuel tank capacity |
23 L
|
| Hydraulic oil tank |
20 L
|
| Traction |
Hydraulic, 4-wheel drive (permanent drive even with a narrow turning radius)
|
| Gearbox |
Hydrostatic transmission with 4 hydraulic engines on the 4 wheels
|
| Clutch |
Clutch: hydraulic for PTO
|
| Cutter deck |
Cutting deck with collection and mulching kit
|
| Cutting deck width |
141 cm
|
| Cutting width |
132 cm
|
| Cutting height |
From 2 to 10 cm, continuously adjustable through hydraulic. |
| Grass collector capacity |
900 L
|
| Grass catcher charging system |
Load accelerator (Ø 350 mm) with floating blades, belt transmission and independent magnetic clutch. Motorised baffle providing full and even grass catcher filling.
|
| Grass collector discharging system |
Automatic opening for grass-catcher hydraulic discharge
|
| Maximal discharging height |
200 cm
|
| Rear projection |
20 cm
|
| Differential locking |
Automatic differential lock and manual with push button
|
| Front tyres |
23x10.50-12 TURF WHEELS
|
| Rear tyres |
18x8.50-8 TURF WHEELS
|
| Steering system |
Hydraulic drive with steering wheel
|
| Speed |
From 0 to 15 km/h continuously variable
|
| Inner turning radius |
31 cm
|
| Seat |
Super comfort and adjustable sprung seat with arm-rests.
|
| Service brake |
Drum brake
|
| Parking brake |
Drum brake
|
| Mowing capacity per hour (indicative) |
12000 m²/h
|
| Standard features |
Automatic disengagement of blades and load accelerator when the grass catcher is full. Hydraulic cutting deck lifting and grass catcher discharge. Mulching kit for 132 cm cutting deck. Lights and indicator kit.
|
| Length |
325 cm
|
| Width |
141 cm
|
| Height |
175 cm
|
| Distance between axles |
123 cm
|
| Clear span from the ground |
15 cm
|
| Weight |
1040 kg without cutting deck; 1230 kg with cutting deck
|
