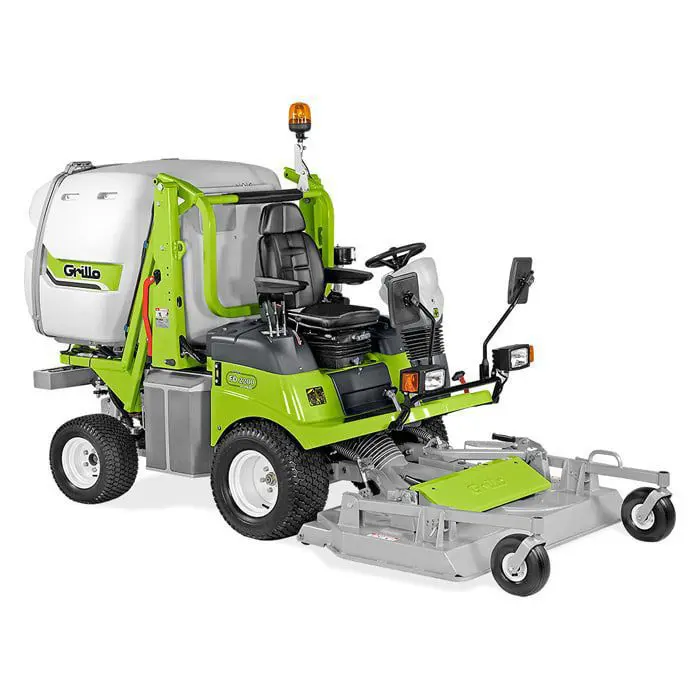

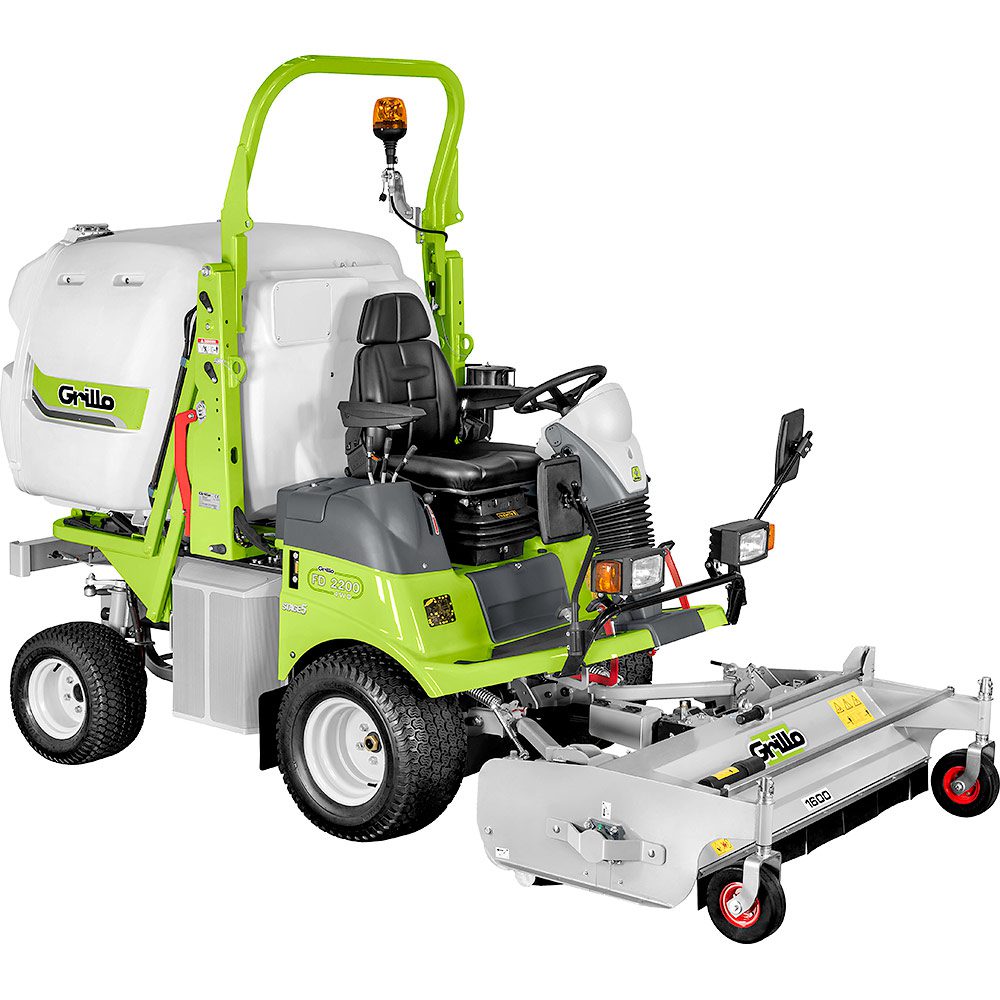

Grillo FD2200 4WD Commercial Grass-Collection Mower 155cm (61") - 1200L Capacity
Model: 8RR7CAG
Grillo FD2200 4WD Commercial Grass-Collection Mower 155cm (61") - 1200L Capacity
Model: 8RR7CAG

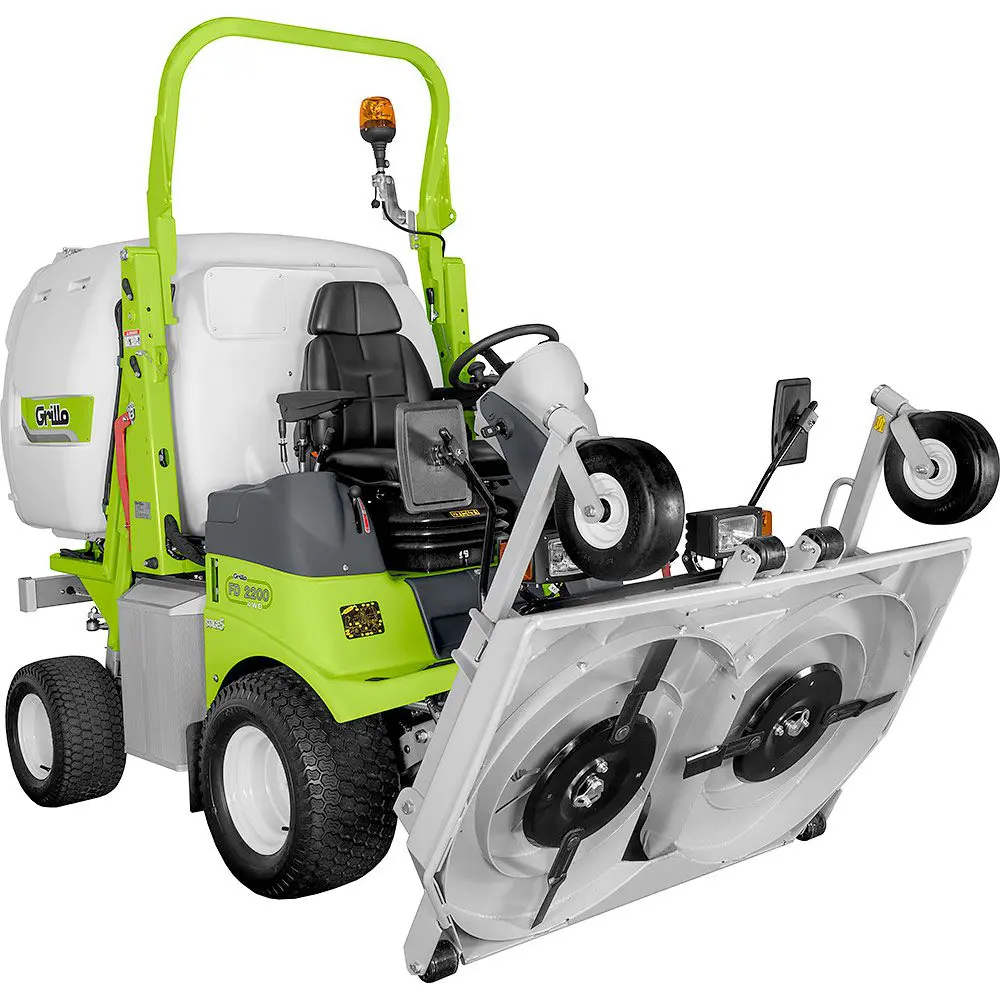

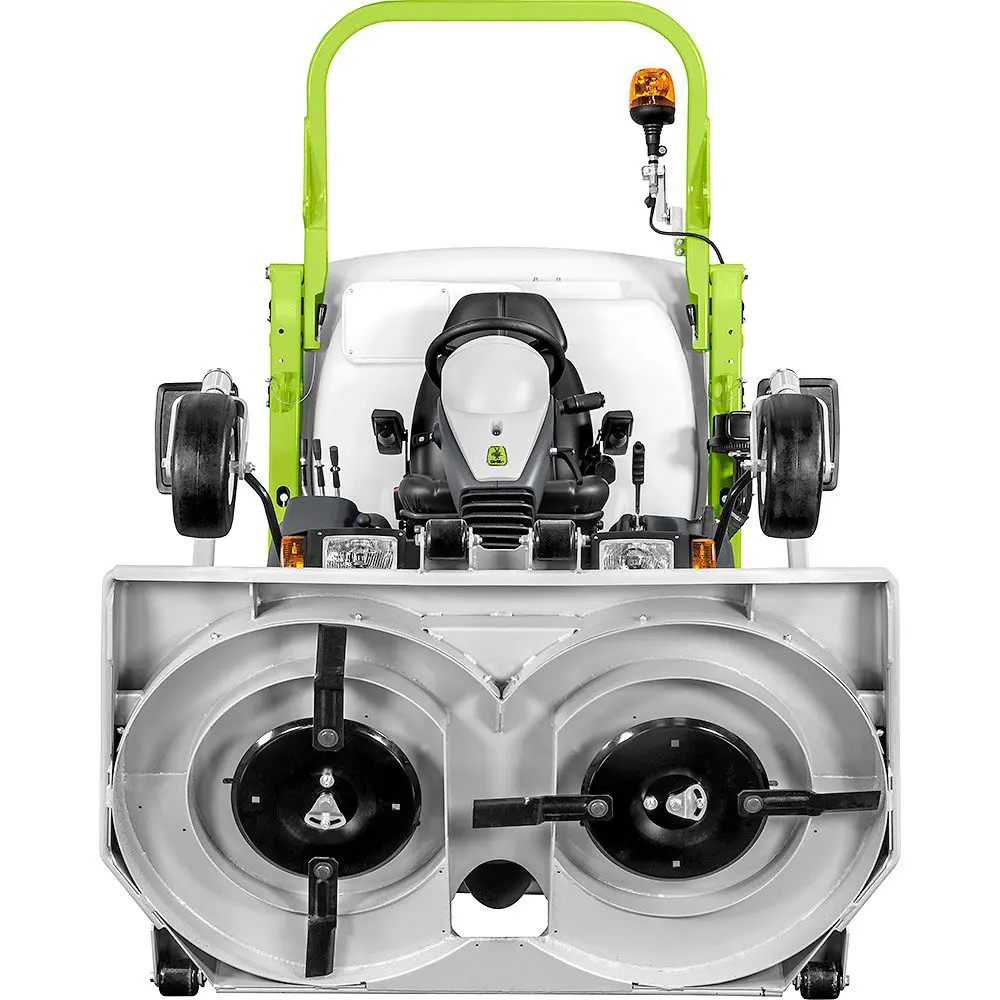

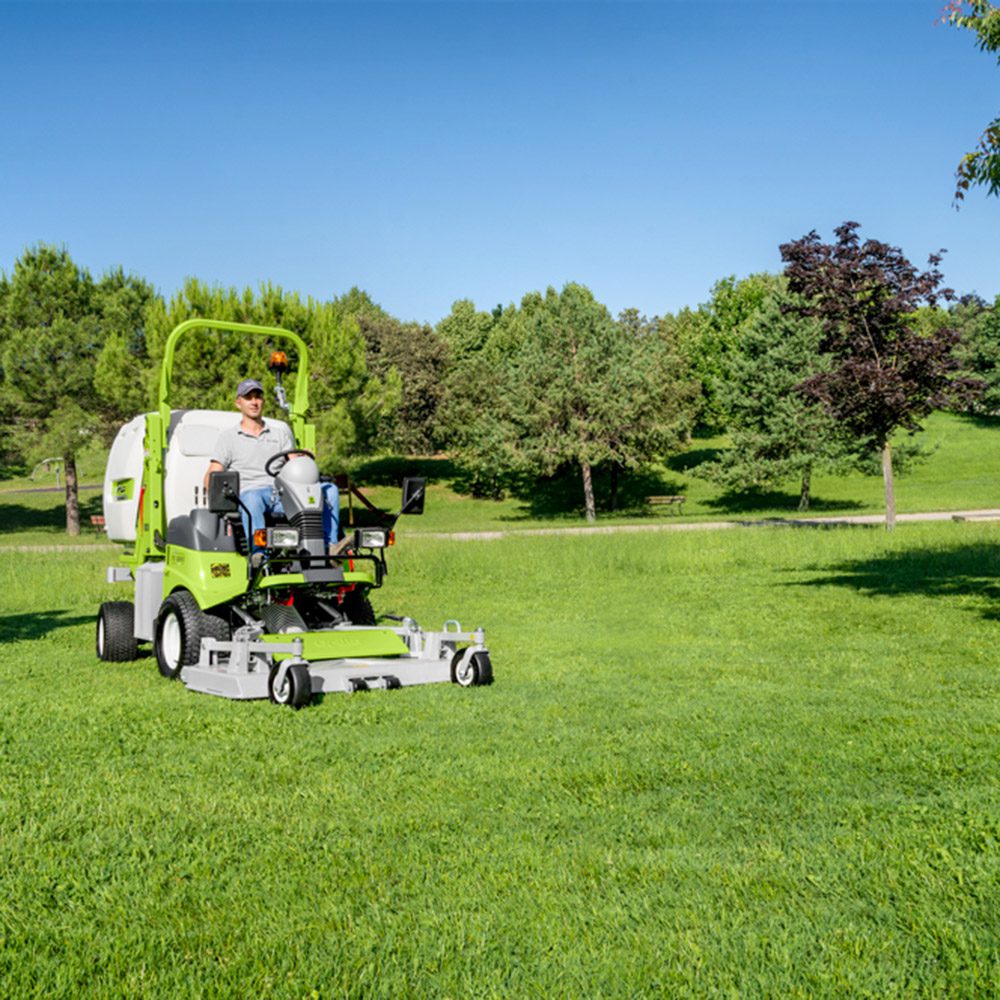

The FD2200’s front cutter deck ensures excellent visibility for the operator when using the machine. The floating cutting deck gives a regular and precise cut, even on undulating or sloped ground. The machines cutting quality and collection are extraordinary across a range of mowing conditions. The 155 cm deck cuts grass using two counter-rotating blades with floating shock-resistant ends, these are mounted on disks to prevent damage from unseen debris. For further protection, the cutter deck is also fitted with small anti-scalp wheels, whilst the cutting deck’s front wheels are puncture-proof treated.
The FD 2200 is the perfect option for facilities seeking high productivity grass collection equipment to service large sites. Green maintenance operators requiring a high-quality cut will appreciate the features of this advanced commercial-grade grass collection mower:
- Advanced technology and performance
- Professional hydrostatic lawn-mower with grass collection
- Permanent 4-wheel-drive
- Out-front 155 cm cutting deck
- Large capacity grass catcher (capacity of 1200L; tip to 210cm height)
- 44 HP diesel engine and powerful hydraulic load turbine
- 62cm turning radius
- Exceptionally stable on sloping ground.

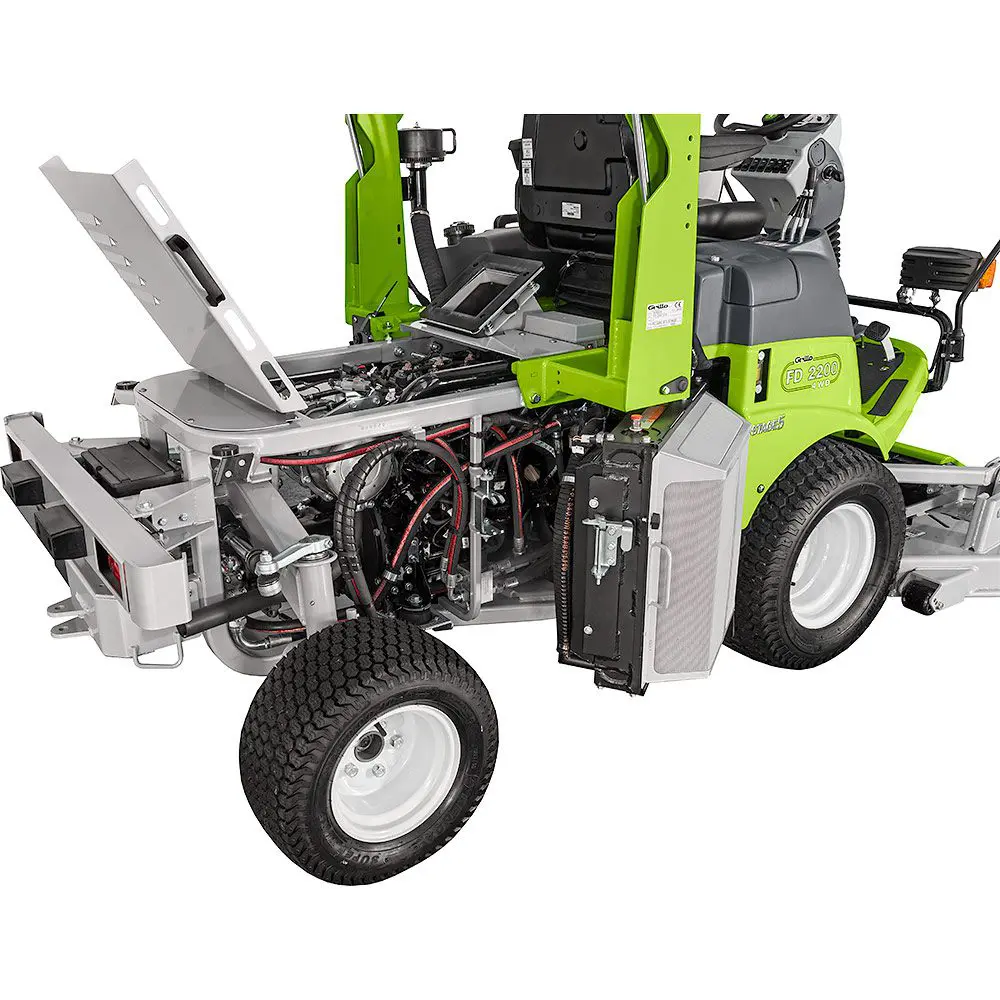

Powerful Yanmar Engine
The engine is the latest-generation, powerful and reliable, has low pollutant emissions and meets international STAGE 5 standards.

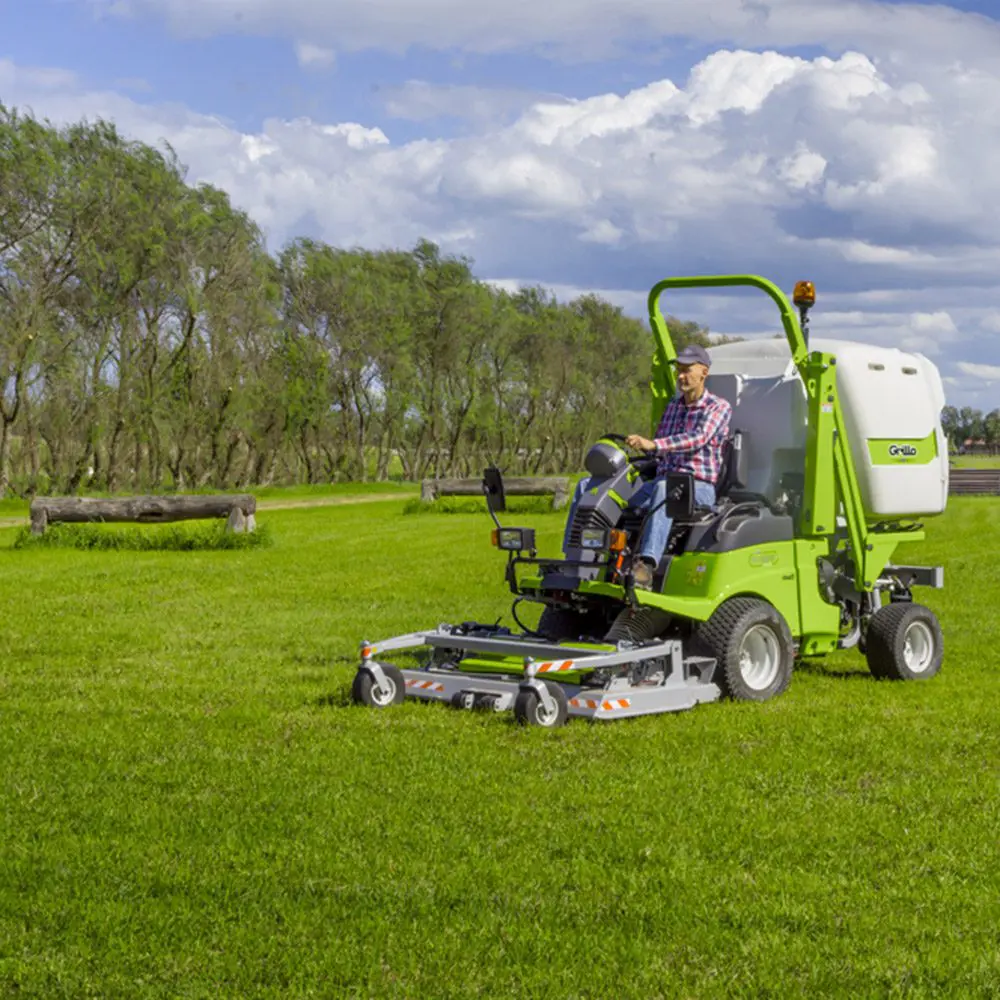

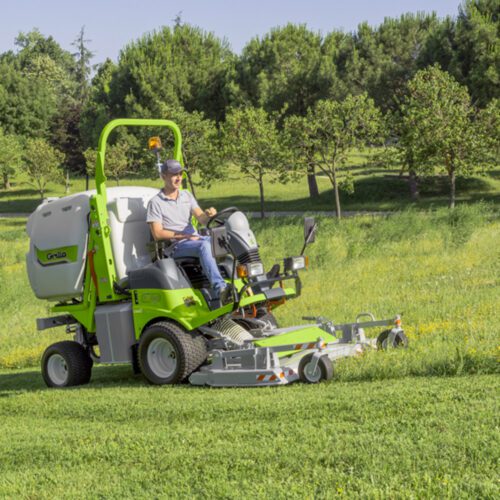

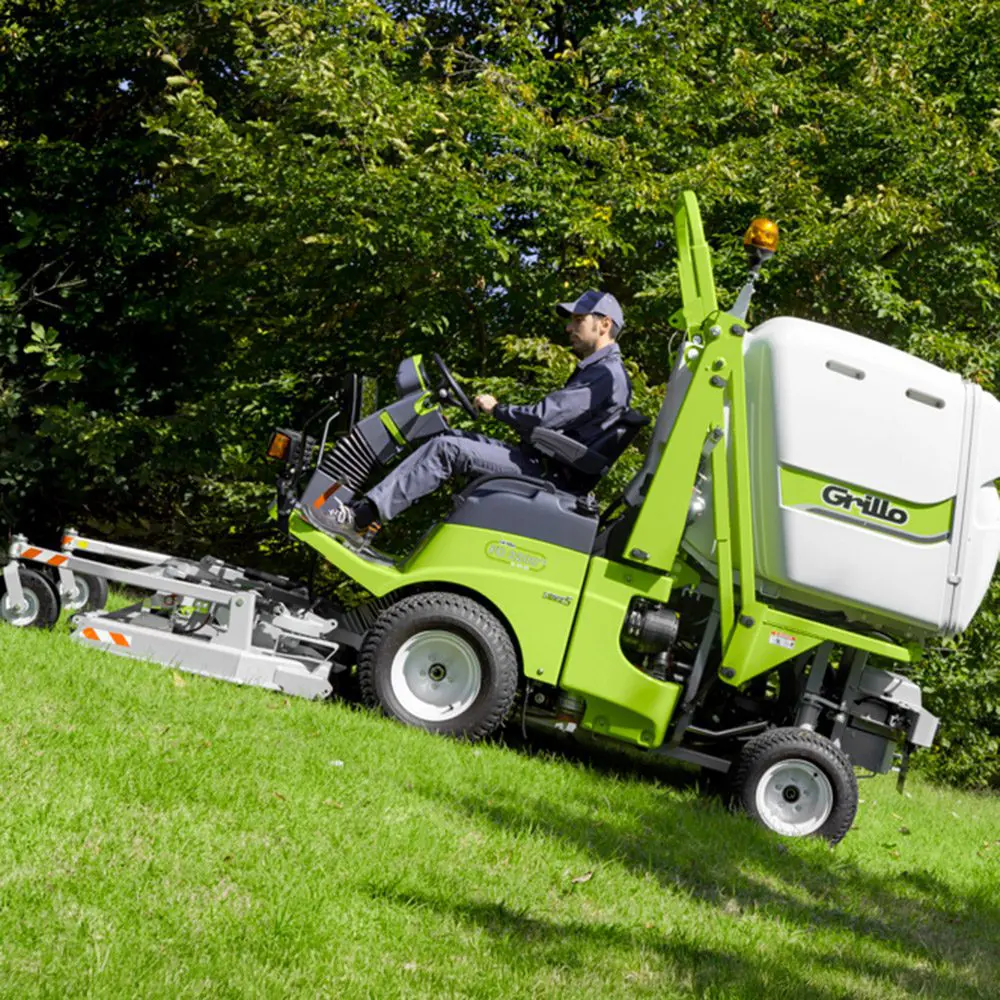

Suitable for moderate slopes
Even with those slopes in park settings, the FD2200 still delivers.
Great maneuverability
Shifting from site to site has never been easier.

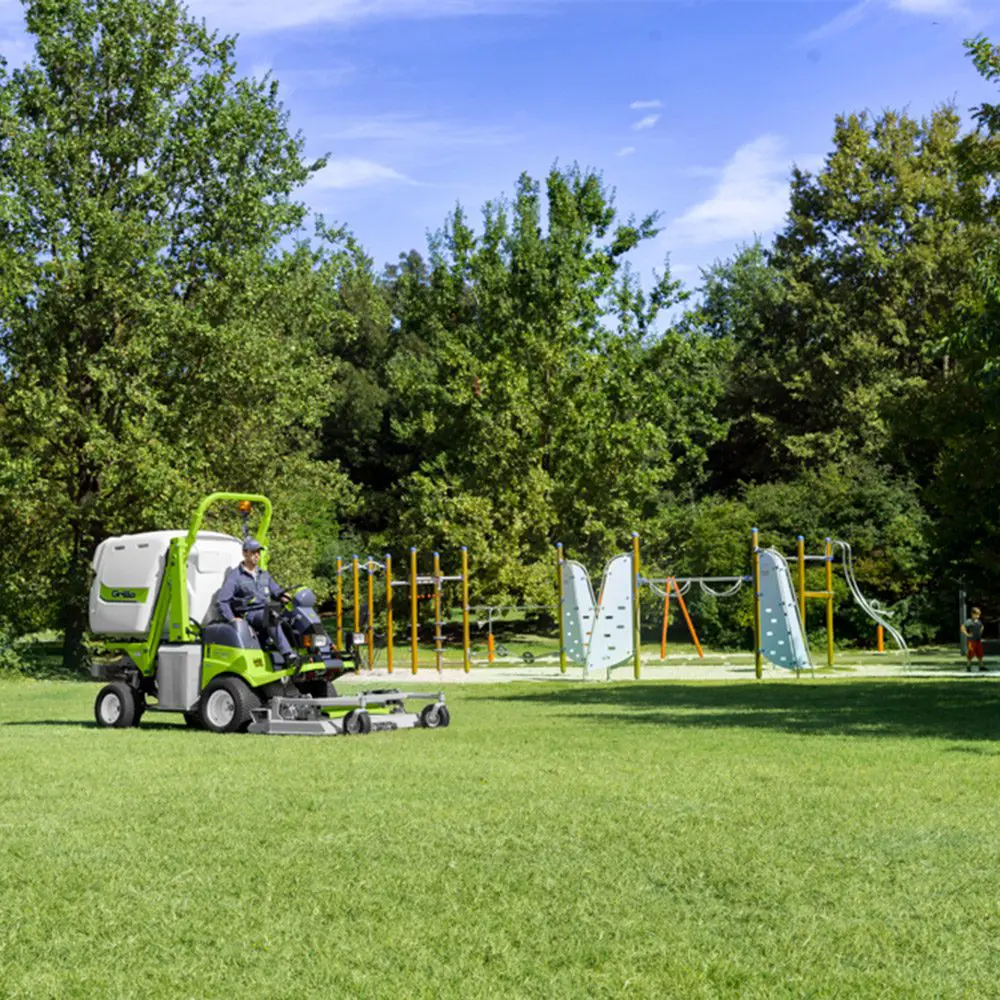

Made for teams
The FD2200 works perfectly for team or large scale scenarios.
Specifications
| Engine |
Yanmar 3TNV88C Stage5
Start electric, with 12 V battery
Supply diesel
Displacement 1642 cc, 3 Cylinders
Power 37 HP (27.5 kW)
Liquid cooled with electric impeller and equipped with automatic radiator cleaning device
Dry air filter with interchangeable filter cartridges, safety filter and prefilter |
| Fuel tank capacity |
50 L
|
| Hydraulic oil tank |
25 L
|
| Traction |
Hydraulic, 4 wheel drive (permanent even with narrow turning radius)
|
| Gearbox |
Hydrostatic transmission with hydraulic motors on the 4 wheels
|
| Clutch |
Hydraulic with electric control activated through PTO with blade brake
|
| Cutting height |
Adjustable at 25 - 35 - 50 - 60 - 75 - 85 - 95 - 110 mm
|
| Grass collector capacity |
1200 L
|
| Grass catcher charging system |
Charging turbine, 400 mm diameter, equipped with a hydraulic engine as well as a safety valve in order to avoid accidental damages. Independent activation from the cutting deck. Grass catcher equipped with motorised baffle inside the for even filling.
|
| Grass collector discharging system |

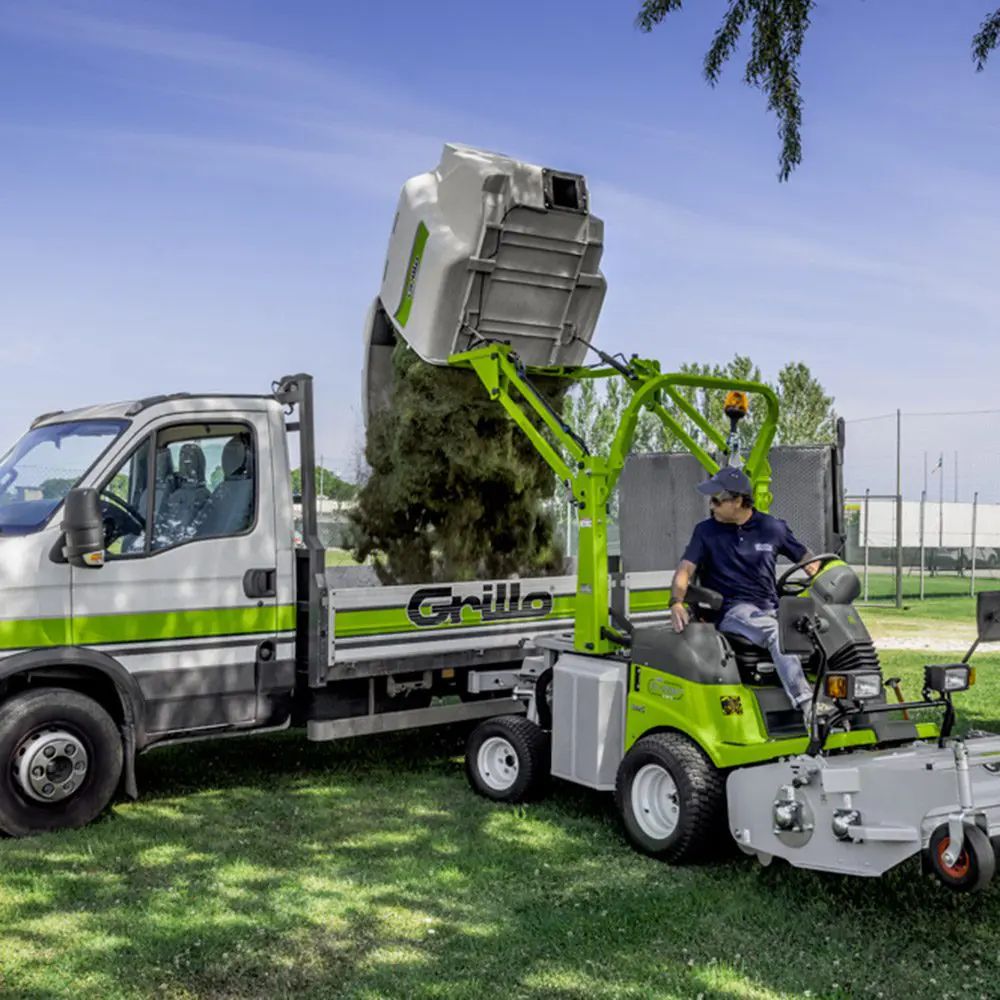

Hydraulic grass catcher emptying with automatic opening
|
| Maximal discharging height |
230 cm
|
| Rear projection |
30 cm
|
| Differential locking |
Self-engaging and manual by pushing the button
|
| Front tyres |
Turf 24x12.00-12
|
| Rear tyres |
Turf 20x10.00-10
|
| Steering system |
Hydro-steer
|
| Speed |
Continuously variable from 0 to 20 km/h
|
| Inner turning radius |
62 cm
|
| Seat |
Comfortable seat equipped with springs with arm-rests and adjustable
|
| Mowing capacity per hour (indicative) |
15500 m^2/h
|
| Standard features |
Automatic disengagement of blades and turbine when the grass catcher is full. Hydraulic cutting deck lifting and emptying. Lights and indicator kit
|
| Length |
261 cm without cutting deck - 347 cm with cutting deck [cod. 9L9611]
|
| Width |
138 cm without cutting deck - 162 cm with cutting deck [cod. 9L9611]
|
| Height |
183 cm with the roll bar let down – 243 cm with roll bar or cabin
|
| Distance between axles |
126 cm
|
| Clear span from the ground |
16 cm
|
| Weight |
1270 kg without cutting deck - 1490 kg with cutting deck [cod. 9M6711] |
