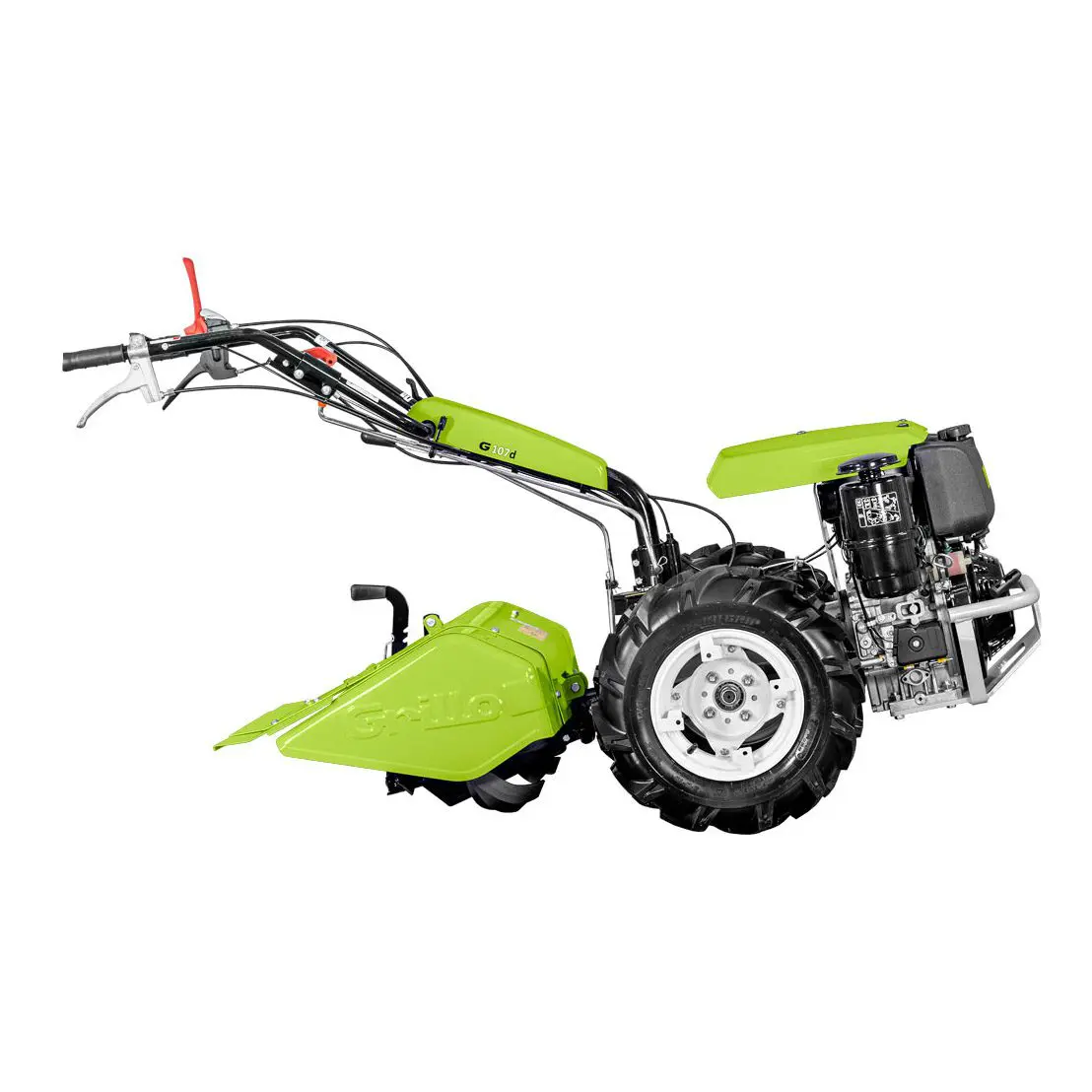

Grillo G107d Walk Behind Tractor with 68cm Tiller

Model: 83RAM
Grillo
SALE!
Sale!

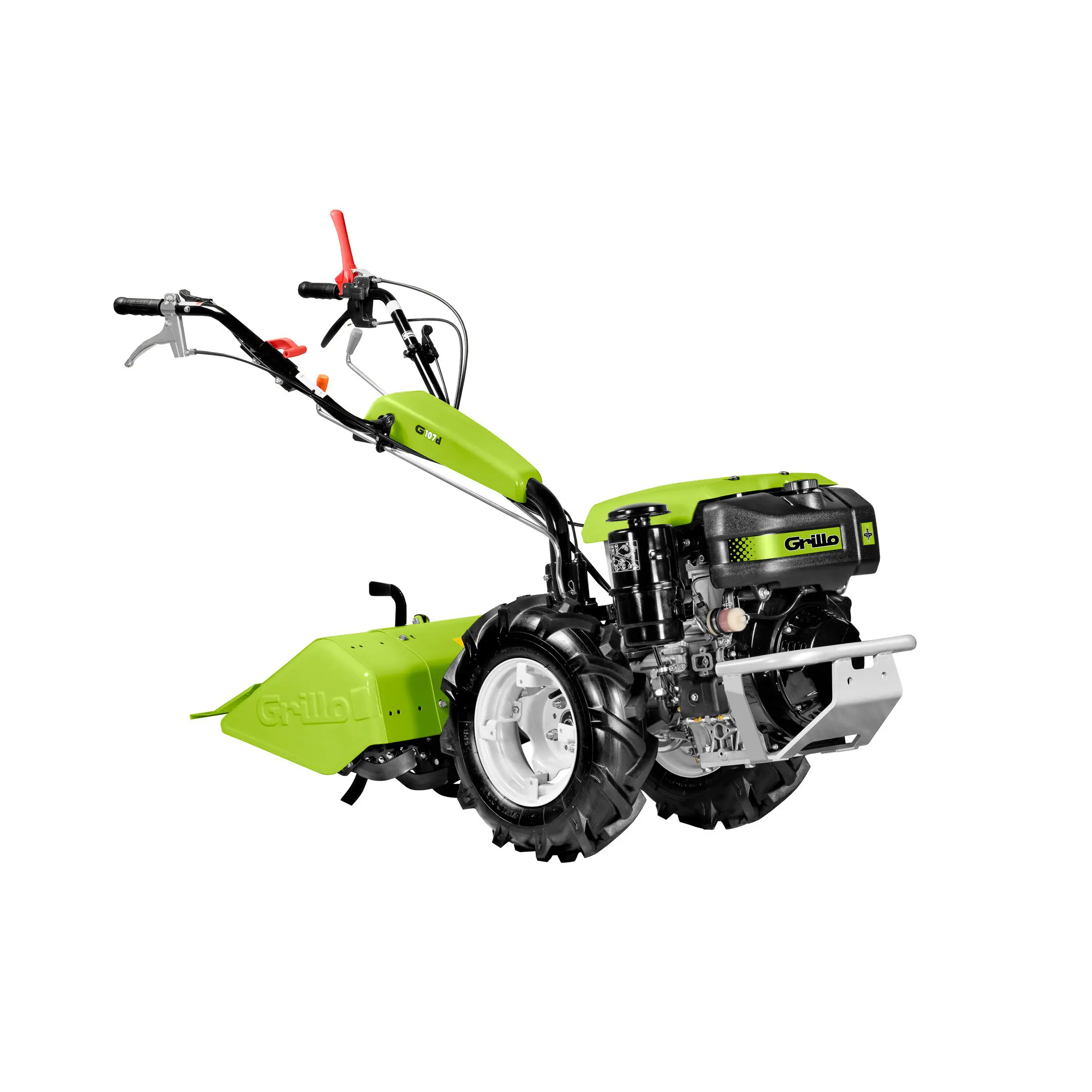

Grillo G107d Walk Behind Tractor with 68cm Tiller

Model: 83RAM
Grillo

The G107D is one of the more powerful models in the Grillo range of two wheel tractors. G107d was designed for commercial use and more demanding applications that require heavy use or more power. This model takes a larger range of accessories and the 11.0HP diesel version powers bigger attachments, while the differential locking gives it superior traction.

  • Heavy duty professional all gear drive
  • Handles adjustable in height and from side to side
  • Both the petrol and diesel models of G107d have recoil start engines

Applications include use in Market Gardens, Landscaping, Organic Farming and Poultry Litter Management. Optional attachments Include:

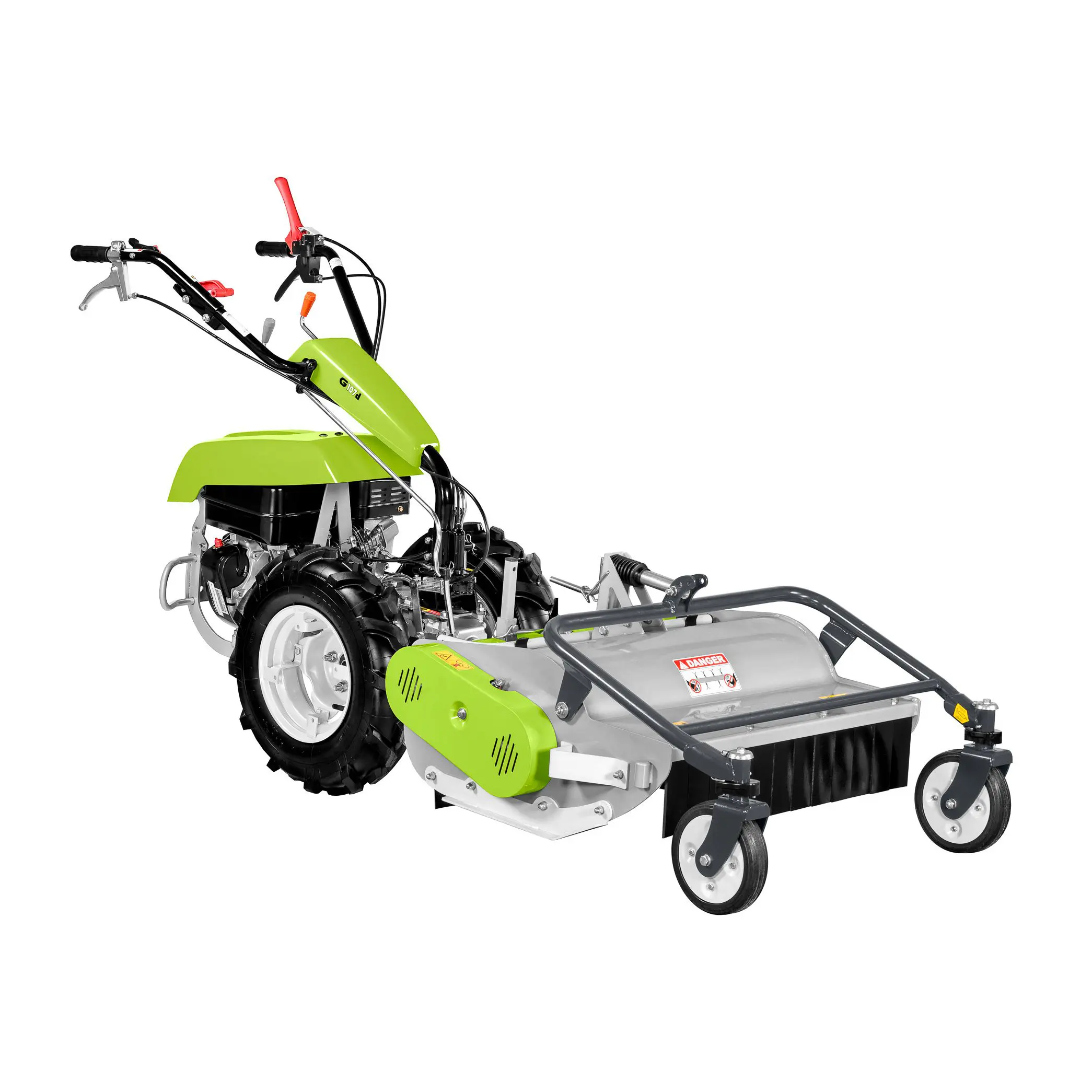

  • 75cm Rotary Mower with blade brake
  • Tiller adjustable from 37 cm to 58cm to 68cm
  • Rotary tiller support wheel option
  • 115cm Sickle Bar option
  • 117cm Double Bladed Sickle Bar option (no vibrations)
  • Furrower for behind tiller option
  • Adjustable furrower* option
  • 30cm Berta rotating Plough
  • 3 Fwd and 3 Rev gears
  • Optional tine extension kit expands cutting width to 77 cm

Includes 900412 5.00-10 Wheels and 98411 68cm Tiller

*Some attachments need an additional mounting frame. Larger tractor wheels and wheel weights are suggested

Price range: $6,214 through $8,505 incl. gst
or $ per week*
*Based on $1,243 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.
Enquire

Features

Powerful and Versatile

The G107D is one of the most powerful two-wheel tractors in the Grillo range, built for commercial and heavy-duty use. With an 11.0HP diesel engine, it handles bigger attachments effortlessly, offering exceptional power and versatility.

Precision and Control

Adjustable handles make operation easy and ergonomic, with height and side-to-side adjustments for any user. The differential lock provides superior traction, making it perfect for tough applications like landscaping and organic farming.

Wide Range of Attachments

The G107D supports a variety of professional-grade accessories, including a 75cm rotary mower and a tiller adjustable from 37 to 68cm. With the option to add a 30cm rotating plough or 117cm double-bladed sickle bar, it meets any demand.

Durability and Efficiency

Equipped with a heavy-duty, all-gear drive, the G107D is designed to withstand heavy commercial use. Available in petrol and diesel models, both versions offer recoil start engines, ensuring reliable operation in any environment.

Specifications

Engine Kohler KD15 440
Start recoil starter and electric with 12V battery
Supply diesel
Displacement 441 cc, 1 Cylinder
Power 11 HP (8.1 kW)
Air cooled
Oil bath air filter
Engine Kohler KD15 440
Start recoil starter
Supply diesel
Displacement 441 cc, 1 Cylinder
Power 11 HP (8.1 kW)
Air cooled
Oil bath air filter
Engine Honda GX270 OHV
Start recoil starter
Supply fuel
Displacement 270 cc, 1 Cylinder
Power 8.4 HP (6.3 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 5.3 L eng. GX270 - 5.4 L eng. R300D - 6.1 L eng. G300FA - 5.0 L eng. KD15 440
Transmission With oil bath gears
Gearbox With clutch engagement. The walking tractor version has 3 forward gears + 3 reverse gears. The sickle bar version has 3 forward gears + 3 reverse gears
Reverse gear unit Inverter: rapid type with lever
Clutch Conic active
Standard rotary tiller Adjustable rotary tiller with x 4 tines, includes extension kits. Working width 680 mm
Hoes system diametre 32 cm
Working width Adjustable at 680, 470 at 370 mm
Working depth 16 cm
Item no. standard rotary tiller 984611
P.T.O. 965 rpm independent of the gearbox. Clockwise rotation for the walking tractor version, anticlockwise rotation for the sickle bar version.
Differential locking Differential with locking device by lever on the handlebar
Available tyres Pneumatic wheels Tractor 4.00-8 (fixed disks), 4.00-10 (adjustable disks) and 5.00-10 (adjustable disks). Pneumatic wheels Tractor 5.00-12 (adjustable disks) for plough kit. Wheels made of iron having diameter 40 x 10 cm. Pneumatic Turf wheels 20x10.00-8 (extensions cod. 937112 needed)
Speed With 5.00-10 wheels 1st gear 1,3 km/h, 2nd gear 3,1 km/h, 3rd gear 3,6 km/h
Service brake Brake drum (kit upon request cod. 978111)
Handlebar Height and side adjustment, reversible
Safety devices Active clutch, reverse speed – PTO cut-out
Weight Standard version 136 kg
