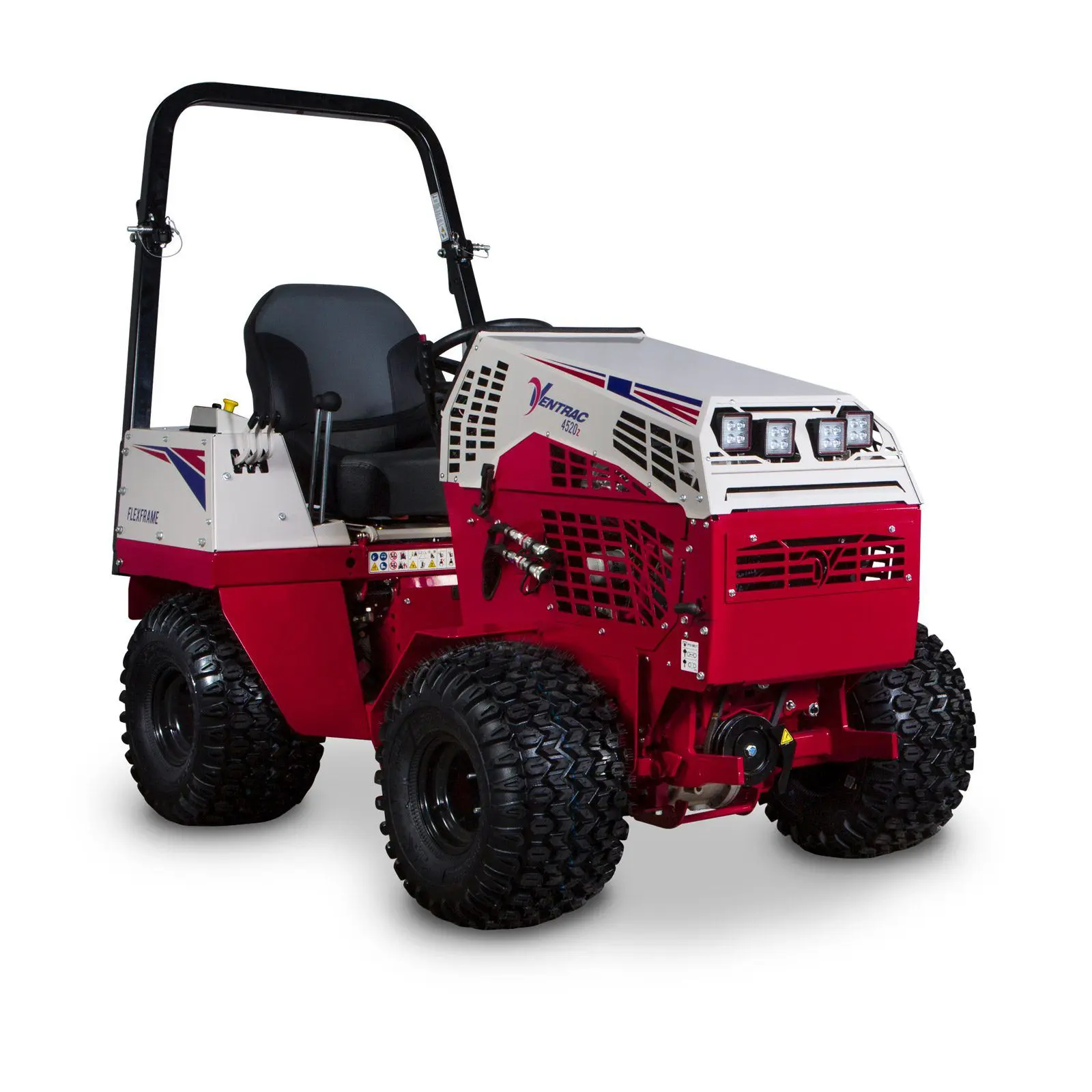

Ventrac 4520P Petrol Multi-Purpose Tractor

Model: 4520P

Ventrac 4520P Petrol Multi-Purpose Tractor

Model: 4520P

Made for Slopes!

Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the new 4520 tractor.

At its core, the 4520 is a compact tractor, but it is very different than what most are used to seeing and that is a great thing. The purpose of a tractor is to perform tasks more efficiently, with better results than hand labor. The Ventrac 4520 plays on these advantages, then takes it to the next level. When coupled with the extensive line of Ventrac attachments, this tractor is a great machine for a variety of professional users.

*Pricing on models shown do not include additional accessories or parts. The images shown are for illustration purposes only and may not be an exact representation of the model.

$65,300 incl. gst

or $ per week*

Calculate Finance

*Based on $13,060 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.

3 in stock

Talk to a rep Find a Store

Videos

Ventrac Warranty

V-Plus Warranty

2-Year Commercial Limited Warranty*

All new Ventrac tractors and attachments purchased in the New Zealand are covered by Ventrac’s V-Plus Warranty, so you can purchase with confidence!

Designed For Slopes

Exceeds ANSI B71.4 Stability Testing

Flex Frame
Weight Transfer
Dual Wheels
Low Center of Gravity
Floating Attachment
Performance Engineered Tires
Optional Slope Gauge

Slope Mowing Benefits

Slope Benefits for sloipe mowing up to 30 degrees

Features

Up to 30 Degrees Ventrac

Made for Slopes

Ventrac's slope capabilities will elevate your operational experience to the next level. With a unique blend of features that no other machine can offer, Ventrac provides exceptional stability and control on slopes. Up to 30 Degree slopes with dual wheel attachment.

Ventrac Tractor flex-frame

FlexFrame

Ventrac FlexFrame allows the 4500 tractor to both articulate and oscillate. These benefits allow the machine to crawl over terrain no matter how it changes, allowing more stability and capability to work on surfaces that aren’t perfectly flat.

All-Season Performance by Ventrac

All-Season Performance

The Ventrac 4520 boasts exceptional all-season capabilities, seamlessly adapting to various terrains and weather conditions with its versatile attachments, allowing efficient operation year-round. Its innovative design and adaptable features make it an ideal choice for tackling a wide range of tasks.

Ventrac Quick Connect

Quick Connect Out-Front Attachments

The Ventrac Mount System raises the standard for how tractors should connect to their attachments. Switching between attachments should never take a lot of time or effort. With the Ventrac Mount System changing attachments to get to the next job is a breeze. With experience, all Ventrac attachments connect in minutes without the need of tools or heavy lifting.

All-Wheel Drive

Full-time, all-wheel hydrostatic drive delivers maximum performance and traction to help you get the job done.

Downhill Braking

Quick hydrostatic braking allows operators to confidently slow down, stop and reverse on hills.

Know Your Degree

Know your degree of operation for increased safety on slopes. Optional slope degree gauge is available.

Traction Control

Ventrac's innovative weight transfer system improves traction, braking, and side-slope steering security by shifting a portion of the front attachment weight onto the tractor.

Wide Stance

For increased safety and stability on hillsides, add the optional wheel extensions (up to 25°) or dual wheels (up to 30°).

Specifications

Engine	Kawasaki, 31HP, 2 Cylinder Petrol
Engine CC	824 CC
Cooling	Liquid
Fuel Type	Gas DFI
Drive	AWD All Wheel Drive
Travel Speed - Low Range	8 km/h, 6 km/h reverse
Travel Speed - High Range	16 km/h, 12 km/h reverse
Warranty	2 year limited warranty*
Turning Radius	99cm (39 in)
Ground Clearance	12.7cm (5 in)

Oscillation amount (@wheel)	19cm (7 1⁄2 in)
Overall Width	123cm (48 1⁄2 in)
Overall Length	207cm (81 1⁄2 in) standard hitch, ROPS up
Height (ROPS up)	172.7cm (68 in)
Height (ROPS down)	137cm (54 in)
Weight with 3Pt hitch	771kg 1770 lbs
Wheelbase	114.3cm (45 in)
All Terrain Tires	22 x 12-8"
Turf Tires	22 x 11-10"

Brochures, Parts & Manuals

Ventrac 4520 – Spec Sheet

Ventrac 4520P – Parts Manual

Parkland Ventrac 4520 Catalogue

Ventrac 4520P Std & CA Compliant 4520P – Operators Manual

Accessories & Attachments

Attachments

Ventrac 22″ Stump Grinder | Tractor Attachment

Ventrac 22" Stump Grinder Tractor Attachment

KC220$15,019 incl. gst

Find out more →

Ventrac Landscape Rake 49″ | Tractor Attachment

Ventrac Landscape Rake 49" Tractor Attachment

KR502$8,234 incl. gst

Find out more →

Ventrac Finish Mower 60″ | with Side Discharge

Ventrac Finish Mower 60" with Side Discharge

MS600$14,766 incl. gst

Find out more →

Ventrac Finish Mower 72″ | with Side Discharge

Ventrac Finish Mower 72" with Side Discharge

MS720$15,031 incl. gst

Find out more →

Ventrac Finish Mower 72″ with Side Discharge Offset

Ventrac Finish Mower 72" with Side Discharge Offset

Find out more →

Ventrac Finish Mower 72″ | with Rear Discharge

Ventrac Finish Mower 72" with Rear Discharge

MU720$15,652 incl. gst

Find out more →

Ventrac Aera-Vator | Tractor Attachment

Ventrac Aera-Vator Tractor Attachment

EA600$22,632 incl. gst

Find out more →

Ventrac Aerator | Tractor Attachment – Core Tine

Ventrac Aerator Tractor Attachment - Core Tine

EB480C$7,855 incl. gst

Find out more →

Ventrac Boom Mower | Attachment

Ventrac Boom Mower Attachment

Find out more →

Ventrac Contour Mower 84″ | Tractor Attachment

Ventrac Contour Mower 84" Tractor Attachment

MJ840$27,347 incl. gst

Find out more →

Ventrac Dozer 48″ Blade | Tractor Attachment

Ventrac Dozer 48" Blade Tractor Attachment

Find out more →

Ventrac Dozer 60″ Blade | Tractor Attachment

Ventrac Dozer 60" Blade Tractor Attachment

KD602$6,130 incl. gst

Find out more →

Ventrac Dozer 72″ Blade | Tractor Attachment

Ventrac Dozer 72" Blade Tractor Attachment

KD722$6,406 incl. gst

Find out more →

Ventrac Flail Mower 56″ | (Fast Cut) Tractor Attachment

Ventrac Flail Mower 56″ (Fast Cut) Tractor Attachment

MY562$24,610 incl. gst

Find out more →

Ventrac Flail Mower 56″ (Fine Cut) | Tractor Attachment

Ventrac Flail Mower 56″ (Fine Cut) Tractor Attachment

MW560$22,490 incl. gst

Find out more →

Ventrac Flail Mower 72″ | (Fast Cut) Tractor Attachment

Ventrac Flail Mower 72″ (Fast Cut) Tractor Attachment

MY722$25,220 incl. gst

Find out more →

Ventrac Flail Mower 72″ | (Fine Cut) Tractor Attachment

Ventrac Flail Mower 72" (Fine Cut) Tractor Attachment

MW722$22,805 incl. gst

Find out more →

Ventrac Power Leaf Blower | Tractor Attachment

Ventrac Power Leaf Blower Tractor Attachment

KA160$8,775 incl. gst

Find out more →

Ventrac Narrow Broom | Tractor Attachment

Ventrac Narrow Broom Tractor Attachment

KJ520$17,664 incl. gst

Find out more →

Ventrac Power Bucket 48″ | Tractor Attachment

Ventrac Power Bucket 48" Tractor Attachment

HE482$7,314 incl. gst

Find out more →

Ventrac Power Rake | Tractor Attachment

Ventrac Power Rake Tractor Attachment

KG540$26,013 incl. gst

Find out more →

Ventrac Seeder | Tractor Attachment

Ventrac Seeder Tractor Attachment

EG520$19,700 incl. gst

Find out more →

Ventrac Soil Cultivator | Tractor Attachment

Ventrac Soil Cultivator Tractor Attachment

DC520$21,620 incl. gst

Find out more →

Ventrac Sod Cutter | Tractor Attachment

Ventrac Sod Cutter Tractor Attachment

EC240$1,725 incl. gst

Find out more →

Ventrac Tiller | Tractor Attachment

Ventrac Tiller Tractor Attachment

KL480$12,282 incl. gst

Find out more →

Ventrac Tough Cut Mower 68″ | Tractor Attachment

Ventrac Tough Cut Mower 68" Tractor Attachment

HQ682$14,467 incl. gst

Find out more →

Ventrac Trencher | Tractor Attachment

Ventrac Trencher Tractor Attachment

KY400$21,597 incl. gst

Find out more →

Ventrac Reel Mower Triplex 72″ | Tractor Attachment

Ventrac Reel Mower Triplex 72" Tractor Attachment

Find out more →

Ventrac Turbine Blower | Tractor Attachment

Ventrac Turbine Blower Tractor Attachment

ET202$19,987 incl. gst

Find out more →

Ventrac Versa Loader | Tractor Attachment

Ventrac Versa Loader Tractor Attachment

KH500$23,179 incl. gst

Find out more →

Ventrac Wide Area Mower | Tractor Attachment

Ventrac Wide Area Mower Tractor Attachment

MK960$22,391 incl. gst

Find out more →

Ventrac Weedbine | Chemical-Free Weed Control Tractor Attachment

Ventrac Weedbine Chemical-Free Weed Control Tractor Attachment

Find out more →

Accessories

Ventrac Dual Wheel Kit | Accessory

Ventrac Dual Wheel Kit Accessory

70.4067$4,600 incl. gst

Find out more →

Ventrac Wheel Extensions | Accessory

Ventrac Wheel Extensions Accessory

Find out more →

Frequently Asked Questions

How Do I Mow EXTREME Hills with Ventrac?

While slopes and hillsides add aesthetics and dimension to the landscape, those same hills and slopes can be very dangerous to mow without the right type of slope mowing equipment. Ventrac tractors offer a unique combination of benefits that no other piece of equipment can offer. Discover how Ventrac is a safer solution to your slope mowing needs for slopes up to 30 degrees (58% grade).

What is Ventrac FlexFrame?

Ventrac FlexFrame allows the 4500 tractor to both articulate and oscillate. These benefits allow the machine to crawl over terrain no matter how it changes, allowing more stability and capability to work on surfaces that aren’t perfectly flat.
