Grillo Climber 9.22S Ride-On Mower

Name: Parkland Products
Price range: $$

Model: 8082AH

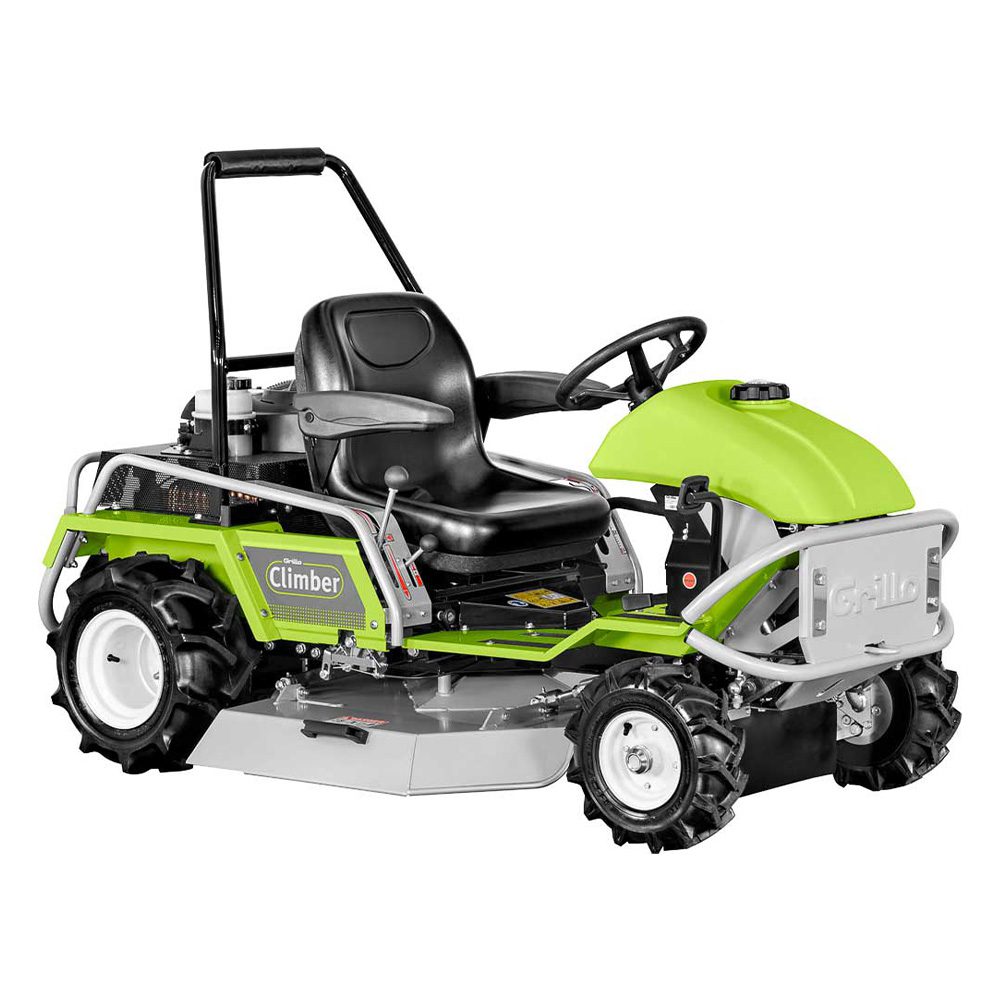

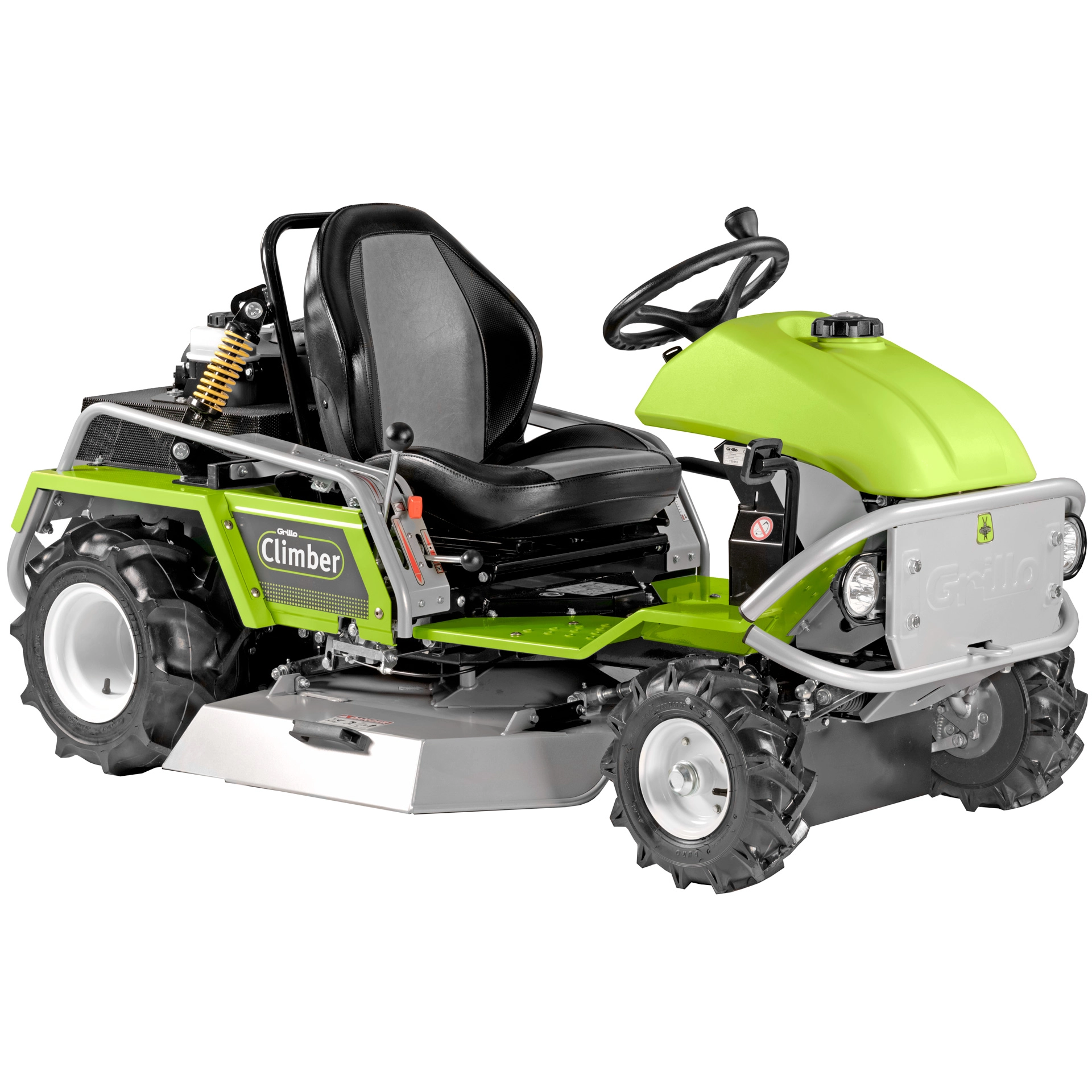

Grillo Climber 9.22S Ride-On Mower

Model: 8082AH

The Climber 9.22 will tackle anything – Grass, weeds, bush over a metre tall, scrub, blackberry, thick kikuyu, marshmallow grass, mustard grass, wild oats and more. It will also mow in places you can’t even take a tractor. With it’s 22HP engine, heavy duty low slung body, differential locking and front drum brakes, the Climber 9.22 is an unstoppable mower.

Tackles overgrown, neglected areas with ease
Easy-to-use rapid, efficient mower
Simple to clean, easy to maintain
Stay safe even on sloping areas

Price excludes shipping and dealer pre-delivery.

The Climber Ride on Mower 9.22 is also commonly known as: CL9.22, CL922, CL 9.22, CL 922, Climber 9.22, Climber 922, Ride-on mower, rideonmower, grilloclimber, grillo climber

$22,145 incl. gst

or $ per week*

Calculate Finance

*Based on $4,429 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.

Talk to a rep Find a Stockist Find a Store

Compare the Climber Slope Mowers Series

Specification	Climber 7.15	Climber 7.18	Climber 9.18	Climber 9.22S Viewing	Climber 10.27
Engine	Loncin LC1P92F Start electric, with 12 V battery Supply fuel Displacement 452 cc, 1 Cylinder Power 12 HP (9 kW) - Gross power 15 HP Air cooled Dry air filter with interchangeable filter cartridges	Briggs & Stratton 7160 EXi Intek Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 15.2 HP (11.3 kW) - Gross power 18 HP Air cooled Dry air filter	Briggs & Stratton 7160 EXi Intek Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 15.2 HP (11.3 kW) - Gross power 18 HP Air cooled Dry air filter	Briggs & Stratton 7220 PXi PROFESSIONAL Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 18 HP (13.2 kW) - Gross power 22 HP Air cooled Dry air filter	Briggs & Stratton Series 8290 CXi Commercial Start electric, with 12 V battery Supply fuel Displacement 724 cc, 2 Cylinders Power 22 HP (16.2 kW) Air cooled Dry air filter with interchangeable filter cartridges
Fuel tank capacity	Fuel tank 7 litres (reserve tank 1 litre)	7 L (emergency supply 1L)	13 L (emergency supply 3 L)	Fuel tank 13 litres (reserve tank 3 litres)	13 L
Gearbox	Hydrostatic transmission	Hydrostatic transmission	Hydrostatic transmission with reduction gear and differential.	Hydrostatic transmission with reduction gear unit and diff	4-wheel-drive hydrostatic transmission.
Clutch	Clutch: electromagnetic for PTO with blade brake	Electromagnetic with P.T.O and fitted with blade brake	Electromagnetic with P.T.O. and with blade brake	Clutch: electromagnetic for PTO with blade brake	Electromagnetic clutch with P.T.O and blade brake.
Cutter deck	Side/rear discharge	With rear discharge	With rear discharge	Side/rear discharge	Side and rear discharge
Cutting configuration	1 rotating blade	1 rotating blade	One rotating blade	1 rotating blade	1 rotating blade
Cutting width	85 cm (33.5")	85 cm (33.5")	91 cm (36")	91 cm (36")	98 cm (38.5")
Cutting height	6 different cutting positions from 35 to 85 mm and 1 position for transport	From 35 mm (±1.3’’) to 85 mm (±3.3’’) with 6 different cutting positions and 1 transfer position.	From 30 mm to 90 mm(from ± 1.2’’ to ±3.5’’) with 4 different cutting positions and 1 transfer position.	4 different cutting positions from 3 to 9 cm plus 1 for transfer	From 35 mm to 135 mm with continuous adjustment.
Peripheral blade speed	76 m/s	76 m/s	—	—	87 m/1"
Differential locking	Differential lock by pedal action	With pedal engagement	With pedal engagement	Differential locking device by pedal action	On the rear axle, with pedal engagement.
Front tyres	3.50-6 TRACTOR and puncture-proof treated	3,50-6 TRACTOR and puncture-proof treated	13x5.00-6 Tractor	Tractor 13x5.00-6 wheels	16x6.50-8 tractor. With anti-puncture treatment as standard feature.
Rear tyres	16x6.50-8 Tractor	16×6.50-8 TRACTOR	17x8.00-8 Tractor	Tractor 17x8.00-8 wheels	20×10.00-8 TRACTOR
Speed	Continuously variable from 0 to 9 km/h, reverse gear from 0 to 6 km/h	Continuously variable from 0 to 9 km/h + reverse speed from 0 to 6 km/h.	Continuously variable from 0 to 10 km/h + reverse speed from 0 to 6 km/h.	Continuously variable from 0 to 10 km/h, reverse gear from 0 to 6 km/h	Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h
Inner turning radius	45 cm	45 cm	38 cm	38 cm	70 cm
Seat	Dampened and adjustable seat, with roll bar	Sprung and adjustable, fitted with roll bar	Sprung and adjustable with armrests and roll-bar.	Seat equipped with springs, adjustable, with arm-rests and roll bar	With weight-adjustable suspension, equipped with roll-bar
Service brake	On the front wheels brakes are pedal-operated	On the front wheels with pedal engagement	Front service brakes with pedal engagement	On the front wheels brakes are pedal-operated	—
Parking brake	On the rear wheels brakes are lever-operated	On the rear wheels with lever engagement	Rear parking brake with lever engagement	On the rear wheels brakes are lever-operated	On the rear wheels with lever engagement.
Mowing capacity per hour (indicative)	4800 m^2/h	6000 m^2/h	7200 m^2/h	7200 m^2/h	7500 m^2/h
Standard features	Tow bar and front headlight	Tow bar, front headlight	Tow bar	Tow bar	—
Length	1895 mm	1895 mm	180 cm	180 cm	206 cm
Width	950 mm	950 mm	99 cm	99 cm	108 cm
Height	985 mm	985 mm	107 cm	107 cm	118.5 cm
Weight	250 kg	255 kg	297 kg	311 kg	383 kg

Videos

Features

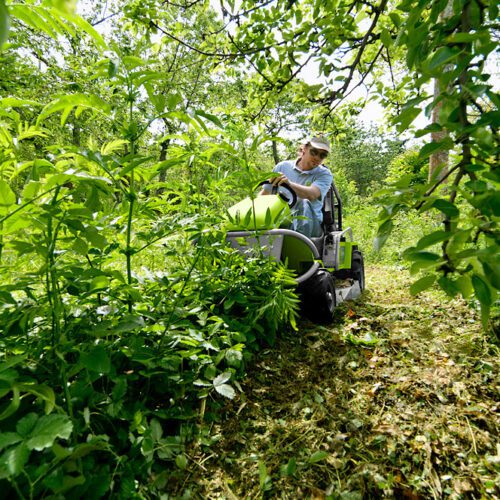

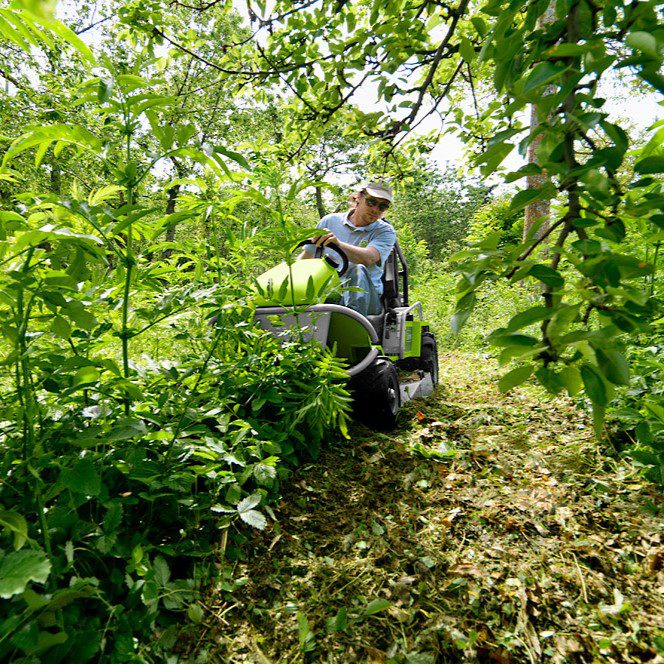

A person operates a ride-on mower through dense greenery and tall weeds in a natural setting

Low Emissions, High Performance

Achieve low emissions, reduced consumption and lower vibrations without compromising on high performance. With 4WD-like power, the Climber 9 Series range tackles your job with ease. The blade is made of special steel and has a low noise profile, the swing tips of the blade are retractable in case of impact and can be turned around when one side is worn out.

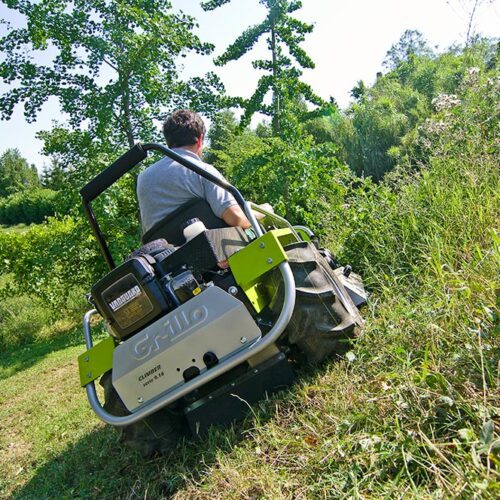

A person operates a Grillo mower on uneven terrain, surrounded by tall grass and bushes

High Quality Build

The 91 cm single-blade cutter deck is very robust and remarkably resistant to impacts with stones. The large diameter blade shaft and the cutting transmission guarantee reliability even under the most demanding conditions and for many hours in total safety.

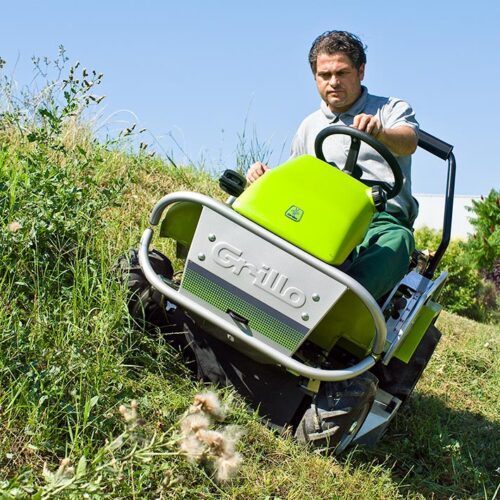

A man operates a green and silver ride-on mower on a grassy slope under a clear blue sky

Operator Safety First

Climber 9.22 is a compact brush-cutter with a low center of gravity and perfect weight distribution, designed to ensure maximum stability and greater safety for the operator under most working conditions even on slopes.

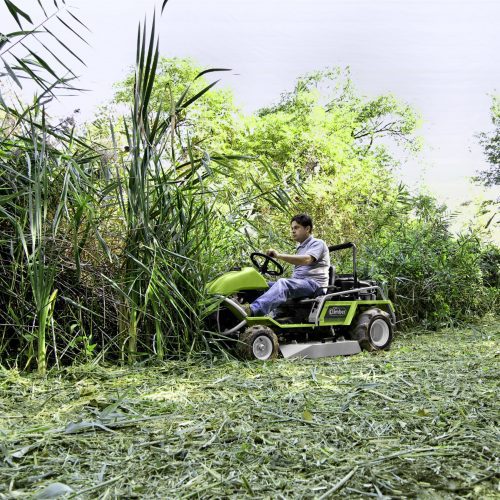

Grillo Climber 9.22 Ride-On Mower - trimming bush

Easily Maneuverable

The extremely tight steering radius of 38 cm allows the machine to move in narrow confined areas. Given its compact size, Climber 9.22 works perfectly underneath foliage.

Specifications

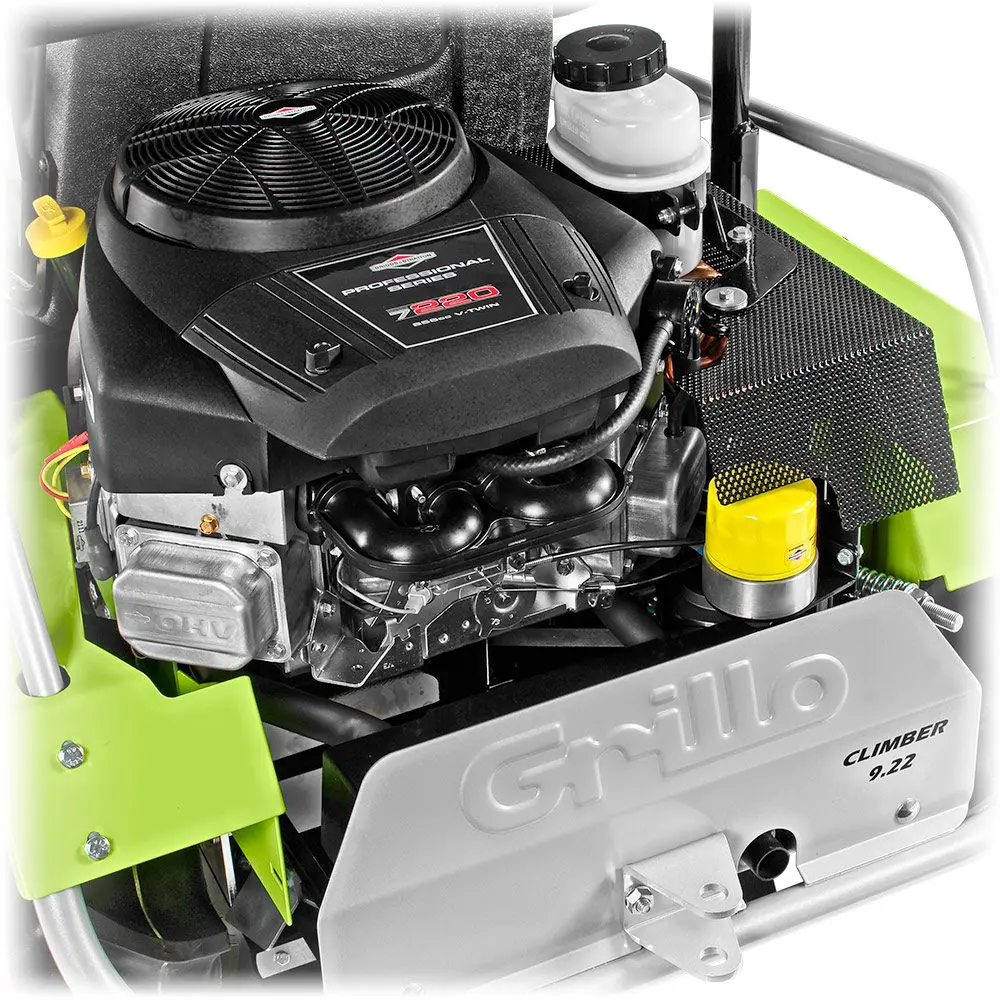

Engine	Briggs & Stratton 7220 PXi PROFESSIONAL Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 18 HP (13.2 kW) - Gross power 22 HP Air cooled Dry air filter
Fuel tank capacity	Fuel tank 13 litres (reserve tank 3 litres)
Gearbox	Hydrostatic transmission with reduction gear unit and diff
Clutch	Clutch: electromagnetic for PTO with blade brake
Cutter deck	Side/rear discharge
Cutting configuration	1 rotating blade
Cutting width	91 cm (36")
Cutting height	4 different cutting positions from 3 to 9 cm plus 1 for transfer
Differential locking	Differential locking device by pedal action
Front tyres	Tractor 13x5.00-6 wheels
Rear tyres	Tractor 17x8.00-8 wheels

Speed	Continuously variable from 0 to 10 km/h, reverse gear from 0 to 6 km/h
Inner turning radius	38 cm

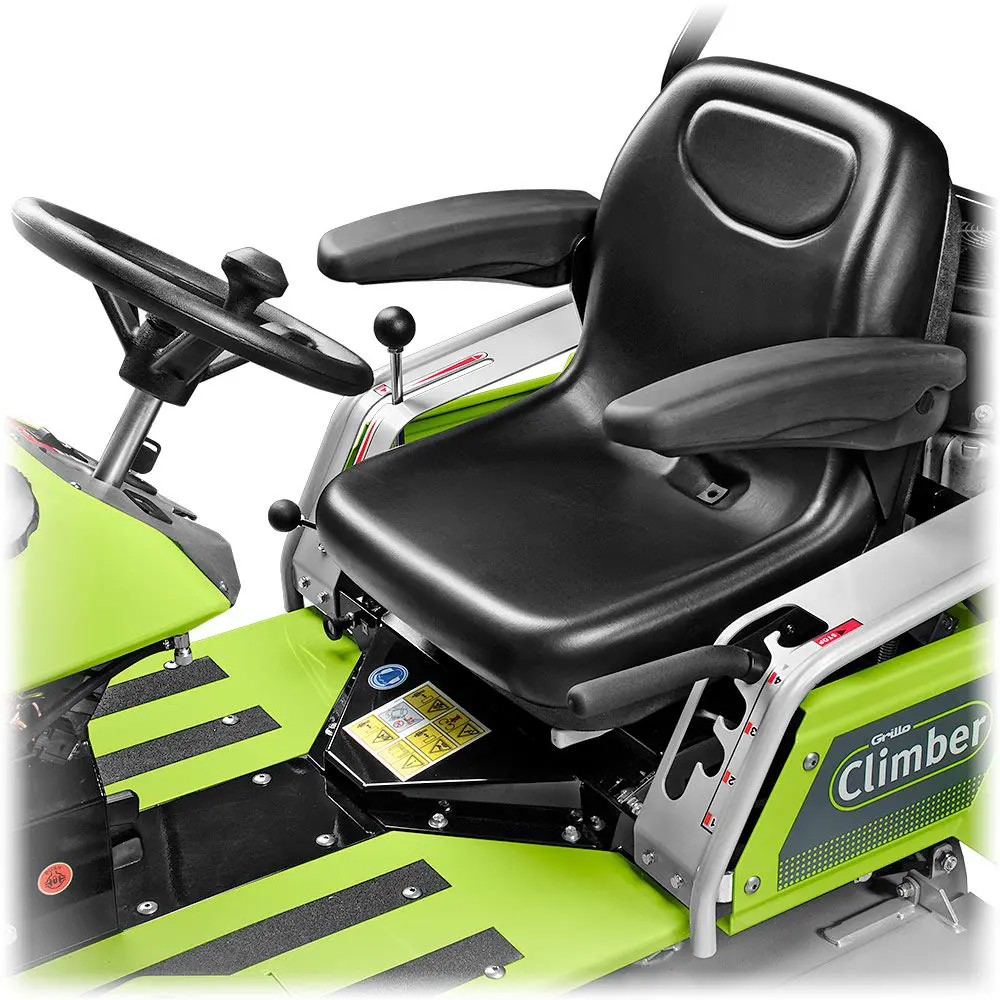

Seat	Seat equipped with springs, adjustable, with arm-rests and roll bar
Service brake	On the front wheels brakes are pedal-operated
Parking brake	On the rear wheels brakes are lever-operated
Mowing capacity per hour (indicative)	7200 m^2/h
Standard features	Tow bar
Length	180 cm
Width	99 cm
Height	107 cm
Weight	311 kg
