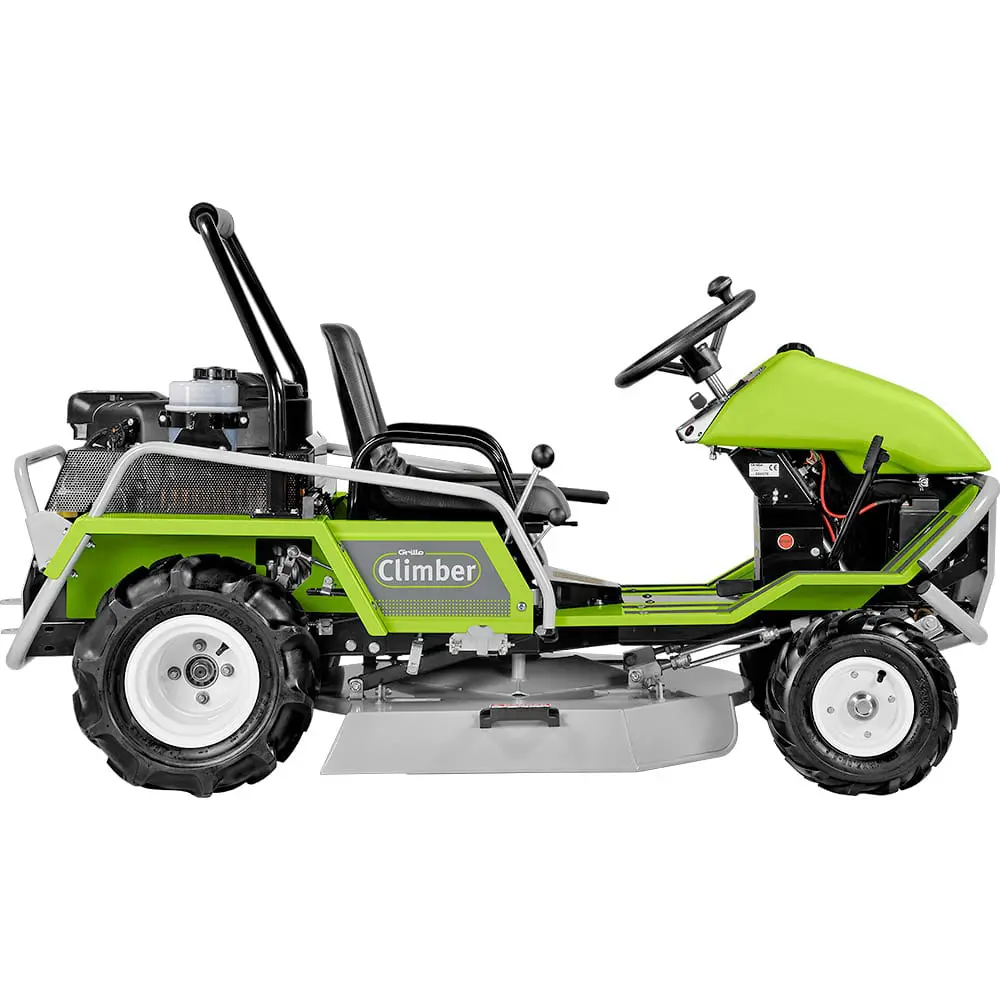

Grillo Climber 7.18 Ride-On Mower

Model: 89WBEAG
Grillo

Grillo Climber 7.18 Ride-On Mower

Model: 89WBEAG
Grillo

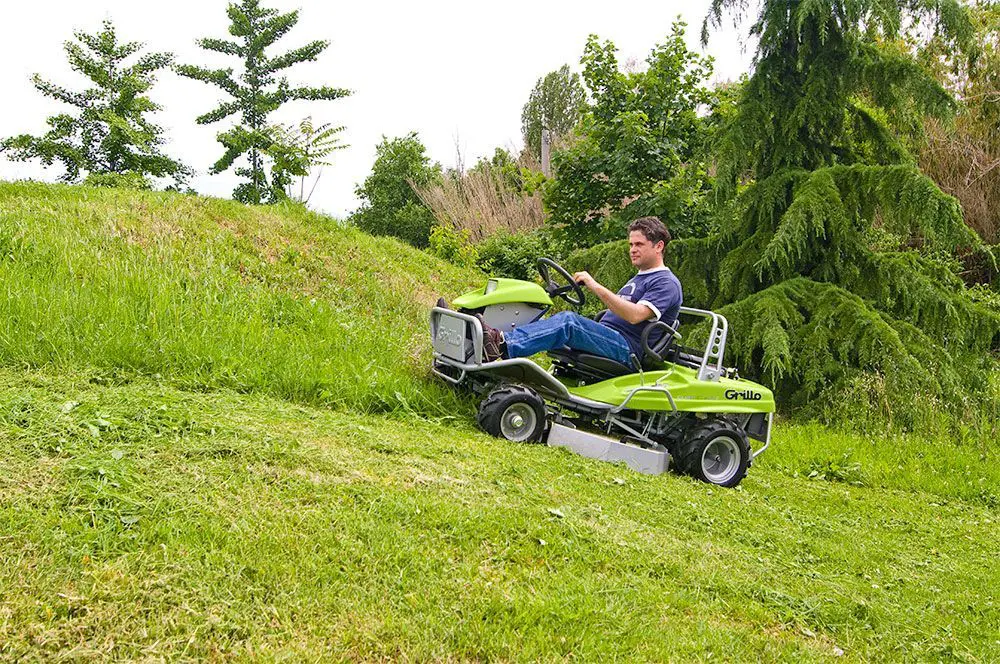

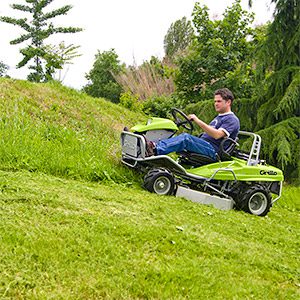

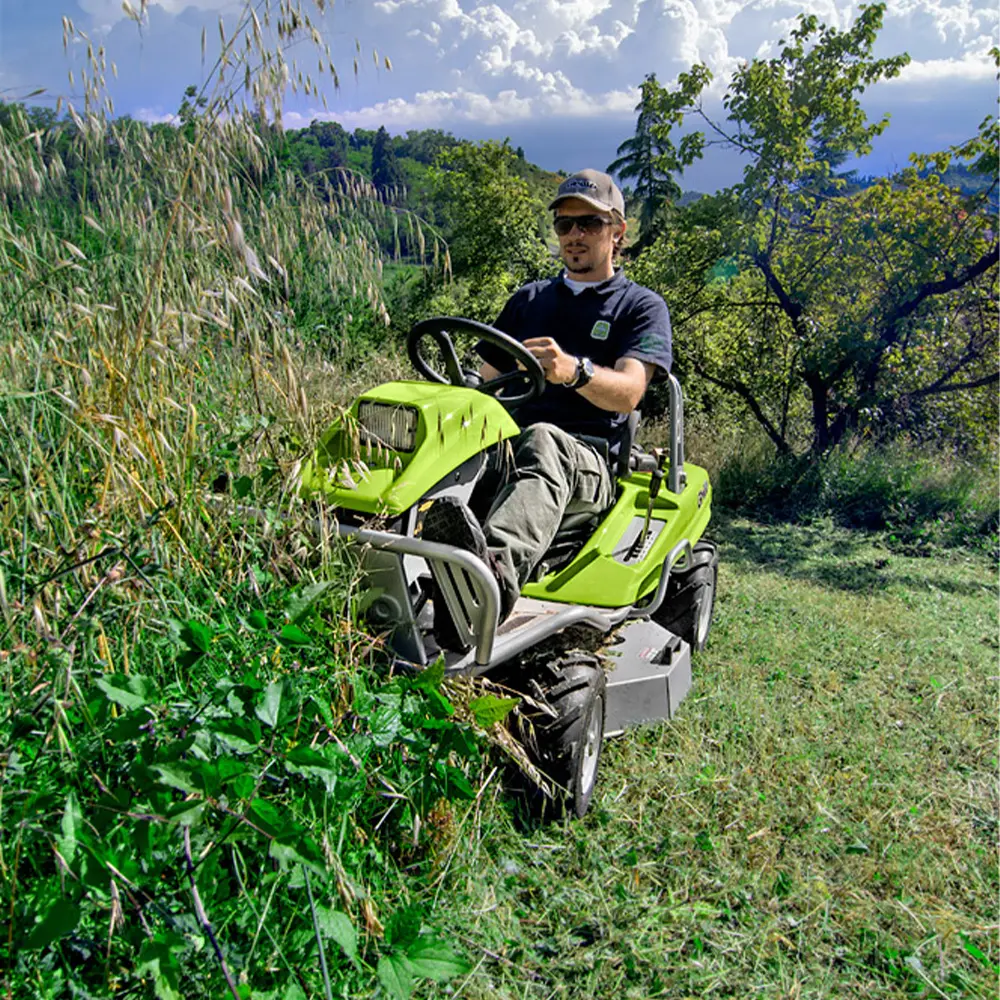

The Grillo Climber 7 Series is a versatile mower designed for efficient slope climbing and maintenance of overgrown areas. Its maneuverability and powerful engine allow for quick and easy operation. For heavier applications, consider the 9 Series models.

  • Cutting Width: 34″ (85 cm)
  • Engine: Briggs & Stratton 18HP V-Twin
  • Transmission: Hydrostatic (7.18 model)
  • Safety Features: Front drum brakes, differential locking

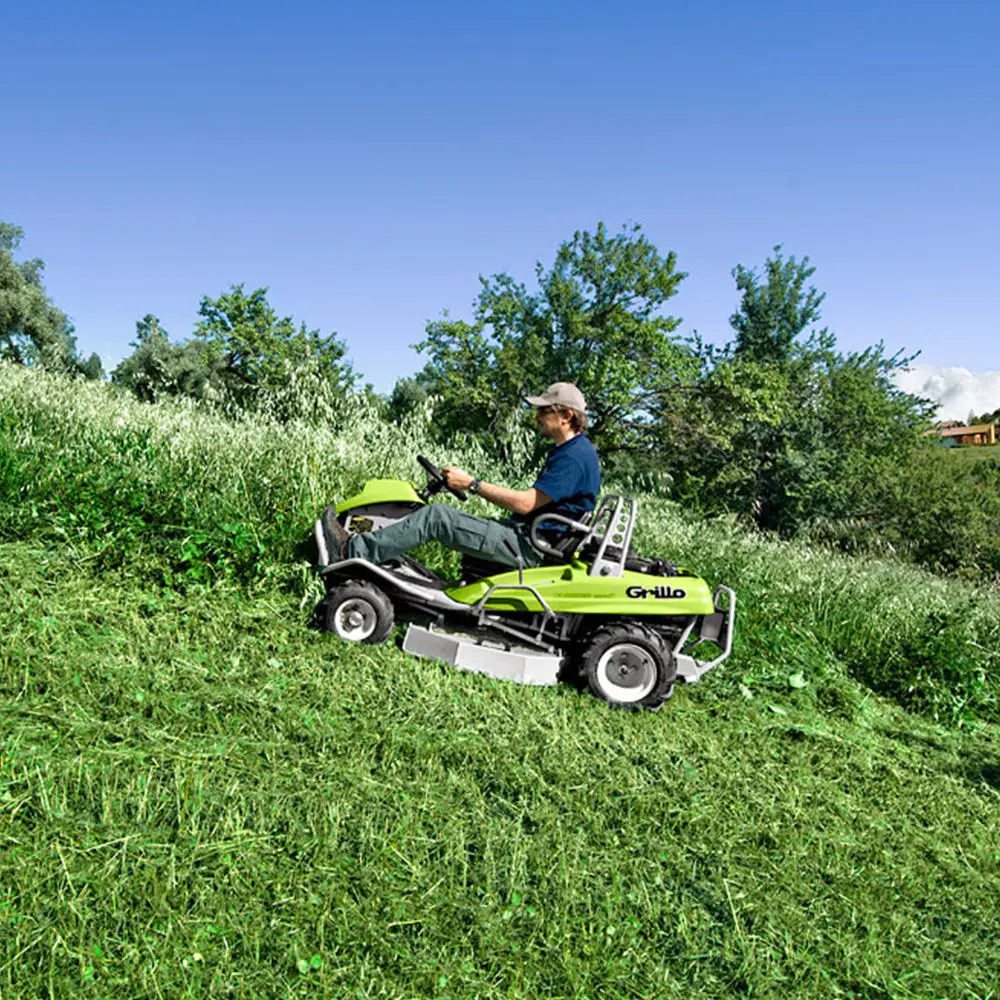

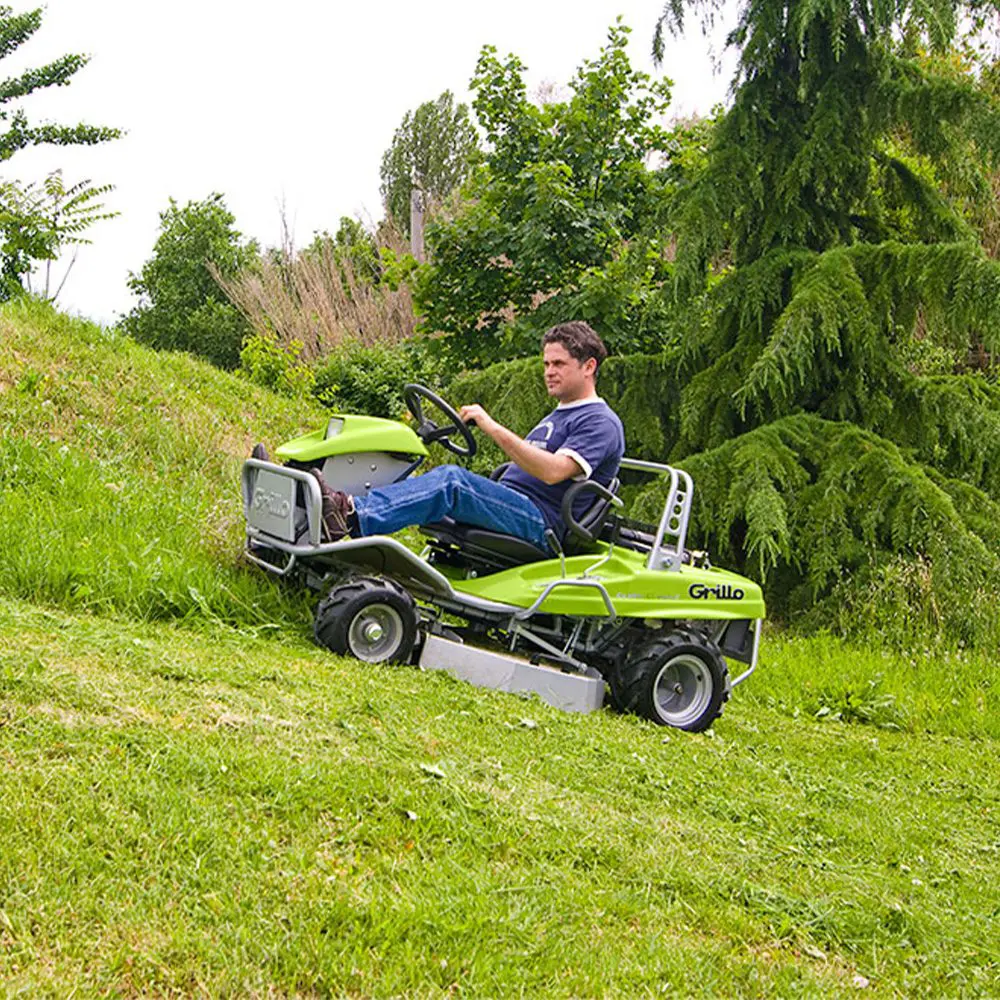

  • Efficient slope climbing
  • Versatile maintenance
  • Easy operation
  • Improved traction
$15,058 incl. gst
or $ per week*
Calculate Finance
*Based on $3,012 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.
Enquire
Talk to a rep Find a Stockist Find a Store

Features

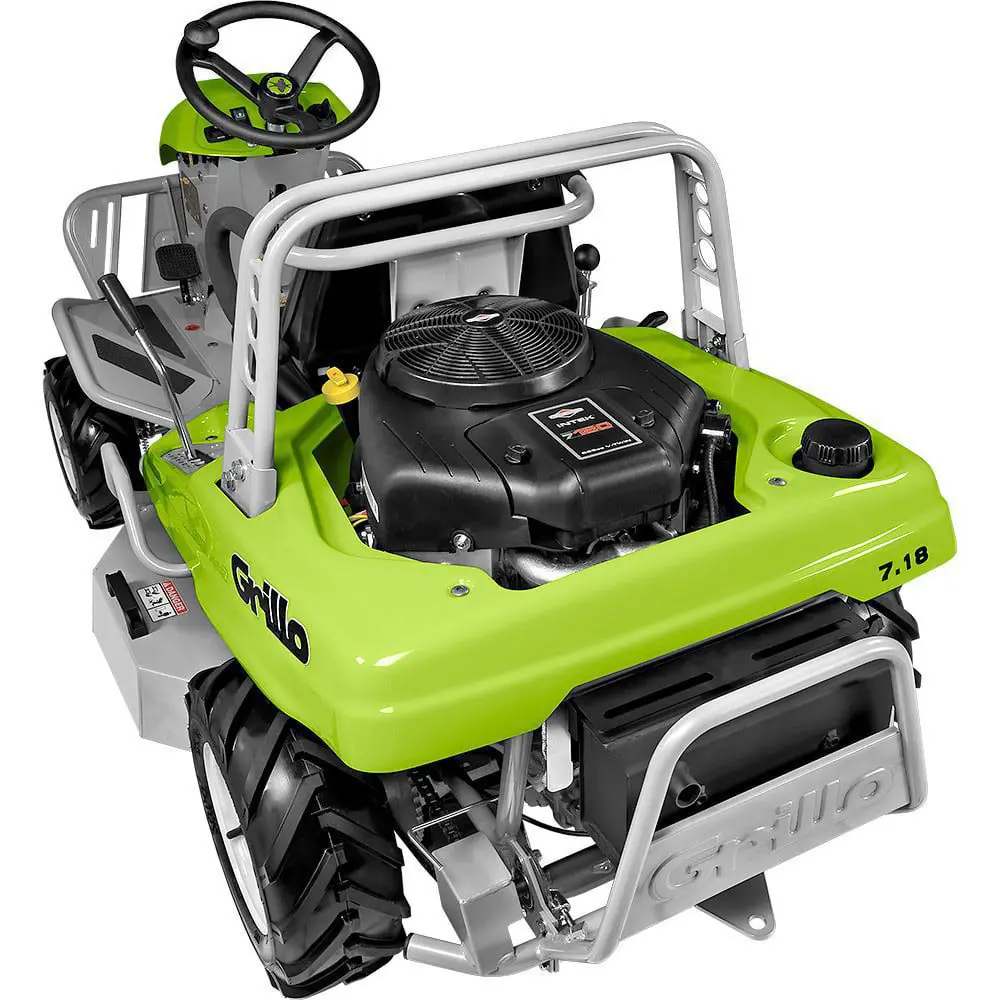

Powerful Briggs & Stratton Engine

The Climber 7.18 is equipped with a 656 cc Briggs & Stratton EXi INTEK 7160 petrol engine, featuring a 7-litre fuel tank and electric start. This two-cylinder engine offers reliability, low emissions, high performance, and minimal vibrations, with an easy-to-clean air filter and a "Grillo Super Silent" exhaust muffler for reduced noise and exhaust resistance.

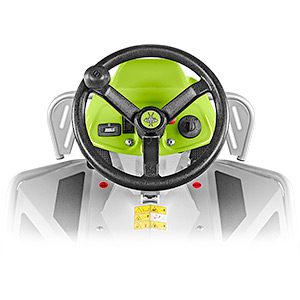

Convenient Blade Control

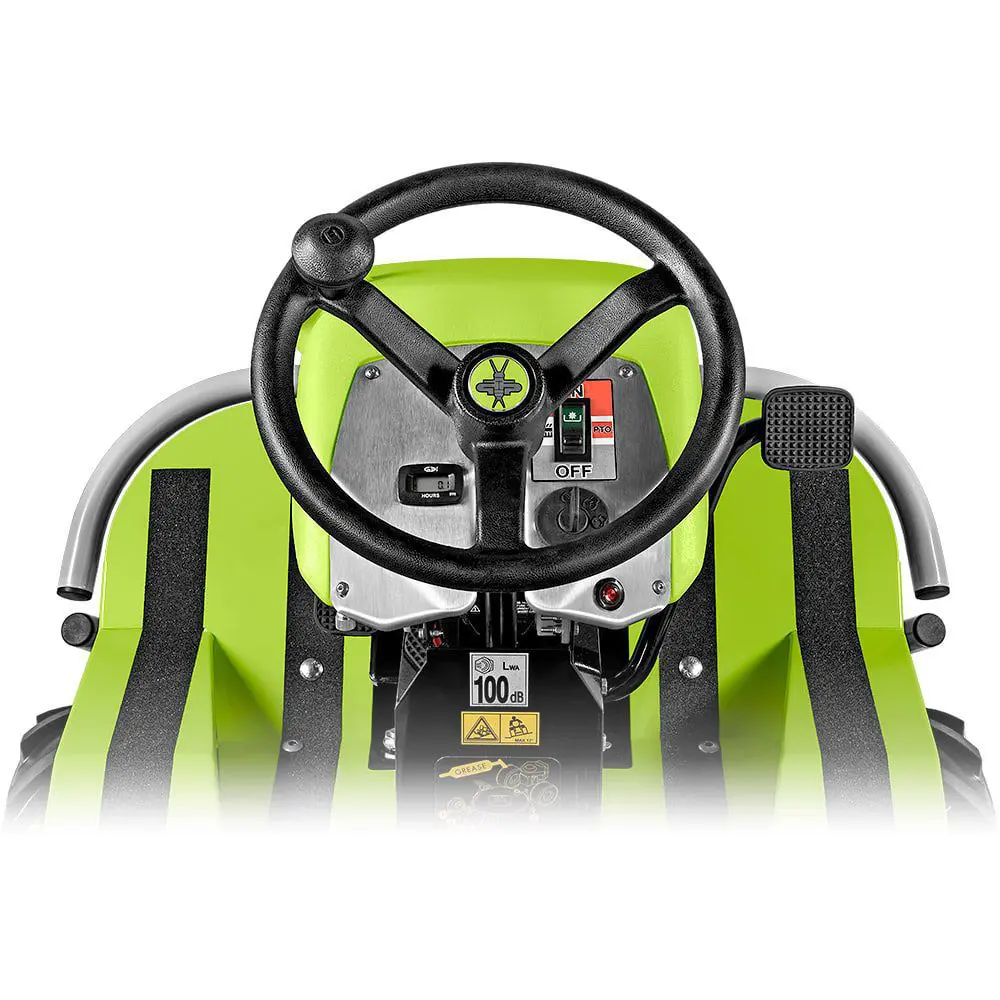

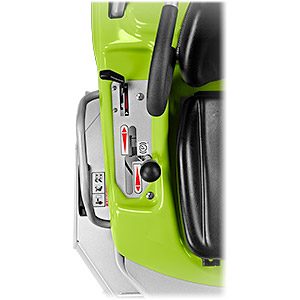

Blades are activated via an electric button near the steering wheel, with cutting height adjustable from 35 to 85 mm using a lever with 6 positions. This lever also lifts the cutter deck off the ground for easy navigation over obstacles, while the self-adjusting belt ensures consistent cutting quality over time.

Exceptional Maneuverability and Safety

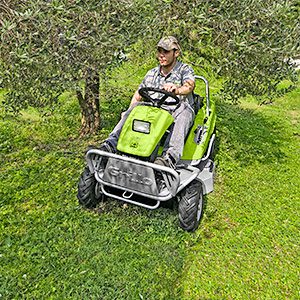

With an ultra-tight 45 cm turning radius, the Climber 7.18 excels in tight spaces. Its tilting front axle and sculpted wheels provide excellent grip on uneven terrain. Standard drum brakes and anti-puncture treatment on the front wheels enhance safety and performance in harsh environments.

Exceptional Operator Comfort

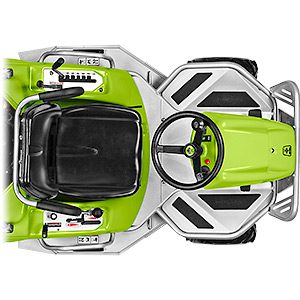

The Climber 7.18 offers outstanding comfort with an adjustable footboard and smoothly operating advance lever and steering. Its sprung, longitudinally adjustable seat with armrests ensures safety and reduces fatigue, making long hours of operation effortless.

Premium Quality and Craftsmanship

The Climber 7.18 is built with high-quality components in Italy, using the best materials and advanced technology for consistent, controlled quality. Its double-layer electrostatic powder coating process ensures durability and a glossy finish. Each machine is meticulously assembled and thoroughly tested to guarantee top-tier performance.

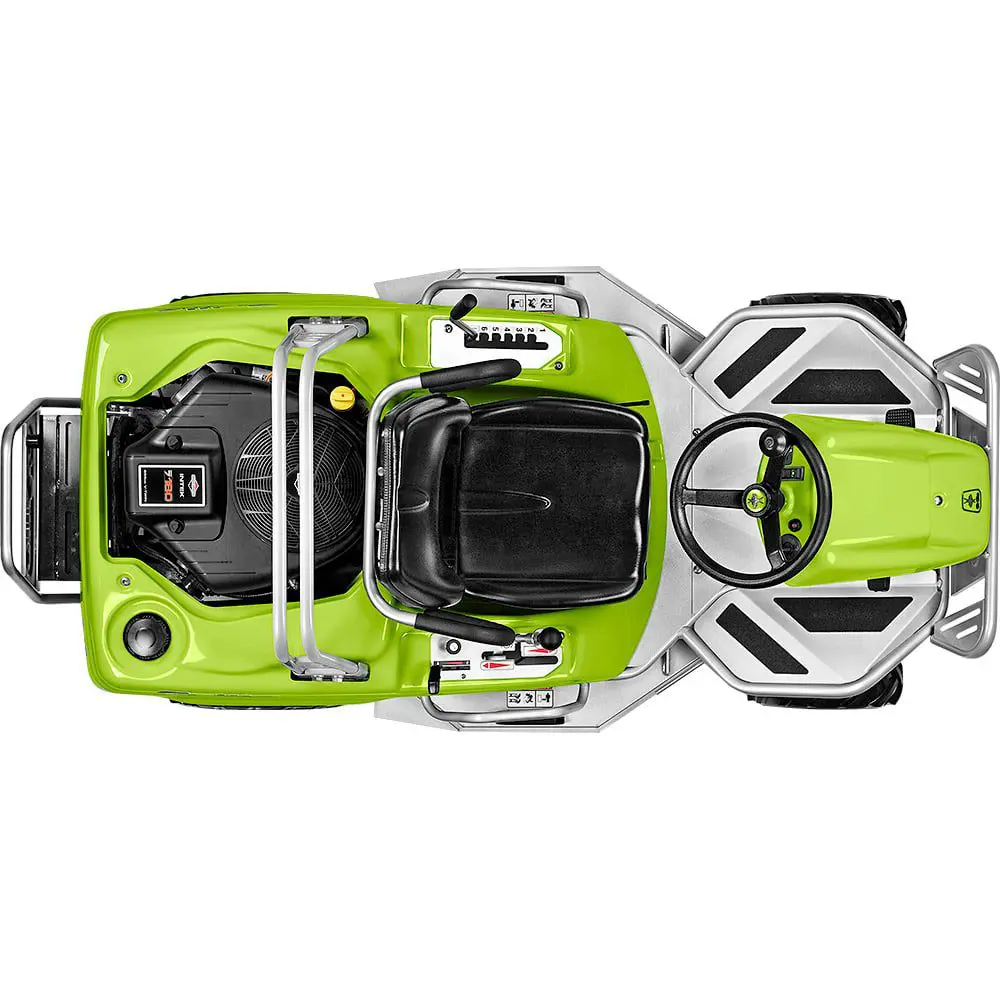

Striking and Robust Design

The Climber 7.18 features sleek, modern lines that demand attention. It has undergone rigorous testing to ensure the reliability of its transmission, cutting gear, and frame. Standard features include a roll bar, tow bar, hour meter, and front light.

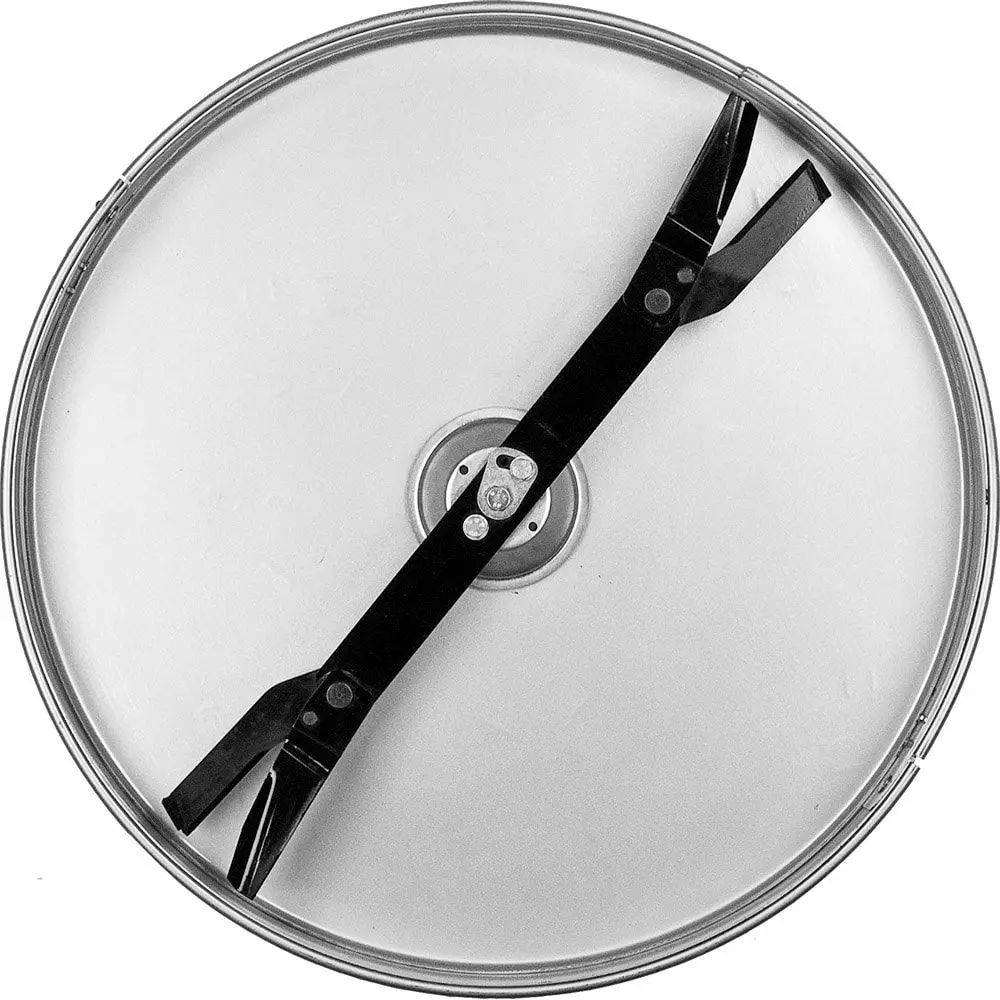

Durable Single-Blade Cutter

The Climber 7.18's 85 cm single-blade cutter deck is designed to withstand stone impacts. Its large-diameter blade shaft and cutting transmission ensure reliability in tough conditions. The special steel blade features reversible knives and retracts on impact, with protective side doors for easy maintenance and cleaning.

Efficient Hydrostatic Transmission

The Climber 7.18 features a hydrostatic axle with an oil-cooling fan for improved transmission efficiency and reduced operating temperature. The standard mechanical differential lock, controlled by a foot pedal, ensures reliable performance on slopes and uneven terrain.

Specifications

Engine Briggs & Stratton 7160 EXi Intek
Start electric, with 12 V battery
Supply fuel
Displacement 656 cc, 2 Cylinders
Power 15.2 HP (11.3 kW) - Gross power 18 HP
Air cooled
Dry air filter
Fuel tank capacity 7 L (emergency supply 1L)
Gearbox Hydrostatic transmission
Clutch Electromagnetic with P.T.O and fitted with blade brake
Cutter deck With rear discharge
Cutting configuration 1 rotating blade
Cutting width 850 mm
Cutting height From 35 mm (±1.3’’) to 85 mm (±3.3’’) with 6 different cutting positions and 1 transfer position.
Peripheral blade speed 76 m/s
Differential locking With pedal engagement
Front tyres 3,50-6 TRACTOR and puncture-proof treated
Rear tyres 16×6.50-8 TRACTOR
Speed Continuously variable from 0 to 9 km/h + reverse speed from 0 to 6 km/h.
Inner turning radius 45 cm
Seat Sprung and adjustable, fitted with roll bar
Service brake On the front wheels with pedal engagement
Parking brake On the rear wheels with lever engagement
Mowing capacity per hour (indicative) 6000 m^2/h
Standard features Tow bar, front headlight
Length 1895 mm
Width 950 mm
Height 985 mm
Weight 255 kg
