Grillo Climber 9.18 Ride-On Mower

Name: Parkland Products
Price range: $$

Model: 8WMBE

Grillo Climber 9.18 Ride-On Mower

Model: 8WMBE

Grillo Climber 9.18 is generally used in more demanding applications where 4WD-like performance is required and on medium sized properties around 3 – 5 acres. Ideal for brush and fire break control as well as being a steep gradient mower it does a superb job cutting flat areas and produces an excellent finish. With a 35.8″ (91cm) cutting width and a quality built Briggs and Stratton 18HP V-Twin cylinder engine, you can be sure the 9.18 will go above and beyond the mowing job.

Safe Slope Mowing
Adjustable seat
Manages heavy terrain well
Powerful V-Twin engine
Medium sized properties around 3 – 5 acres

$19,802 incl. gst

or $ per week*

Calculate Finance

*Based on $3,960 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.

Talk to a rep Find a Store

Compare the Climber Slope Mowers Series

Specification	Climber 7.15	Climber 7.18	Climber 9.18 Viewing	Climber 9.22S	Climber 10.27
Engine	Loncin LC1P92F Start electric, with 12 V battery Supply fuel Displacement 452 cc, 1 Cylinder Power 12 HP (9 kW) - Gross power 15 HP Air cooled Dry air filter with interchangeable filter cartridges	Briggs & Stratton 7160 EXi Intek Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 15.2 HP (11.3 kW) - Gross power 18 HP Air cooled Dry air filter	Briggs & Stratton 7160 EXi Intek Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 15.2 HP (11.3 kW) - Gross power 18 HP Air cooled Dry air filter	Briggs & Stratton 7220 PXi PROFESSIONAL Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 18 HP (13.2 kW) - Gross power 22 HP Air cooled Dry air filter	Briggs & Stratton Series 8290 CXi Commercial Start electric, with 12 V battery Supply fuel Displacement 724 cc, 2 Cylinders Power 22 HP (16.2 kW) Air cooled Dry air filter with interchangeable filter cartridges
Fuel tank capacity	Fuel tank 7 litres (reserve tank 1 litre)	7 L (emergency supply 1L)	13 L (emergency supply 3 L)	Fuel tank 13 litres (reserve tank 3 litres)	13 L
Gearbox	Hydrostatic transmission	Hydrostatic transmission	Hydrostatic transmission with reduction gear and differential.	Hydrostatic transmission with reduction gear unit and diff	4-wheel-drive hydrostatic transmission.
Clutch	Clutch: electromagnetic for PTO with blade brake	Electromagnetic with P.T.O and fitted with blade brake	Electromagnetic with P.T.O. and with blade brake	Clutch: electromagnetic for PTO with blade brake	Electromagnetic clutch with P.T.O and blade brake.
Cutter deck	Side/rear discharge	With rear discharge	With rear discharge	Side/rear discharge	Side and rear discharge
Cutting configuration	1 rotating blade	1 rotating blade	One rotating blade	1 rotating blade	1 rotating blade
Cutting width	85 cm (33.5")	85 cm (33.5")	91 cm (36")	91 cm (36")	98 cm (38.5")
Cutting height	6 different cutting positions from 35 to 85 mm and 1 position for transport	From 35 mm (±1.3’’) to 85 mm (±3.3’’) with 6 different cutting positions and 1 transfer position.	From 30 mm to 90 mm(from ± 1.2’’ to ±3.5’’) with 4 different cutting positions and 1 transfer position.	4 different cutting positions from 3 to 9 cm plus 1 for transfer	From 35 mm to 135 mm with continuous adjustment.
Peripheral blade speed	76 m/s	76 m/s	—	—	87 m/1"
Differential locking	Differential lock by pedal action	With pedal engagement	With pedal engagement	Differential locking device by pedal action	On the rear axle, with pedal engagement.
Front tyres	3.50-6 TRACTOR and puncture-proof treated	3,50-6 TRACTOR and puncture-proof treated	13x5.00-6 Tractor	Tractor 13x5.00-6 wheels	16x6.50-8 tractor. With anti-puncture treatment as standard feature.
Rear tyres	16x6.50-8 Tractor	16×6.50-8 TRACTOR	17x8.00-8 Tractor	Tractor 17x8.00-8 wheels	20×10.00-8 TRACTOR
Speed	Continuously variable from 0 to 9 km/h, reverse gear from 0 to 6 km/h	Continuously variable from 0 to 9 km/h + reverse speed from 0 to 6 km/h.	Continuously variable from 0 to 10 km/h + reverse speed from 0 to 6 km/h.	Continuously variable from 0 to 10 km/h, reverse gear from 0 to 6 km/h	Continuously variable from 0 to 9 km/h + reverse speed from 0 to 8 km/h
Inner turning radius	45 cm	45 cm	38 cm	38 cm	70 cm
Seat	Dampened and adjustable seat, with roll bar	Sprung and adjustable, fitted with roll bar	Sprung and adjustable with armrests and roll-bar.	Seat equipped with springs, adjustable, with arm-rests and roll bar	With weight-adjustable suspension, equipped with roll-bar
Service brake	On the front wheels brakes are pedal-operated	On the front wheels with pedal engagement	Front service brakes with pedal engagement	On the front wheels brakes are pedal-operated	—
Parking brake	On the rear wheels brakes are lever-operated	On the rear wheels with lever engagement	Rear parking brake with lever engagement	On the rear wheels brakes are lever-operated	On the rear wheels with lever engagement.
Mowing capacity per hour (indicative)	4800 m^2/h	6000 m^2/h	7200 m^2/h	7200 m^2/h	7500 m^2/h
Standard features	Tow bar and front headlight	Tow bar, front headlight	Tow bar	Tow bar	—
Length	1895 mm	1895 mm	180 cm	180 cm	206 cm
Width	950 mm	950 mm	99 cm	99 cm	108 cm
Height	985 mm	985 mm	107 cm	107 cm	118.5 cm
Weight	250 kg	255 kg	297 kg	311 kg	383 kg

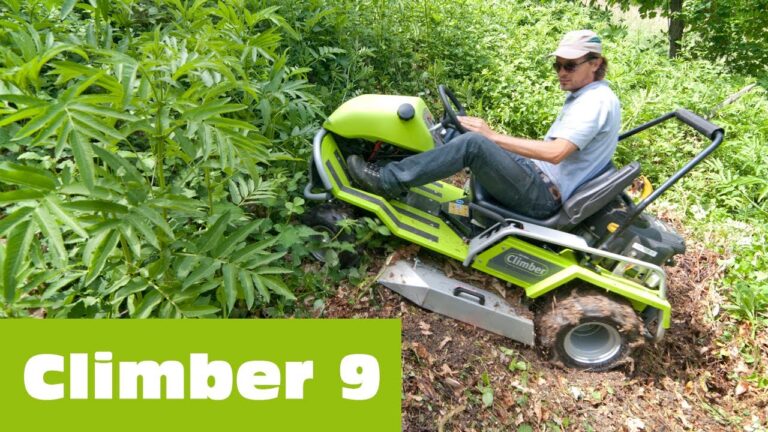

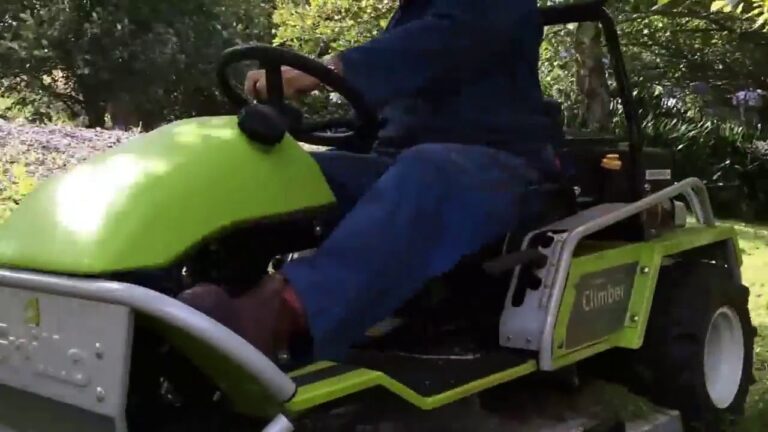

Videos

Features

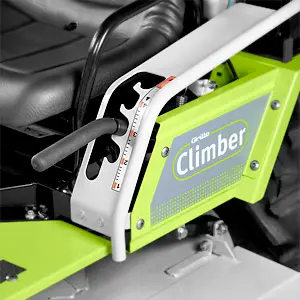

Close-up of control panel and lever on Grillo Climber ride-on mower in vibrant green and gray

Efficient Blade Control

The Climber 9.18 features an electric blade engagement button near the steering wheel and a lever for adjusting cutting height from 30 to 90 mm. This lever also lifts the cutting apparatus off the ground to stop blade rotation, making it easy to navigate kerbs and obstacles. The self-adjusting deck belt and parallel cutter deck ensure consistent cutting quality over time.

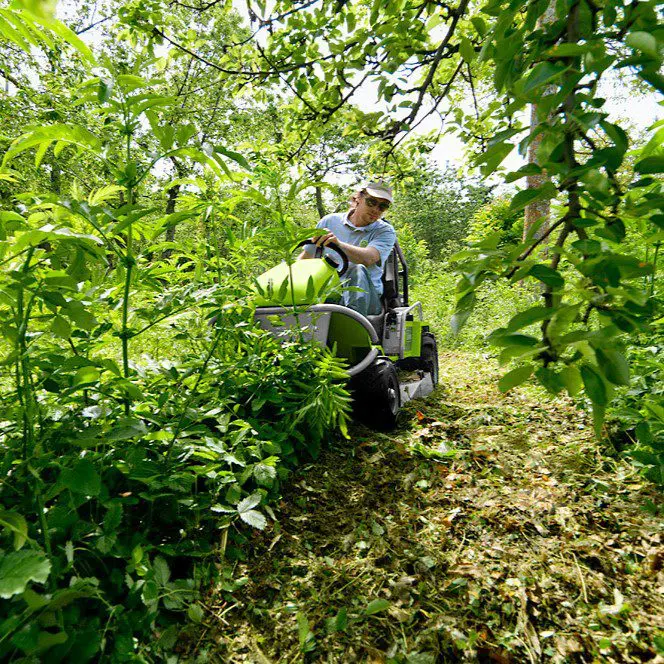

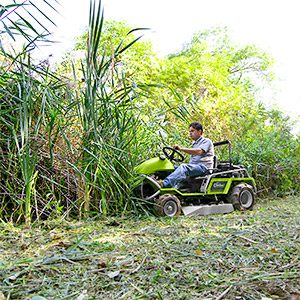

A person operates a green ride-on mower in dense vegetation, ideal for brush control on medium properties

Compact and Reliable Design

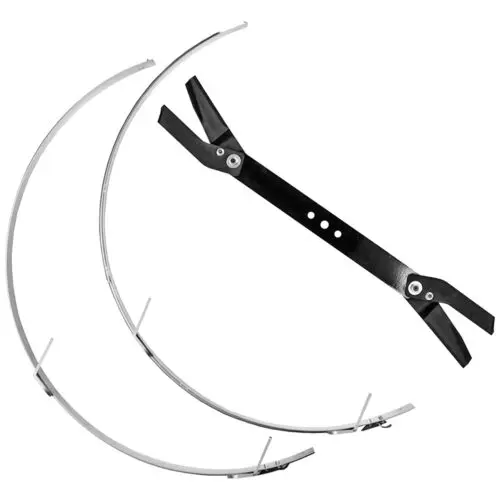

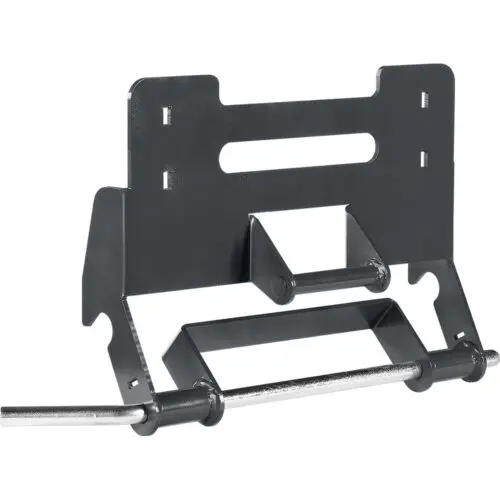

The Climber 9.18 combines a compact, sturdy design with maximum safety and comfort. Rigorously tested for reliability, it includes a roll bar, tow hitch, and hour counter as standard. Optional features include a Mulching Kit for nutrient-rich soil and a 125 cm swiveling snow blade for clearing driveways and squares.

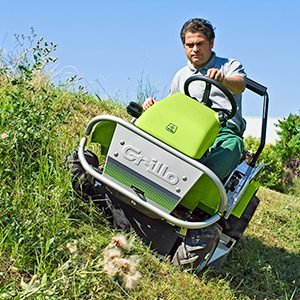

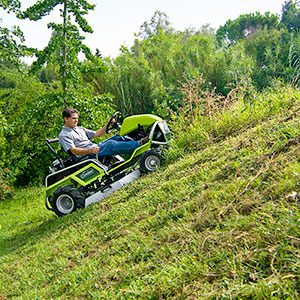

A person operates a green ride-on mower on a sloped grassy area under a clear blue sky

Exceptional Grip and Safety

The Climber 9.18’s tilting front axle and sculpted wheels ensure reliable grip on uneven, low-grip terrain. It climbs steep slopes with ease and safety, and standard foot-operated drum brakes, combined with a differential lock, enhance control and safety on downhill slopes.

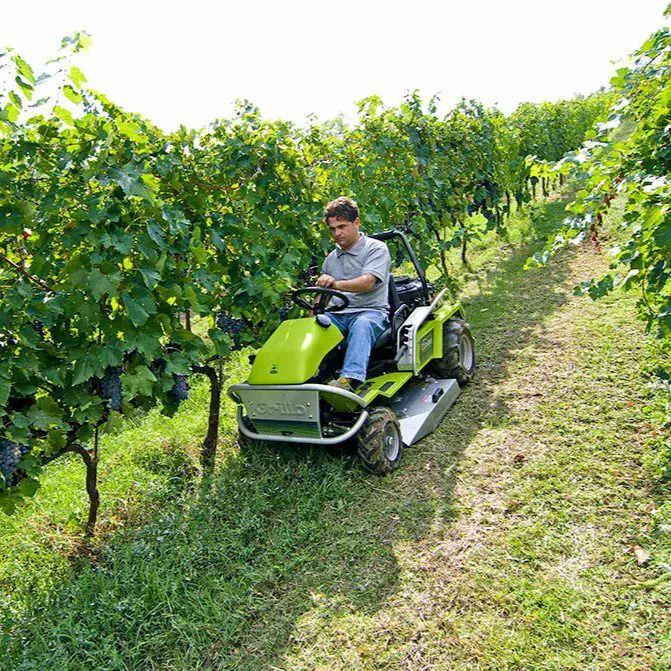

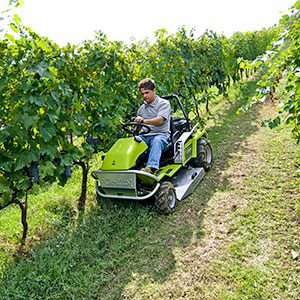

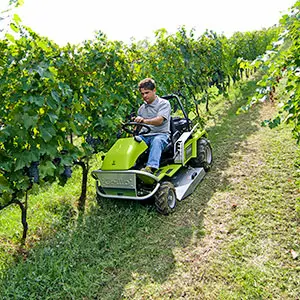

A man operates a green ride-on mower between grapevines on a sunny day

Unmatched Operator Comfort

The Climber 9.18 offers exceptional comfort with an adjustable footboard and smooth advance lever and steering. Its sprung, longitudinally adjustable seat with armrests ensures maximum safety and reduces fatigue, making extended use effortless.

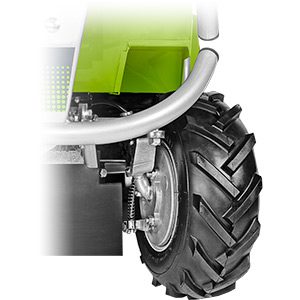

Close-up of a rugged tire and chassis of a ride-on mower, showcasing its robust design for challenging terrains

Superior Maneuverability and Power

With a tight 38 cm turning radius and low ground clearance, the Climber 9.18 excels in tight spaces and under trees. Its 15.2 HP engine, robust frame, and reliable transmission ensure high performance, while anti-puncture treated front wheels make it suitable for the harshest environments.

Rear view of the Grillo Climber 9.18 showing its compact design, steering wheel, and robust tires

Premium Quality and Craftsmanship

The Climber 9.18 is built with high-quality components in Italy, using top materials and advanced technology for consistent, controlled quality. Its double-layer electrostatic powder coating process ensures durability and a glossy finish. Each machine is meticulously assembled and rigorously tested to ensure top performance and reliability.

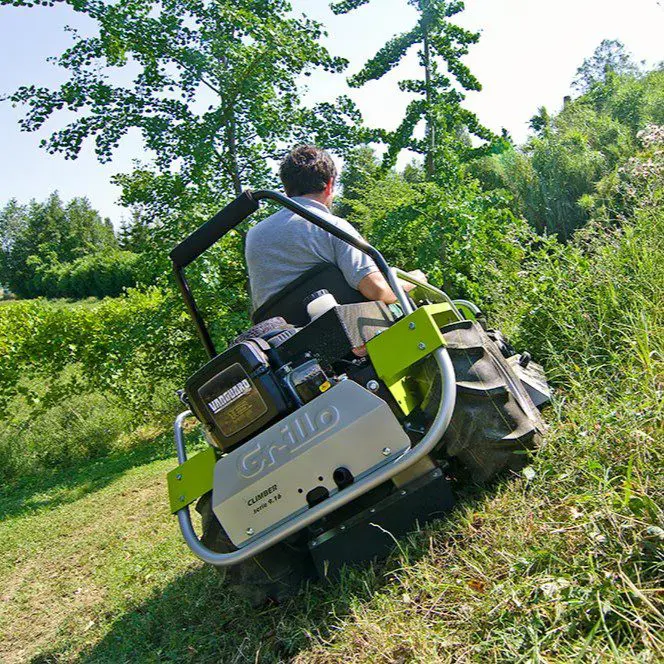

A man operates a green ride-on mower on a steep grassy slope surrounded by trees

Durable Single-Blade Cutter

The Climber 9.18’s 91 cm single-blade cutter deck withstands stone impacts and features a large-diameter blade shaft for reliable performance. The special steel blade has reversible, low-impact knives and retracts on impact, with protective side doors for easy maintenance and cleaning.

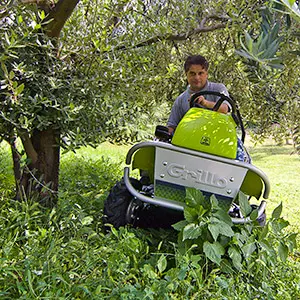

A man operates a green ride-on mower under trees, navigating through thick grass and foliage

Compact and Stable Design

The Climber 9.18’s compact design, low centre of gravity, and optimal weight distribution ensure maximum stability and safety on steep slopes. Its low-positioned seat, vertical engine, and strategically placed components contribute to exceptional stability in all working conditions.

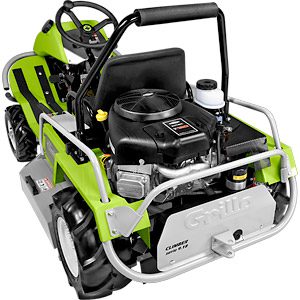

Close-up of Grillo Climber 9.18 showing engine, controls, and distinctive green design for slope mowing

Powerful and Efficient Engine

The Climber 9.18 is powered by a 656 cc Briggs & Stratton EXi INTEK 7160 petrol engine with a 7-litre fuel tank and electric start. This two-cylinder engine ensures reliability, low emissions, and minimal vibrations. The "Grillo Super Silent" muffler offers excellent noise reduction and low exhaust resistance, with an easily accessible air filter for quick cleaning.

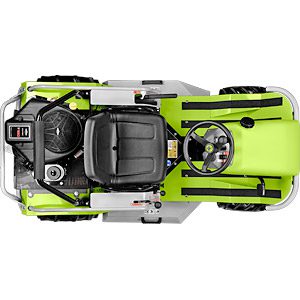

Overhead view of a green ride-on mower with a black seat and control panel, designed for rugged terrain

Advanced Hydrostatic Transmission

The Climber 9.18 features a hydrostatic transmission with a differential gearbox and foot pedal lock, complemented by a cooling fan and copper coil for optimal oil cooling. A charge pump ensures peak performance in extreme conditions, while the hydrostatic unit’s positioning beside the engine keeps operating temperatures lower by preventing hot air from affecting the drive.

Full Description

Grillo Climber 9.18 is generally used in more demanding applications where 4WD-like performance is required and on medium sized properties around 3 – 5 acres. Designed for challenging conditions this machine is ideal for properties where an owner mainly wants to mow less frequently and the grass may often be long at the time of mowing. The Climber 9.18 is ideal for brush and fire break control or for mowing when the operator wants to mow – rather than when the length of grass dictates a mow. As well as being a steep gradient mower it does a superb job cutting flat areas and produces an excellent finish.

With a 35.8″ (91cm) cutting width and a quality built Briggs and Stratton 18HP V-Twin cylinder engine, you can be sure the 9.18 will go above and beyond the mowing job. The Climber 9.18 can climb slopes in maximum safety and is very efficient in maintaining overgrown, neglected areas, agricultural areas. as well as lawns or long-term intensive use. Its extreme maneuverability, smooth, light steering and fast working speed allow this machine to work efficiently whilst remaining simple and easy to operate.

Ergonomic driver features included
Safe Slope Mowing
Adjustable seat
Manages heavy terrain well
Powerful V-Twin engine
Medium sized properties around 3 – 5 acres

Specifications

Engine	Briggs & Stratton 7160 EXi Intek Start electric, with 12 V battery Supply fuel Displacement 656 cc, 2 Cylinders Power 15.2 HP (11.3 kW) - Gross power 18 HP Air cooled Dry air filter
Fuel tank capacity	13 L (emergency supply 3 L)
Gearbox	Hydrostatic transmission with reduction gear and differential.
Clutch	Electromagnetic with P.T.O. and with blade brake
Cutter deck	With rear discharge
Cutting configuration	One rotating blade
Cutting width	91 cm (36")
Cutting height	From 30 mm to 90 mm(from ± 1.2’’ to ±3.5’’) with 4 different cutting positions and 1 transfer position.
Differential locking	With pedal engagement
Front tyres	13x5.00-6 Tractor
Rear tyres	17x8.00-8 Tractor

Speed	Continuously variable from 0 to 10 km/h + reverse speed from 0 to 6 km/h.
Inner turning radius	38 cm
Seat	Sprung and adjustable with armrests and roll-bar.
Service brake	Front service brakes with pedal engagement
Parking brake	Rear parking brake with lever engagement
Mowing capacity per hour (indicative)	7200 m^2/h
Standard features	Tow bar
Length	180 cm
Width	99 cm
Height	107 cm
Weight	297 kg
