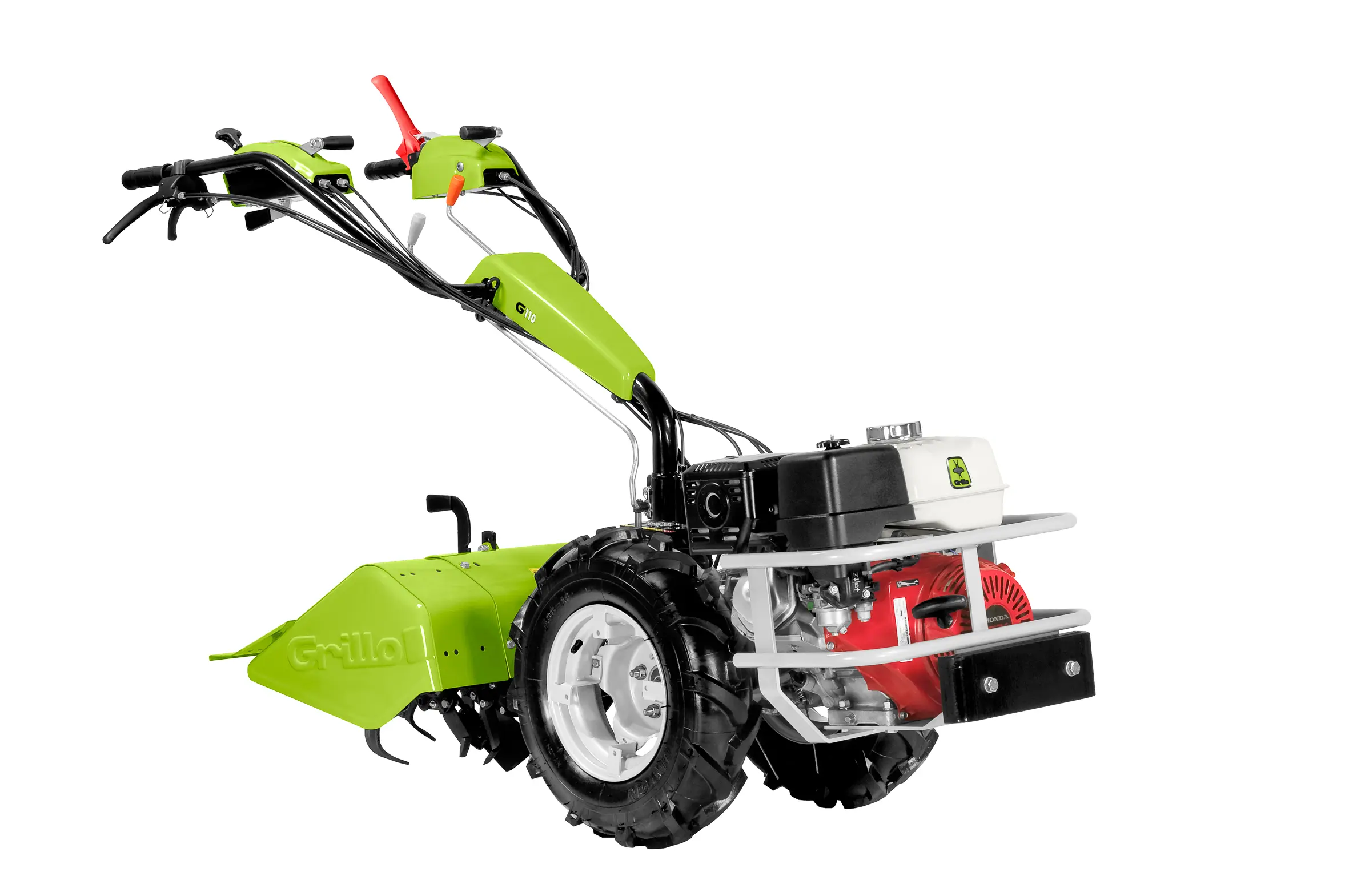

Grillo G110 Walk Behind Tractor - 68cm

Model: 8005AM
Grillo

Grillo G110 Walk Behind Tractor - 68cm

Model: 8005AM
Grillo

The Grillo G110 is an ideal walking tractor for working in agriculture, horticulture, in vegetable plots and gardening in large areas. It is a well-balanced machine, fitted with a 6-speed gearbox with 3 forward gears + 3 reverse gears. The differential lock comes as a standard feature.

  • Oil-bath gearbox
  • Side and height-adjustable, reversible handlebar mounted on shock-absorbers
  • Active clutch
  • Maximum operator’s safety
  • Max. speed 5 km/h
  • Automatic decelerating device in reverse gear
  • Automatic reverse gear lever (when handlebar is turned 180°)
  • The tiller housing is made of cast iron

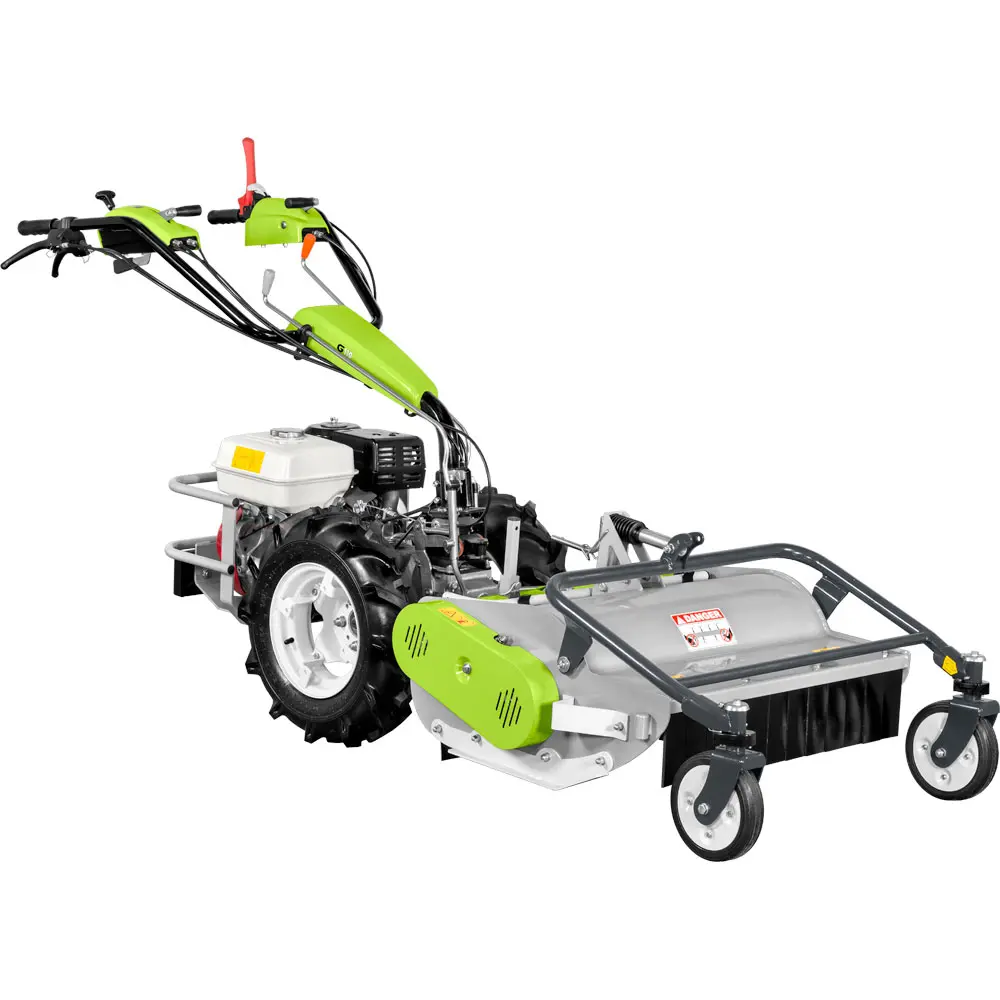

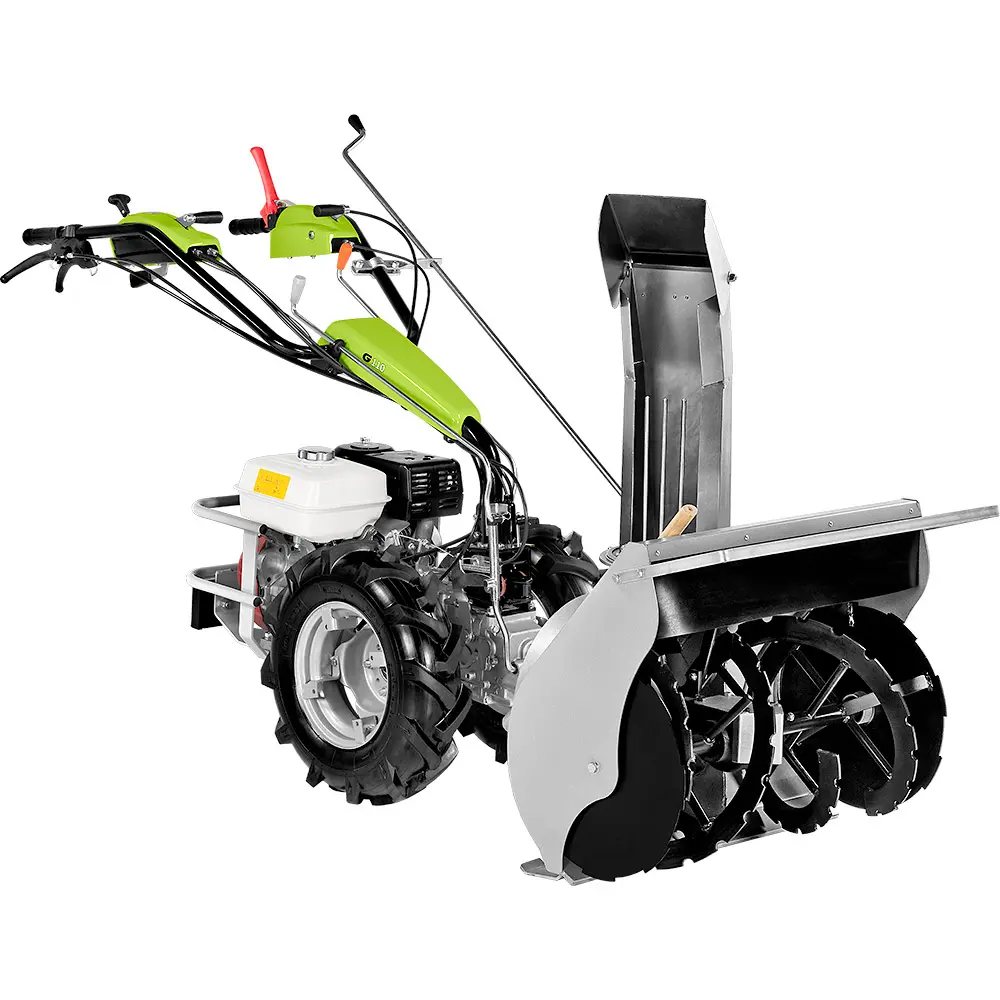

The G110 has a great range of heavy-duty front & rear attachments available, that can connected through a flanged coupling or a quick coupling without needing tools.

Applications for the G110 include use:

  • Gardens
  • Landscaping
  • Farming
  • Poultry Litter Management.

This product has been discontinued. We suggest taking a look at the comparable Toro Traxmaster 427 | Narrow Track – Compact Utility Loader

Features

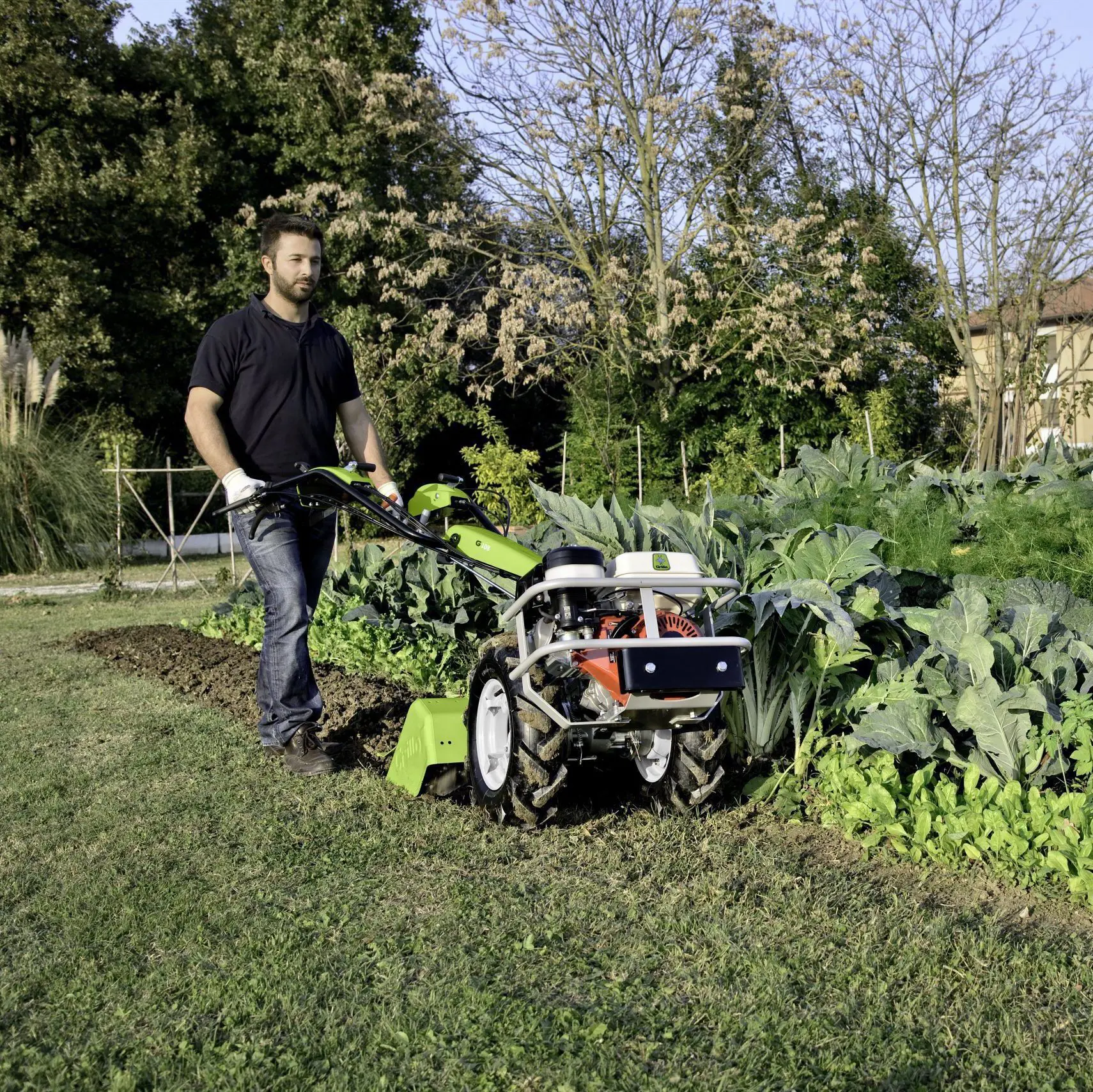

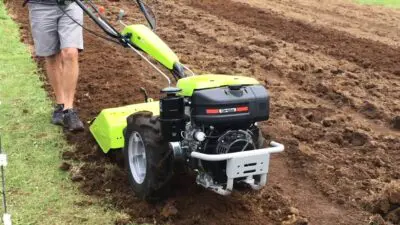

Grillo G110 Rotary Hoe/Walk Behind Tractor - on vegetable patch

Powerful and Versatile

The G110 is one of the most powerful two-wheel tractors in the Grillo range, built for commercial and heavy-duty use. With an 11.0HP diesel engine, it handles bigger attachments effortlessly, offering exceptional power and versatility.

Full Description

with an active clutch and automatic reverse gear decelerator, this walking tractor can be safely handled by the user. The automatic quick gear-inverter lever reverses the forward movement when the handlebar is 180° turned. To achieve a greater stability on slopes you can increase the wheel track up to 25 cm by using the appropriate fixed or adjustable Grillo wheel extensions. Brakes are a standard feature which make it easier to steer heavy implements such as flail mowers. Unlike other models reverse gear operates through a shuttle-shift control making it easier to move from forward into reverse. G110 also has built in differential lock, which, when operated, will lock both drive wheels giving extra traction in difficult conditions. Tilling width options from 68 cm. Heavy duty professional all gear drive · Handles adjustable in height and from side to side. The electric start diesel engine is equipped with a large oil bath air filter that protects the engine and increases its lifespan in dusty environments.

Specifications

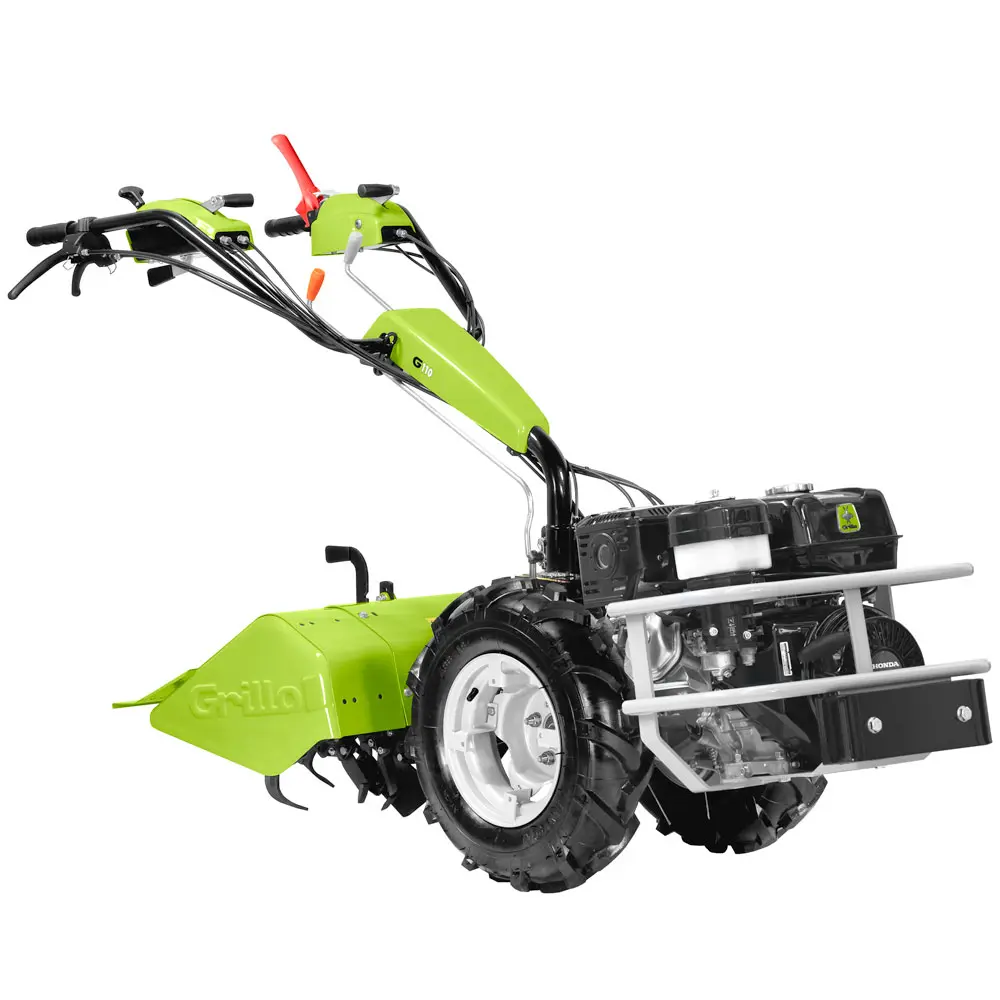

Engine Honda GX390 OHV
Start recoil starter
Supply fuel
Displacement 389 cc, 1 Cylinder
Power 11.7 HP (8.7 kW)
Air cooled
Oil bath air filter

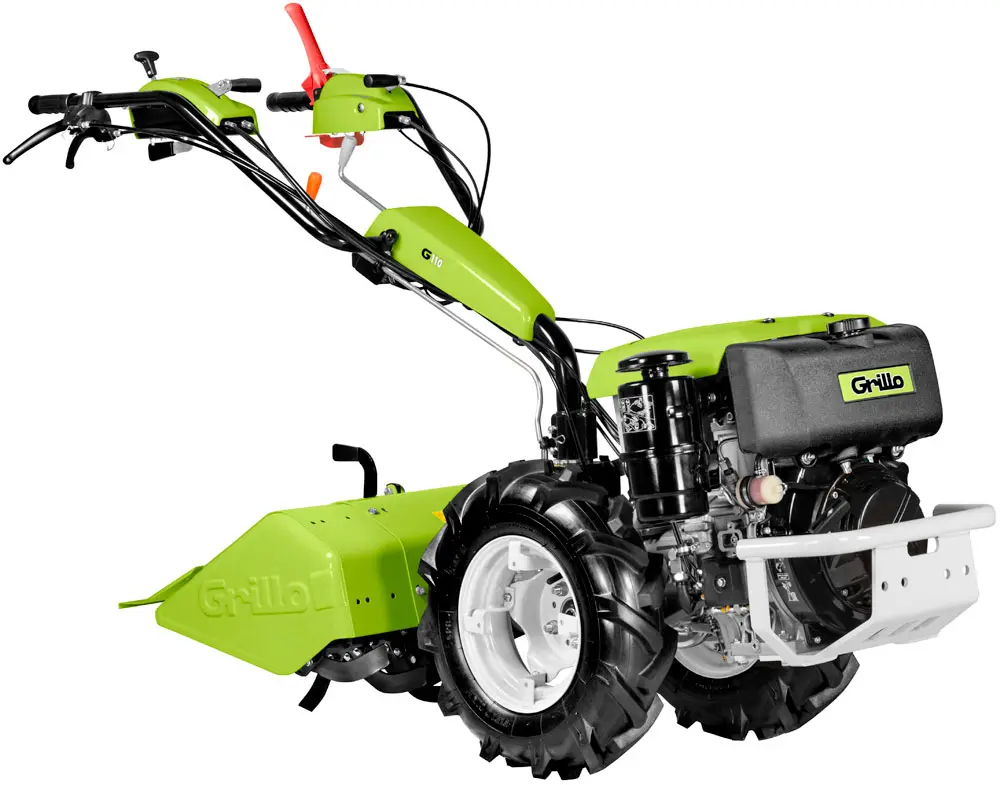

Engine Kohler KD15 440
Start recoil starter and electric with 12V battery
Supply diesel
Displacement 441 cc, 1 Cylinder
Power 11 HP (8.1 kW)
Air cooled
Oil bath air filter
Fuel tank capacity 6.1 Lt. (GX390) - 5,0 Lt. (KD15 440)
Transmission Gear type in oil bath.
Gearbox With inverter. Walking tractor version: 3 forward gears + 3 reverse gears. Sickle bar version: 3 forward gears + 3 reverse gears.
Reverse gear unit Rapid through lever.
Clutch Conic and active.
Standard rotary tiller Adjustable, with tines x4. Working width: 68 cm.
Hoes system diameter 32 cm
Working width Adjustable 37, 47, 58, 68 cm.
Working depth 16 cm.
Item no. standard rotary tiller 984611
P.T.O. 965 revolutions independent from gearbox (walking tractor version: clockwise rotation / sickle bar version: anticlockwise rotation).
Differential locking With lock device through lever.

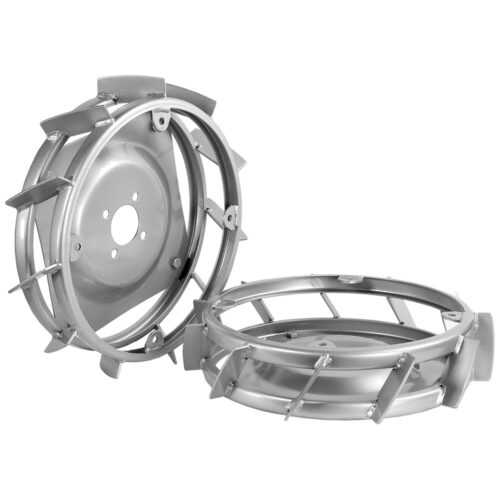

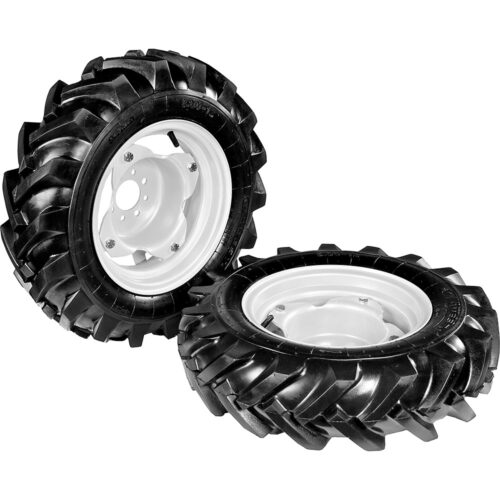

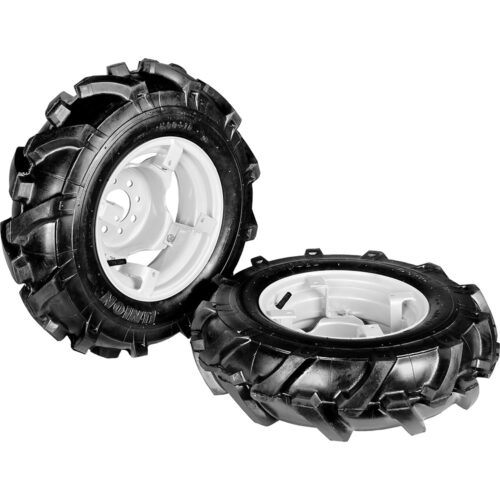

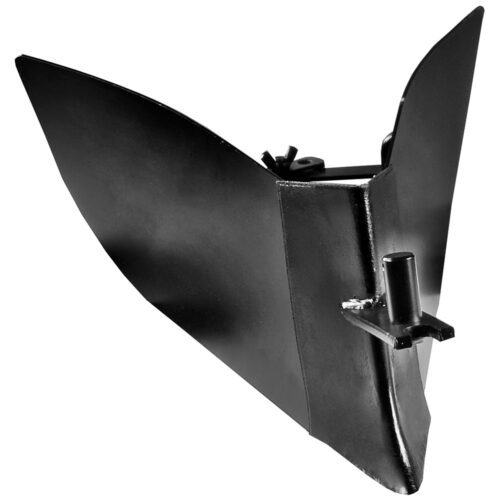

Available tyres 4.00-10, 5.00-10 (5.00-12 for furrower and ploughing only), wide steel wheels 40x10 cm, Turf wheels 20x10.00-8 (item 937112 needed)
Speed With 5.00-10 wheels: 1st gear 1,3 km/h, 2nd gear 2,4 km/h, 3rd gear 5,0 km/h. I° Reverse gear 0,7 km/h, II° Reverse gear 1,5 km/h, III° Reverse gear 3,2 km/h.
Service brake Drum brake, as a standard feature.

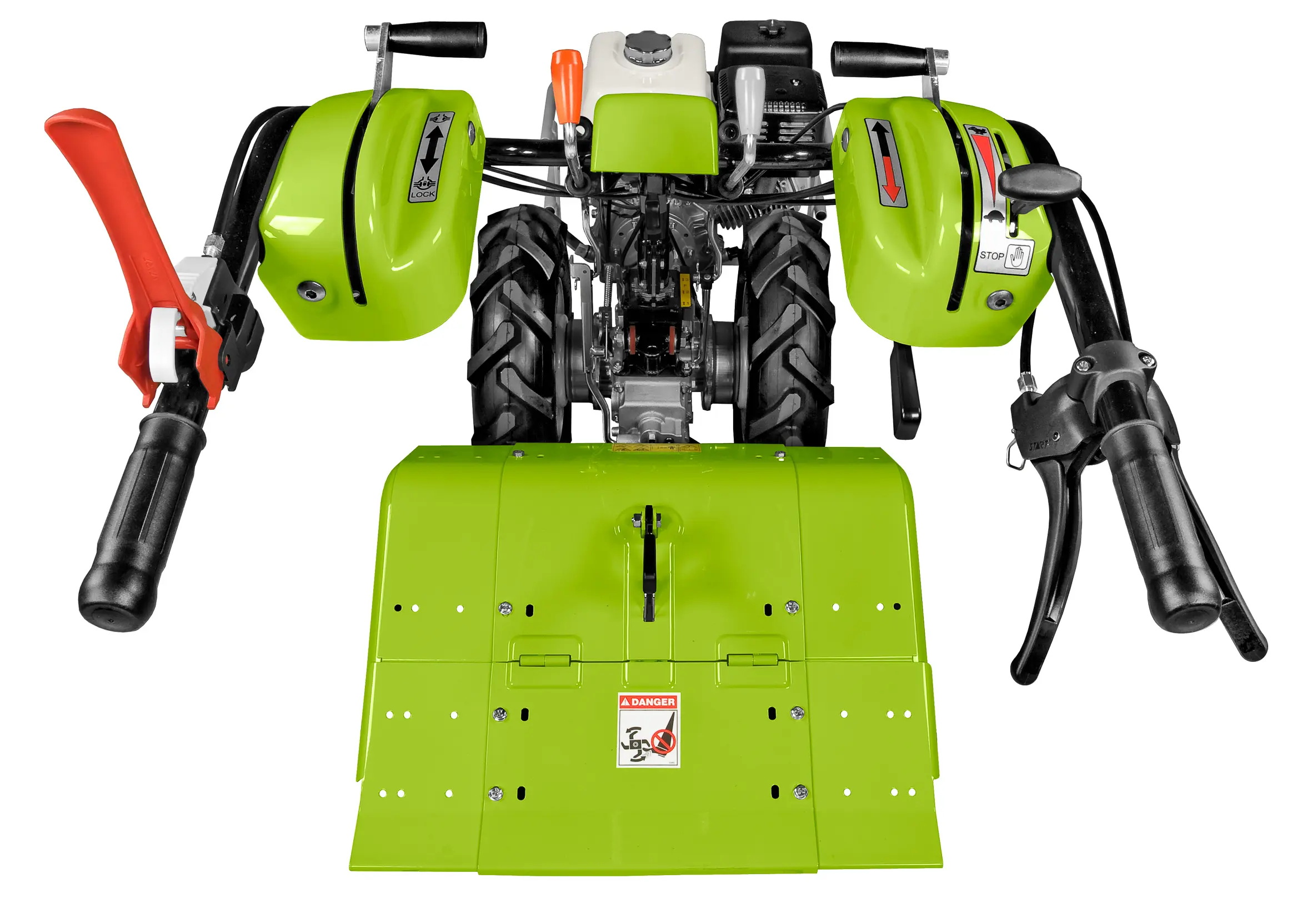

Handlebar With height and side adjustment and reversible.
Safety devices Active clutch, reverse speed – PTO cut out, automatic decelerator in reverse speed.
Weight 142 kg (GX390) with cm 68 rotary tiller and 5.00-10 wheels- 168 kg (KD15 440) with cm 68 rotary tiller and 5.00-10 wheels.
