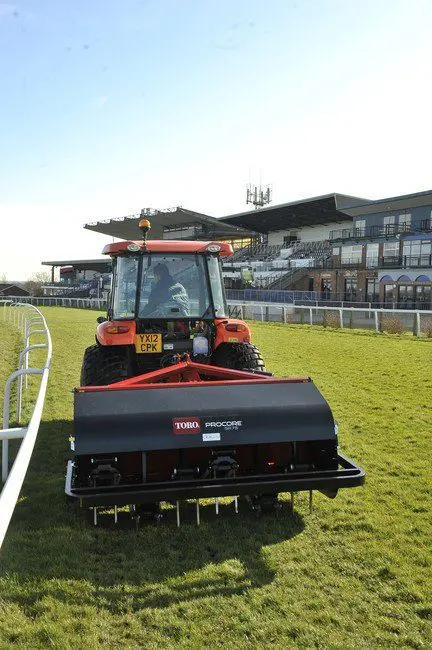

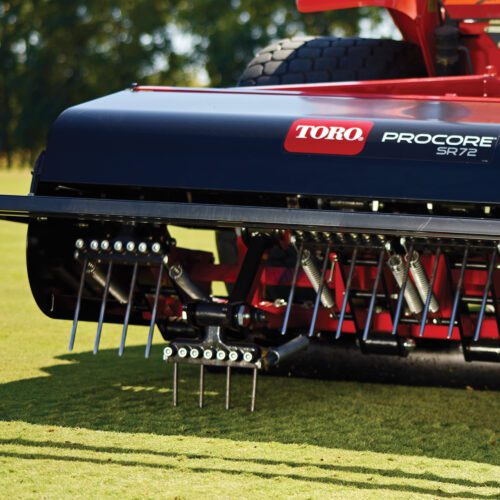

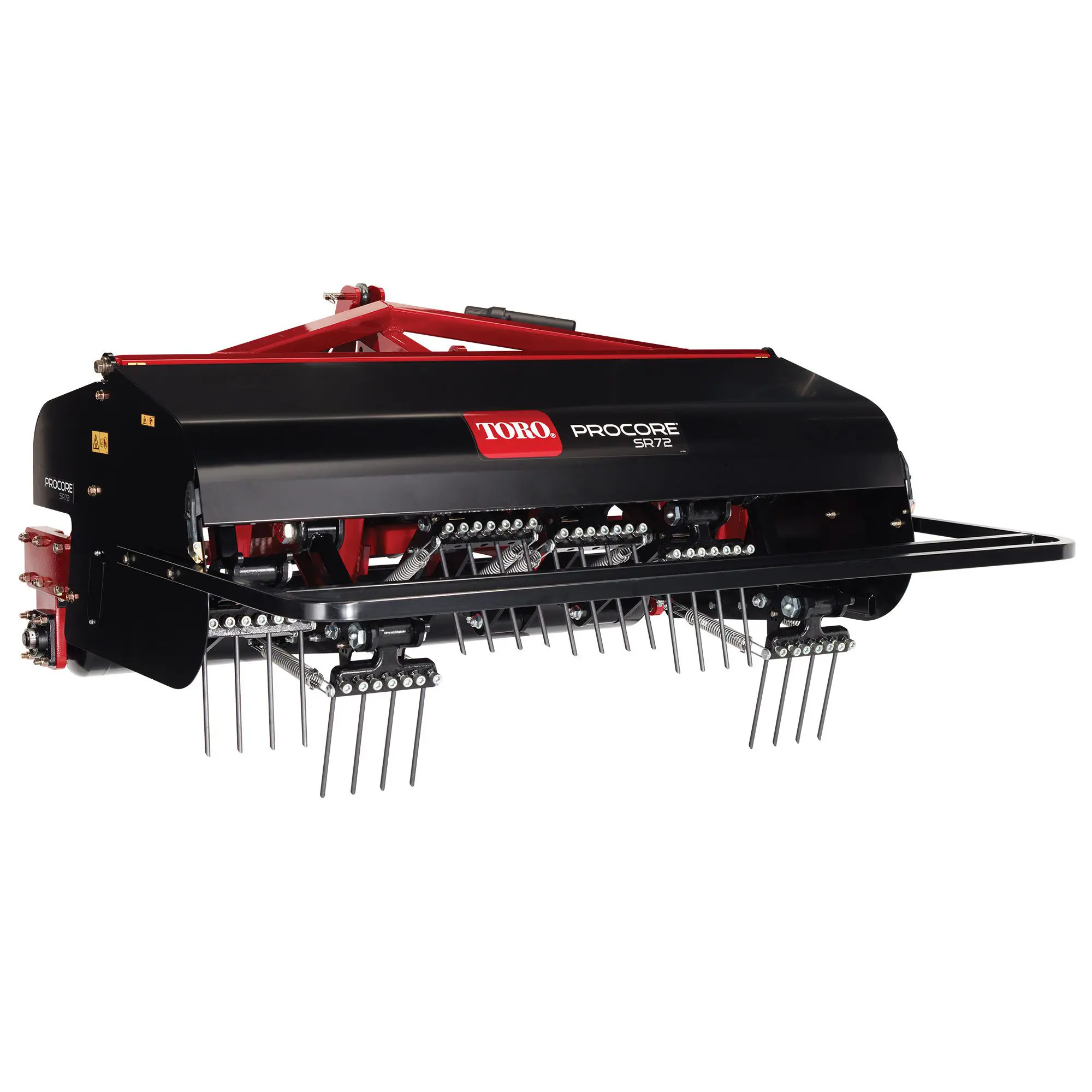

The compact and heavy duty SR72 is designed for use on a variety of turf areas including fairways, greens, tees, and athletic fields. The SR72 features a working width of up to 72″ (1.83 m) and depth capabilities of up to 16″ (40.6 cm).
ProCore SR Series deep-tine aerators alleviate subsurface soil compaction, helping to create an environment for turf to thrive. These durable and time-tested products are capable of withstanding the most extreme aeration conditions. From lightweight, precision machines to robust, heavy-duty machines to break up soil on even the most compact surfaces, the ProCore SR Series deep-tine aerators are the ultimate choice for performance and quality.
The crankshaft, tine arms and frame are perfectly aligned allowing for superior performance and long life. With its fast, efficient performance and innovative design, the deep-tine aerators are able to run smoothly at all depths, relieving pressure-packed soil with superior hole quality. The leverage of the aerator allows the weight to be placed directly over the point of impact, enabling lightweight units to do heavyweight jobs while reducing shock and wear and tear on the machines.
The crankshaft, tine arms and frame are perfectly aligned allowing for superior performance and long life. With its fast, efficient performance and innovative design, the deep-tine aerators are able to run smoothly at all depths, relieving pressure-packed soil with superior hole quality.
Heavy-Duty Design

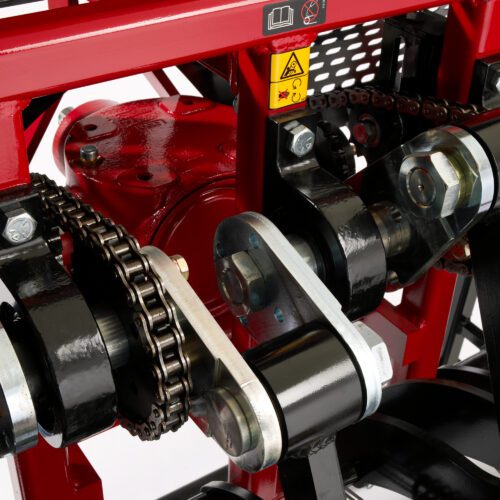

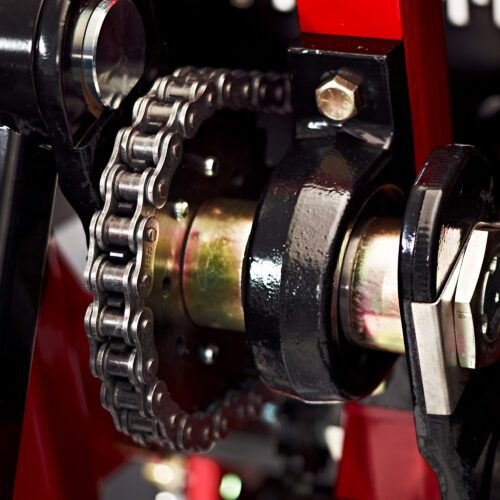

These robust machines are capable of withstanding extreme aeration conditions. The heavy-duty design includes an oversized gearbox, heavy-duty bearings, crank arms and chains, allowing you to operate in the toughest conditions.
Depth Control from the Operator's Seat
The distinctive frame construction incorporates perfectly aligned arcs following the movement of the crank arms and the movement of the main frame. This design allows the operator to change the tine depth without changing the angle of entry by using the hydraulic top link from the tractor while the machine is in operation. Because of this one-of-a-kind feature, you can apply the ideal tine position for every soil type and condition, without leaving your seat.
Adjustable Soil Fracturing Capabilities

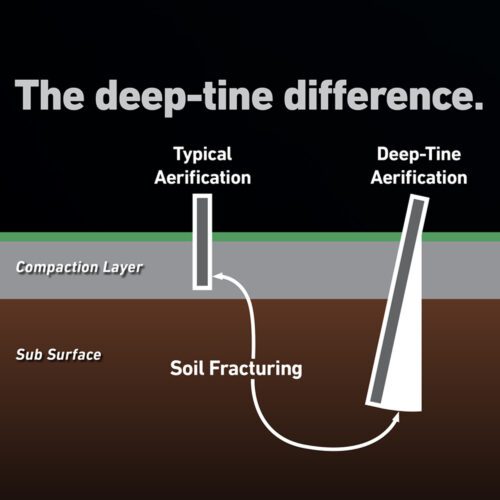

There are multiple positions available to adjust the soil fracturing movement of the tines. This allows you to adjust and control this motion to your desired application.
Superior Punching Power
The leverage of the aerator allows the weight to be placed directly over the point of impact, enabling lightweight units to do heavyweight jobs while reducing shock and wear and tear on the machines.
Easy Hook-Up & Operation

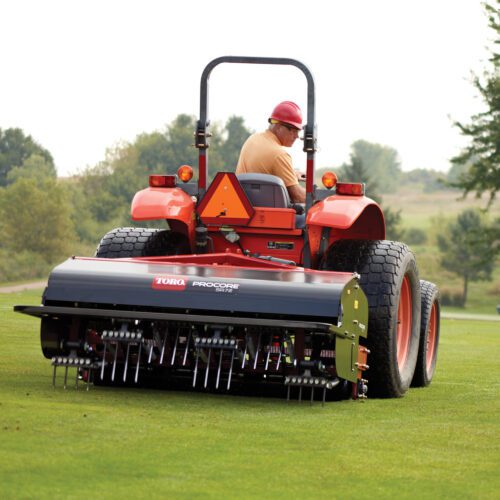

All of the deep-tine models utilize a standard 3-point hitch hook-up and are powered from the PTO.
Coring & Solid Tines

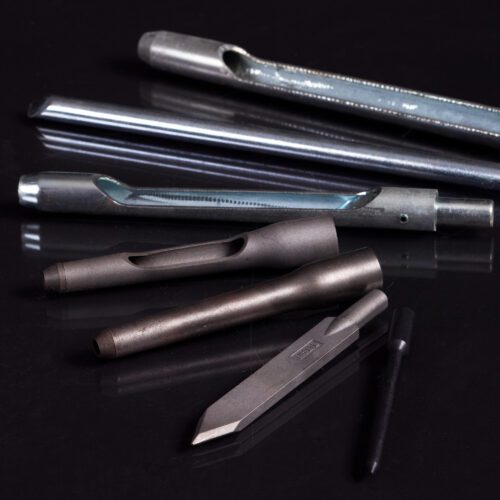

There are many coring and solid tines available to cover a wide variety of cultivation practices.
Specifications
Aeration Type
Deep
Forward Hole Spacing
3" - 6" (75 - 150 mm)
Lift System
Standard 3-point.
Maximum Operating Depth (Working Depth)
1" - 16" (25 - 406 mm)
Maximum PTO Speed
400 - 500 rpm
Number of Tine Heads
6
Operating Speed
0.8 - 1.5 mph (1.29 - 2.41 kph)
Operating Width (Working Width)
72" (1.83 m)
Optional Accessories

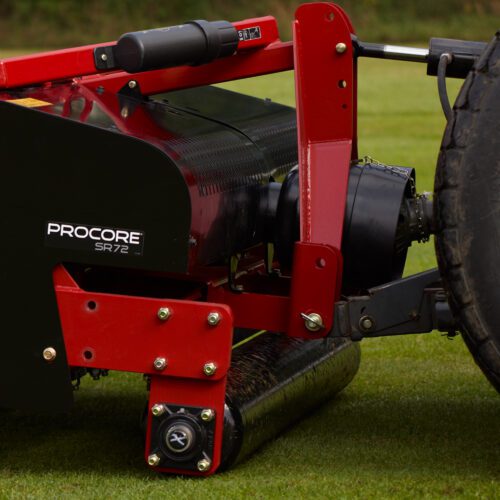

Rear Roller Kit (09954)
Productivity
38,000 sq. ft. / hour (3,530 sq. m / hour)
Recommended Tow Vehicle Requirement
45 hp (33.6 kW) with minimum 2,800 lb. (1270 kg) lift capacity
Weight
2,091 lbs. (945 kg)
