Toro TransPro 80 & 200 Series Trailers
TORO TransPro trailers are the safe and easy way to transport walk greens mowers to and from the mowing area. The unique trailer design protects your mower investment and keeps adjustments intact. The TransPro 80 transports a single Greensmaster with a Flat Ramp or Rail Ramp Kit. The TransPro 200 can transport two Greens Mowers (excluding the Greensmaster 1600 and 1026) to reduce time and increase productivity.
- Safe Transport of Greens Mowers
- Protects Adjustments
- Easy to Load
Open Trailer Design
Allows for easy washdown of mowers without unloading.
Single Configuration
Trailer fits both 18″ (45.7cm) or 21″ (53.3cm) wide mowers.
Adjustable Roller Pockets
Allow for configuration of fixes units, flex units, with or without groomers.
Low Pressure Tyres
Large low pressure tyres provide flotation to protect your mower.
Description
TransPro 80:
- Safely transport 1 walk greens mower
- Rail ramp simplifies operation and reduces loading time by up to 50% – no need to mount mower transport wheels
- Large trailer tires to cushion ride and help protect mower during transport
- Rubber mat protects greens mower front rollers during transport, helping keep mower adjustments intact
- Open design allows servicing and washdown while mower is on the trailer
- Quick-lock device secures mower to the trailer for safe transport

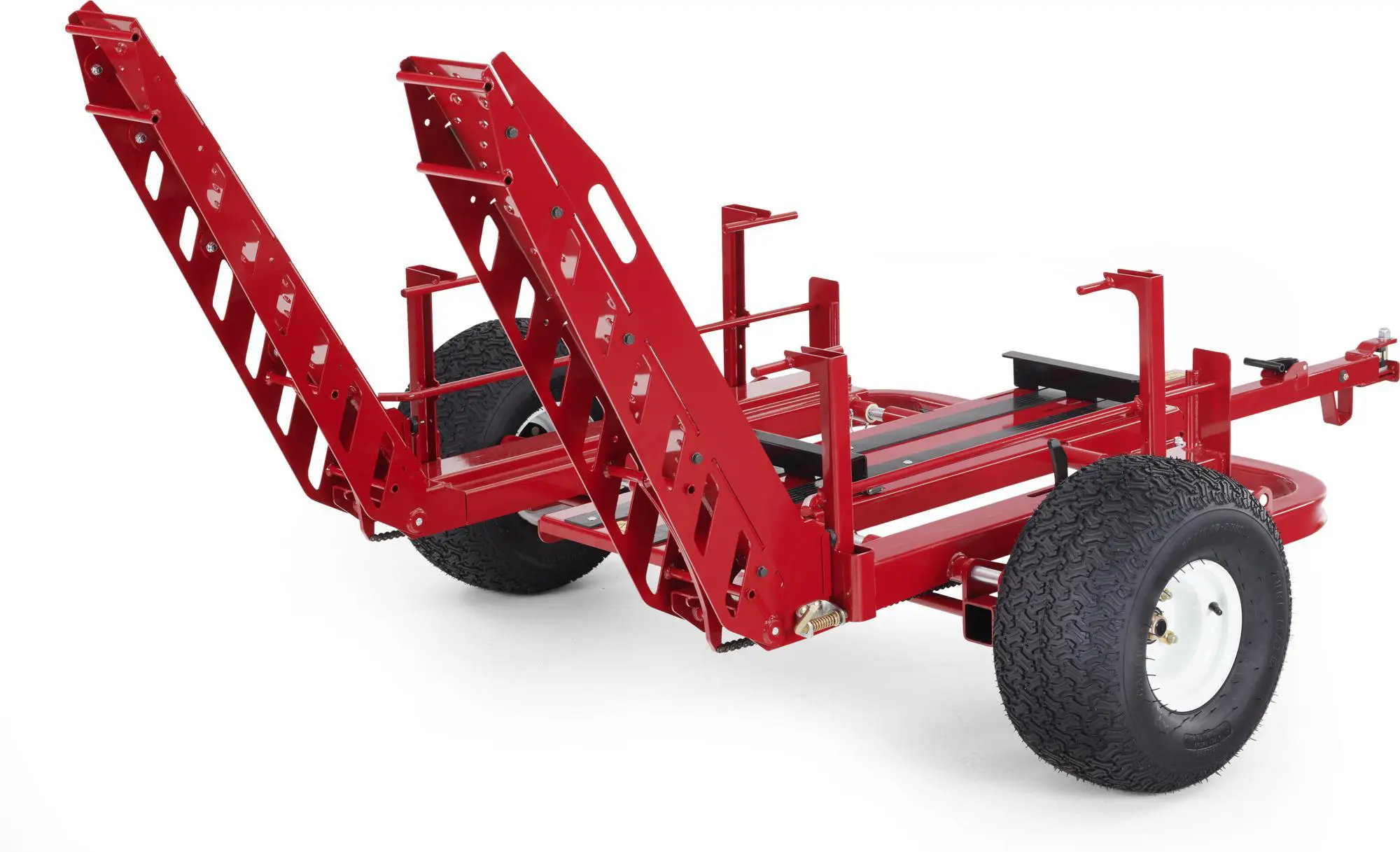

TransPro 200

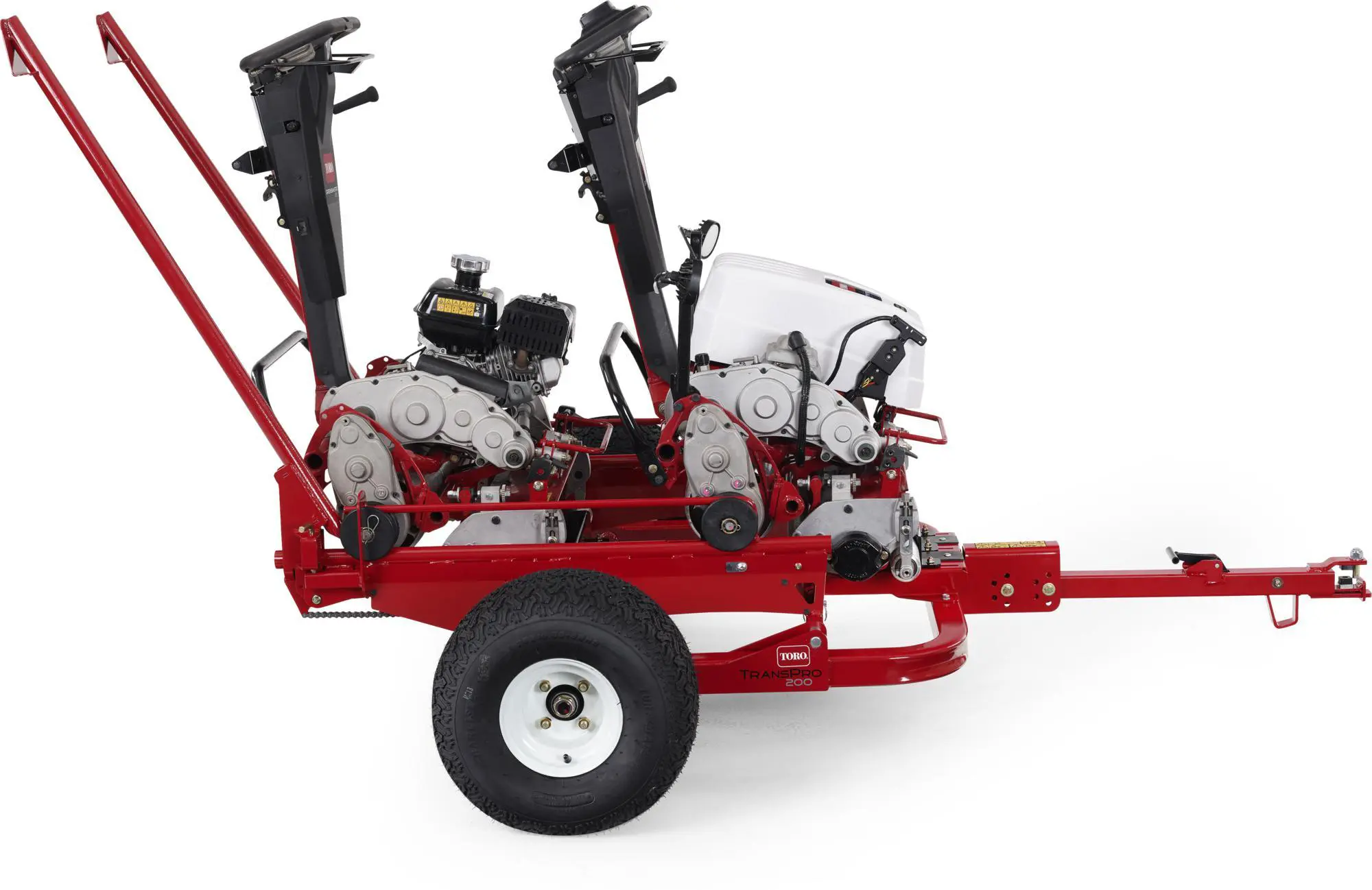

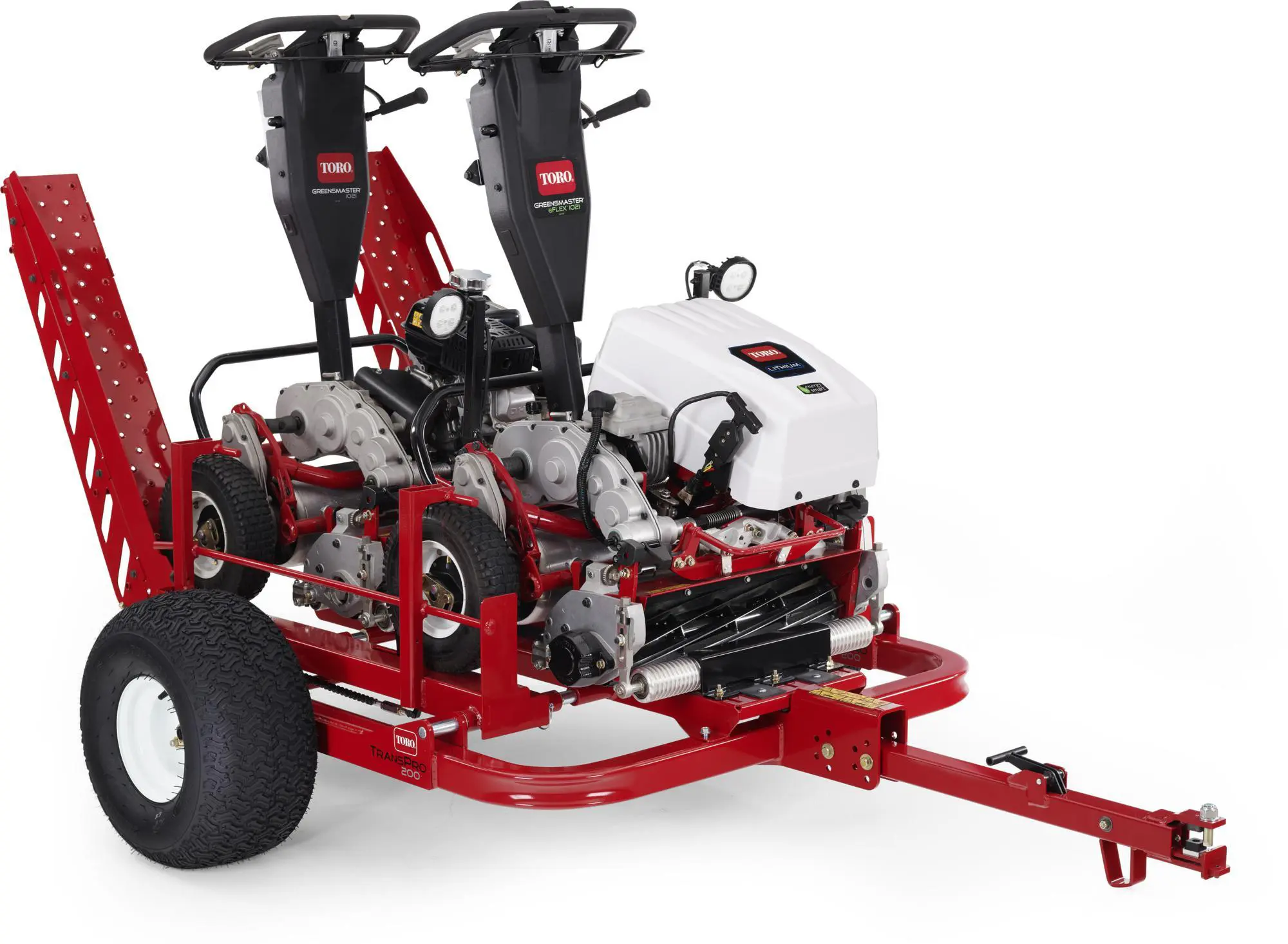

- Safely transport 1 or 2 walk greens mowers
- Rail ramp module simplifies operation and reduces loading time by up to 50% – no need to mount mower transport wheels
- Adjustable roller pockets allow for configuration of fixed units, flex units, with or without groomers
- Combination of roller pocket, rubber mats and wheel/donut retainer securely retain mower(s) in place helping keep mower adjustments intact. Once the ramp or rails are raised – units are locked in place
- Open trailer design allows for easy washdown of the mower without unloading
- Single configuration for either 18″ (45.7cm) or 21″ (53.3cm) wide units
- Hitch pin release is incorporated into convenient lift handle for trailer hitch. 2.5″ (6.35cm) adjustable hitch height for level trailering and loading
- Transport Speed: Maximum of 15 mph (24 km/h)
- Hitch: Pin type hitch is standard
- Suspension: Large low pressure tyres (20 x 10-8)
- Rail: Textured loading rails for use in conjunction with smaller bogey (donut) wheels in place of transport tyres
- Towing: Designed to tow behind a utility vehicle with tongue height 18-33 cm (7″-13″); maximum tongue load 25 kg (55lbs.)
- Finish: Rust/corrosion-resistant paint
TransPro 80:
- Load Capacity: 181.6kg (400lbs.)
- Ramp: Textured split ramp design with detented wheel retainers
- Retention Method: Quick latch mower caddy, wheel/donut retainer, and retention straps to
maintain upright mower orientation - Axles:Â Heavy-duty stub. Greaseable
- Dimensions: Height: 48.3 cm (19″); Width: 157.5 cm (62″); Length: 205.7 cm (81″)
TransPro 200:
- Load Capacity: 522kg (1,150lbs.)
- Ramp:Textured split ramp design with spring-loaded ramp retainers for storage during transport operation
- Retention Method: Adjustable front roller pockets and wheel/donut retainer positively secure mower for transport
- Axles:Â Heavy-duty stub. Maintenance-free sealed bearings.
- Dimensions: Height: 154.9 cm (61″); Width: 172.7 cm (68″); Length: 274 cm (108″)
Additional information
| Brands | TORO |
|---|
