Ventrac 4520N Petrol EFI Tractor - Kubota 32.5HP

Model: 4520N
Ventrac

Ventrac 4520N Petrol EFI Tractor - Kubota 32.5HP

Model: 4520N
Ventrac

Made for Slopes! Now with More Power.

Through Ventrac’s advanced engineering and design efforts, the best mix of machine performance, operator experience, and durability has come together in the new 4520 tractor.

At its core, the 4520 is a compact tractor, but it is very different than what most are used to seeing and that is a great thing. The purpose of a tractor is to perform tasks more efficiently, with better results than hand labor. The Ventrac 4520 plays on these advantages, then takes it to the next level. When coupled with the extensive line of Ventrac attachments, this tractor is a great machine for a variety of professional users.

*Pricing on models shown do not include additional accessories or parts. The images shown are for illustration purposes only and may not be an exact representation of the model.

$80,937 incl. gst
or $ per week*
*Based on $16,187 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.

1 in stock

Enquire
Ventrac Warranty
V-Plus Warranty

2-Year Commercial Limited Warranty*

All new Ventrac tractors and attachments purchased in the New Zealand are covered by Ventrac’s V-Plus Warranty, so you can purchase with confidence!

Designed For Slopes

Exceeds ANSI B71.4 Stability Testing

  1. Flex Frame
  2. Weight Transfer

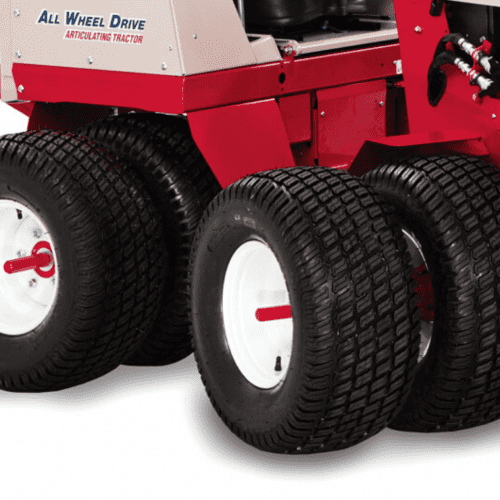

  3. Dual Wheels

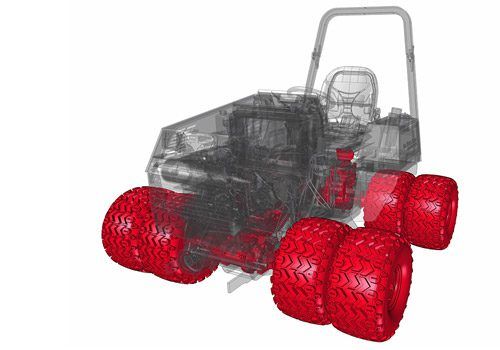

  4. Low Center of Gravity
  5. Floating Attachment
  6. Performance Engineered Tires
  7. Optional Slope Gauge
Slope Mowing Benefits
Slope Benefits for sloipe mowing up to 30 degrees

Features

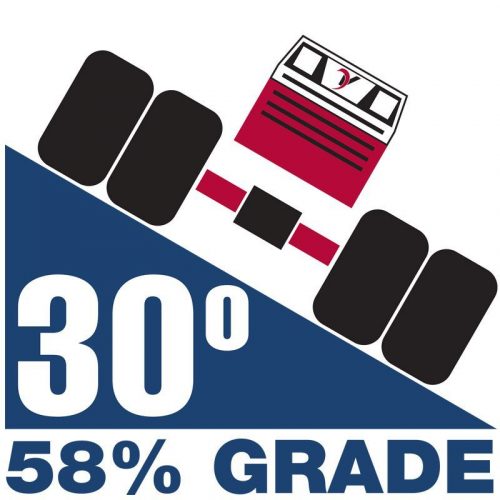

Up to 30 Degrees Ventrac

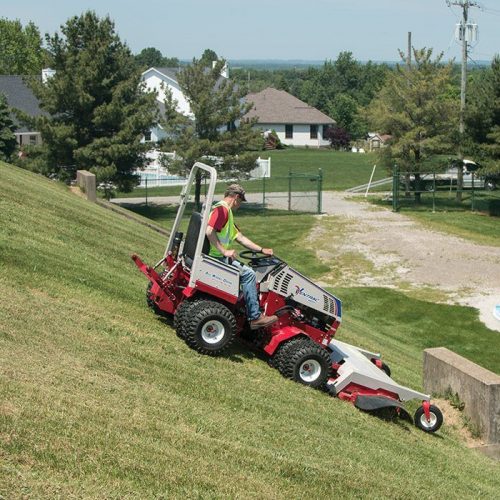

Made for Slopes

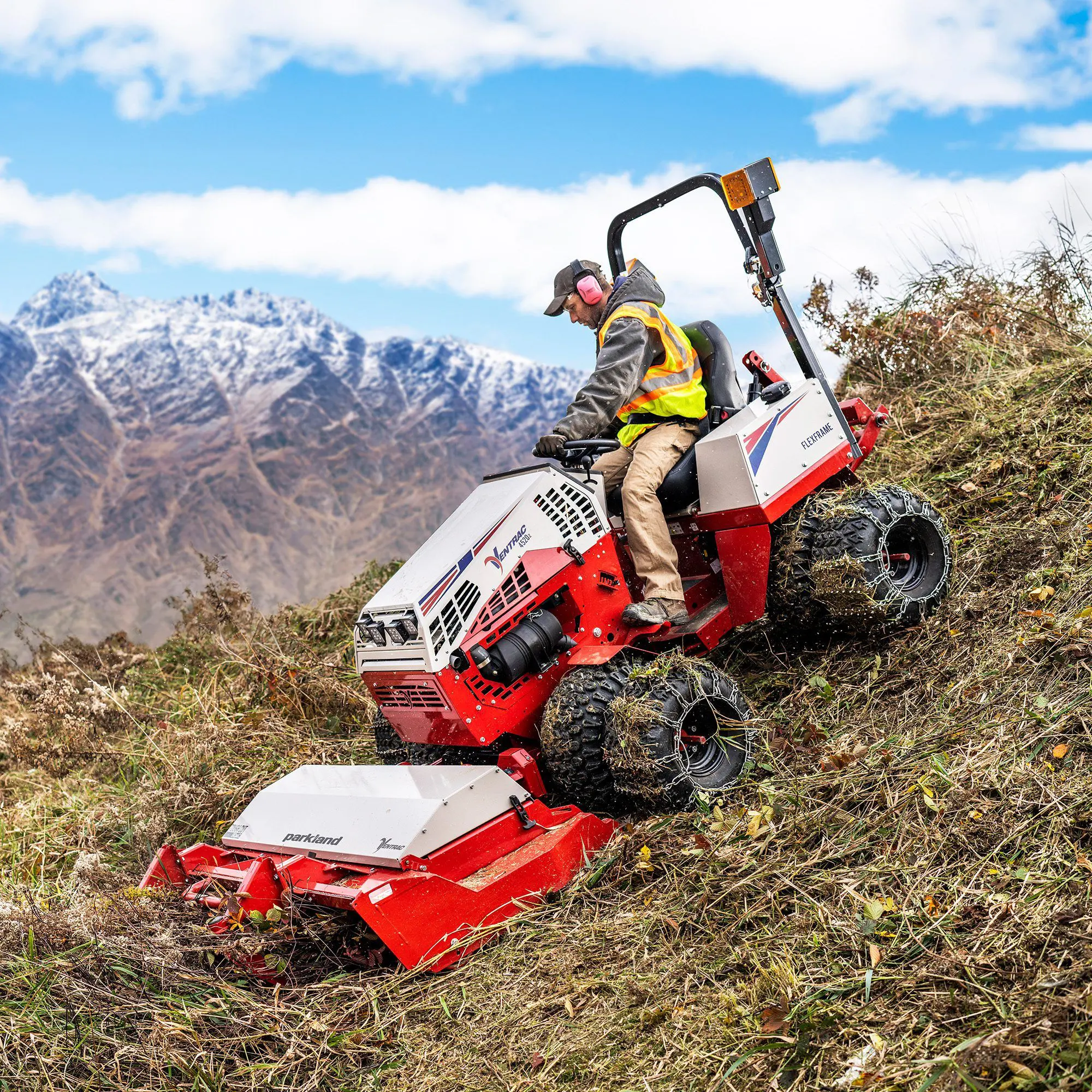

Ventrac's slope capabilities will elevate your operational experience to the next level. With a unique blend of features that no other machine can offer, Ventrac provides exceptional stability and control on slopes. Up to 30 Degree slopes with dual wheel attachment.

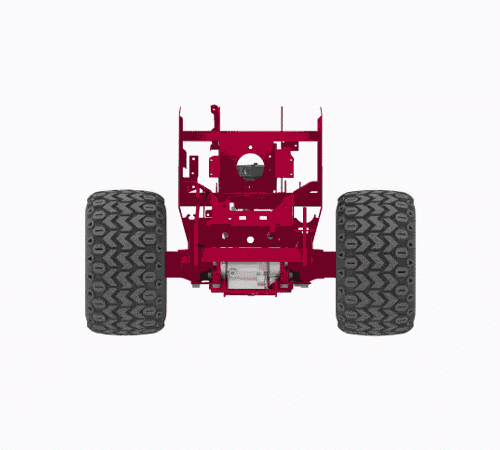

Ventrac Tractor flex-frame

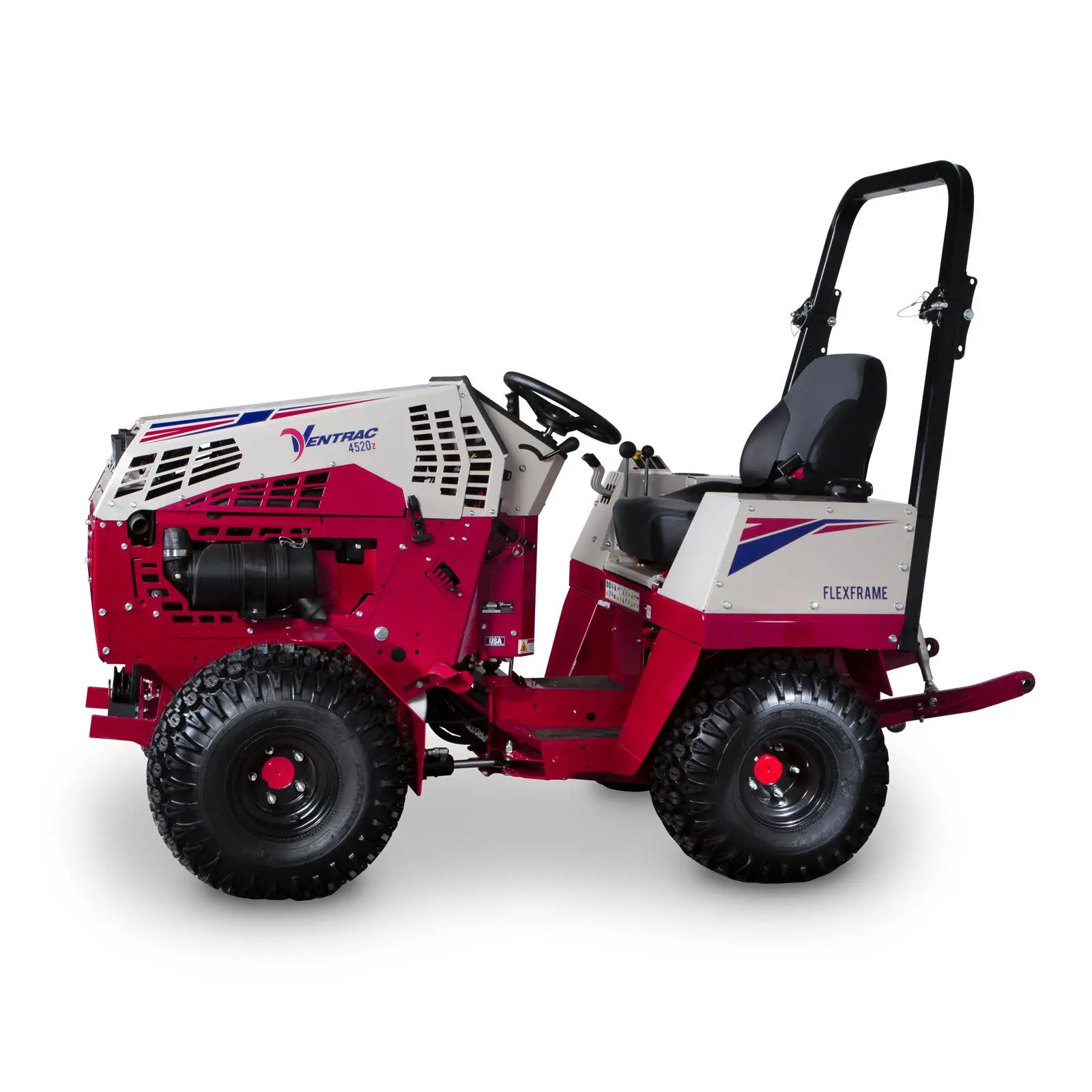

FlexFrame

Ventrac FlexFrame allows the 4500 tractor to both articulate and oscillate. These benefits allow the machine to crawl over terrain no matter how it changes, allowing more stability and capability to work on surfaces that aren’t perfectly flat.

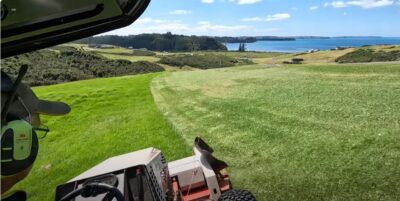

All-Season Performance by Ventrac

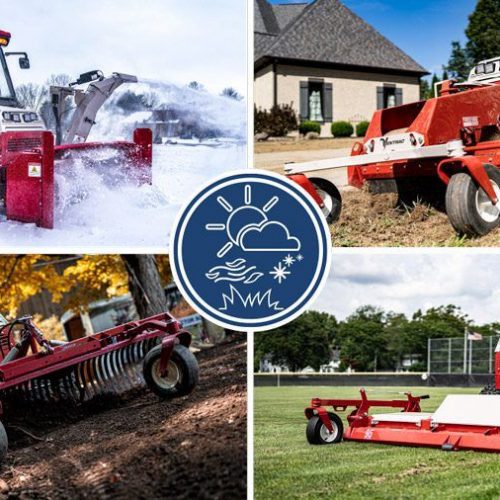

All-Season Performance

The Ventrac 4520 boasts exceptional all-season capabilities, seamlessly adapting to various terrains and weather conditions with its versatile attachments, allowing efficient operation year-round. Its innovative design and adaptable features make it an ideal choice for tackling a wide range of tasks.

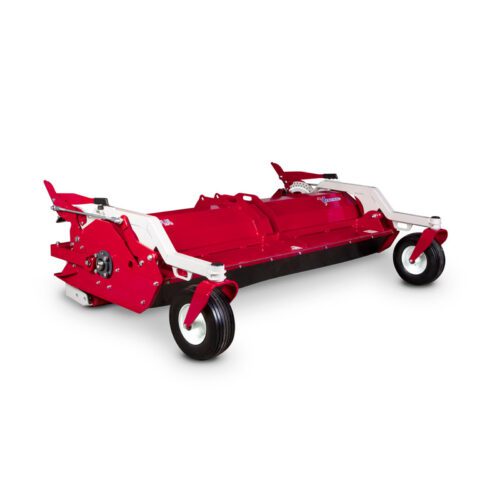

Ventrac Quick Connect

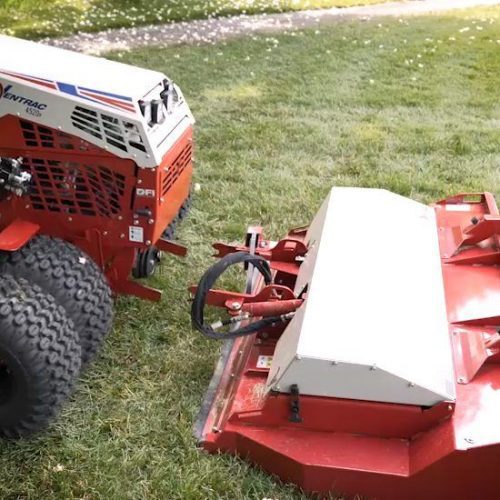

Quick Connect Out-Front Attachments

The Ventrac Mount System raises the standard for how tractors should connect to their attachments. Switching between attachments should never take a lot of time or effort. With the Ventrac Mount System changing attachments to get to the next job is a breeze. With experience, all Ventrac attachments connect in minutes without the need of tools or heavy lifting.

All-Wheel Drive

Full-time, all-wheel hydrostatic drive delivers maximum performance and traction to help you get the job done.

Downhill Braking

Quick hydrostatic braking allows operators to confidently slow down, stop and reverse on hills.

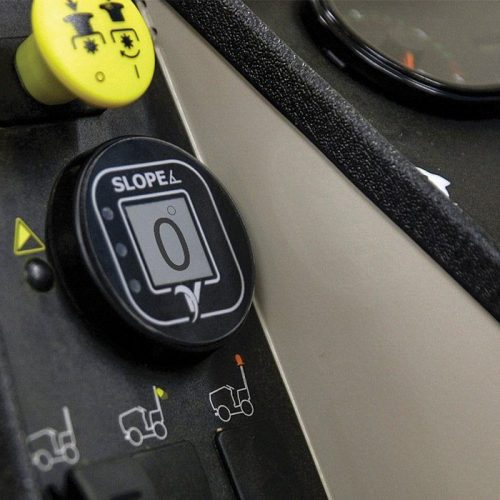

Know Your Degree

Know your degree of operation for increased safety on slopes. Optional slope degree gauge is available.

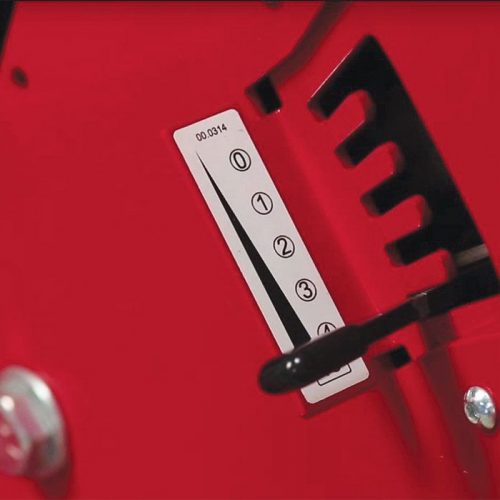

Traction Control

Ventrac's innovative weight transfer system improves traction, braking, and side-slope steering security by shifting a portion of the front attachment weight onto the tractor.

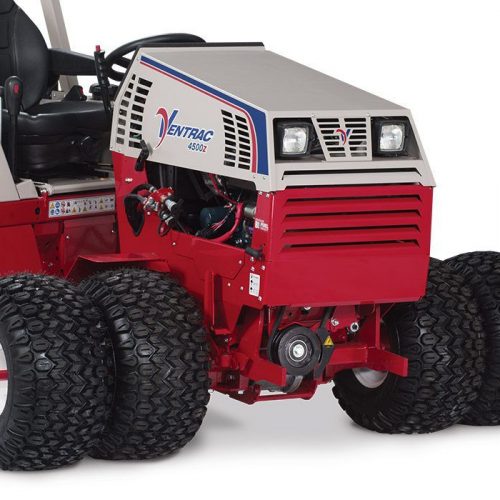

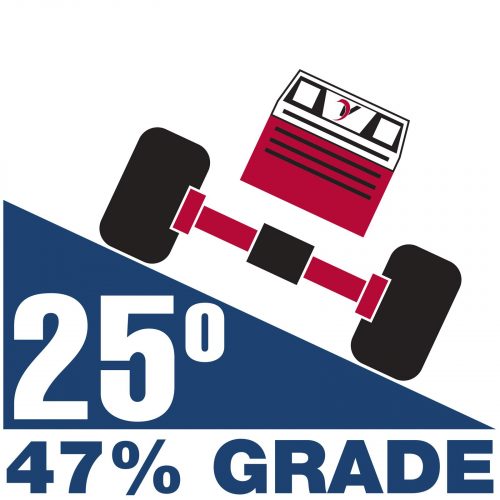

Wide Stance

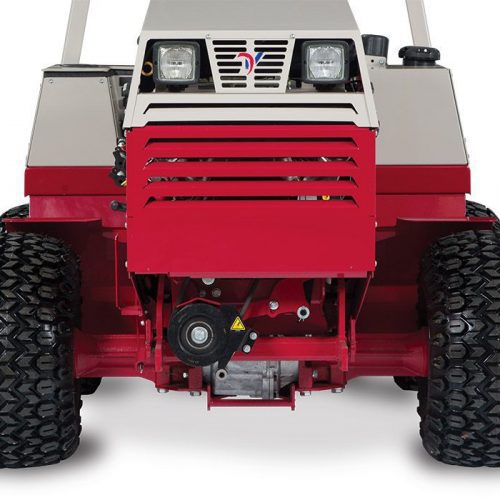

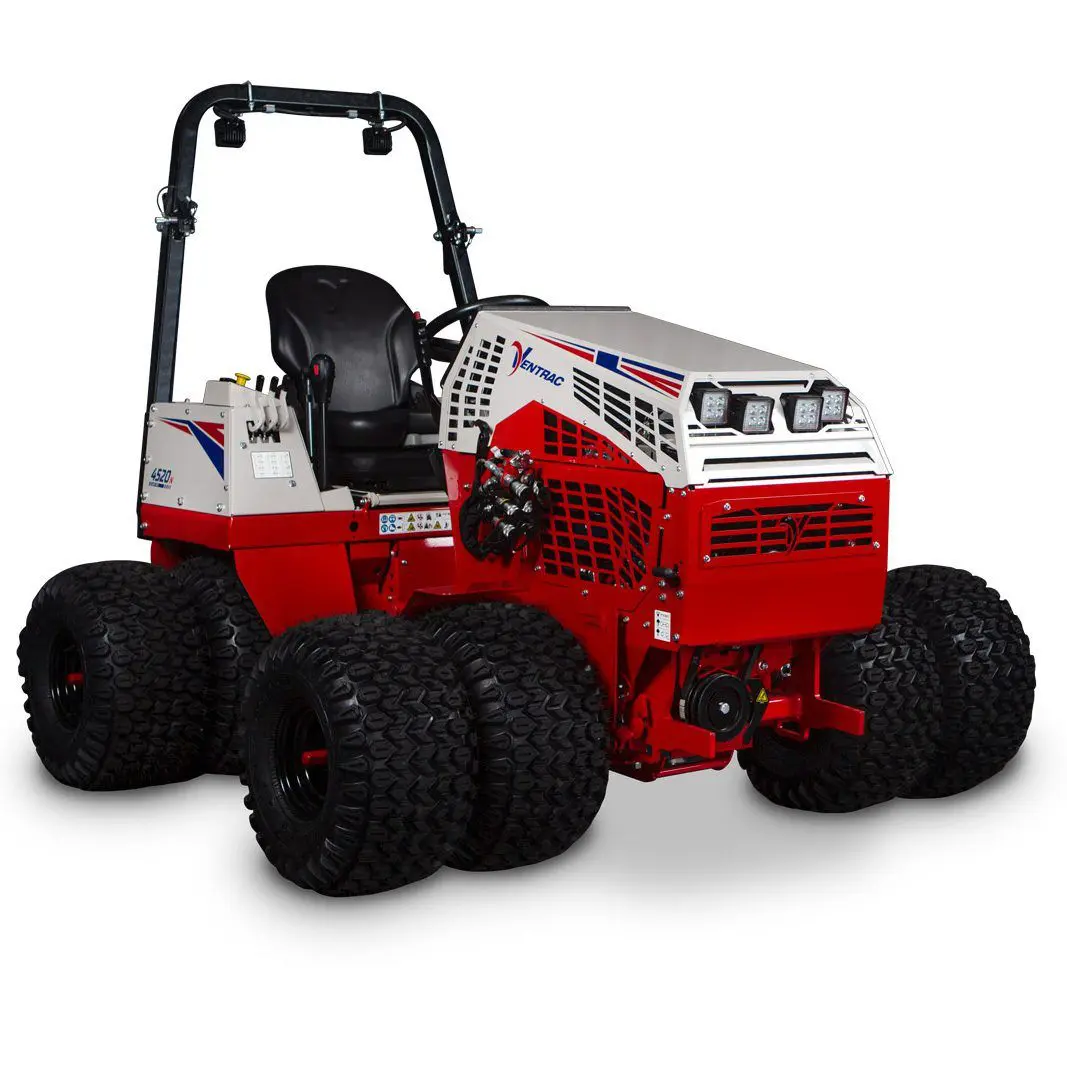

For increased safety and stability on hillsides, add the optional wheel extensions (up to 25°) or dual wheels (up to 30°).

Specifications

Engine Kubota, 32.5HP, 3 Cylinder Petrol EFI
Engine CC 962CC

Cooling Liquid
Fuel Type Gas EFI
Fuel Capacity 22.7 l
Drive AWD All Wheel Drive
Travel Speed - Low Range 8.05 km/h, 6.44 km/h reverse
Travel Speed - High Range 16.1 km/h, 12.9 km/h reverse
Warranty 2 year limited warranty*
Turning Radius 99cm (39 in)
Ground Clearance 12.7cm (5 in)
Oscillation amount (@wheel) 19cm (7 1⁄2 in)
Overall Width 123cm (48 1⁄2 in)
Overall Length 207cm (81 1⁄2 in) standard hitch, ROPS up
Height (ROPS up) 172.7cm (68 in)
Height (ROPS down) 137cm (54 in)
Weight with 3Pt hitch 771kg 1770 lbs
Wheelbase 114.3cm (45 in)
All Terrain Tires 22 x 12-8"
Turf Tires 22 x 11-10"
Est. Fuel Economy (W/ 60in Mower) 4.54 l /hour
Peak Torque 69.1 N m
